IP камера UNIVIEW IPC2322EBR-P

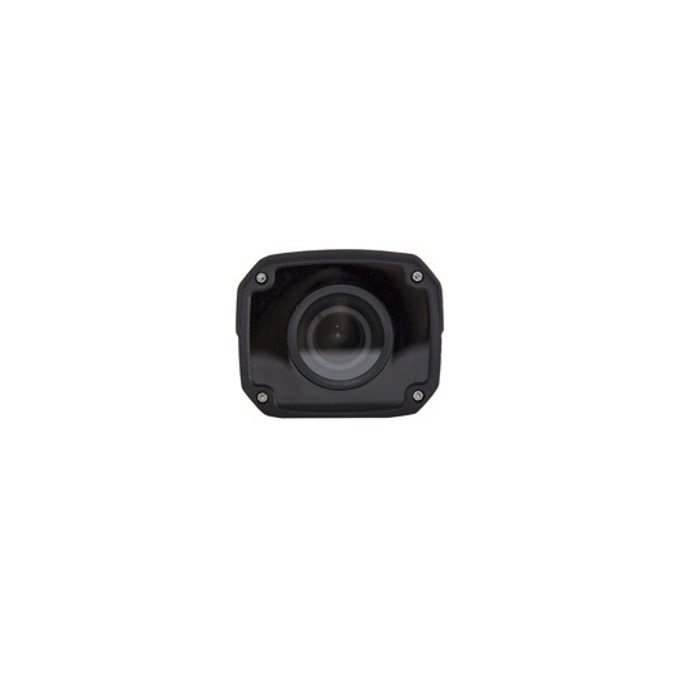

Uniview IPC2322EBR-P
Uniview IPC2322EBR-P е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Camera
Sensor
1/2.7", 2 Megapixel, progressive scan CMOS
Lens
2.8~12 mm@F1.4
Angle of View(H)
90° ~ 28°
Zoom/Focus
Manual
Shutter
Auto/Manual, 1/6~1/8000s
Min. Illumination
Colour: 0.06 Lux (F1.4, 50IRE)
Black & White: 0.03Lux (F1.4, 50IRE)
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>52dB
Video
Max. Resolution
1920 × 1080
Video Compression
H.264,MJPEG
Frame Rate
1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
Video Streaming
Triple
9:16 Corridor Mode
Supported
ROI
Supported
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
Audio
Audio Compression
G.711
Two-way audio
Supported
Storage
Edge Storage
Micro SD, up to 128 GB
Network
Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP
Compatible Integration
ONVIF, API
Interface
Audio I/O
Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Характеристики
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| General | Мощност |
| 12 V DC, or PoE (IEEE802.3 af) | Power consumption: Max 8W |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Материал | Cast aluminum |
| Тегло | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
