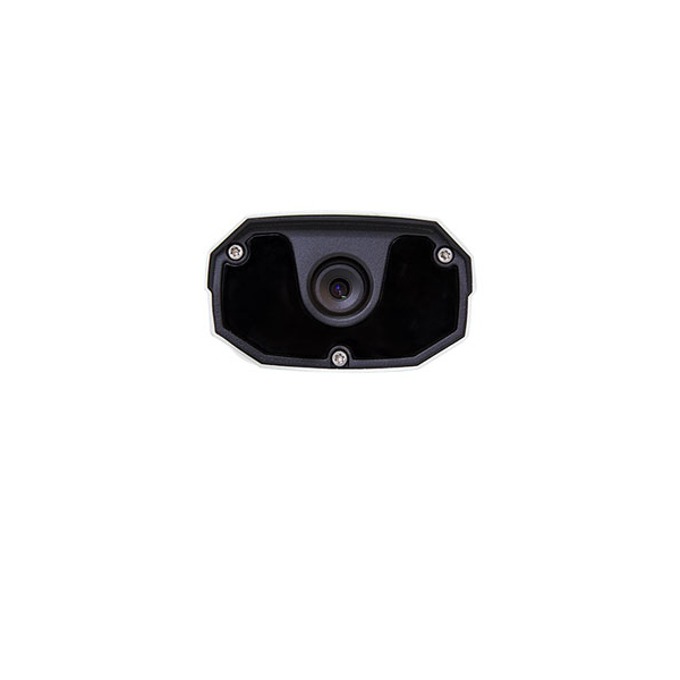

IP камера UNIVIEW IPC221ER-DF36
UNIVIEW IPC221ER-DF36
Uniview IPC221ER-DF36 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Optics
* Day/night functionality
* Smart IR technology
* Up to 120dB WDR (Wide Dynamic Range)
* 3D DNR (Digital Noise Reduction)
* Optical glass window with higher light transmittance
* IR anti-reflection window to increase the infrared transmittance
Compression
* Triple streams
* ROI (Region of Interest)
* 9:16 corridor mode
* Customized OSD
Network
* ONVIF Conformance
Structure
* Support PoE power supply
* Wide temperature range: -35°C to 60°C (-31°F to 140°F)
* Wide voltage range of ±25%
* IP66
Camera
Sensor 1/3", 1.3 megapixel, progressive scan CMOS
Shutter Auto/Manual, 1/6~1/8000 s
Lens 3.6mm@F1.8; Angle of View (H): 76°
Day/Night IR-cut filter with auto switch (ICR)
Min. Illumination Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR
S/N >50dB
Image Rotation Supported
WDR 120dB
Video
Max. Resolution 1280 × 960
Video Compression H.264,MJPEG
Frame Rate 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
9:16 Corridor Mode Supported
ROI(Region of Interest) Supported
Характеристики
| Video Streaming Triple | OSD Up to 8 OSDs |
| Privacy Mask Up to 4 areas | Аудио |
| Audio Compression G.711 | Two-way audio Supported |
| Network | Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x |
