UniVIEW
IP камера UNIVIEW IPC2121SR3-PF60
Артикул №: 1000010252
Категория:
Цифрови IP камери
81,99 €
✓ Налично във външен склад

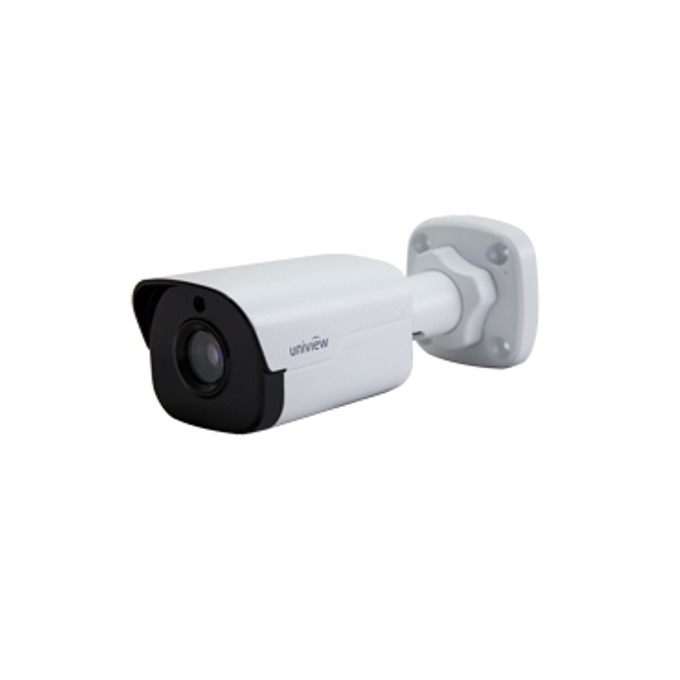

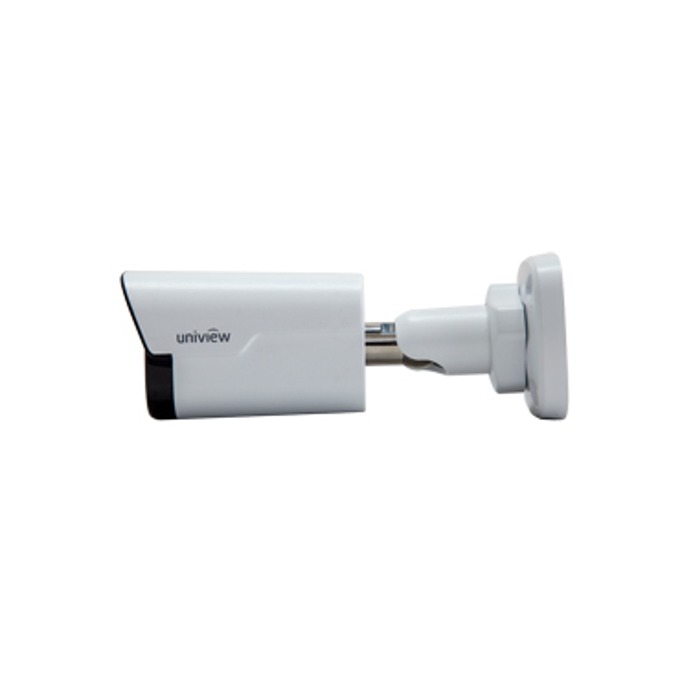

Uniview IPC2121SR3-PF60
UNIVIEW IPC2121SR3-PF60 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Camera
Sensor
1/3", 1.3 megapixel, progressive scan, CMOS
Lens
Angle of View(H)
72.9°
46.7°
23.5°
Shutter
Auto/Manual, 1/6~1/100000 s
Min. Illumination
Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR on
IR Range
Up to 30m (98 ft) IR range
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>50dB
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps
Video Streaming
Triple
ROI
Supported
Evaluative Metering
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible Integration
ONVIF, API
Interface
Network
1 RJ45 10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
UNIVIEW IPC2121SR3-PF60 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Camera
Sensor
1/3", 1.3 megapixel, progressive scan, CMOS
Lens
Angle of View(H)
72.9°
46.7°
23.5°
Shutter
Auto/Manual, 1/6~1/100000 s
Min. Illumination
Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR on
IR Range
Up to 30m (98 ft) IR range
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>50dB
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps
Video Streaming
Triple
ROI
Supported
Evaluative Metering
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible Integration
ONVIF, API
Interface
Network
1 RJ45 10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Характеристики
| ONVIF, API | Интерфейс |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | Мощност |
| 12 V DC, or PoE (IEEE802.3 af) | Power consumption: Max 6.4 W |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Тегло | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP67 |
