IP камера TP-Link VIGI InSight S385PI

TP-Link VIGI InSight S385PI

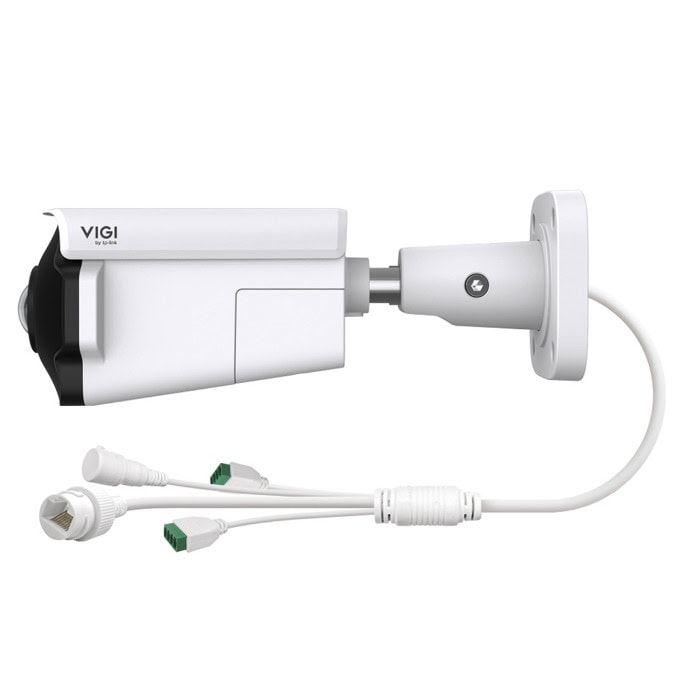

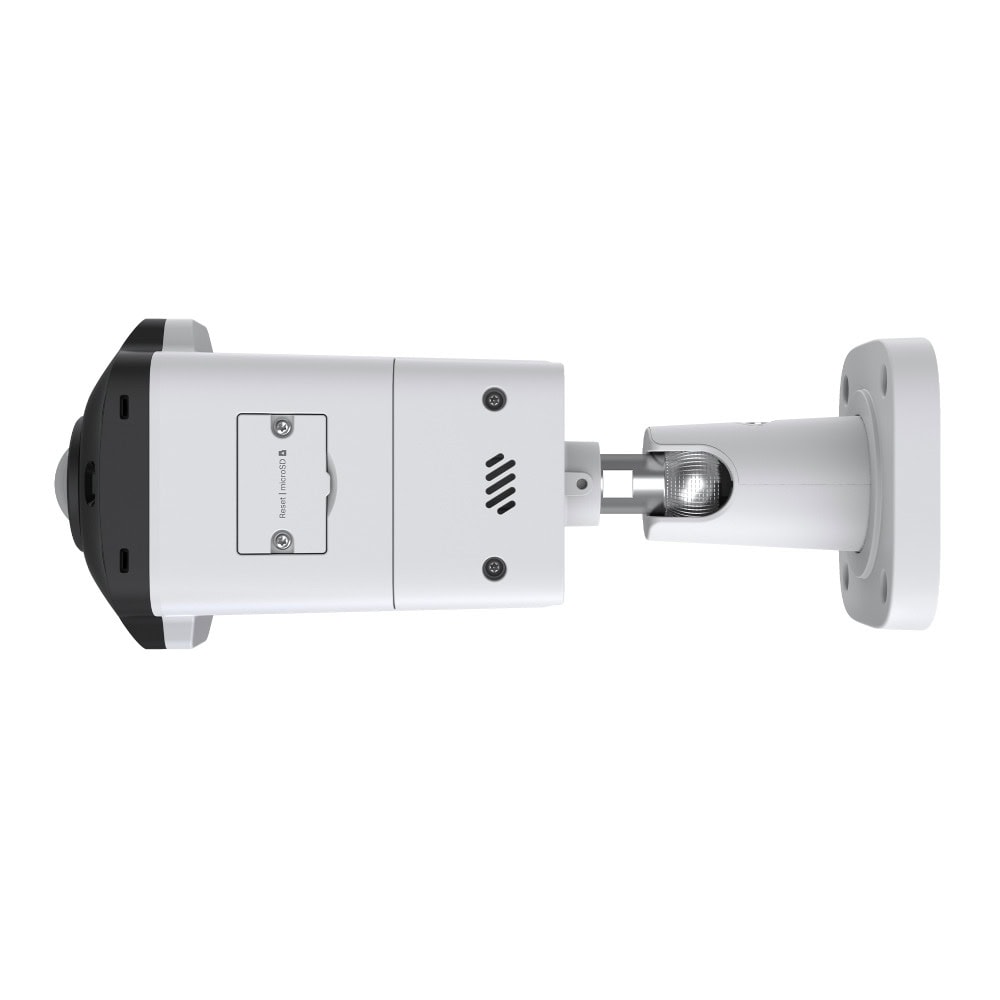

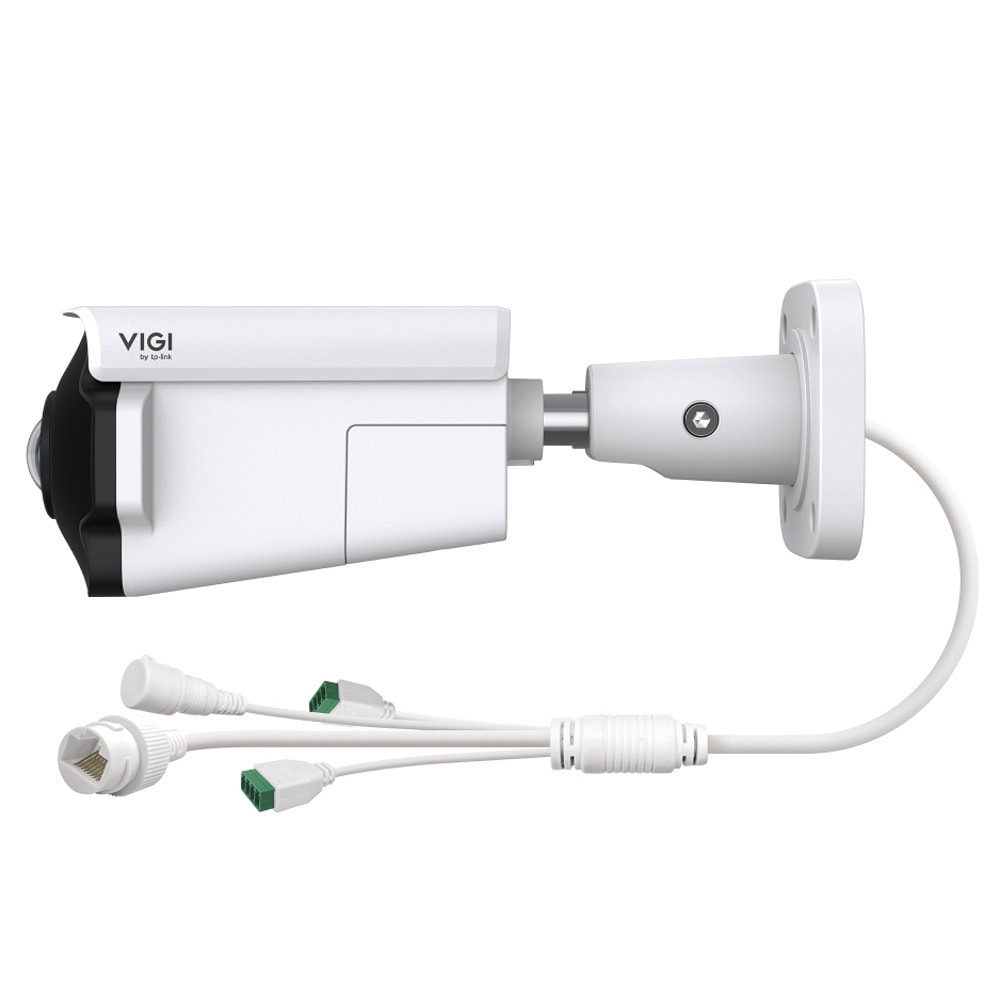

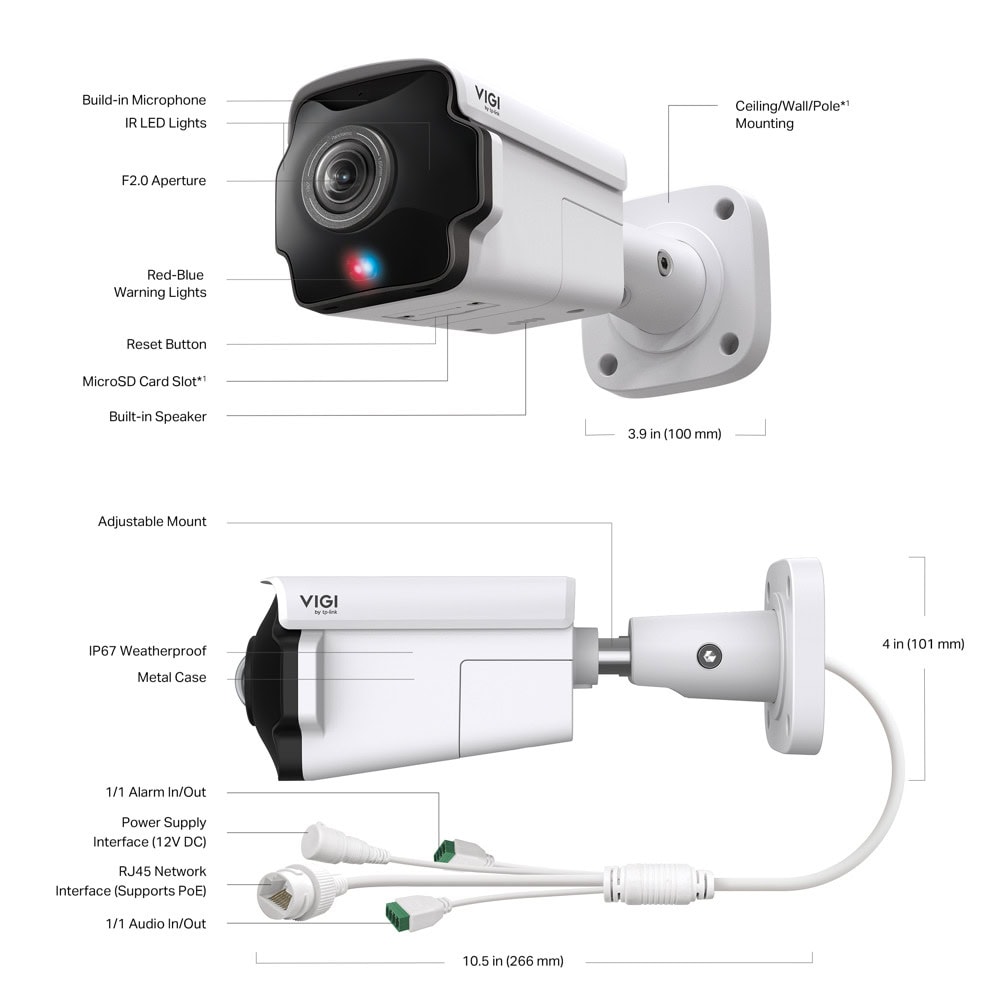

VIGI 8MP Outdoor IR Panoramic Bullet Network Camera

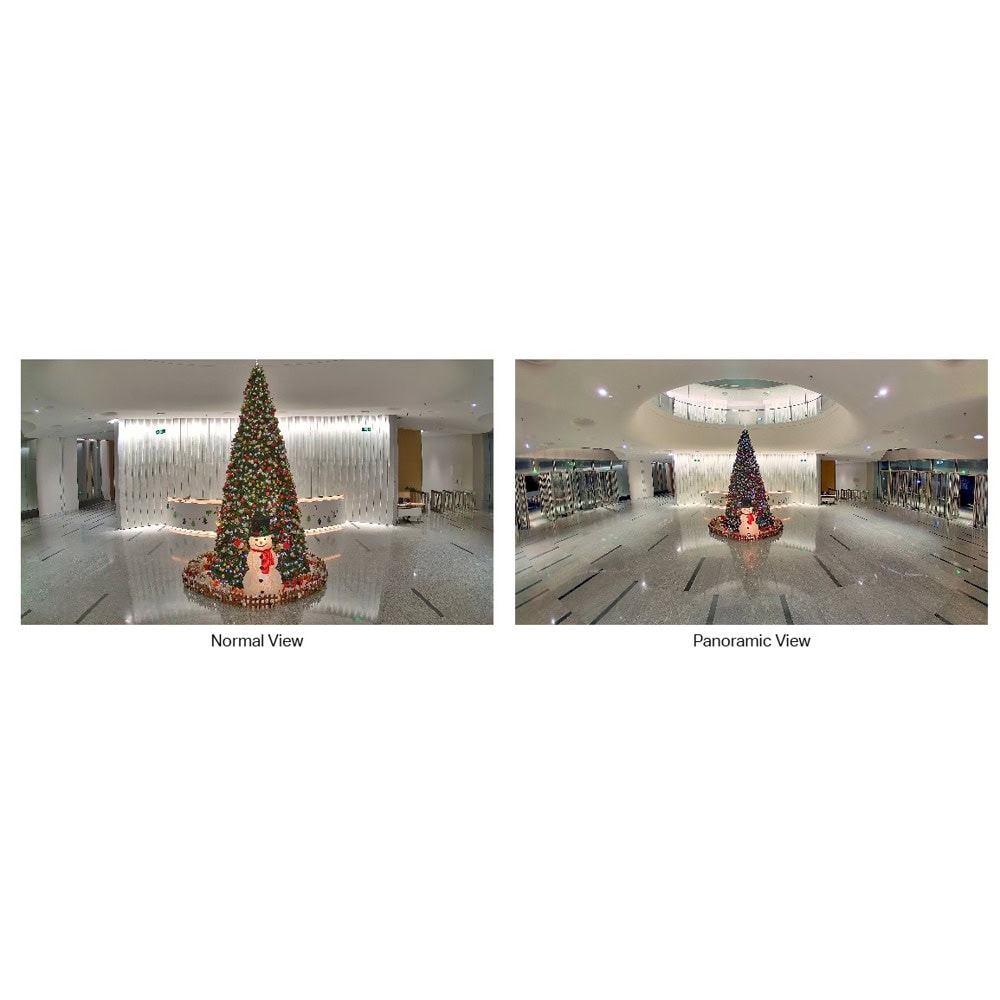

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1

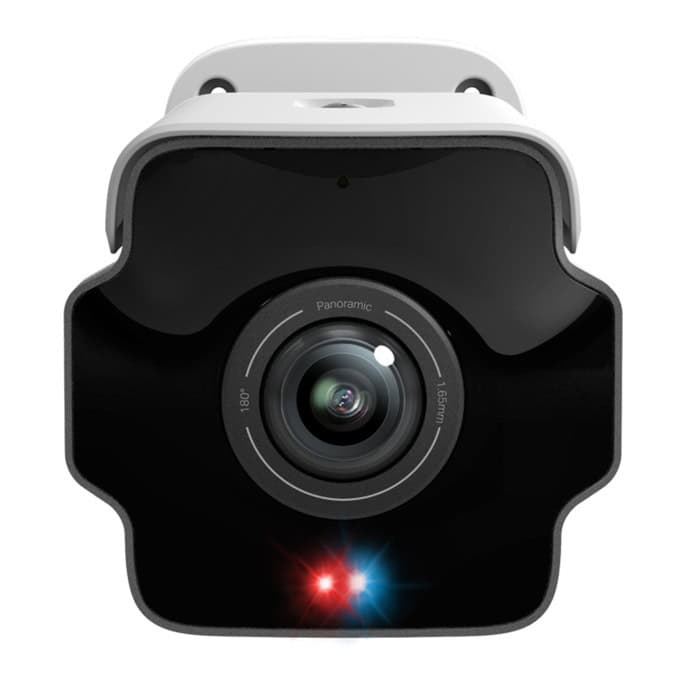

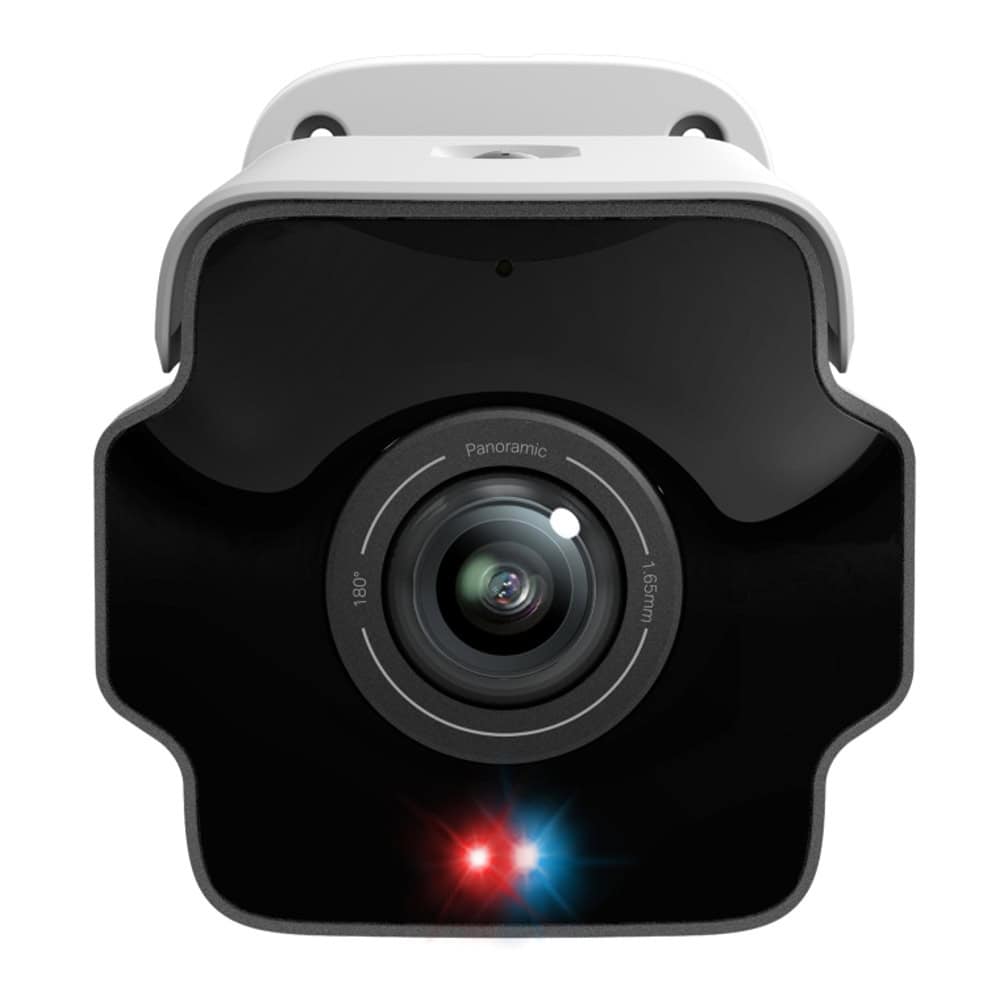

• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics*2
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Powerful, Efficient Monitoring with Active Defense

Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Category:

CAMERA

Image Sensor1/2.7” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR Light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified / Scheduled / Auto

LENS

TypeFixed Focal Lens

Focal Length1.65 mm

ApertureF2.0

FOVHorizontal: 180°; Vertical: 86°; Diagonal: 180°

Lens MountM12

DORI Distance (1.65 mm)D: 44 m; O: 18.33 m; R: 8.8 m; I: 4.4 m

Angle AdjustmentPan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

ILLUMINATOR

IR LEDQuantity: 4; Range: 20 m; Wavelength: 850 nm

Illuminator ControlAuto / Scheduled / Always On / Always Off

VIDEO

Max. Resolution3840 × 2160

Main Stream Frame Rate50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°)

Main Stream Resolutions3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Sub-Stream Frame Rate50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°)

Sub-Stream Resolutions848×480, 704×576, 640×480, 640×360, 352×288, 320×240

Bit Rate ControlCBR, VBR

Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264

H.264 TypeHigh Profile

H.264+Main Stream Supported

H.265 TypeMain Profile

H.265+Main Stream Supported

Video Bit RateMain: 256 Kbps–8 Mbps; Sub: 64 Kbps–1024 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC (via client)

Image EnhancementBLC, 3D DNR, HLC, SmartIR
