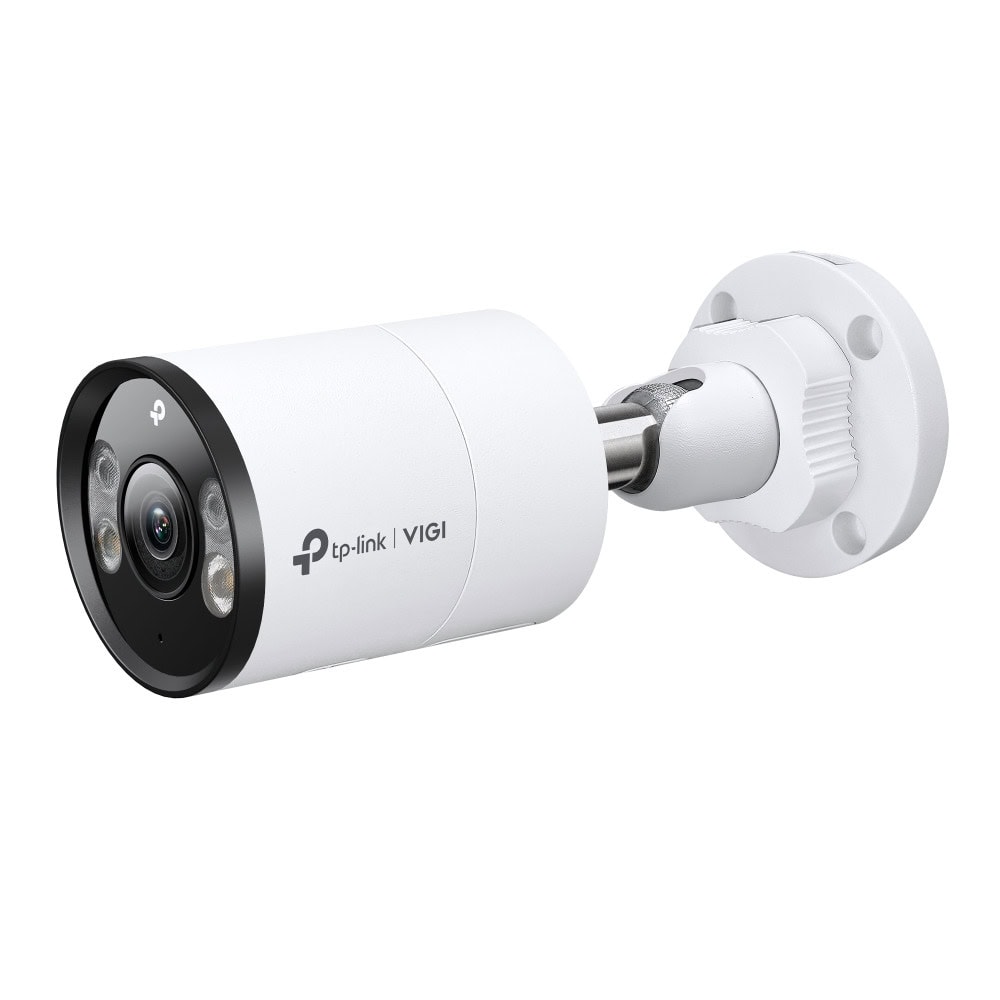

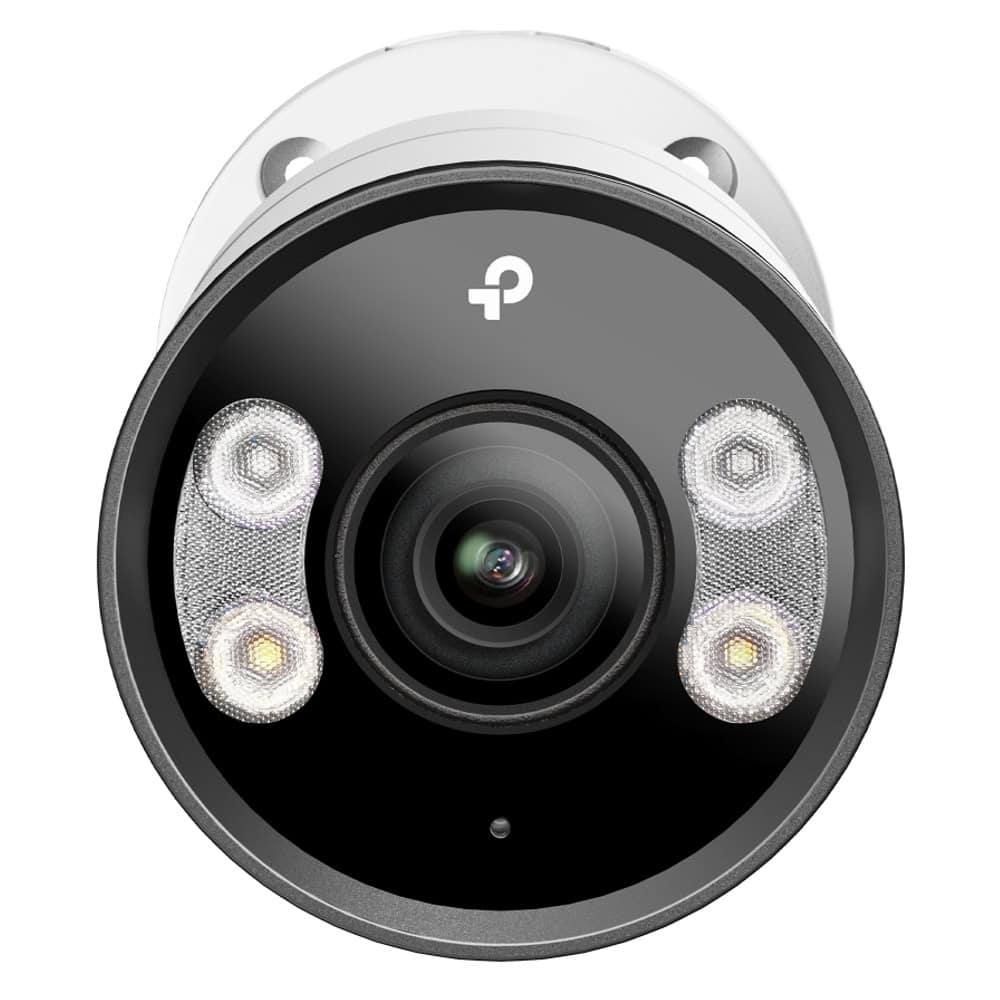

IP камера TP-Link VIGI InSight S385(2.8mm)

TP-Link VIGI InSight S385

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology
• 12V DC/PoE

Category:

CAMERA

Image Sensor1/2.7” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR/White light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified / Scheduled / Auto

LENS

TypeFixed Focal Lens

Focal Length2.8 mm

ApertureF1.6

FOV (2.8 mm)H: 111.4°, V: 58.8°, D: 134°

Lens MountM12*P 0.5

DORI Distance (2.8 mm)Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 m

Angle AdjustmentPan: 0–360°, Tilt: 0–90°, Rotation: 0–360°

ILLUMINATOR

IR LED2 LEDs, 30m range, 850nm wavelength

White LED2 LEDs, 30m range

Illuminator ControlAuto / Scheduled / Always on / Always off

VIDEO

Max. Resolution3840 x 2160

Main Stream Frame Rate50Hz/60Hz: 1–25fps; up to 20fps with rotation or 120dB

Main Stream Resolution3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream Frame Rate50Hz/60Hz: 1–25fps; up to 20fps with rotation or 120dB

Sub-Stream Resolution848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Bit Rate ControlCBR, VBR

Video CompressionH.265+/H.265/H.264+/H.264 (Main), H.265/H.264 (Sub)

H.264 TypeHigh Profile

H.265 TypeMain Profile

Video Bit RateMain: 256 Kbps–8 Mbps, Sub: 64 Kbps–512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC (via software)

Image EnhancementBLC, 3D DNR, HLC, Smart IR

Wide Dynamic Range120 dB (DWDR only when analytics enabled)

SNR≥ 52 dB
