TP-Link
IP камера TP-Link VIGI InSight S345ZI
Артикул №: 1000138915
Категория:
Видеонаблюдение и аларми
408,99 €
✓ Ограничена наличност

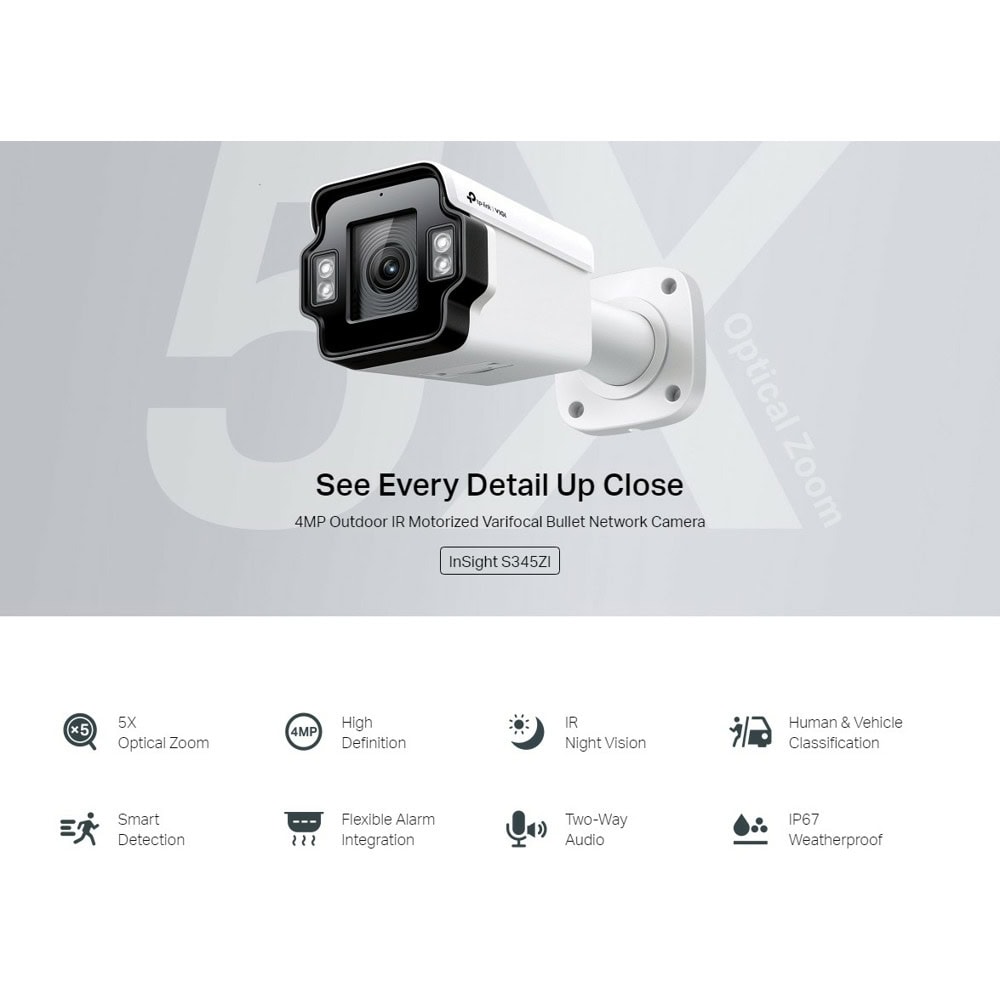

VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
| 5X Optical Zoom for Easy Installation and Monitoring | Да |
| 4MP Super-High Definition and IR Range Up to 60m (197ft) | Да |
| Human & Vehicle Classification | Да |
| Smart Detection | Да |
| Smart Video Enhancement Technology | Да |
| Audio and Alarm Interface Available | Да |
| IP67 Weatherproof and IK10 Vandal Proof | Да |
| H.265+ Compression Technology | Да |
| CAMERA | Image Sensor: 1/2.9” Progressive Scan CMOS Shutter Speed: 1/3 to 1/10000 s Slow Shutter: Yes Minimum Illumination: 0.005 Lux; 0 Lux with IR Light Day/Night Mechanism: IR Cut Filter Day/Night Switch: Unified/ Scheduled/ Auto |
| LENS | Type: Motorized Varifocal Lens Focal Length: 2.7-13.5 mm (5X Optical Zoom) Aperture: F1.6 FOV: 2.7-13.5 mm: · • Horizontal FOV: 29.6°-102.0° · • Vertical FOV: 16.8°-53.8° · • Diagonal FOV: 34.1°-122.8° Lens Mount: Φ14 DORI Distance: 2.7-13.5 mm: · • Detect: 66-207 m (217-579 ft) · • Observe: 28-86 m (92-282 ft) · • Recognize: 13-41 m (43-135 ft) · • Identify: 7-21 m (23-69 ft) |
| Angle Adjustment (Manual) | Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | IR LED: • Quantity: 4 · • Range: 60m (197ft) · • Wavelength: 850nm Illuminator On/Off Control: Auto/Scheduled/Always on/Always off |
| VIDEO | Max. Resolution: 2688 x 1520 Main Stream: • Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 · · Note: · • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream: • Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 · · • Note: · If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control: CBR, VBR Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 · • Sub-Stream: H.265/H.264 H.264 Type: High Profile H.264+: Main Stream Supported H.265 Type: Main Profile H.265+: Main Stream Supported Video Bit Rate: • Main Stream: 256 Kbps to 6 Mbps · • Sub-Stream: 512 Kbps to 1024 Kbps |
| Image | Image Settings: • Mirror · • Brightness · • Contrast · • Saturation · • Sharpness · • Exposure · • WDR · • White Balance · • Prevent Overexposure to Infrared Light · • HLC Adjustable by Client Software Image Enhancement: BLC/3D DNR/HLC/SmartIR Wide Dynamic Range: 120 dB SNR: ≥ 52 dB Image Parameters Switch: Yes Privacy Mask: Up to 4 Masks ROI: 1 Region OSD Setting: Yes |
| Аудио | Audio Communication: One-Way Audio Audio Input: Yes Audio Output: Yes Audio Compression: Yes Audio Sampling Rate: 8KHz Environment Noise Filtering: Yes Audio Bit Rate: 64 Kbps(G.711 alaw) |
| NETWORK | Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF: Yes API: Open Network Video Interface (Profile S/T/G) Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser: • Google Chrome® 57 and above · • Firefox® 52 and above · • Safari® 11 and above · • Microsoft® Edge 91 and above Cloud: Yes Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | Smart Event: • Intrusion Detection · • Line-Crossing Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned Detection · • Object Removal Detection · • Loitering Detection · • People Detection · • Vehicle Detection · • Abnormal Sound Detection · • Scene Change Detection Basic Event: • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) · • Video Tampering Detection · • Exception ( Illegal Login) · Alarm Linkage: • Memory Card Video Recording · • Message Push · • Audible Warning · • Email Alarm · • Upload Capture to FTP · • Alarm Out Device Linkage Method: N/A Output Notification: • Message Push · • Email Alarm · • Upload Capture to FTP |
| INTERFACES | Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm: 1 Alarm In, 1 Alarm Out Reset Button: Yes Power: DC Power Port On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker: N/A Audio: 1 Audio In, 1 Audio Out |
| GENERAL | Operating Temperature: -30–60 °C Storage Temperature: -40–60 °C Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing) Package Contents: • VIGI Network Camera · • Quick Start Guide · • Waterproof Cable Attachments · • Mounting Accessories Material: Metal Net Weight: Kg Gross Weight: Kg Power Supply: • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug · • PoE: 802.3af/at, class 0, Max.12 W Protection: IP67 Weatherproof, IK10 Vandal Proof Product Dimensions (L x W x H): 10.1 × 3.9 × 4 in (256 × 100 × 101 mm) |
