IP камера TP-Link VIGI C540
TP-Link

IP камера TP-Link VIGI C540

Артикул №: 1000128416
Категория: Видеонаблюдение и аларми
109,99 €
✓ Налично във външен склад

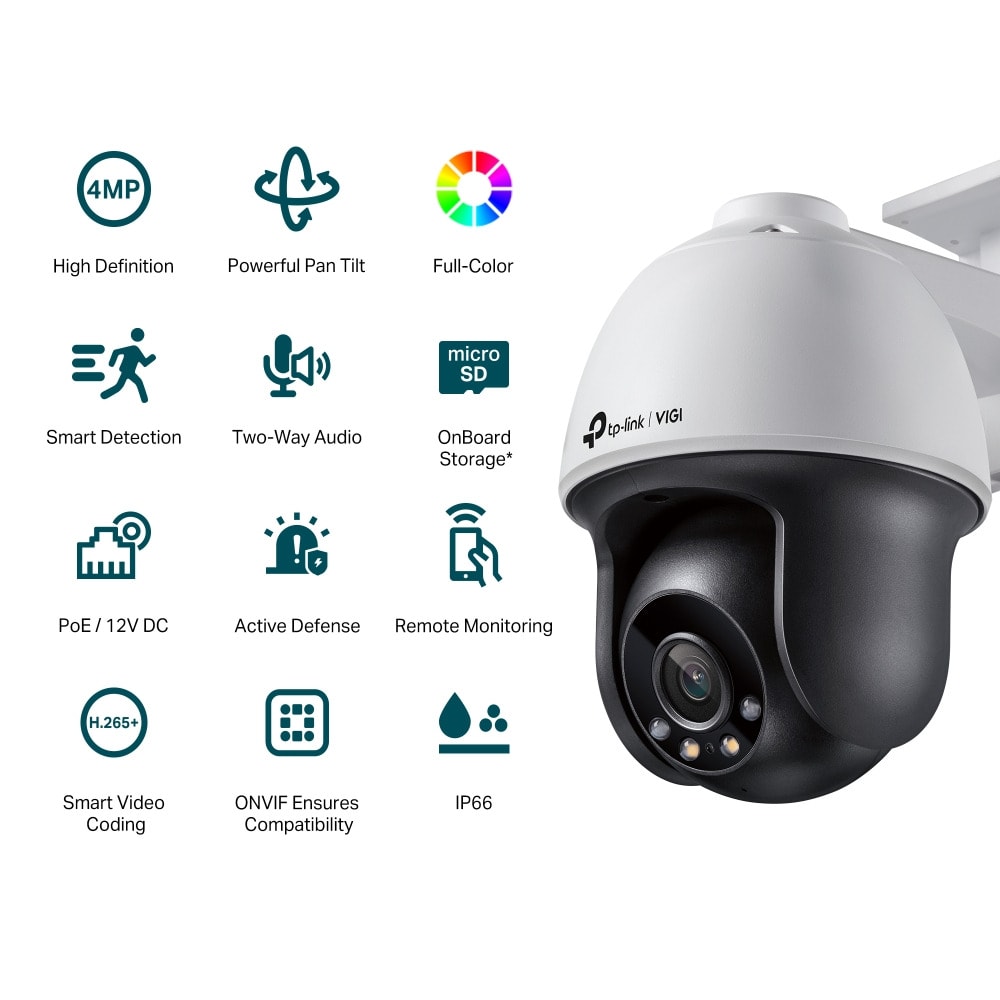

4MP външна пълноцветна панорамна и наклонена мрежова камера TP-Link VIGI C540

  • 4MP Super-High Definition : The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color : Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Powerful Pan Tilt : Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Automatic Tracking : Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio : Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management and Storage : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot* (up to 512 GB).

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking

Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.

Active Defense

Warn potential intruders instantly with sound and light when abnormal events

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot* (up to 512 GB).

Характеристики

Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Да
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Тип Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV 4mm: · Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount M12
DORI Distance 4 mm: · Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft)
Pan/tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt Speed Pan Speed: · Configurable from 8° to 44°/s; Preset Speed: 44°/s · · Tilt Speed: · Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Да; · Auto restore to previous PT and lens status after power failure
Park Action Да; · Preset; Patrol Scan
3D Positioning Да
Range Pan: 0° to 348° · Tilt: 0° to 120°
IR LED Quantity: 2 · Range: 30m · Wavelength: 850nm
White LED Quantity: 2 · Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 2560 X 1440
Main Stream Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps · Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, · White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Да
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Да
Audio Communication Two-Way Audio
Audio Input Да
Audio Output Да
Audio Compression Да
Audio Sampling Rate 8KHz
Environment Noise Filtering Да
Audio Bit Rate 64 Kbps(G.711 alaw)
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Да
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above
Cloud Да
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Smart Event • Area Intrusion Detection · • Line-Crossing Detection · • People Detection · • Vehicle Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned Detection · • Object Removal Detection · • Abnormal Sound Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) · • Video Tampering Detection · • Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
Reset Button Да
Мощност DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone Да; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Да
Аудио
Работна температура -30–60 °C
Температура на съхранение -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Съдържание на пакета VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories
Материал Пластмаса
Захранване 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug · PoE: 802.3at, class 4, Max. 16 W
Защита IP66
Product Dimensions (L x W x H) 120 × 172 × 198 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
