TP-Link
IP камера TP-Link VIGI C540-4G
Артикул №: 1000032113
Категория:
Цифрови IP камери
161,99 €
✓ Налично в централен склад
VIGI C540-4G

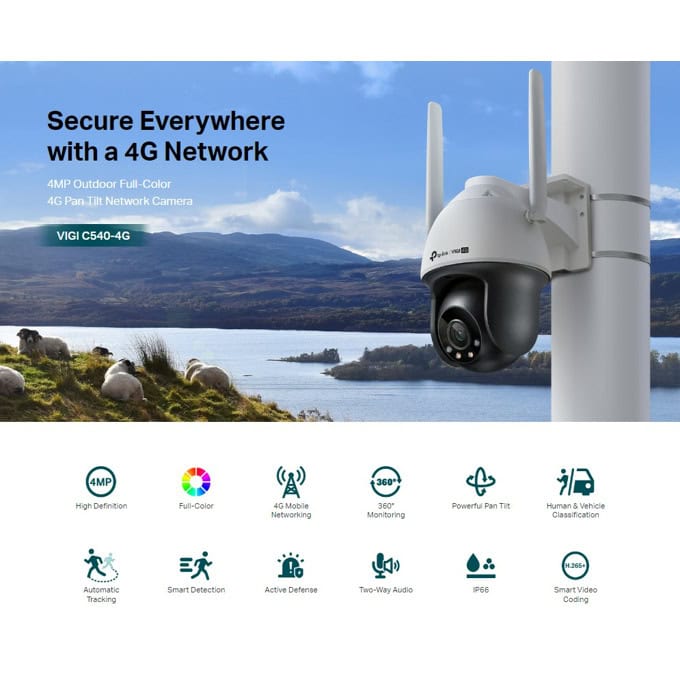

VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 512 GB (SD card slot).*
Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It

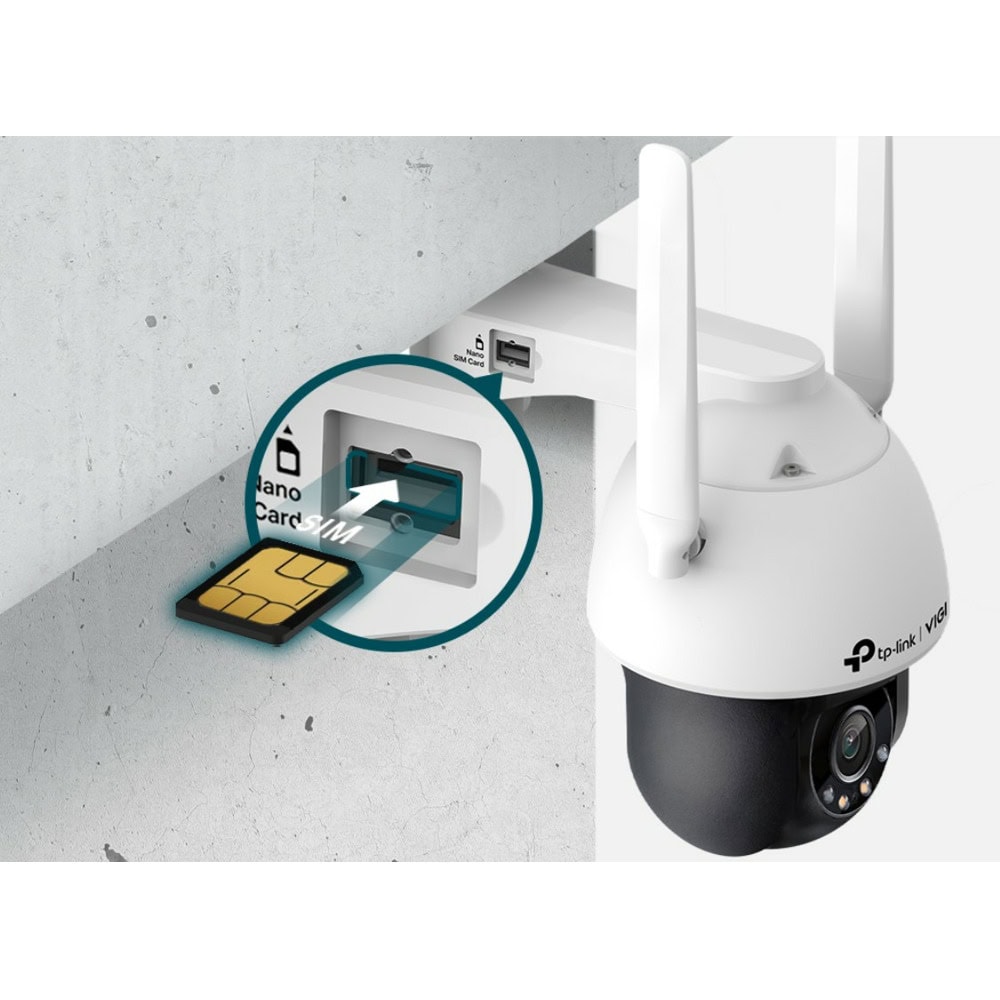

No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
.png){kind=tracking}
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Камера
| Светлочувствителен сензор | 1/3.06” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS
| Тип | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft) |
PTZ

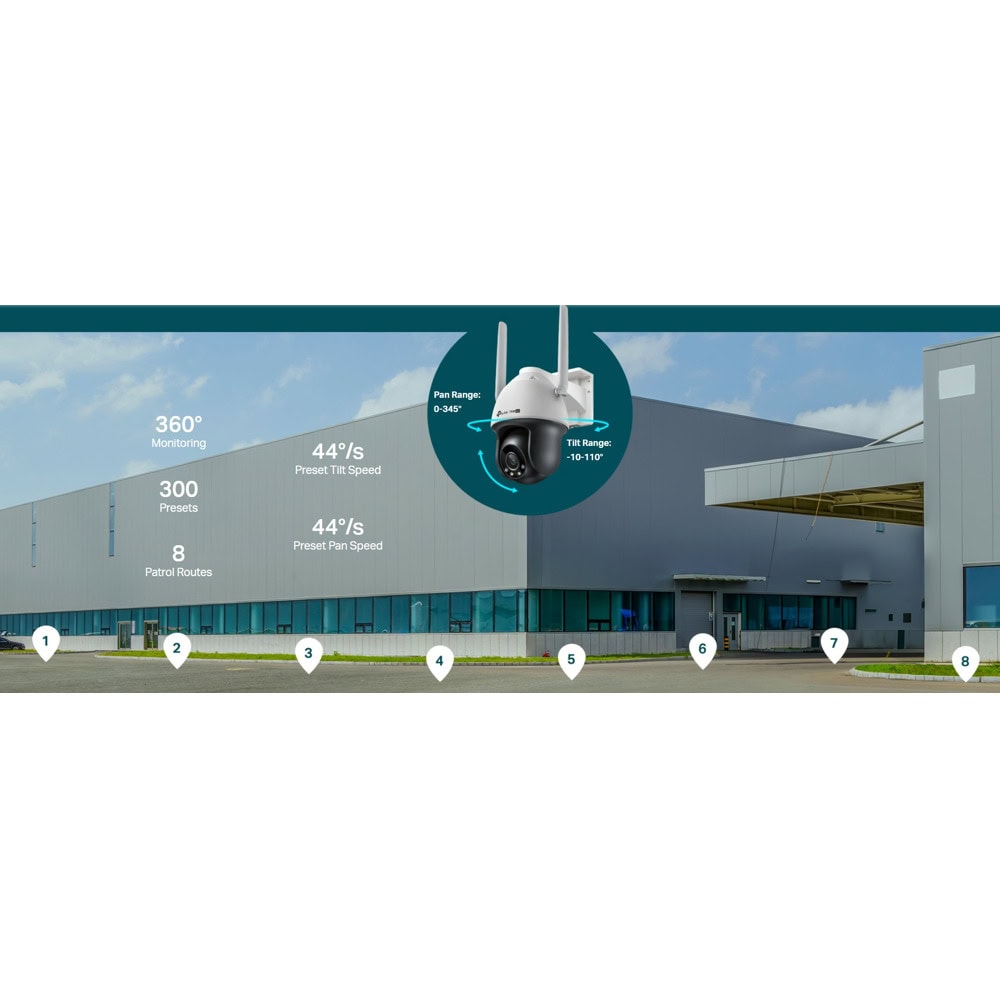

| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan/tilt Speed | • Pan Speed: · Configurable from 8° to 44°/s; Preset Speed: 44°/s · · • Tilt Speed: · Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; · Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; · Preset; Patrol Scan |
| 3D Positioning | Да |
Angle Adjustment (Manual)
| Range | • Pan: 0° to 348° · • Tilt: 0° to 120° |
ILLUMINATOR
| IR LED | • Quantity: 2 · • Range: 30m · • Wavelength: 850nm |
| White LED | • Quantity: 2 · • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Sub-Stream | • Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Bit Rate Control | CBR, VBR |
| Видео компресия | • Main Stream: H.265+/H.265/H.264+/H.264 · • Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps · • Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | • Mirror · • Brightness · • Contrast · • Saturation · • Sharpness · • Exposure, WDR, · • White Balance · • Prevent Overexposure to Infrared Light · • HLC Adjustable by Client Software · • Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
АУДИО
| Аудио комуникация | Two-Way Audio |
| Аудио вход | Да |
| Аудио изход | Да |
| Audio Compression | Да |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Да |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
МРЕЖА
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| ONVIF | Да |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above · • Firefox® 52 and above · • Safari® 11 and above · • Microsoft® Edge 91 and above |
| Cloud | Да |
| Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
4G
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Честота | • LTE-FDD: B 1/3/5/7/8/20/28 · • LTE-TDD: B 38/40/41 · • WCDMA: B 1/5/8 |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
| Smart Event | • Human & Vehicle Classification · • Intrusion Detection · • Line-Crossing Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned Detection · • Object Removal Detection · • People Detection · • Vehicle Detection · • Abnormal Sound Detection |
| Basic Event | • Motion Detection · • Video Tampering Detection · • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording · • Message Push · • Audible Warning · • White Light Flashing |
| Output Notification | Message Push |
ИНТЕРФЕЙСИ
| Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Reset Button | Да |
| Мощност | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Nano-SIM Card Slot | Да |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Да |
ОБЩИ ХАРАКТЕРИСТИКИ
| Околна температура при работа | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Околна влажност при работа | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Съдържание на пакета | • VIGI Network Camera · • Quick Start Guide · • Waterproof Cable Attachments · • Mounting Accessories · • Power Adapter |
| Материал | Plastic |
| Нето тегло | 0.69 Kg |
| Бруто тегло | 1.16 Kg |
| Захранване | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2 · · • Type: · 690~960&1710~2690MHz Dipole Omni-Directional Antenna · · • Gain: · Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz · Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| Защита | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
