TP-Link
IP камера TP-Link VIGI C440-W
Артикул №: 1000026355
Категория:
Цифрови IP камери
83,99 €
✓ Налично във външен склад

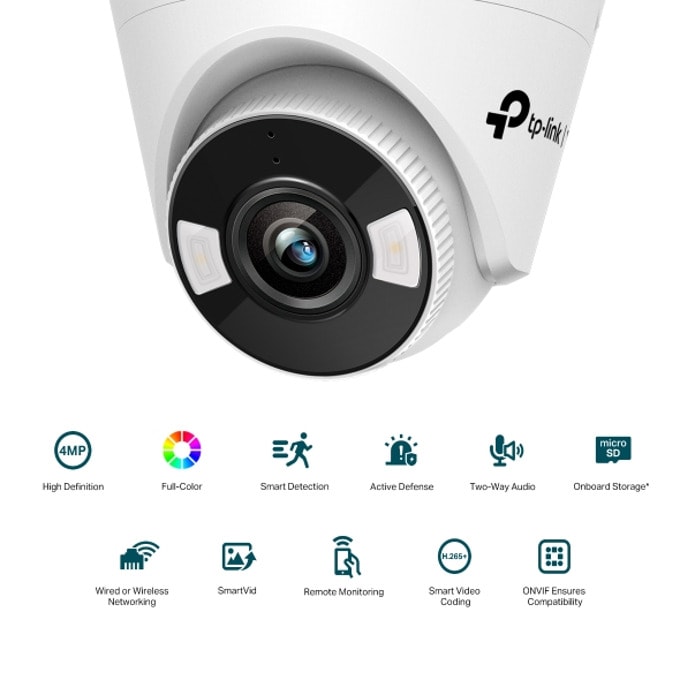

VIGI 4MP Full-Color Wi-Fi Turret Network Camera
- 4MP Ultra-High Definition: The VIGI C440 comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
- Wireless Connection: Simple and quick deployment with Wi-Fi signals.
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
- H.265+ Smart Coding: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

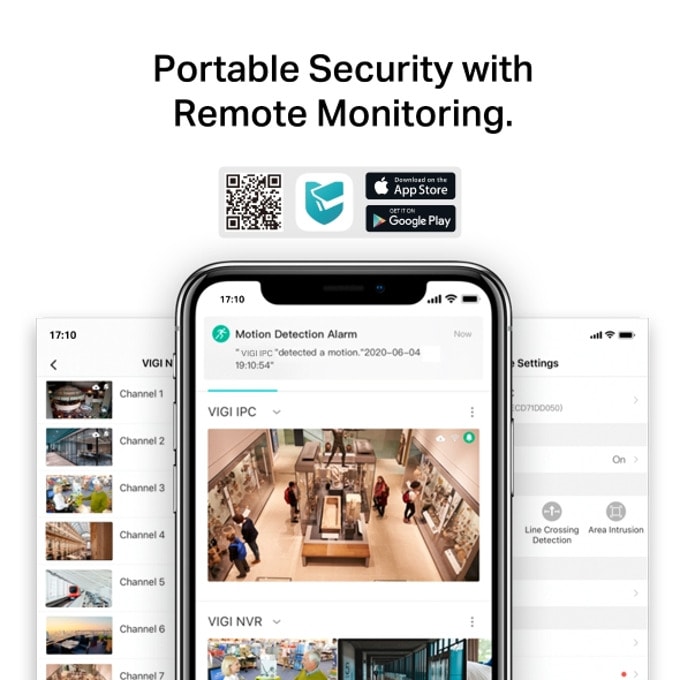

- Remote Monitoring: Manage your security from the palm of your hand with the VIGI app.
.jpg "IP камера TP-Link VIGI C440-W, куполна камера, 4Mpix(25601440@30fps), 4mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 30 метра), за вътрешен монтаж, Wi-Fi, RJ-45, PoE (802.3af/at), микрофон, високоговорител, MicroSD слот - характеристика 1 | Цифрови IP камери")

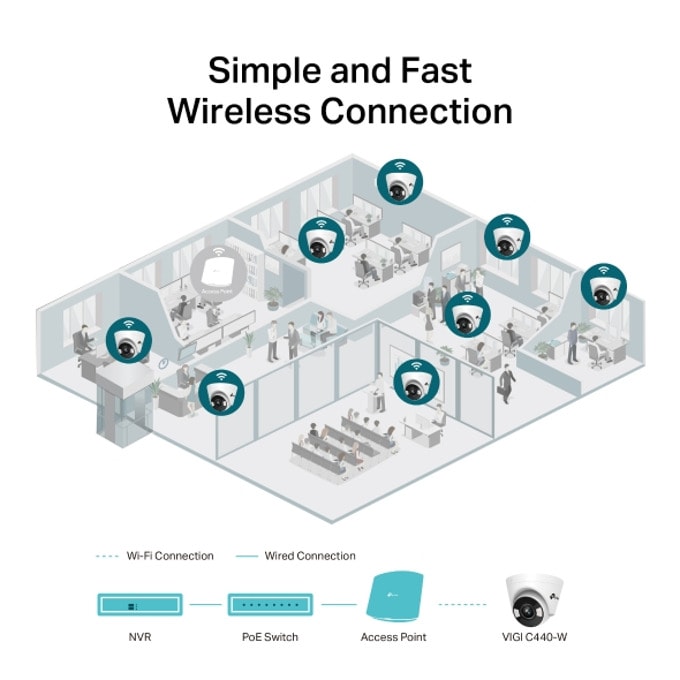

Simple and Fast
Wireless Connection
Enjoy simple wiring with Wi-Fi signals. Just power up your camera, then the transmission starts with its built-in 2×2 MIMO antennas.
Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.
Every Event is Under Your Control.
VIGI cameras intelligently detects activities, inform you instantly and respond automatically by smart detection and two-way audio.
LENS
| Тип | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft) |
VIDEO
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 3 Mbps · Sub-Stream: 64 Kbps to 512 Kbps |
ILLUMINATOR
| IR LED | Quantity: 2 · Range: 30m · Wavelength: 850nm |
| White LED | Quantity: 2 · Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360° · Tilt: 0° to 85° · Rotate: 0° to 360° |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, · White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
АУДИО
| Аудио комуникация | Two-Way Audio |
| Аудио вход | Да |
| Аудио изход | Да |
| Audio Compression | Да |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Да |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
МРЕЖА
| Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wireless Rate | 11 Mbps (802.11b) · 54 Mbps (802.11g) · 150 Mbps (802.11n) |
| Честота | 2.4 GHz |
| Wireless Security | WPA/WPA2-PSK |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Web Browser | Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above |
| Cloud | Да |
| ONVIF | Да |
ИНТЕРФЕЙСИ
| Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Reset Button | Да |
| Мощност | DC Power Port |
| Slot | Micro SD card |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Да |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
ОБЩИ ХАРАКТЕРИСТИКИ
| Съдържание на пакета | VIGI Network Camera · Quick Start Guide · Screws and Anchors · Mounting Template |
| Околна температура при работа | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Околна влажност при работа | 95% or Less (Non-Condensing) |
| Размери | 123 × 123 × 84 mm |
| Материал | Plastic |
| Тегло | 195 g |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0) |
| Нето тегло | 0.24 Kg |
| Бруто тегло | 0.53 Kg |
| Консумация на енергия | 12V DC: Max 7W |
| Захранване | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2 · Type: 2.4GHz Welded Dipole Omni-Directional Antenna · Gain: 2.0dBi |
| Product Dimensions (L x W x H) | 123× 83× 123 mm |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
| WiFi Channels | 1-13 |
| Честота | 2.4 GHz |
| Предавателна безжична мощност | High |
| Radio Bandwidth | Auto: N/A · 20M: Yes · 40M: Yes |
| Wireless Rate | 11Mbps(802.11b) · 54Mbps(802.11g) · 150/300Mbps(802.11n) |
| Wireless Security | PWPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
ВИДЕО/СНИМКА
| Видео компресия | Main stream: H.265/H.264 · Sub-Stream: H.265/H.264 |
| Кадрова скорост и резолюции | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240 |
| Настройки на изображението | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | 64 Kbps to 6 Mbps |
SMART FEATURE-SET
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
Камера
| Светлочувствителен сензор | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Обектив | Fixed focal lens (4 mm) |
| Aperture | 2.8 mm: F1.6 · 4 mm: F1.6 |
| Lens Mount | M12 |
| Зрителен ъгъл | (2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122° · (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93° |
| IR Working Distance | 30m |
| Illumination Distance | 30m |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
