IP камера TP-Link VIGI C430(2.8mm)

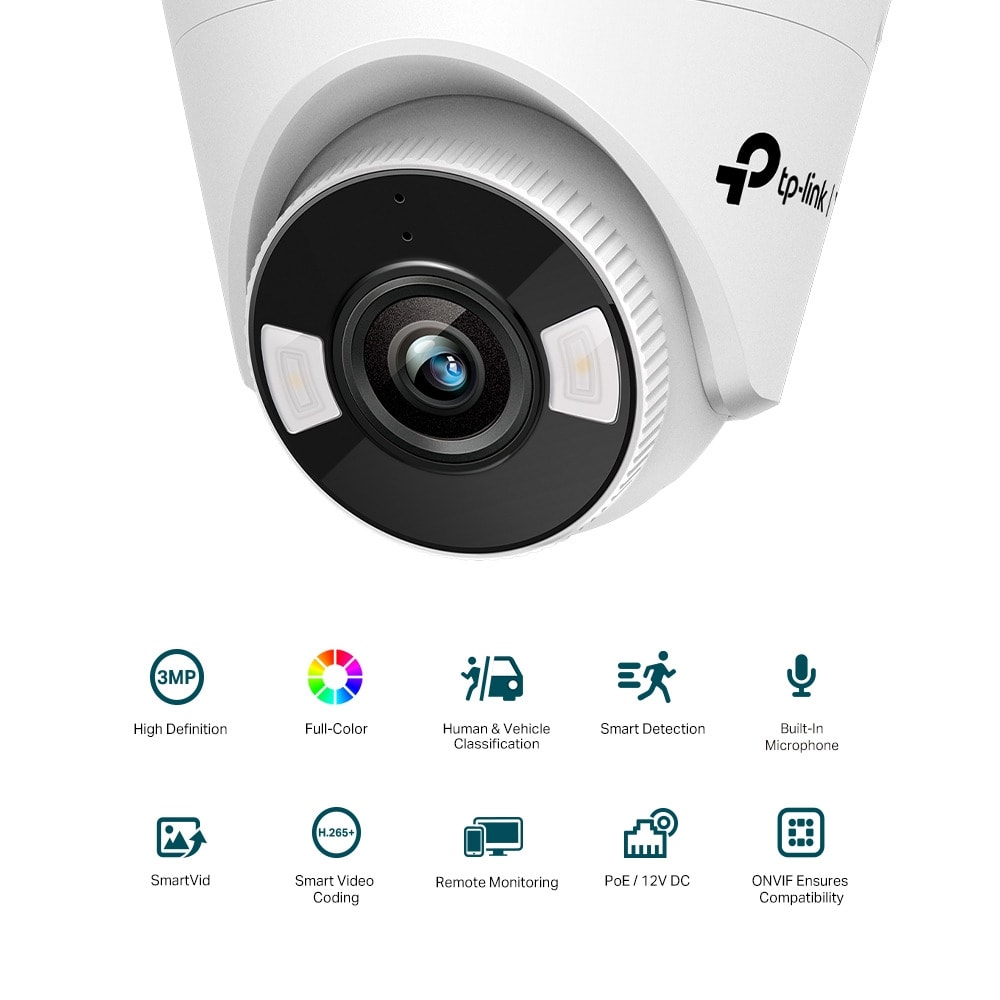

VIGI 3MP Full-Color Turret Network Camera
- 3MP Super-High Definition : The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color : Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
Характеристики
| NETWORK | Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS API: ONVIF Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, VIGI NVR, Web |

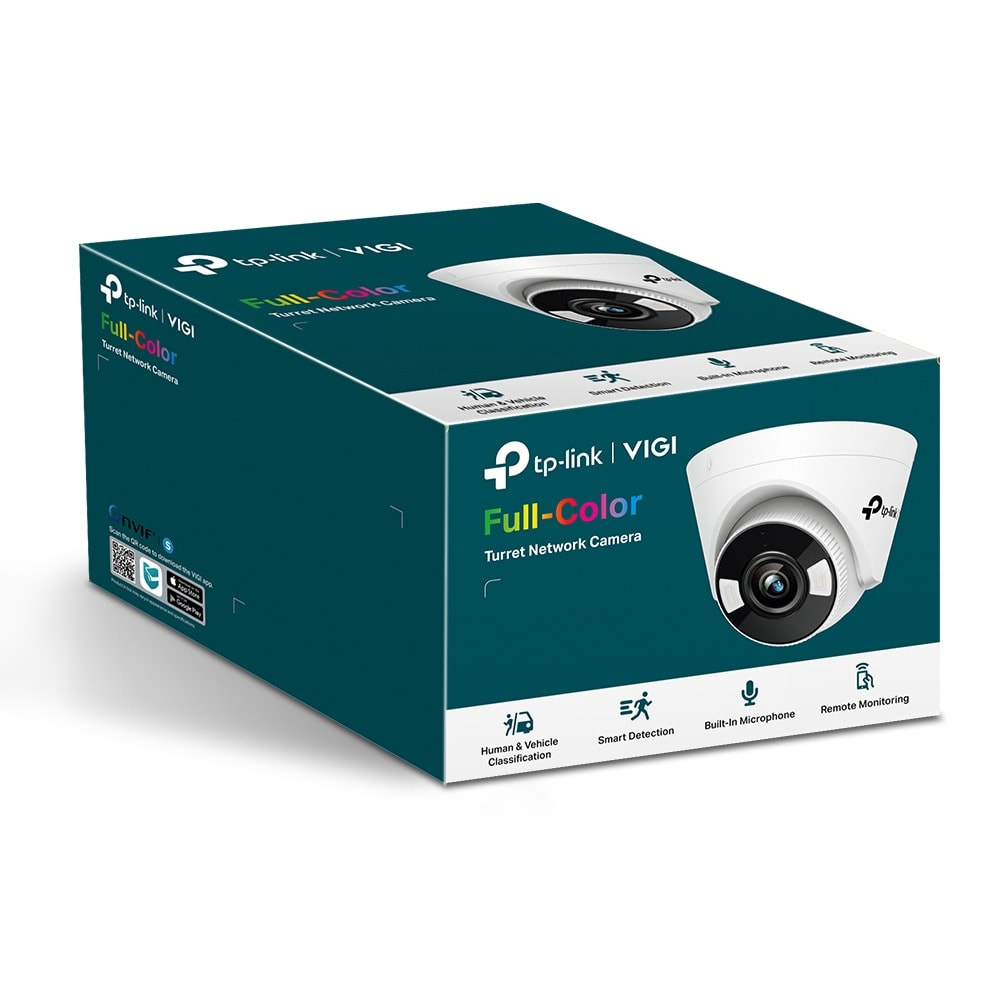

| GENERAL | Package Contents: VIGI Network Camera · Quick Start Guide · Mounting Accessories Operating Temperature: -30–60 °C Certifications: CE/BSMI/VCCI/ONVIF Dimensions( H X W X D ): 123 × 123 × 83 mm Material: Plastic General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0) Power Consumption: 12V DC: Max 4.2W · PoE: Class 0 |
| VIDEO/IMAGE | Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 Frame Rate & Resolutions: Main Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 · Sub-Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution: 3MP (2304 × 1296) Video Streaming: Main Stream · Sub-Stream Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Video Bit Rate: 64 Kbps to 4 Mbps Day/Night Switch: Day/Night/Auto/Schedule |
| SMART FEATURE-SET | Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method: Trigger Notification: ONVIF, HTTPS Region of Interest: 1 Region |
| INTERFACES | Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port Button: - Video Output: - Built-in Microphone: Yes |
| CAMERA | Image Sensor: 1/2.8” Progressive Scan CMOS Lens: 2.8 mm/ 4 mm Aperture: 2.8 mm: F1.6 · 4 mm: F1.6 Lens Mount: M12 Viewing Angle: 2.8mm: 107.5°/57.2°/128.7°(H/V/D) · 4mm: 89.1°/45.1°/106.9°(H/V/D) Day/Night Mechanism: IR Cut Filter IR Working Distance: 30m Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light Digital Noise Reduction: 3D DNR WDR: DWDR |
