Начало / Видеонаблюдение и аларми / IP камера TP-Link VIGI C320I(6mm)
IP камера TP-Link VIGI C320I(6mm)
TP-Link

IP камера TP-Link VIGI C320I(6mm)

Артикул №: 1000131044
Категория: Видеонаблюдение и аларми
58,99 €
✓ Ограничена наличност

TP-Link VIGI C320I(6mm)

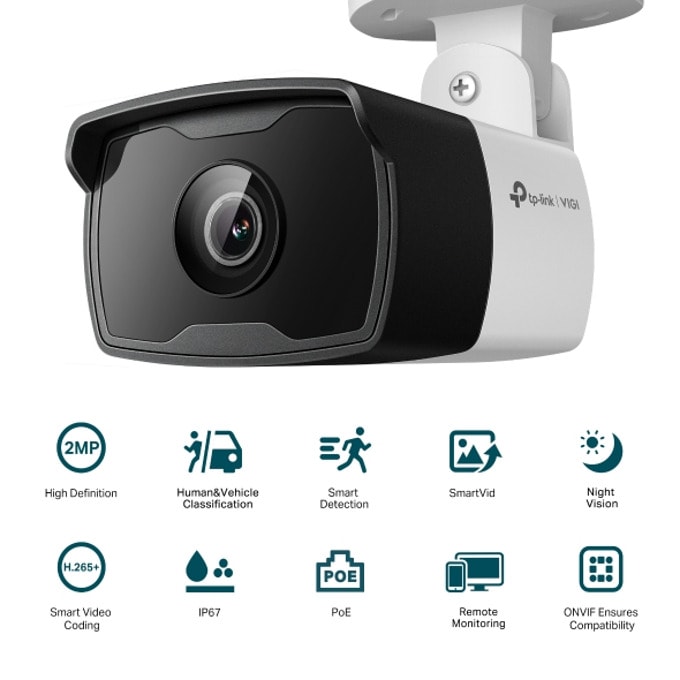

VIGI 2MP Outdoor IR Bullet Network Camera

  • 2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Waterproof: Reliable IP67 for stable outdoor performance.
  • Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
  • Flexible Management : Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.

2MP Full-High Definition

The VIGI C320I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.

SmartVid-Smart Video Enhancement

VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

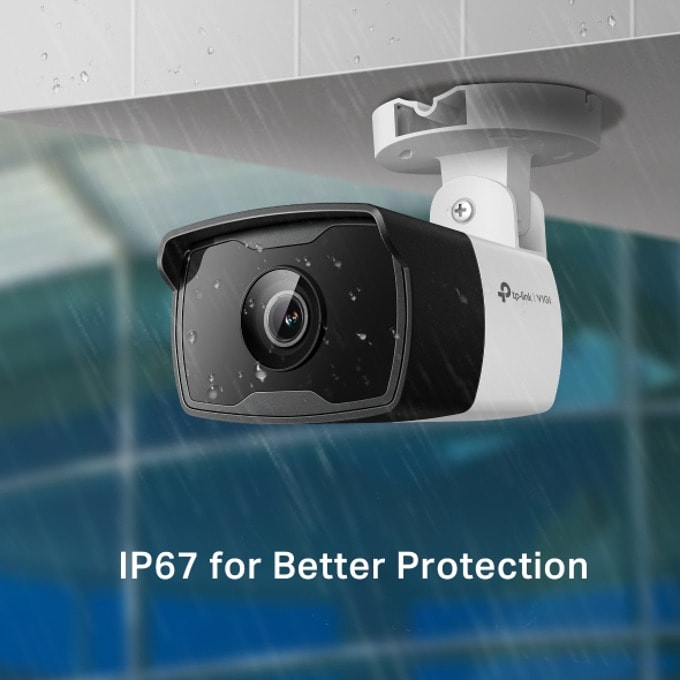

IP67 for Better Protection

Capable of withstanding temperatures from -30–60 °C

(-22–140 °F), VIGI performs well even in harsh

environments with rain and dust.

Характеристики

LENS Type: Fixed Focal Lens
Focal Length: 6 mm
Aperture: · 6 mm: F2.0
FOV: 6 mm: · Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
Lens Mount: M12
DORI Distance: 6 mm: · Detect: 91 m (297 ft) · Observe: 38 m (124 ft) · Recognize: 18 m (59 ft) · Identify: 9 m (30 ft)
VIDEO Max. Resolution: 1920 × 1080
Main Stream: Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 1920x1080, 1280x960, 1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream: Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 704x576, 640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps · Sub-Stream: 64 Kbps to 512 Kbps
Image Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
ILLUMINATOR IR LED: Quantity: 2 · Range: 30m · Wavelength: 850nm
White LED: N/A
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Angle Adjustment (Manual) Range: Pan: -90° to 90° · Tilt: -90° to 90°
АУДИО Аудио комуникация: N/A
Аудио вход: N/A
Аудио изход: N/A
Audio Compression: N/A
Audio Sampling Rate: N/A
Environment Noise Filtering: N/A
Audio Bit Rate: N/A
МРЕЖА Защита: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Web Browser: Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above
Cloud: Yes
ONVIF: Yes
ИНТЕРФЕЙСИ Мрежов интерфейс: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: N/A
Power: N/A
On-board Storage: N/A
Built-in Microphone: N/A
Built-in Speaker: N/A
Audio: N/A
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Message Push
Linkage Method: N/A
Output Notification: Message Push

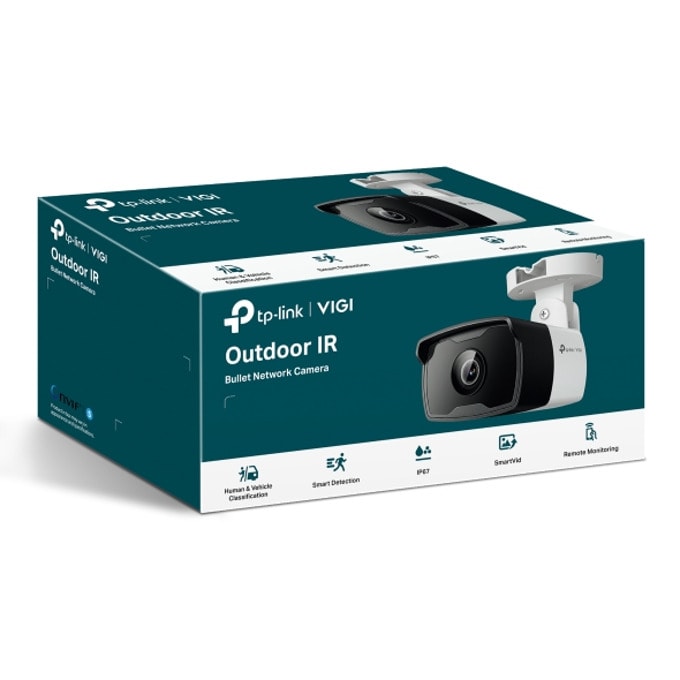

ОБЩИ ХАРАКТЕРИСТИКИ Съдържание на пакета: VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories
Околна температура при работа: -30–60 °C
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Околна влажност при работа: 95% or Less (Non-Condensing)
Размери: 174 × 74 × 71 mm
Material: Plastic
Net Weight: 0.2 Kg
Gross Weight: 0.35 Kg
Power Supply: PoE: 802.3af/at, class 0, Max. 5.5 W
Protection: IP67
Product Dimensions (L x W x H): 73× 174 × 71 mm
