IP камера TP-Link VIGI C320I(2.8mm)
TP-Link

IP камера TP-Link VIGI C320I(2.8mm)

Артикул №: 1000134186
Категория: Видеонаблюдение и аларми
58,99 €
✓ Налично във външен склад

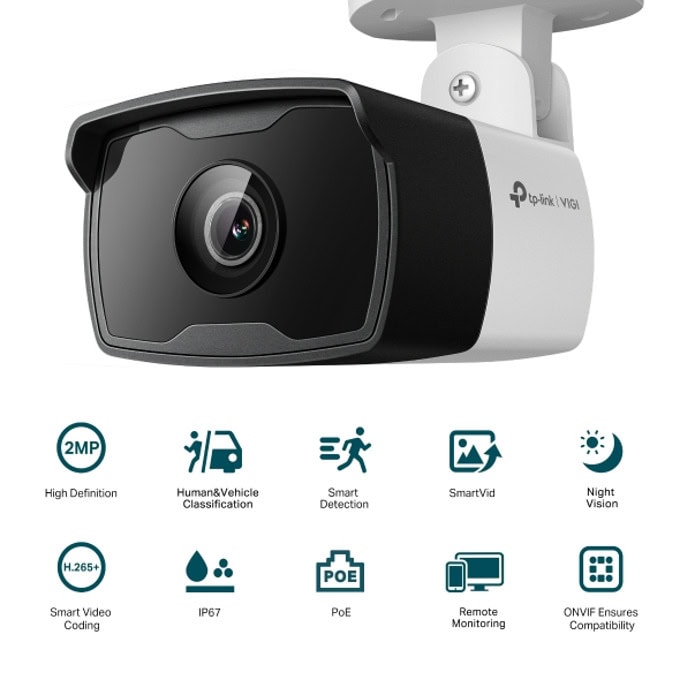

TP-Link VIGI C320I

  • 2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

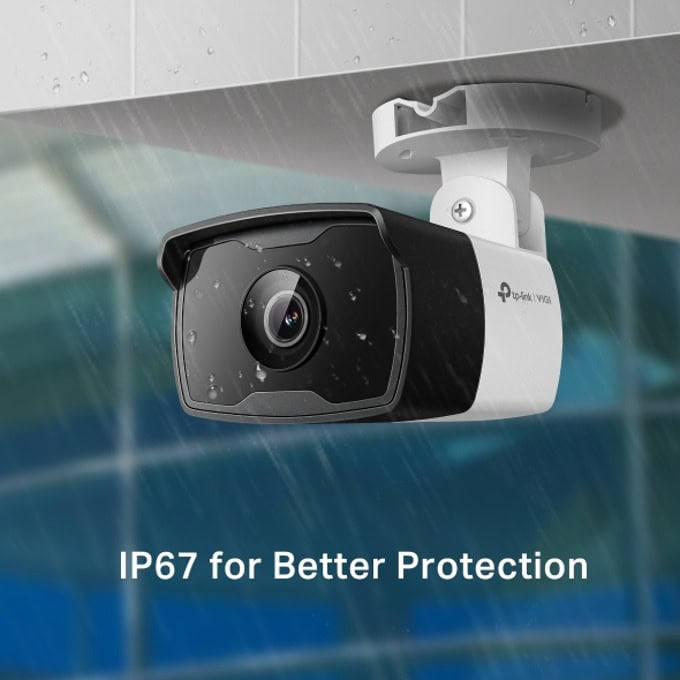

  • Waterproof: Reliable IP67 for stable outdoor performance.
  • Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
  • Flexible Management : Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.

Характеристики

Светлочувствителен сензор1/3” Progressive Scan CMOS Да
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes Да
Minimum IlluminationColor 0.01 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter Да
Day/Night SwitchUnified/ Scheduled/ Auto Да
LENS Да
TypeFixed Focal Lens Да
Focal Length2.8 mm Да
Aperture2.8 mm F2. 2
FOV2.8 mm Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°
Lens MountM12 Да
DORI Distance2.8 mm Detect: 45 m Observe:19 m Recognize: 9 m Identify: 5 m
Angle Adjustment (Manual) Да
RangePan -90° to 90° Tilt: -90° to 90°
ILLUMINATOR Да
IR LEDQuantity 2 Range: 30m Wavelength: 850nm
White LEDN/A Да
VIDEO Да
Max. Resolution1920 × 1080
Main StreamFrame Rate: 50Hz 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR Да
Видео компресияMain Stream H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile Да
H.264+Main Stream Supported Да
H.265 TypeMain Profile Да
H.265+Main Stream Supported Да
Video Bit RateMain Stream 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image Да
Image EnhancementBLC/3D DNR/HLC/SmartIR Да
Wide Dynamic RangeDWDR Да
SNR≥ 52 dB
Image Parameters SwitchYes Да
Privacy MaskUp to 4 Masks
ROI1 Region Да
OSD SettingYes Да
АУДИО Да
Аудио комуникацияN/A Да
Аудио входN/A Да
Аудио изходN/A Да
Audio CompressionN/A Да
Audio Sampling RateN/A Да
Environment Noise FilteringN/A Да
Audio Bit RateN/A Да
МРЕЖА Да
ONVIFYes Да
APIOpen Network Video Interface (Profile S) Да
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI Да
CloudYes Да
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА Да
Alarm LinkageMessage Push Да
Linkage MethodN/A Да
Output NotificationMessage Push Да
ИНТЕРФЕЙСИ Да
AlarmN/A Да
Reset ButtonN/A Да
PowerN/A Да
On-board StorageN/A Да
Built-in MicrophoneN/A Да
Built-in SpeakerN/A Да
AudioN/A Да
ОБЩИ ХАРАКТЕРИСТИКИ Да
Околна температура при работа-30–60 °C Да
Storage Temperature-40–60 °C Да
Околна влажност при работа95% or Less (Non-Condensing) Да
Storage Humidity95% or Less (Non-Condensing) Да
Размери174 × 74 × 71 mm
MaterialPlastic Да
Net Weight0.2 Kg Да
Gross Weight0.35 Kg Да
Power SupplyPoE 802.3af/at, class 0, Max. 5.5 W
ProtectionIP67 Да
Product Dimensions (L x W x H)73× 174 × 71 mm
