IP камера TP-Link VIGI C230I(2.8mm)

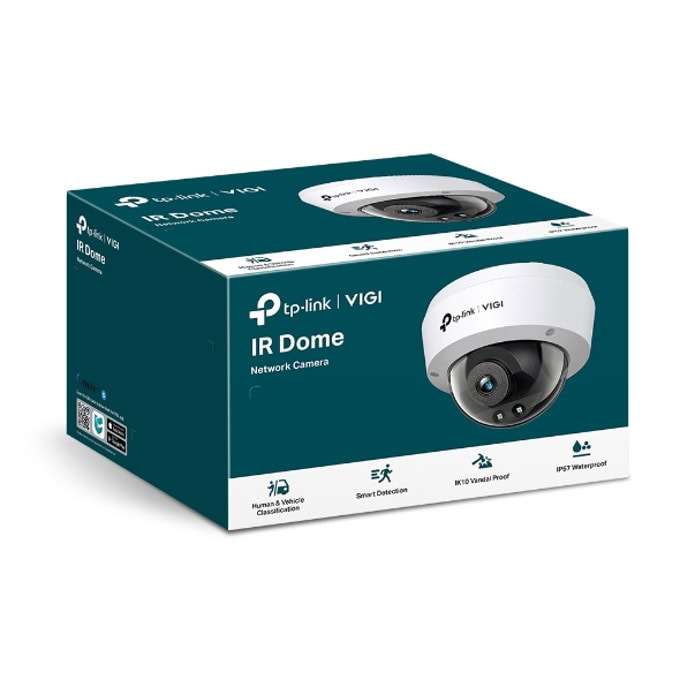

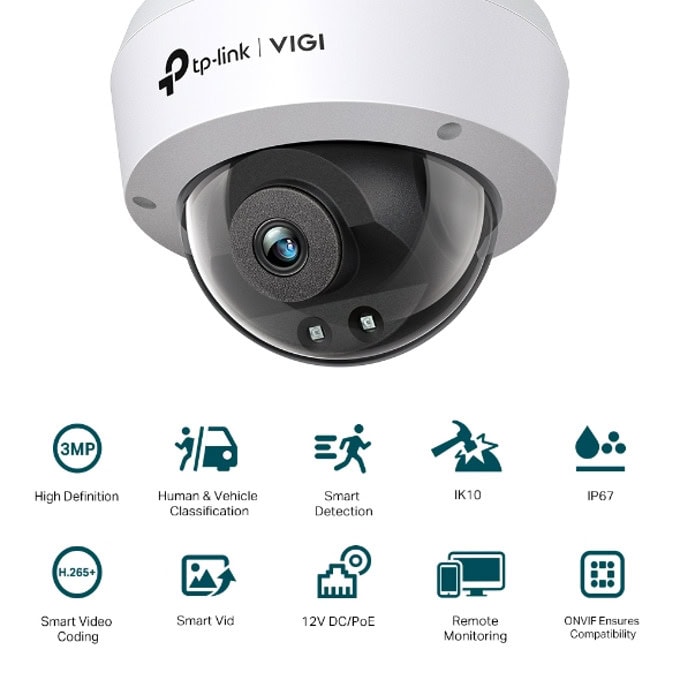

TP-Link VIGI C230I (2.8mm)

• 3MP Super-High Definition: The VIGI C230I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

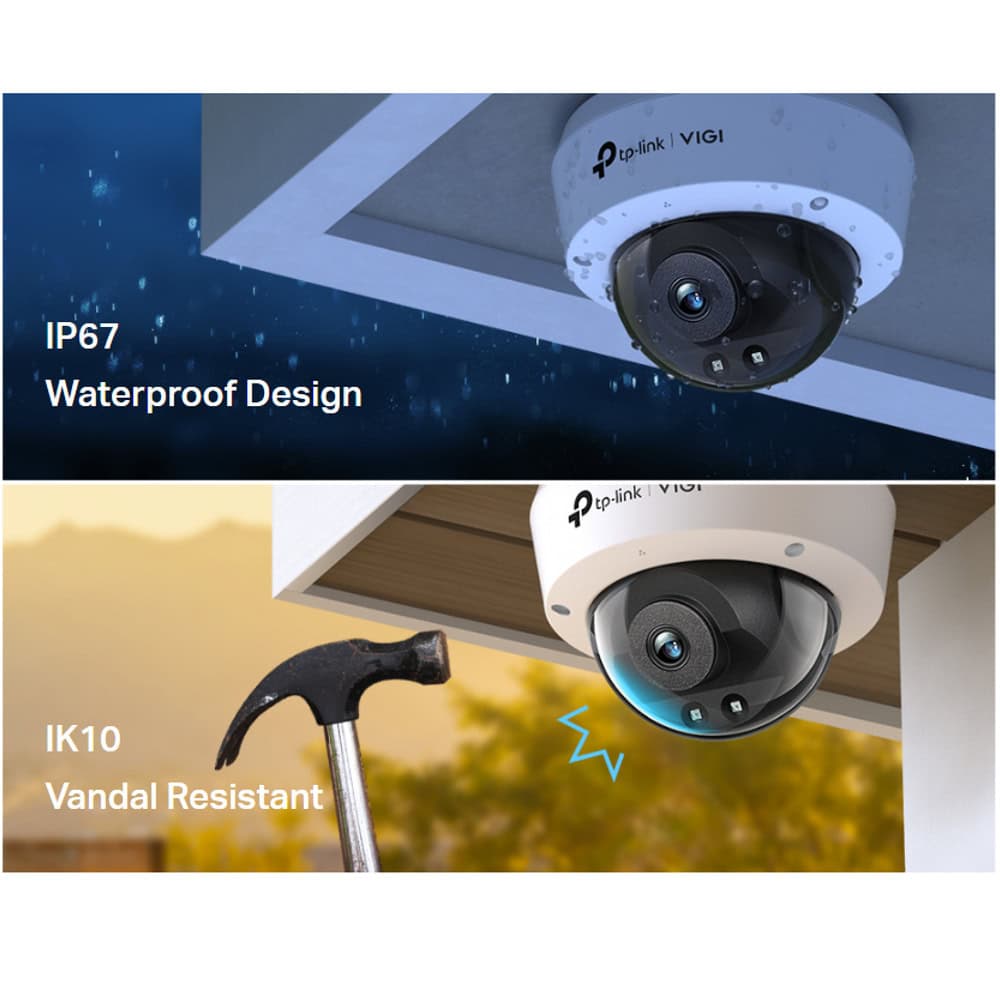

• IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C230I comes with two different lens types to better suit your security needs.
• Flexible Management : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Камера

Светлочувствителен сензор1/2.8” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Aperture2.8 mm: F2.2

Обектив2.8 mm/ 4 mm

Lens MountM12

Minimum IlluminationColor: 0.1 Lux; 0 Lux with IR

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified/ Scheduled/ Auto

Digital Noise Reduction3D DNR

WDRDWDR

Weatherproof RatingIP67

IR Working Distance30m

Зрителен ъгъл2.8mm: 97.8°/52.9°/117.9°(H/V/D)

LENS

TypeFixed Focal Lens

Focal Length2.8 mm

Aperture2.8 mm: F2.2

FOV2.8 mm: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

Lens MountM12

DORI Distance2.8 mm: Detect: 49 m Observe: 20 m Recognize: 10 m Identify: 5 m

Angle Adjustment (Manual)

RangePan: 0° to 355° Tilt: 0° to 75°

ILLUMINATOR

IR LEDQuantity: 2 Range: 30m Wavelength: 850nm

White LEDAuto/Scheduled/Always on/Always off

Illuminator On/Off ControlN/A

VIDEO

Max. Resolution2304 × 1296

Main StreamFrame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-StreamFrame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate ControlCBR, VBR

Видео компресияMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264

H.264 TypeMain Profile/High Profile

H.264+Main Stream Supported

H.265 TypeMain Profile

H.265+Main Stream Supported

Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image EnhancementBLC/3D DNR/HLC/SmartIR
