IP камера TP-Link VIGI C230I Mini(2.8mm)
TP-Link

IP камера TP-Link VIGI C230I Mini(2.8mm)

Артикул №: 1000127586
Категория: Видеонаблюдение и аларми
79,99 €
✓ Налично във външен склад

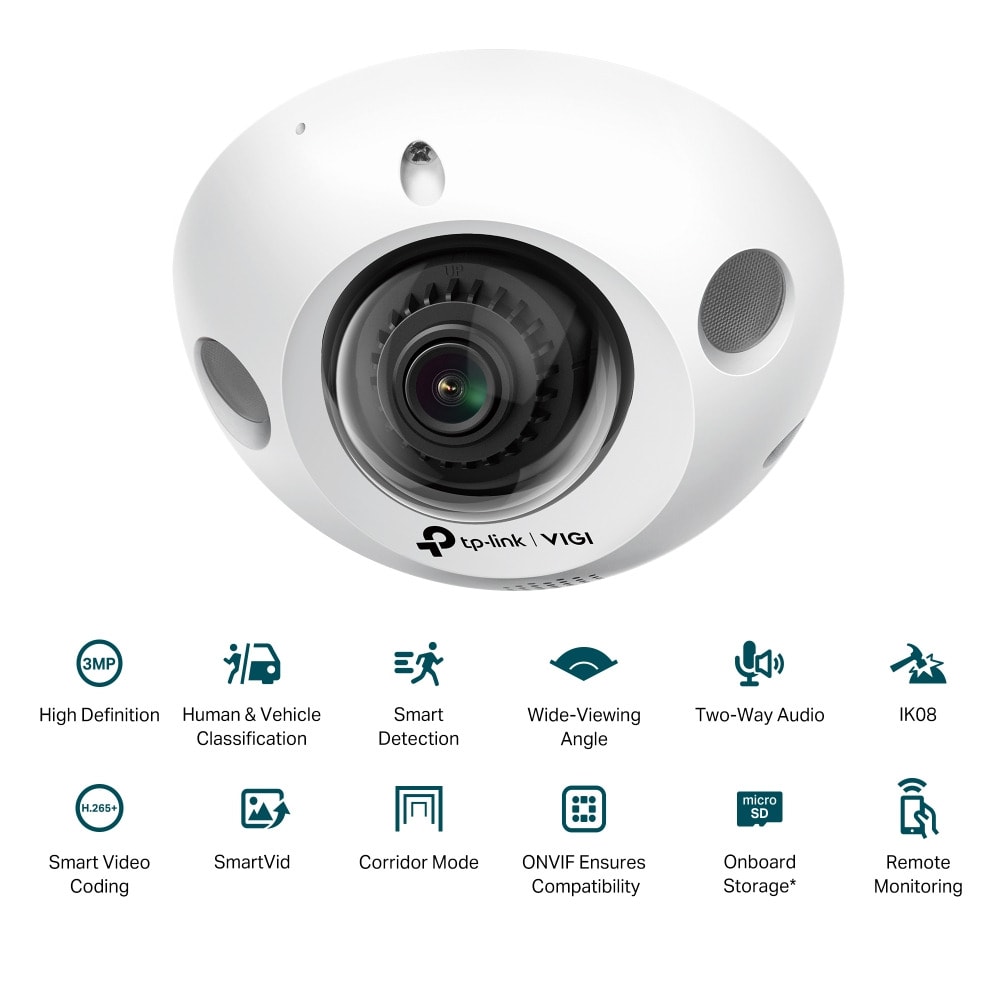

3MP IR Mini Dome Network Camera

  • 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Small but compact with wide views : With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
  • IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

Looking for a higher resolution? It's right here.

3MP Super-High Definition

The VIGI C230I Mini Camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.

Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Small but compact with wide views

With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

IK08 Vandal-Proof

Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

Corridor Mode

Corridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.

Характеристики

МРЕЖА Защита: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

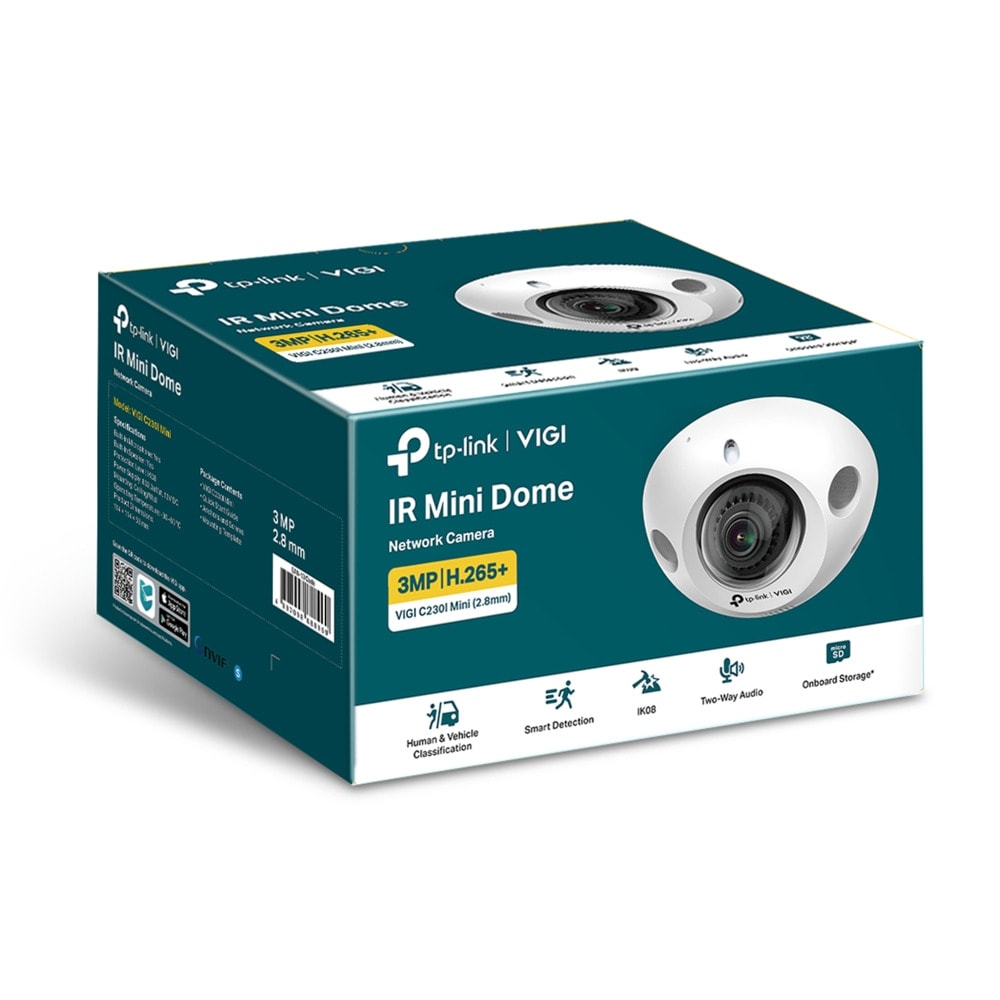

ОБЩИ ХАРАКТЕРИСТИКИ Съдържание на пакета: VIGI Network Camera · Quick Start Guide · Mounting Accessories · Mounting Template
Околна температура при работа: -30–60 °C
Certifications: CE/VCCI/BSMI/KC/ONVIF
Размери: 114 × 114 × 58 mm
Material: Plastic
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0)
Power Consumption: 12V DC: Max 7.5W · PoE: Class 0
Vandal Resistant: IK08
ВИДЕО/СНИМКА Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264
Кадрова скорост и резолюции: Main Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 · Sub-Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution: 3MP (2304 × 1296)
Видео стрийминг: 3 Main Streams · 3 Sub-Streams
Настройки на изображението: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Video Bit Rate: 64 Kbps to 4 Mbps
Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region
ИНТЕРФЕЙСИ Мрежов интерфейс: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Бутони: Reset Button
Video Output: -
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone: Yes
Built-in Speaker: Yes
Камера Светлочувствителен сензор: 1/2.8” Progressive Scan CMOS
Обектив: 2.8 mm
Aperture: F1.6
Lens Mount: M12
Зрителен ъгъл: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Day/Night Mechanism: IR Cut Filter
IR Working Distance: 30m
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Digital Noise Reduction: 3D DNR
WDR: DWDR
