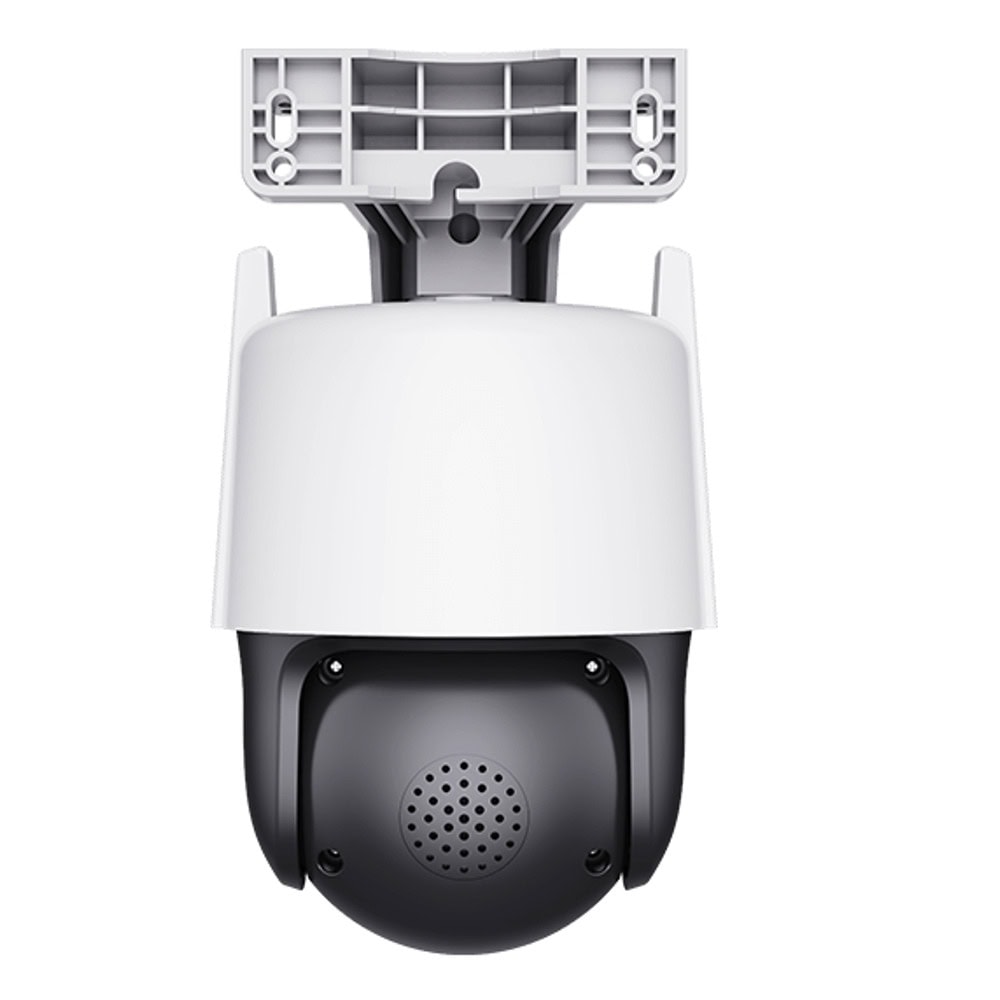

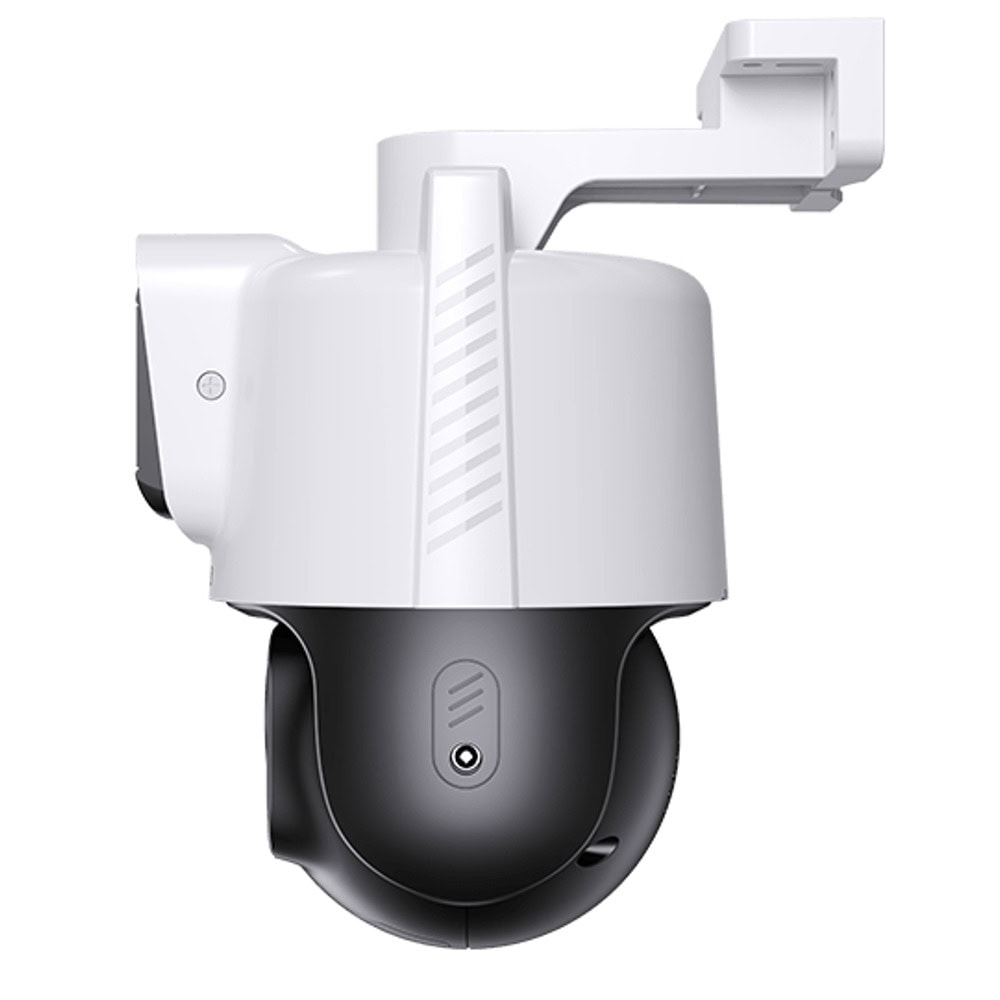

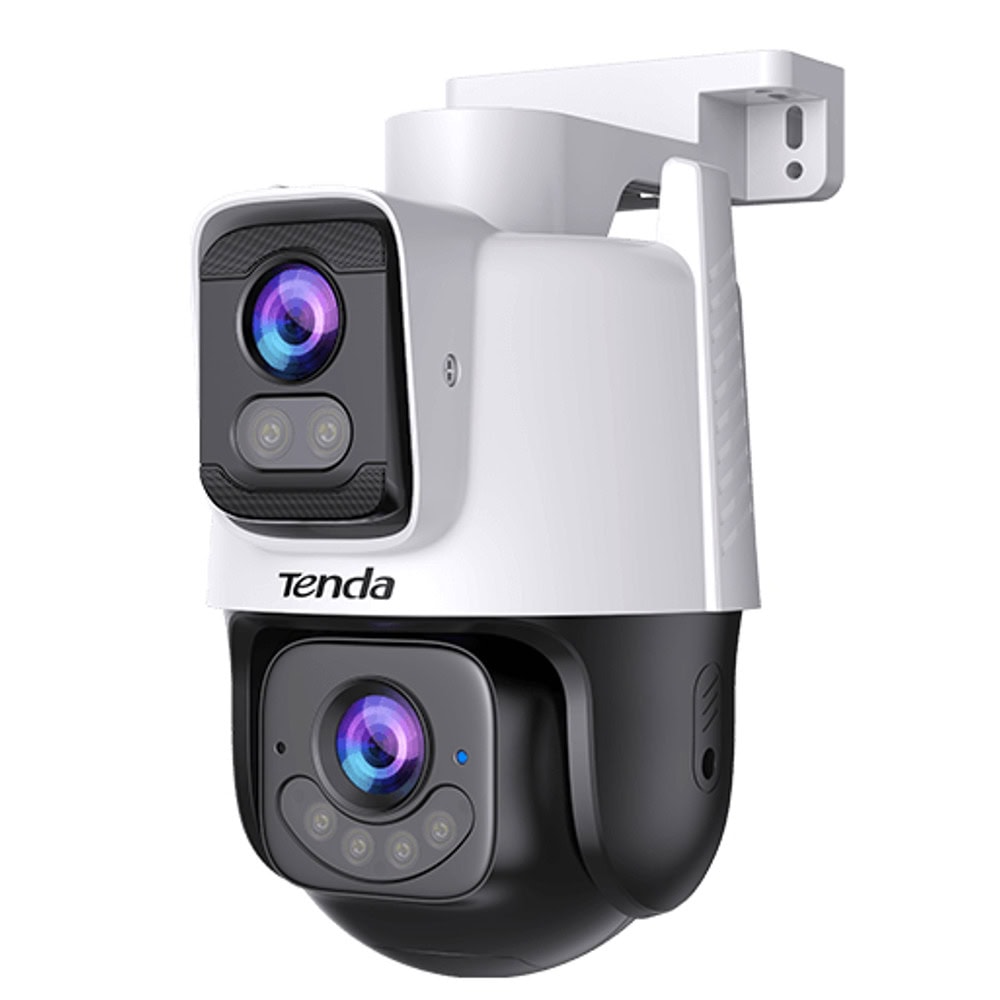

IP камера Tenda RH9-WCA

Dual lenses provide an unprecedented double areas protection experience

Equipped with 3MP fixed lens and 3MP PT lens, it can simultaneously protect two different areas, effectively reducing the blind spots.

Dual lenses with different focal lengths provide comprehensive coverage from wide-angle to close-up shots.

The 4 mm wide-angle fixed lens safeguards broader areas, while the 6 mm telephoto PT lens delivers sharper details, including facial features and license plates.

Next-level Wi-Fi 6 Technology, Stable and Smooth Video

With the latest Wi-Fi 6 technology, built-in special antenna for signal enhancement, it offers better anti-interference performance and lower latency compared to Wi-Fi 4, allowing your security range wider.

• Camera Image Sensor 1/3 Progressive Scan CMOS sensor Day and Night ICR type Bracket Angle Adjustment Pan：0°to 260°
• Lens Focal Length Fixed Lens：4mm PT Lens：6mm Aperture Fixed Lens：F1.6 PT Lens：F1.6 FOV Fixed Lens：Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4° PT Lens：Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4°
• Illuminator Supplementary Light 6 IR Lights, 6 Spotlights Supplementary Light Distance Up to 30 m/100 ft (depending on environment) IR Wavelength 850nm Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
• Video Video Encoding Format Fixed Lens：H.265, H.264 PT Lens：H.265, H.264 Main Stream Resolution Fixed Lens：2304 ×1296, 1920 × 1080, 1280 × 720 PT Lens：2304 ×1296, 1920 × 1080, 1280 × 720 Sub Stream Resolution Fixed Lens：640 × 360 PT Lens：640 × 360 Frame Rate Fixed Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps PT Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps Bit Rate Fixed Lens：512kbps -- 4096kbps PT Lens：512kbps -- 4096kbps Bit Rate Control Fixed Lens：CBR,VBR PT Lens：CBR,VBR
• Audio Audio Encoding Format G.711A, G.711U, AAC Audio Sampling Rate 8 kHz Audio Communication Two-way Audio, Voice Input
• Image Image Enhancement DWDR, BLC, HLC, 3D DNR Privacy Mask 4 Areas
• Network Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port ONVIF Support Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets Client TDSEE (mobile phone), TDSEE STUDIO (PC) Web Browser Plug-in free live view: Chrome, Edge, Opera
• Pan&Tilt Pan Movement Range 0°--355° Tilt Movement Range 0°--90° Preset 6 Patrol Panoramic Patrol, Preset Patrol
• Wi-Fi Antenna Internal antenna Wireless Standard IEEE 802.11 b/g/n/ax Transmission Rate Up to 287Mbps Channel Width 20/40 MHz Modulation DSSS/OFDM/OFDMA Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13) Transmit Power 2.4GHz: Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Alarm Smart Detection Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection Smart Linkage Sound&light Alert, Dual-lens Linkage Tracking DIY Audio 3 Customized Audios
• Interface Audio Input Built-in MIC, adjustable microphone volume Audio Output Built-in Speaker, 76 dBA (Alarm sound at 1 meter), adjustable sound level Storage Built-in Micro SD Card Slot, Up to 512 GB Reset Button Support LED Indicator Dual Color(red & blue) LED Indicator
• General Material Plastic12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug Product Dimension 203mm x 122mm x 162mm(8.0" × 4.8" × 6.4") Package Dimension 240mm x 145mm x 193mm(9.4'' × 5.7'' × 7.6'') Product Weight 527g(1.16lb) With Package Weight 802g(1.77lb) Protection Level IP65 Installation Method Wall Mounting, Ceiling Mounting, Pole Mounting
