Hikvision

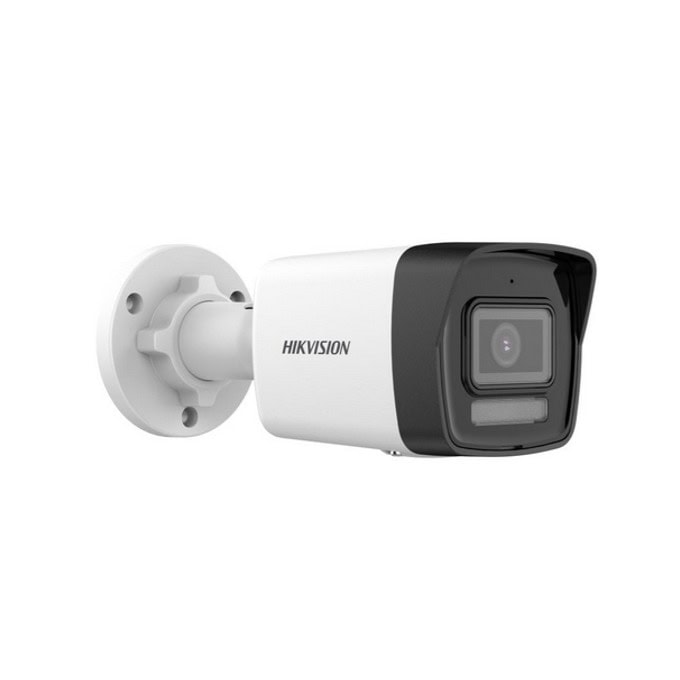

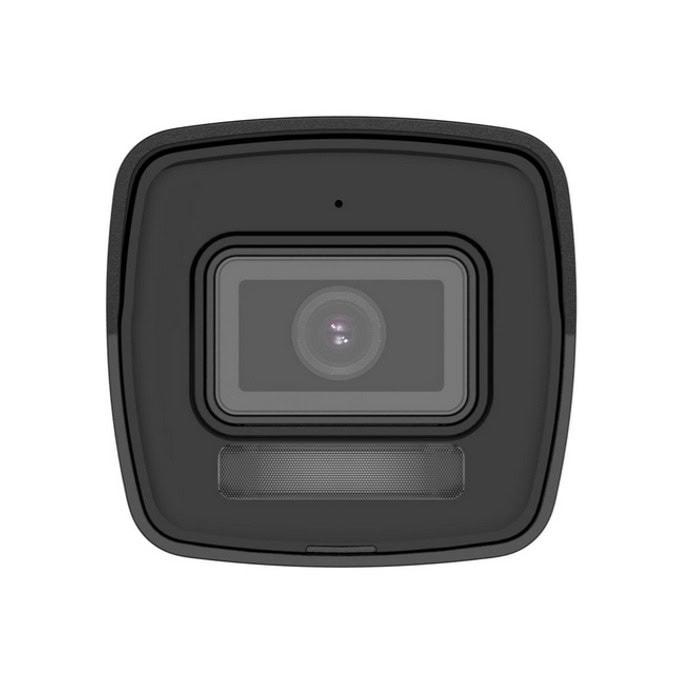

IP камера Hikvision DS-2CD1043G2-LIUF
Артикул №: 1000136222
Категория:
Видеонаблюдение и аларми
117,99 €
✓ Ограничена наличност
Характеристики
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle AdjustmentPan | 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | Да |
| Lens TypeFixed focal lens, | 4.0mm |
| Focal Length & FOV | Да |
| Mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° | 4 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | Да |
| 4 mm, D | 78 m, O: 31 m, R: 15 m, I: 7 m |
| Illuminator | Да |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Да |
| IR Wavelength | 850 nm |
| Video | Да |
| Main Stream | Да |
| 50 Hz | 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) |
| 60 Hz | 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG • Video Bit Rate: 32 Kbps to 8 Mbps • H.264 Type: Baseline Profile,Main Profile,High Profile • H.265 Type: Main Profile • Bit Rate Control: CBR,VBR • Region of Interest (ROI): 1 fixed region for main stream Audio • Audio Type: Mono sound • Environment Noise Filtering: Yes • Audio Sampling Rate: 8 kHz/16 kHz • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC • Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps Network • Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) • Simultaneous Live View: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK • Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user • Client: iVMS-4200,Hik-Connect • Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Image • Wide Dynamic Range (WDR):120 dB • SNR≥: 52 dB • Day/Night Switch: Day,Night,Auto,Schedule • Image Enhancement: BLC,HLC,3D DNR • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser • Privacy Mask: 4 programmable polygon privacy masks Interface • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB • Built-in Microphone: Yes • Reset Key: Yes Event • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception • Linkage: Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture General • Power: 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W • Material: Metal & Plastic • Dimension: 170.8 mm × 66 mm × 69.1 mm • Package Dimension216 mm × 121 mm × 118 mm • Weight: Approx. 270 g • With Package Weight: Approx. 481 g • Storage Conditions: -30 °C to 60 °C. Humidity 95% or less (non-condensing) • Startup and Operating Conditions: -30 °C to 60 °C. Humidity 95% or less (non-condensing) • General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email • Protection IP67: IEC 60529-2013 |
