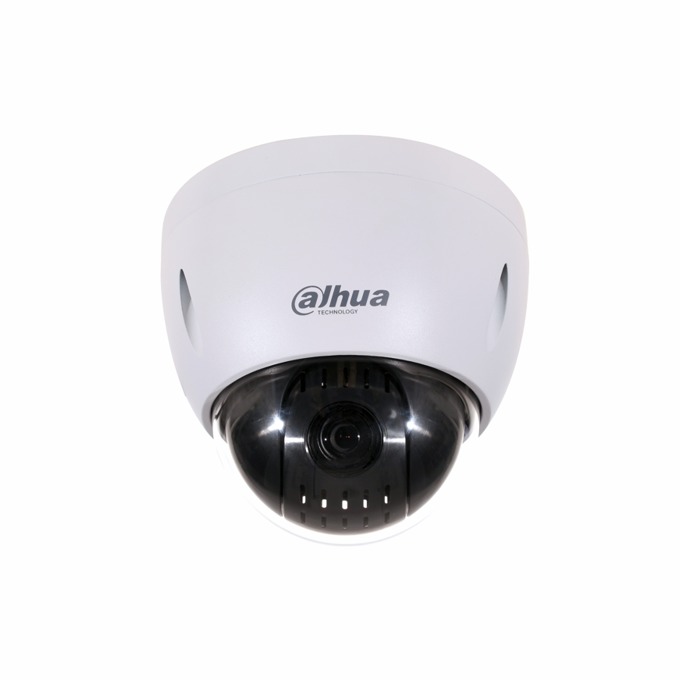

IP камера Dahua SD42212T-HN-S2

· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 12x optical zoom
· Support Triple-streams encoding
· Max. 25/30fps@1080P
· IVS
· Support PoE+
· IP66, IK10

Technical Specification

Camera
Image Sensor: 1/2.8” STARVIS™ CMOS
Effective Pixels: 1920(H) x 1080(V), 2 Megapixels
RAM/ROM: 1024M/128M
Scanning System: Progressive
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination Color: ; B/W:
S/N Ratio: More than 55dB
IR Distance: N/A
IR On/Off Control: N/A
IR LEDs: N/A

Lens
Focal Length: 5.3mm~64mm
Max. Aperture: F1.6 ~ F4.4
Angle of View: H: 58.2° ~ 4.8°
Optical Zoom: 12x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm

PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup: Human-oriented focal Length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol: DH-SD

Intelligence
Event Trigger:
Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto Tracking: N/A
IVS: Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions Face Detection

Video
Compression: H.265+/H.265/H.264+/H.264
Streaming Capability: 3 Streams
Resolution: 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate:
Main stream: 1080P/720P(1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)

Bit Rate Control: CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D/3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): N/A
Defog: Support
Digital Zoom: 16x
Flip: 180°
Privacy Masking: Up to 24 areas

Audio
Compression: G.711a/G.711Mu/G.726/AAC

Network
Ethernet: RJ-45 (10XBase-T/100Base-TX)
Protocol:
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability ONVIF Profile S&G, API
Streaming Method: Unicast / Multicast
Max. User Access: 20 users
Edge Storage: NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Smart Phone: IOS, Android

Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
