IP камера Dahua IPC-HFW5842HP-ZHE

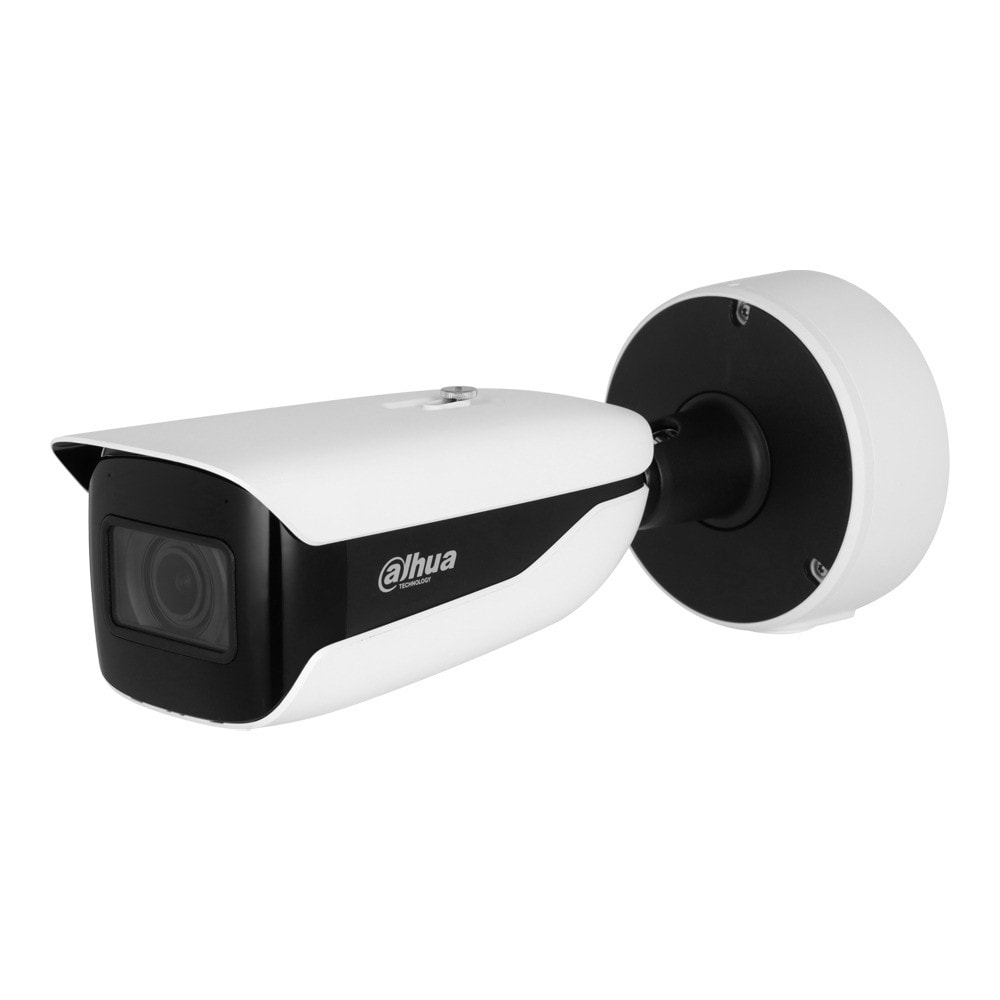

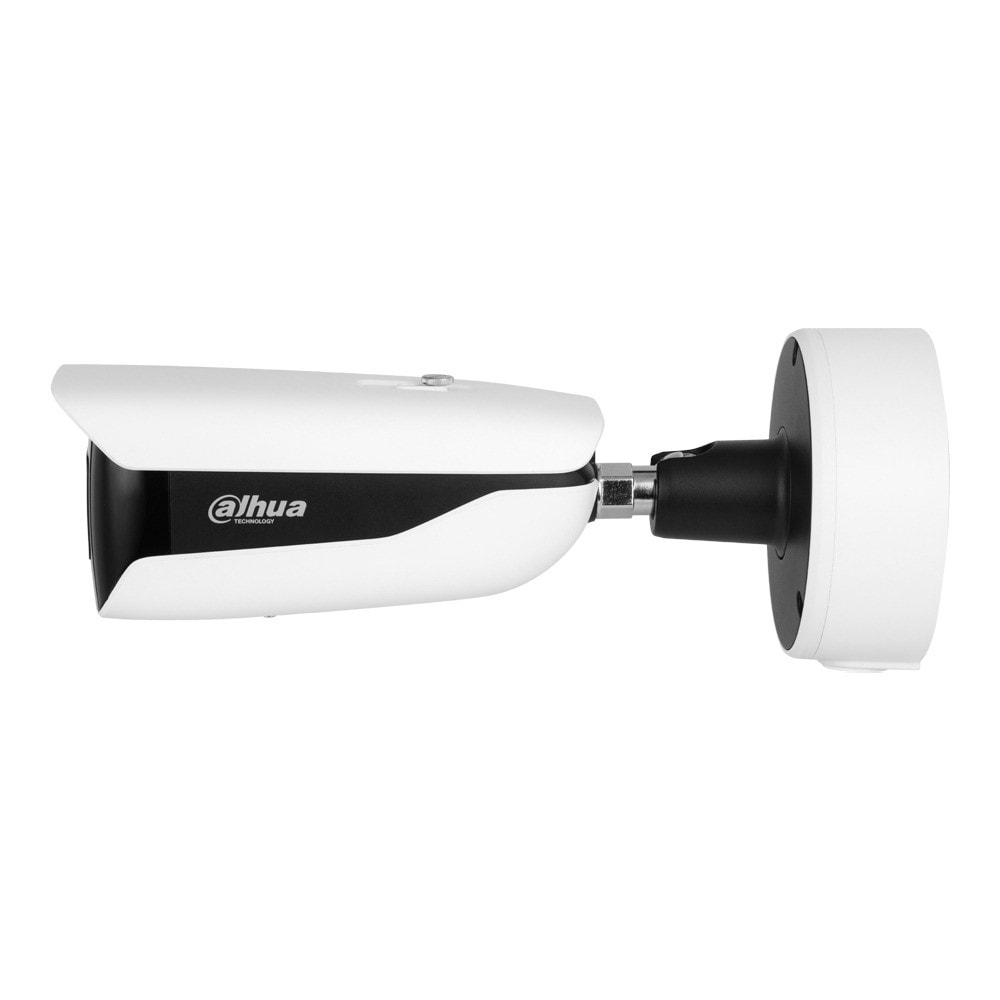

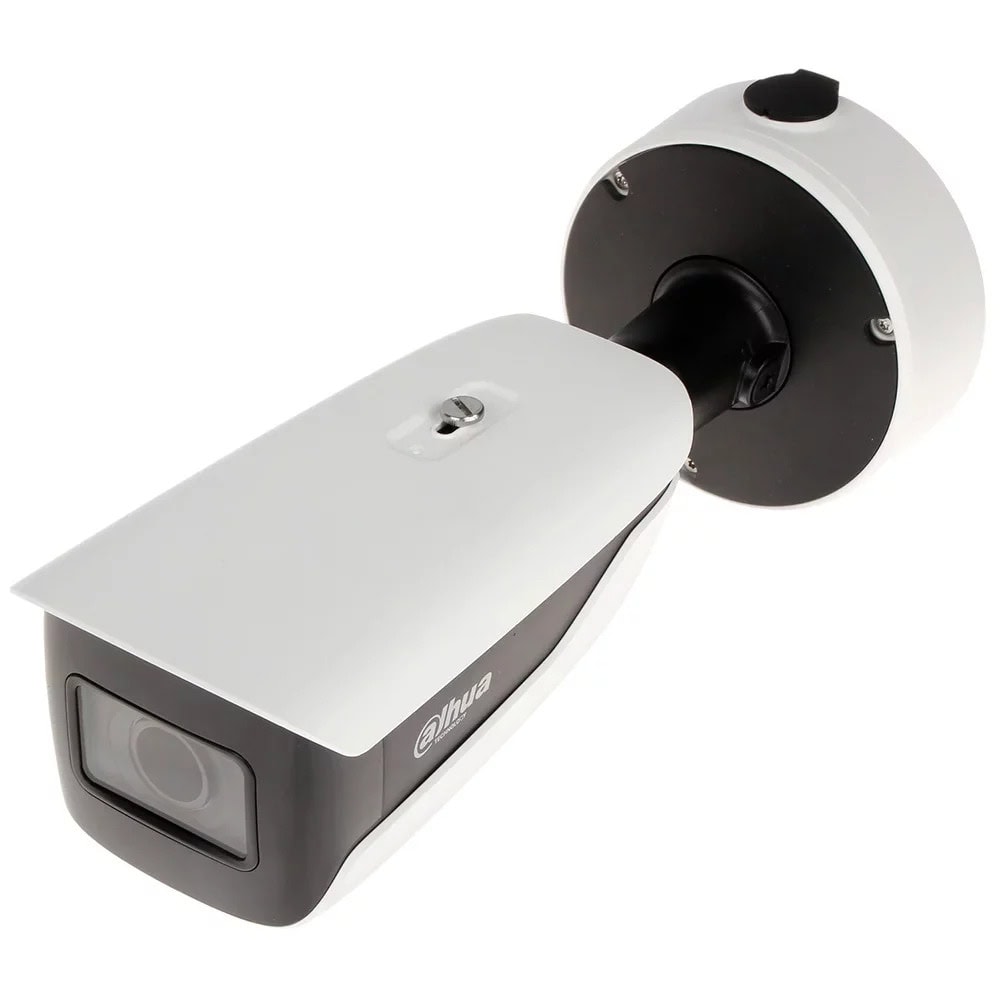

8MP IR Vari-focal Bullet WizMind Network Camera

* The parameters and datasheets below can only be applied to 5842- Z-S3 series.

> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840×2160) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 60 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual Mic.

> 24 VAC/12 VDC/PoE power supply; ePoE.

> IP67 and IK10 protection, heater.

> SMD 3.0.

> Anti-corrosion model optional.

Camera

Image Sensor1/1.8" CMOS

Max. Resolution3840 (H) × 2160 (V)

ROM4 GB

RAM2 GB

Scanning SystemProgressive

Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s

Min. Illumination0.0007 lux@F1.2 (Color, 30 IRE) 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio>56 dB

Illumination DistanceUp to 60 m (196.85 ft) (IR)

Illuminator On/Off ControlAuto; Zoomprio; Manual

Illuminator Number4 (IR LED)

Angle AdjustmentPan: 0-360° Tilt: 0-90° Rotation: 0-360°

Lens

Lens TypeMotorized vari-focal

Lens Mountφ14

Focal Length2.7 mm–12.0 mm

Max. ApertureF1.2

Field of ViewH: 112°–48°; V: 58°–27°; D: 137°–55°

Iris ControlAuto

Iris Control TypeP-Iris

Close Focus Distance1.75 m (5.74 ft)

DORI DistanceLensDetectObserveRecognizeIdentify

W87.6 m (287.40 ft)35.0 m (114.83 ft)17.5 m (57.41 ft)8.8 m (28.87 ft)

T186.6 m (612.20 ft)74.6 m (244.75 ft)37.3 m (122.38 ft)18.7 m(61.35 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

EPTZYes

IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object DetectionSmart abandoned object; smart missing object

SMDSMD 3.0

AcuPickUses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSAYes

Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat MapYes

Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound DetectionYes

Video

Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart CodecSmart H.265+; Smart H.264+
