Dahua

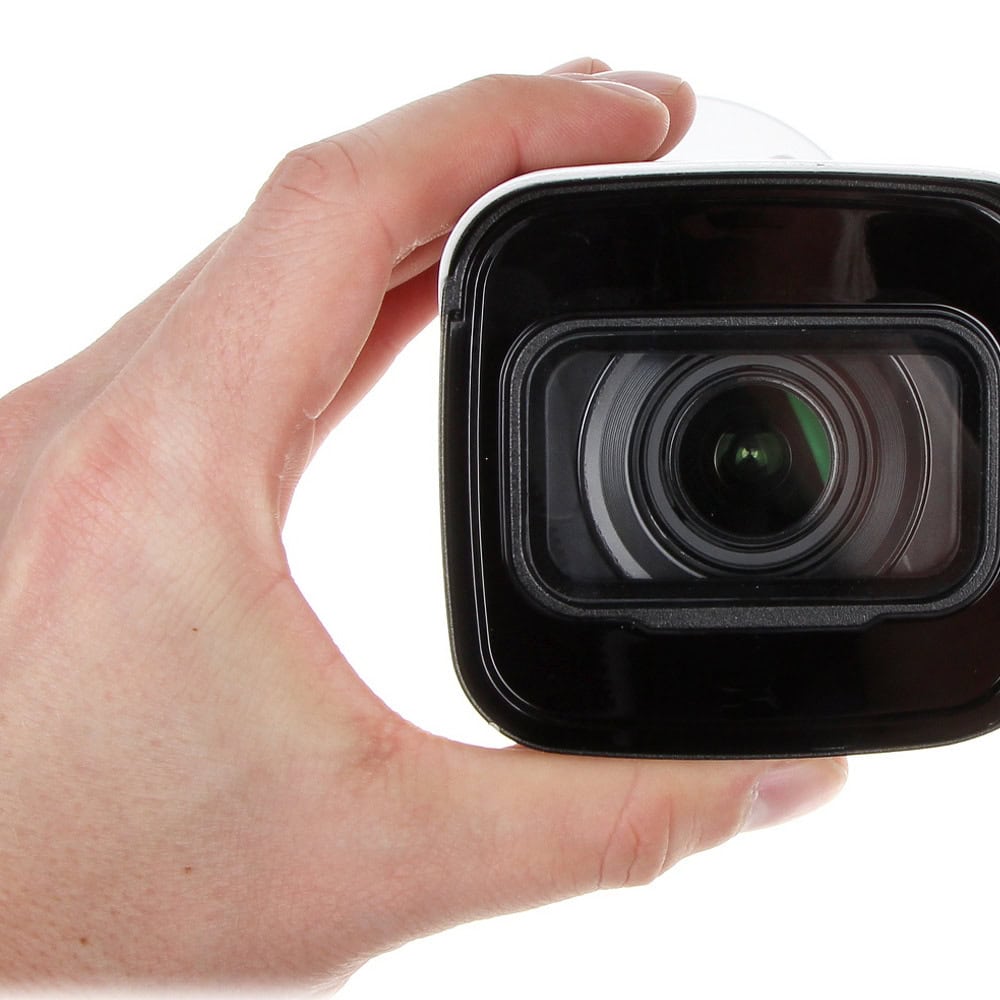

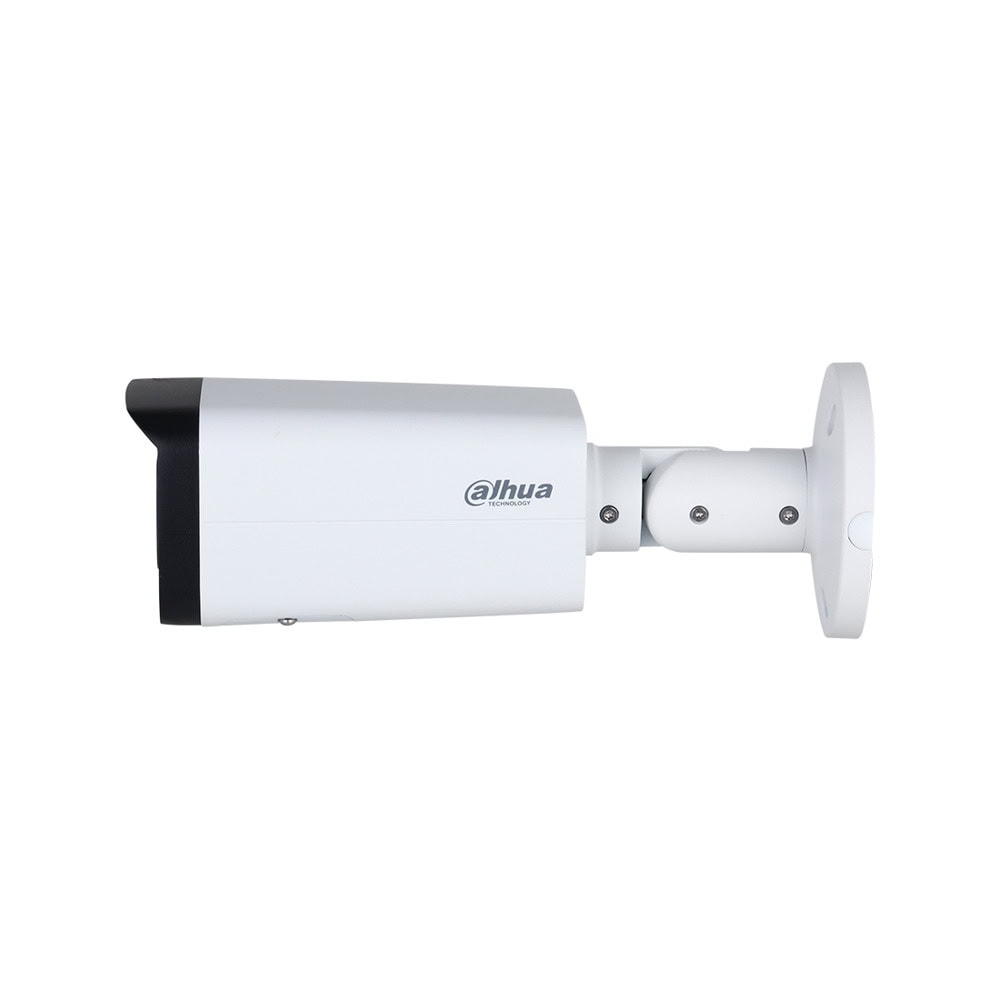

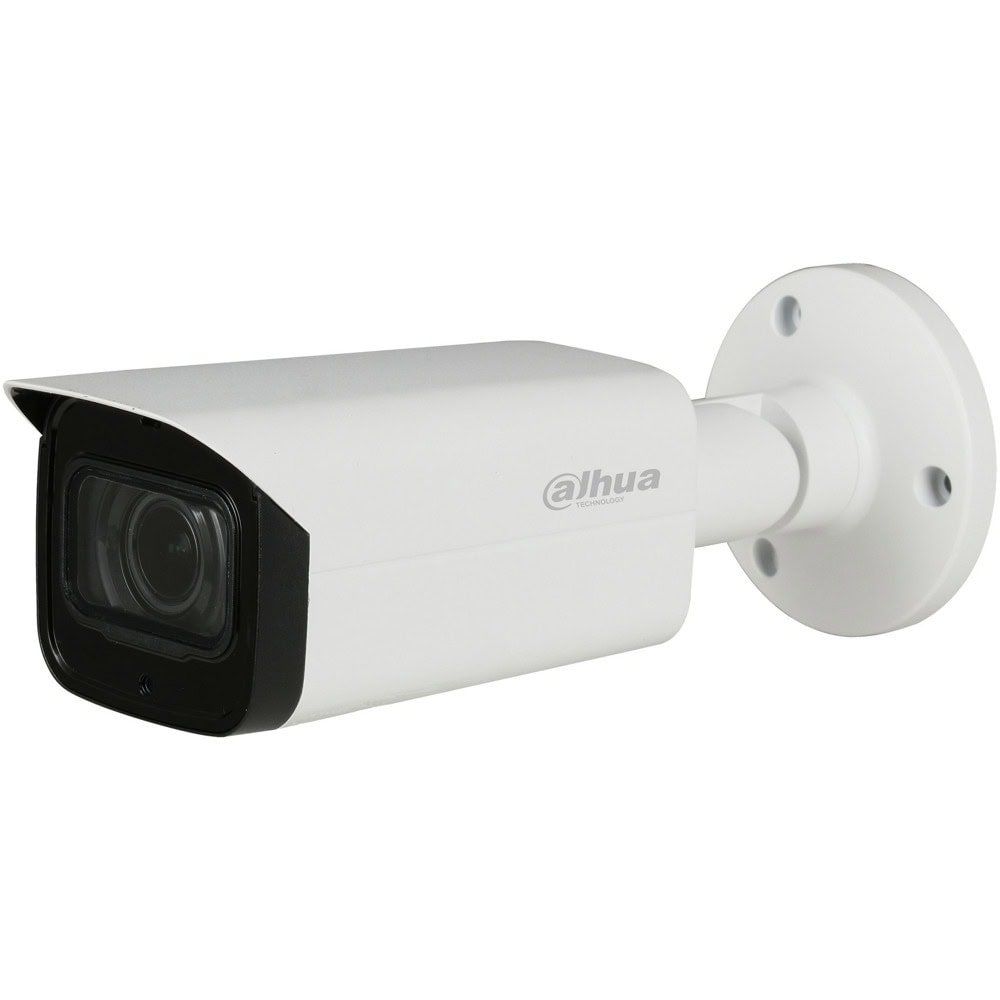

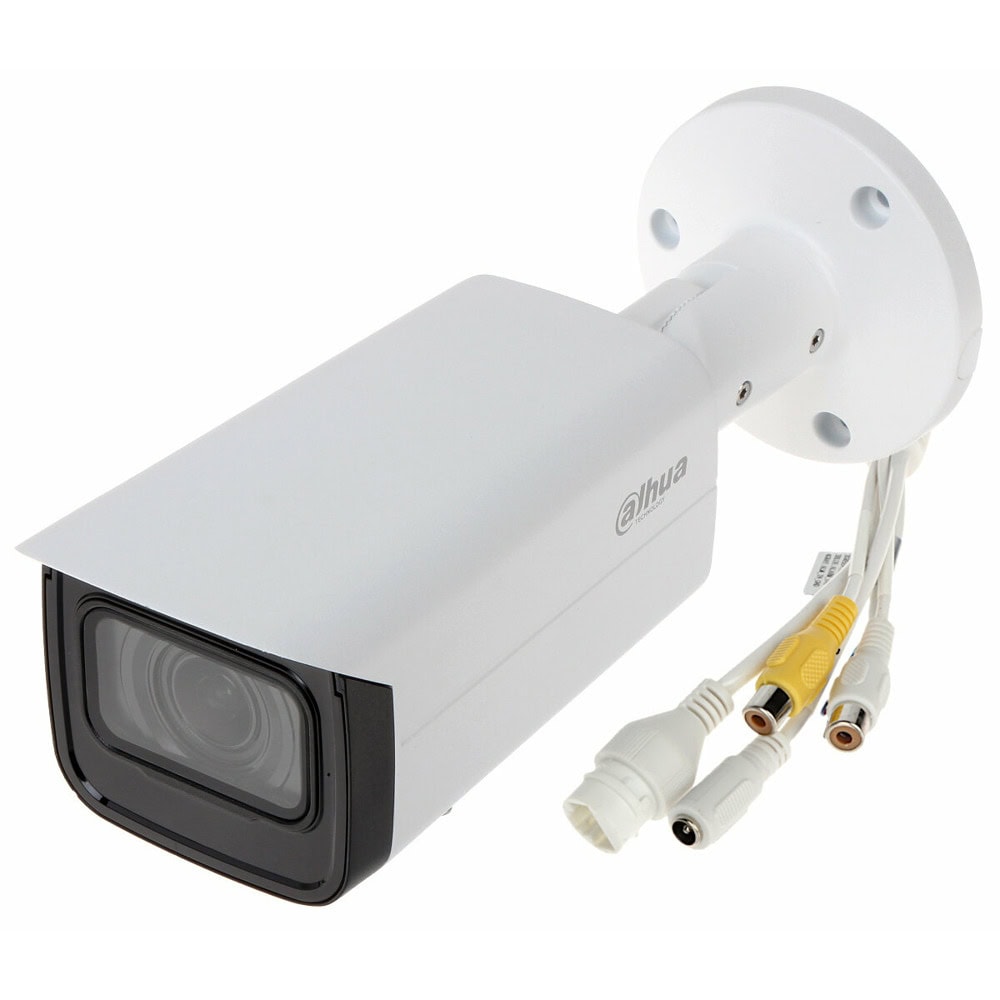

IP камера Dahua IPC-HFW2241T-ZAS-27135
Артикул №: 1000132609
Категория:
Видеонаблюдение и аларми
290,99 €
✓ Налично във външен склад
P camera with efficient H.264 / H.265 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p. Due to above it is perfect solution for surveillance systems requiring persons or vehicles recognition.
The used motozoom lens with 2.7 ... 13.5 mm focal length allows to remote view angle adjustment. Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color image. PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.
Camera is according to IP67 Index of Protection norm.
Характеристики
| Standard | TCP/IP |
| Sensor | 1/2.8 " Progressive Scan CMOS |
| Matrix size | 2.1 Mpx |
| Резолюция | 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Lens | 2.7 ... 13.5 mm - Motozoom |
| View angle | 108 ° ... 30 ° (manufacturer data)104 ° ... 31 ° (our tests result) |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Range of IR illumination | 60 m |
| Alarm inputs / outputs | 1 / 1 |
| Main stream frame rate | 25 fps - 1080p |
| Network interface | 10/100 Base-T (RJ-45) |
| Network protocols | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| Аудио | Microphone built-inExternal microphone inputAudio outputBi-directional audio streaming supportAudio detection |
| WEB Server | Built-in |
| Memory card slot | Micro SD memory cards up to 256GB support (possible local recording) |
| Max. number of on-line users | 6 |
| ONVIF | 21.06 |
| Mobile phones support | Port no.: 37777 or access by a cloud (P2P)Android: Free application DMSSiOS (iPhone): Free application DMSS |
| Default admin user / password | admin / - The administrator password should be set at the first start |
| Default IP address | 192.168.1.108 |
| Web browser access ports | 80, 37777 |
| PC client access ports | 37777 |
| Mobile client access ports | 37777 |
| Port ONVIF | 80 |
| RTSP URL | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| RS-485 interface | Не |
| Main features | WDR - 120 dB - Wide Dynamic Range3D-DNR - Digital Noise ReductionROI - improve the quality of selected parts of imageBLC - Back Light CompensationHLC - High Light Compensation (spot)ICR - Movable InfraRed filterAGC - Automatic Gain ControlMotion Detection - max. 4 zonesPrivacy zones - max. 4Auto White BalanceMirror - Mirror imageSMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicleIVS analysis : crossing the line (tripwire), intrusion, Smart motion detection (with recognizing people and vehicles) |
| Захранване | PoE (802.3af),12 V DC / 710 mA |
| Консумация на енергия | ≤ 8.6 W @ 12 V DC≤ 9.9 W @ PoE |
| Housing | Compact, Metal |
| Цвят | Бял |
| Index of Protection" | IP67 |
| Operation temp | -30 °C ... 60 °C |
| Supported languages | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian |
| Тегло | 0.77 kg |
| Размери | 239 x 91 x 91 mm |
