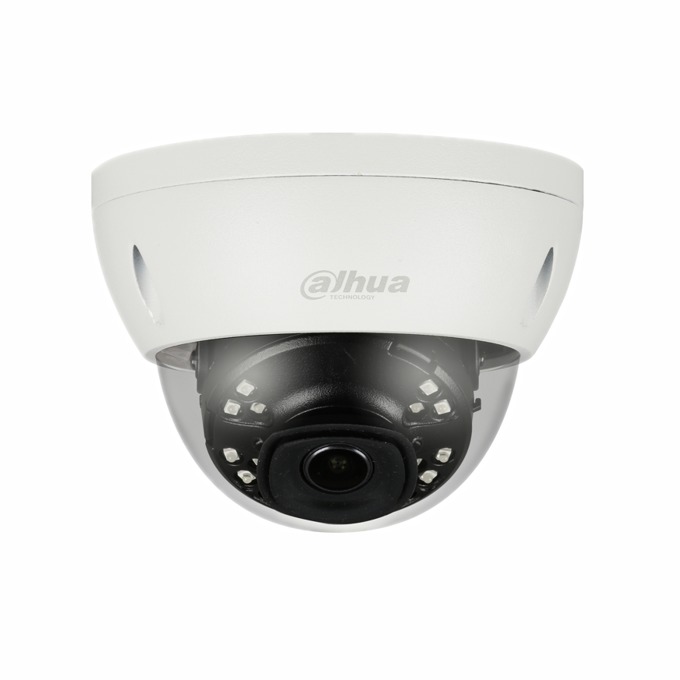

IP камера Dahua IPC-HDBW4431E-ASE-0360B

Артикул №: 1000003271

Категория: Цифрови IP камери

138,99 €

✓ Налично във външен склад

· 1/3” 4Megapixel progressive scan CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@4M(2688×1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· 2.8mm fixed lens (3.6mm, 6mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 30m
· Micro SD memory, IP67, IK10, PoE

Technical Specification

Camera
Image Sensor: 1/3”4Megapixel progressive scan CMOS
Effective Pixels: 2688(H)x1520(V)
RAM/ROM: 512MB/32MB
Scanning System: Progressive
Electronic Shutter: Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.06Lux/F1.6( Color,1/3s,30IRE)
0.4Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on)

S/N Ratio: More than 50dB
IR Distance: Distance up to 30m (98ft)
IR On/Off: Control Auto/ Manual
IR LEDs: 18

Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm (3.6mm, 6mm optional）
Max. Aperture: F1.6 (F1.6, F1.6)
Angle of View: H: 104° (83°, 55°), V: 55° (45°, 31°)
Optical Zoom: N/A
Focus Control: Fixed
Close Focus Distance: 0.9m (1.5m, 3.1m)
DORI Distance
Lens Detect Observe Recognize Identify

Технически характеристики

· Multiple network monitoring	Web viewer, CMS(DSS/PSS) & DMSS
Image Sensor	1/3”4Megapixel progressive scan CMOS
Effective Pixels	2688(H)x1520(V)
RAM/ROM	512MB/32MB
Scanning System	Progressive
Electronic Shutter	Speed Auto/Manual, 1/3(4)~1/100000s
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m (98ft)
IR On/Off	Control Auto/ Manual
IR LEDs	18
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm (3.6mm, 6mm optional）
Max. Aperture	F1.6 (F1.6, F1.6)
Angle of View	H: 104° (83°, 55°), V: 55° (45°, 31°)
Focus Control	Fixed
Close Focus Distance	0.9m (1.5m, 3.1m)
Pan/Tilt/Rotation Range	Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Face Detection
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
Main Stream	4M(1~25/30fps)
Sub Stream	D1(1~25/30fps)
Third Stream	720P(1~25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24K ~ 10240Kbps, H.265: 14K ~ 9984Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Smart IR	Поддръжка
Flip	0°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Compression	G.711a/ G.711Mu/ AAC/ G.726
Ethernet	RJ-45 (10/100Base-T)
Streaming Method	Unicast / Multicast
Max. User Access	10 Users /20 Users
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
CE (EN 60950	2000)
UL	UL60950-1
FCC	FCC Part 15 Subpart B
Audio Interface	1/1 channel In/Out
Alarm 1 channel In	5mA 5VD, 1 channel Out: 300mA 12VDC
Захранване	DC12V, PoE (802.3af)(Class 0)
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Casing	Metal
Размери	Φ109.9mm×81mm (4.33”×3.19”)
Нето тегло	0.41kg (0.91lb)
Бруто тегло	0.53 kg (1.17lb)
