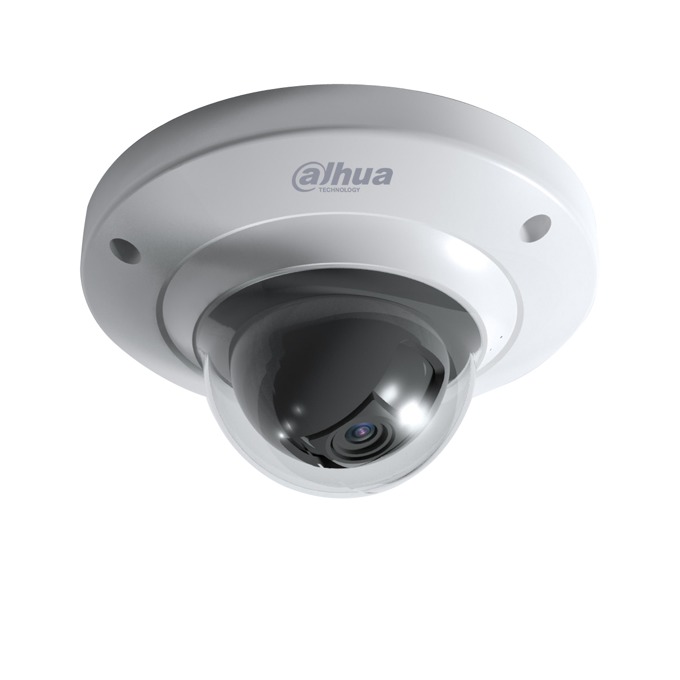

IP камера Dahua DH-IPC-HD1000CP-W-0360B

Dahua DH-IPC-HD1000CP-W-0360B

Features
- 1/4” 1Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps@720P(1280× 720)
- DWDR, Day/Night, 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens
- Wi-Fi support
- DC12V

Camera

Image Sensor: 1/4” 1Megapixel progressive scan CMOS
Effective Pixels: 1280(H)x720(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3（4）~1/10000
Min. Illumination: 0.1Lux/F1.8(color), 0Lux/F1.8(IR on)
S/N Ratio: More than 50dB

Camera Features

Day/Night: Auto(Electronic) / Color / B/W
Backlight Compensation: BLC /HLC /DWDR
White Balance: Auto
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas

Lens

Focal Length 3.6mm (2.8mm,6mm optional)
Max Aperture F1.8(F2.0/F1.9)
Focus Control: Manual
Angle of View H:70°(89°/46.5°)
Lens Type: Fixed
Mount Type: Board-in Type

Video

Compression H.264 / MJPEG
Resolution 720P(1280× 720)/ D1(704× 576/704× 480)/ CIF(352× 288/352× 240)/

Frame Rate

Main Stream 720P (1 ~ 25/30fps)
Sub Stream D1/CIF (1 ~ 25/30fps)

Bit Rate H.264: 56K ~ 8192Kbps

Network

Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(802.11b/g/n)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,
Bonjour

ONVIF: ONVIF ,CGI
Max. User Access: 20 users

General
Power Supply: DC12V
Power Consumption: <4W
Working Environment: -30°C~+50°C, Less than 95%RH
Dimensions: Φ110× 54mm
Weight: 0.25kg
