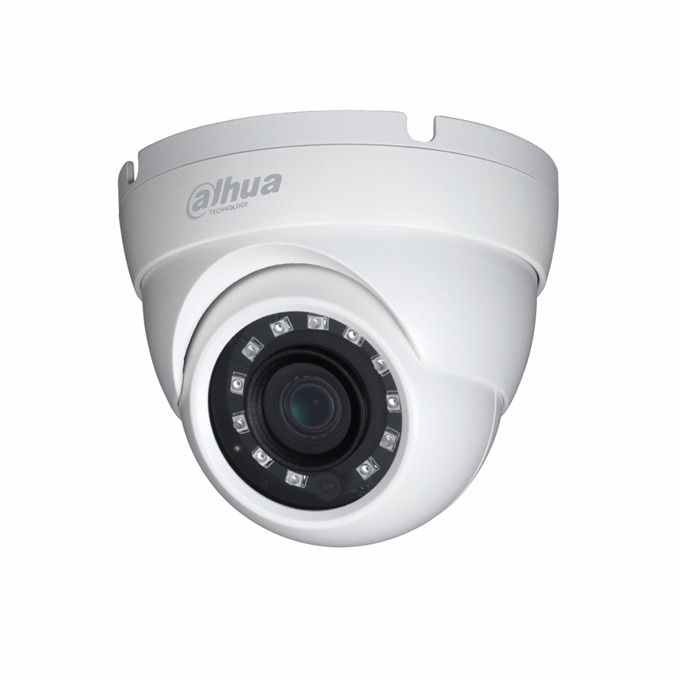

HDCVI камера Dahua HAC-HDW1200M-0360B-S4

Артикул №: 1000012414

Категория: Аналогови и хибридни

32,99 €

✓ Налично във външен склад

> Max 30fps@1080P> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V

Technical Specification

Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off: Control Auto / Manual
IR LEDs: 12

Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in

Технически характеристики

Image Sensor	1/2.7" CMOS
Effective Pixels	1920(H)×1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination	0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 30m (98feet)
IR On/Off	Control Auto / Manual
IR LEDs	12
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm (2.8mm, 6mm Optional)
Max Aperture	F1.85
Angle of View	H: 87.5° (103°, 54.7°)
Close Focus Distance	500mm (900mm, 2000mm)
Pan	0° ~ 360°
Tilt	0° ~ 78°
Rotation	0° ~ 360°
Резолюция	1080P (1920×1080)
Frame Rate	25/30fps@1080P, 25/30/50/60fps@720P
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	AGC
Noise Reduction	2D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Захранване	12V DC ±30%
Консумация на енергия	Max 3.3W (12V DC, IR on)
Operating Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance	IP67
Casing	Aluminium
Размери	Φ93.4mm×79.4mm (Φ3.68"×3.13")
Нето тегло	0.27kg (0.60lb)
Бруто тегло	0.34kg (0.75lb)
