Texecom

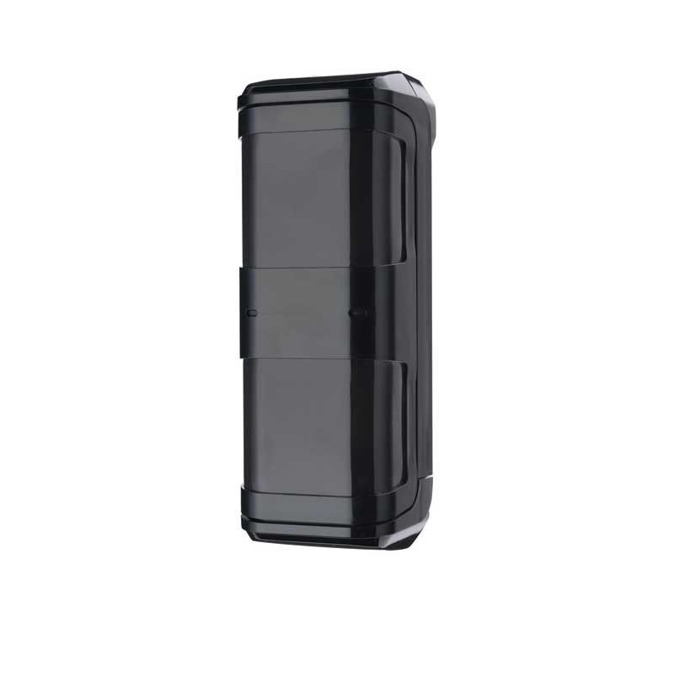

Детектор за движение (PIR) Texecom External TD Black AFQ-0001
Артикул №: 1000010661
Категория:
Датчици за аларми
126,99 €
✓ Налично във външен склад
Specifications:
Mounting Height- 1.0 - 1.4m, 1.2m nominal
Supply Voltage- 3 VDC (2 x 1.5 VDC AA Lithium Batteries)
Battery Life- Up to 4 years
Current Drain (typical)- 70μA
Detection Method- Dual, non-overlapping, digital PIR
Range- 12m max. Adjustable to 8m, 5m and 2m
Tamper Detection- Wall and case. Sealed non-mechanical switch
Start Up Time- 60 secs
Waterproof Coating- Conformal
Standards:
EMC- EN 55022: Class B, EN50130-4:2011, EN61000-6-3:2011
R&TTE:- EN300 220-2 V2.4.1
Environmental- IP65
Frequency Band- 868.0 - 868.6 MHz
Receiver- Category 1, Class 2
Transmitter Duty Cycle- 868MHz <1%
Low Voltage Signal- 2.85V
Mounting Height- 1.0 - 1.4m, 1.2m nominal
Supply Voltage- 3 VDC (2 x 1.5 VDC AA Lithium Batteries)
Battery Life- Up to 4 years
Current Drain (typical)- 70μA
Detection Method- Dual, non-overlapping, digital PIR
Range- 12m max. Adjustable to 8m, 5m and 2m
Tamper Detection- Wall and case. Sealed non-mechanical switch
Start Up Time- 60 secs
Waterproof Coating- Conformal
Standards:
EMC- EN 55022: Class B, EN50130-4:2011, EN61000-6-3:2011
R&TTE:- EN300 220-2 V2.4.1
Environmental- IP65
Frequency Band- 868.0 - 868.6 MHz
Receiver- Category 1, Class 2
Transmitter Duty Cycle- 868MHz <1%
Low Voltage Signal- 2.85V
Характеристики
| Supply Voltage- | 3 VDC (2 x 1.5 VDC AA Lithium Batteries) |
| Battery Life- Up to | 4 years |
| Current Drain (typical)- | 70μA |
| Detection Method- Dual, non-overlapping, digital PIR | Да |
| Range- | 12m max. Adjustable to 8m, 5m and 2m |
| Start Up Time- | 60 secs |
| Waterproof Coating- Conformal | Да |
| Standards | EMC- EN 55022: Class B, EN50130-4:2011, EN61000-6-3:2011 R&TTE:- EN300 220-2 V2.4.1 Environmental- IP65 Frequency Band- 868.0 - 868.6 MHz Receiver- Category 1, Class 2 Transmitter Duty Cycle- 868MHz <1% Low Voltage Signal- 2.85V |
