MSI

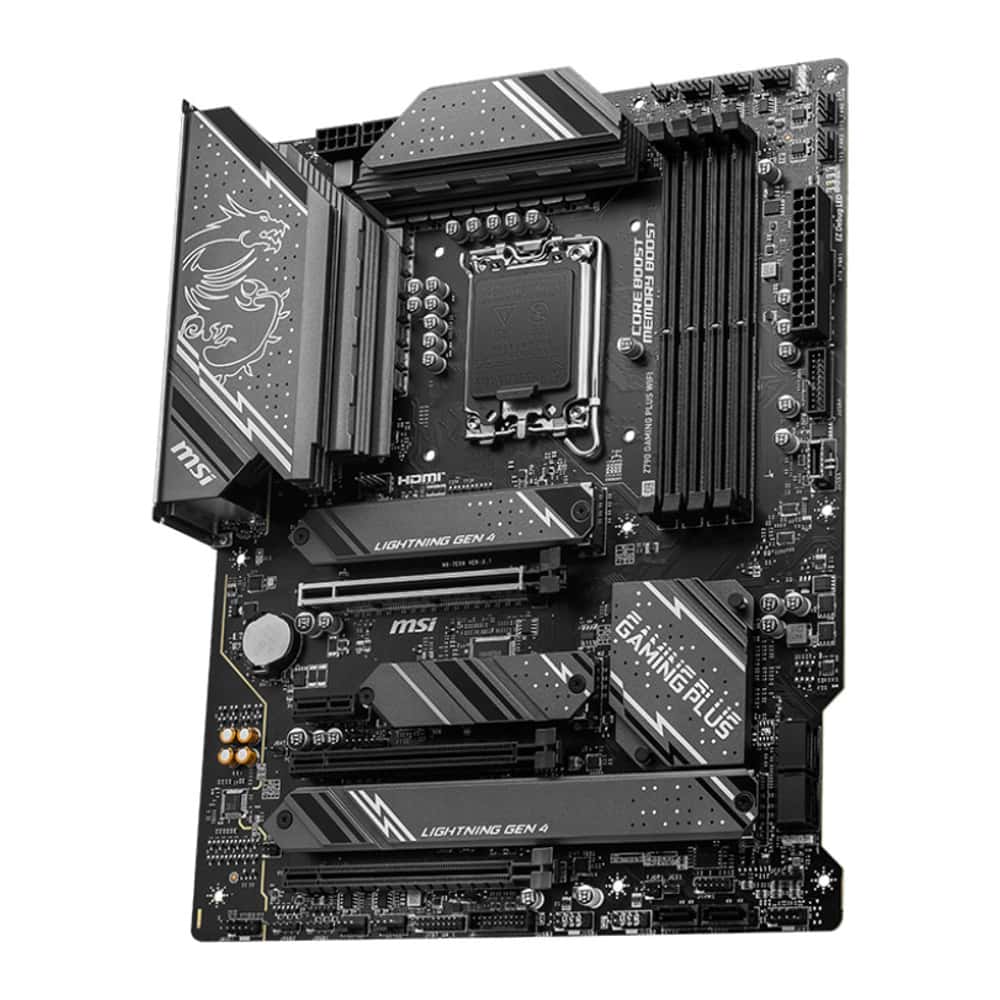

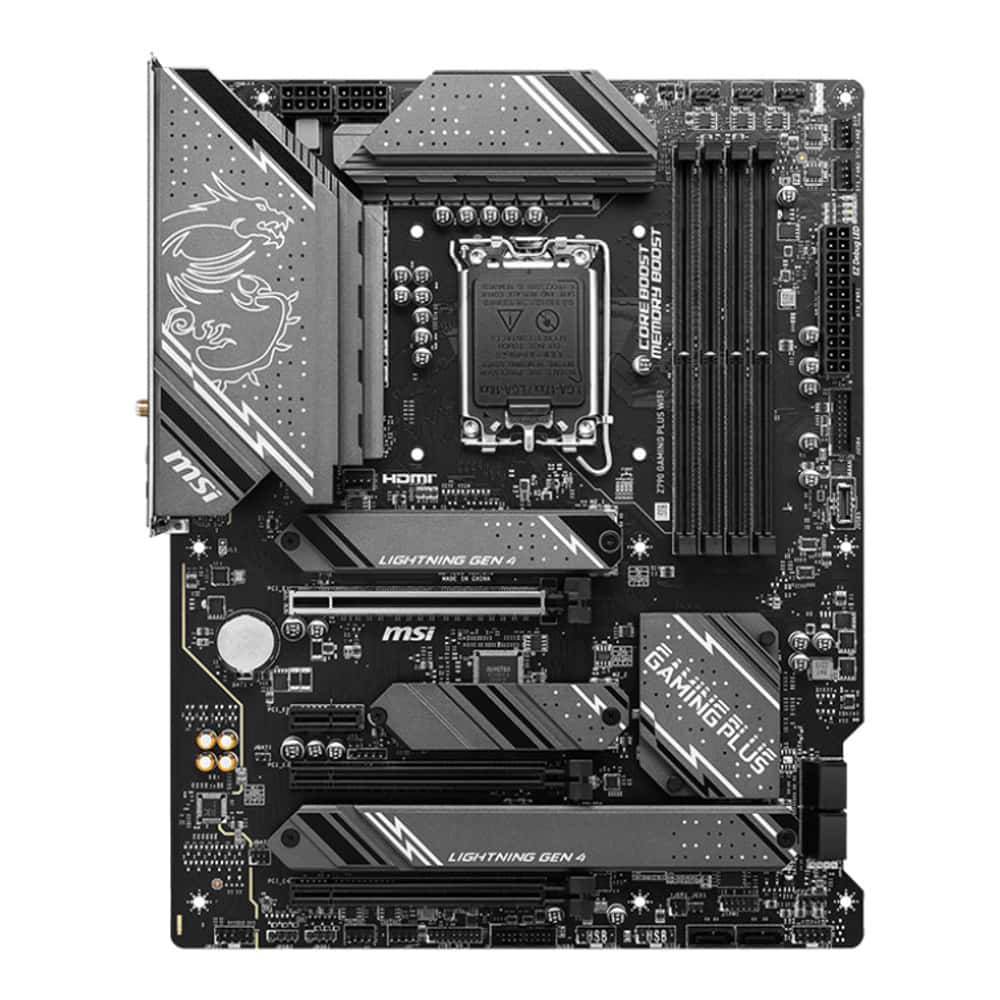

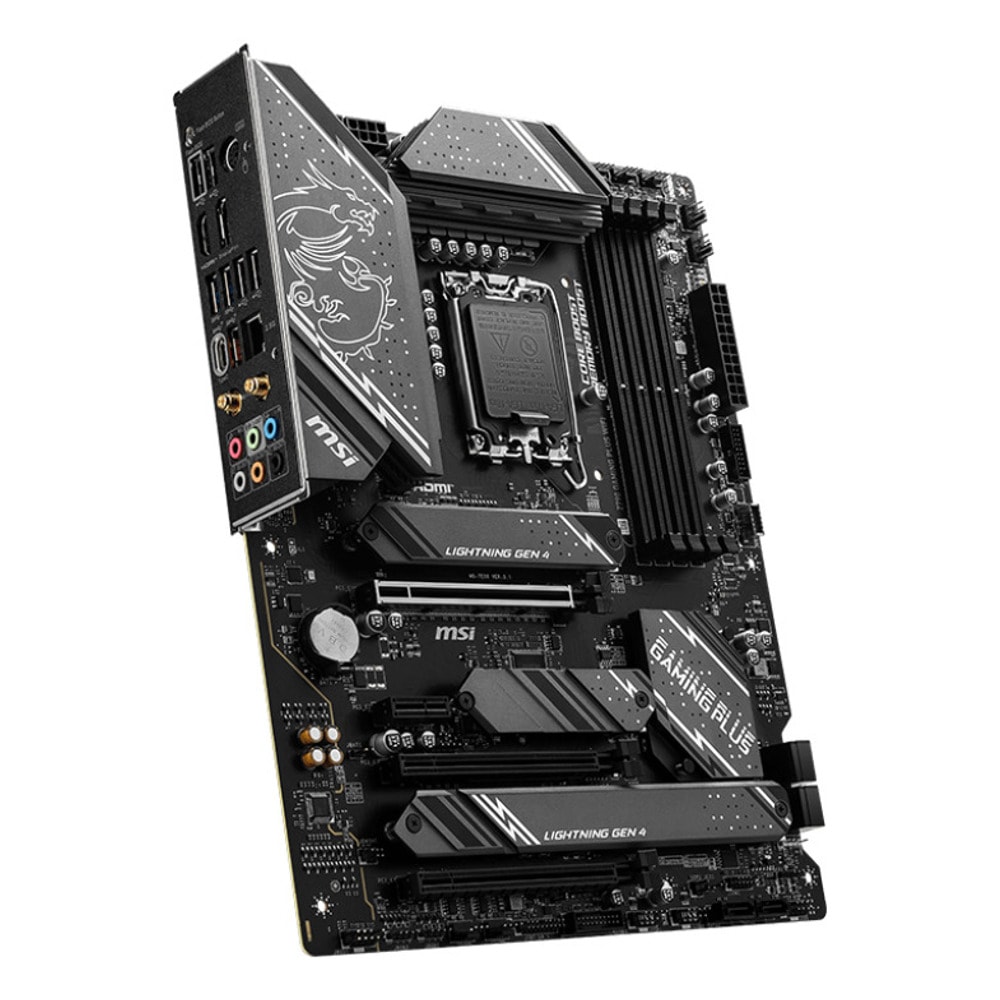

Дънна платка MSI Z790 Gaming Plus WIFI
Артикул №: 1000130011
Категория:
Компютърни компоненти
204,99 €
✓ Налично във външен склад
MSI Z790 Gaming Plus WIFI
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Audio Boost High Definition Audio processor
Характеристики
| Чипсет | INTEL Z790 · |
| Процесор | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors · LGA 1700 · |
| Памет | 4x DDR5, Maximum Memory Capacity 192GB · Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz · Max. overclocking frequency: · • 1DPC 1R Max speed up to 7200+ MHz · • 1DPC 2R Max speed up to 6600+ MHz · • 2DPC 1R Max speed up to 6400+ MHz · • 2DPC 2R Max speed up to 5600+ MHz · · Supports Intel® XMP3.0 OC · Supports Dual-Controller Dual-Channel mode · Supports non-ECC, un-buffered memory · |

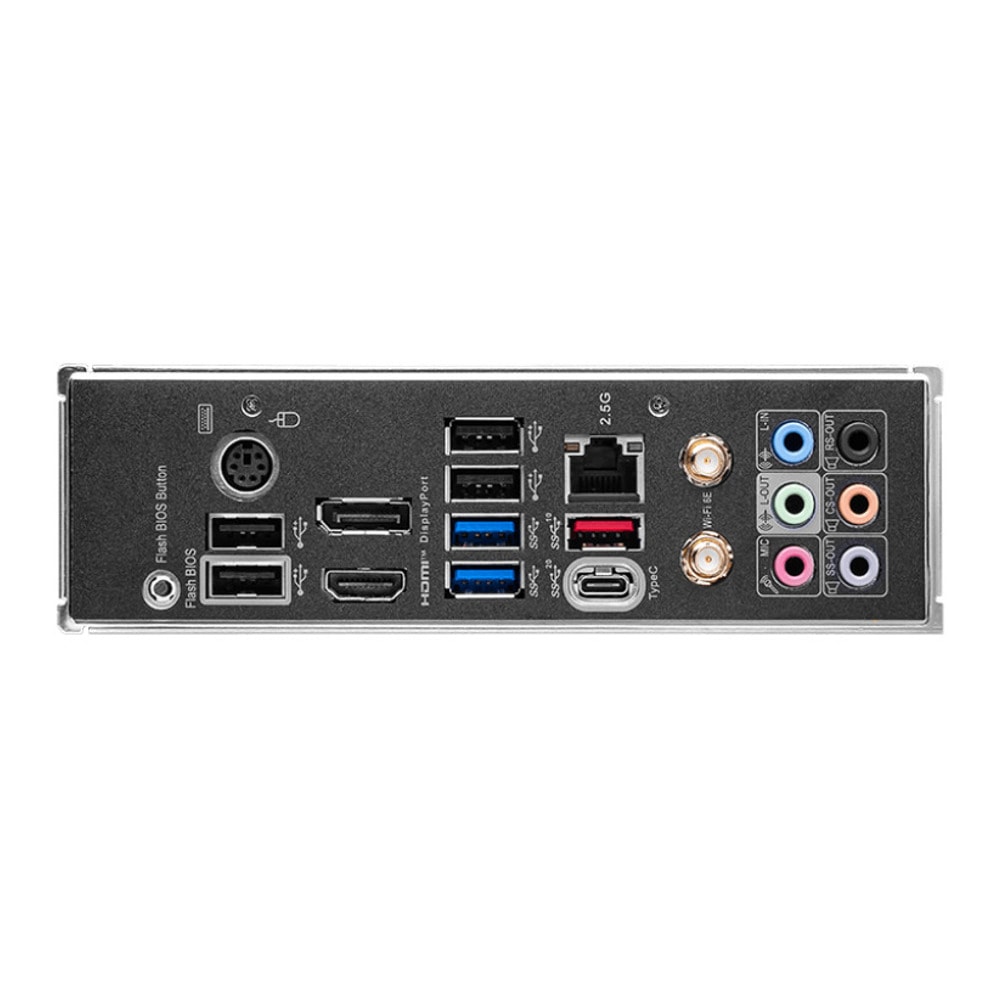

| Onboard Graphics | 1x HDMI · Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz* · 1x DisplayPort · Support DP 1.4, maximum resolution of 4K 60Hz* |
| Slot | 3x PCI-E x16 slot · 1x PCI-E x1 slot · PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) · PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) · PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) · PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) · |
| Капацитет за съхранение | 4x M.2 · M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices · M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices · M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · 6x SATA 6G · |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices · Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices · |
| USB | 4x USB 2.0 (Rear) · 4x USB 2.0 (Front) · 2x USB 3.2 Gen1 Type A (Rear) · 4x USB 3.2 Gen1 Type A (Front) · 1x USB 3.2 Gen2 Type A (Rear) · 1x USB 3.2 Gen2 Type C (Front) · 1x USB 3.2 Gen2x2 Type C (Rear) · |
| Мрежова карта | Intel® 2.5Gbps LAN · |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E · The Wireless module is pre-installed in the M.2 (Key-E) slot · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · Supports 802.11 a/ b/ g/ n/ ac/ ax · · Supports Bluetooth 5.3, FIPS, FISMA · * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. · ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. · |
| Аудио | Realtek® ALC897 Codec · 7.1-Channel High Definition Audio · Supports S/PDIF output · |
| Internal IO | 1x Power Connector(ATX_PWR) · 2x Power Connector(CPU_PWR) · 1x CPU Fan · 1x Pump Fan · 6x System Fan · 2x Front Panel (JFP) · 1x Chassis Intrusion (JCI) · 1x Front Audio (JAUD) · 1x TBT connector (JTBT, supports RTD3) · 1x Tuning Controller connector(JDASH) · 2x Addressable V2 RGB LED connector (JARGB_V2) · 2x RGB LED connector(JRGB) · 1x TPM pin header(Support TPM 2.0) · 4x USB 2.0 ports · 4x USB 3.2 Gen1 Type A ports · 1x USB 3.2 Gen2 Type C ports · 1x USB4 card connector (JTBT_U4_1, supports RTD3) · |
| LED FEATURE | 4x EZ Debug LED |
| Операционна система | Support for Windows 11 64-bit, Windows 10 64-bit · |
| PCB Info | ATX |
