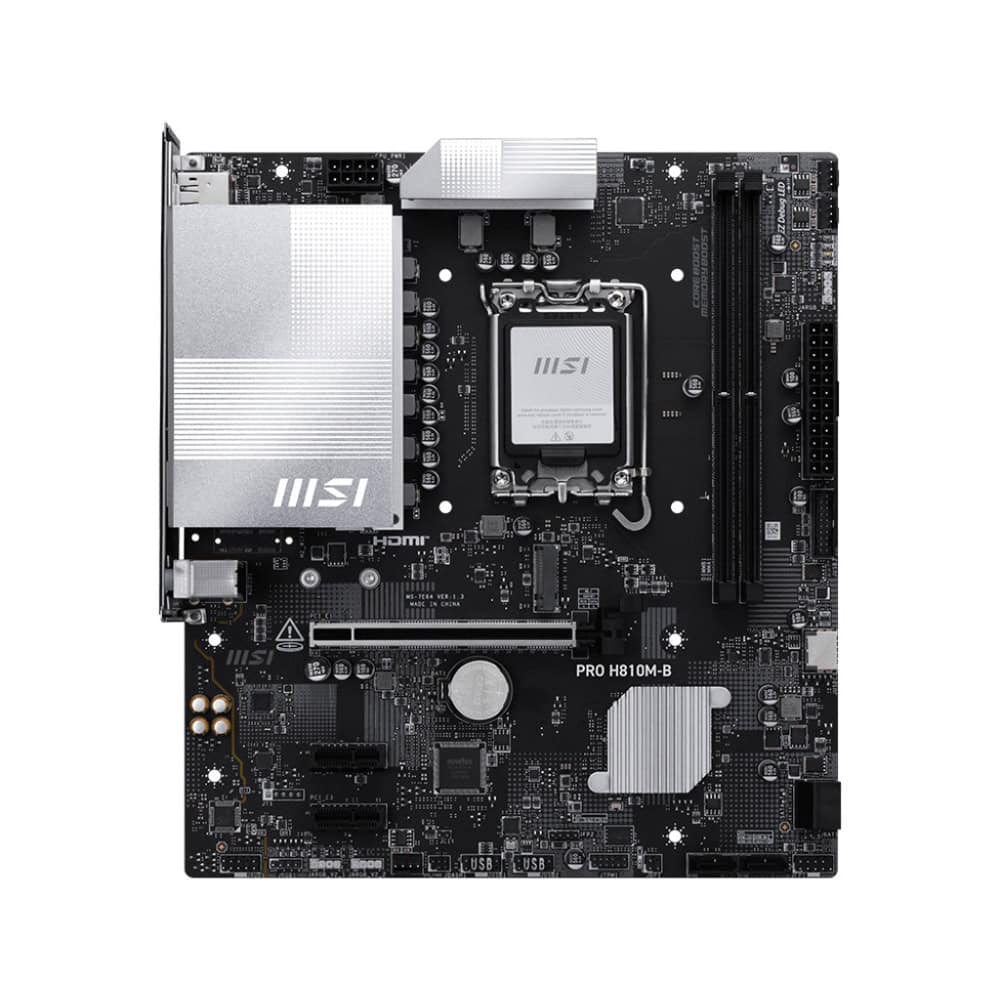

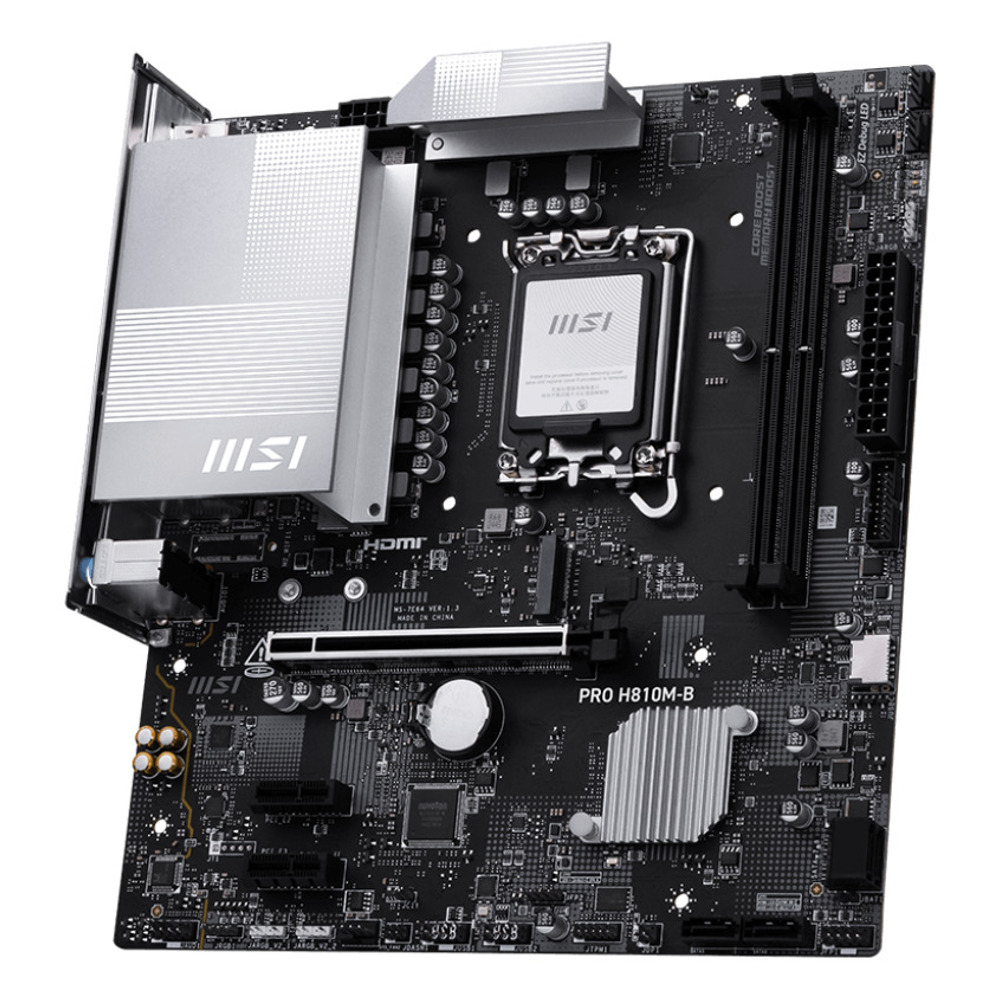

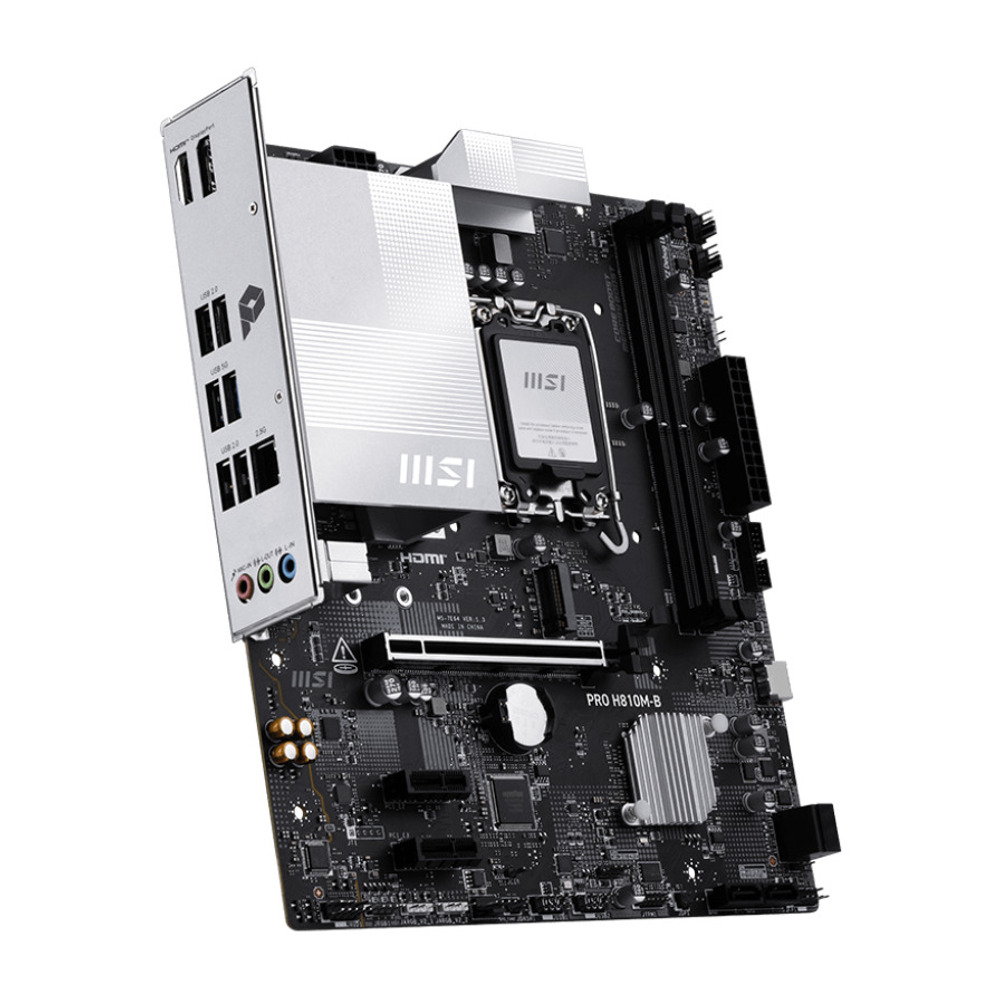

Дънна платка MSI PRO H810M-B

CPU Support

Support Intel Core Ultra Processors (Series 2)

CPU Socket

LGA 1851

Chipset

Intel H810 Chipset

Expansion Slots

1 x PCIe 5.0 x16 slot

2 x PCIe 4.0 x1 slots

Display Interface

Support 4K@60Hz as specified in HDMI 2.1

DisplayPort 1.4 – Requires Processor Graphics

Memory

Support 2 DIMMs, Dual Channel DDR5 - 6400 MT/s (MAX)

• 1DPC 1R Max speed up to 6400 MT/s

• 1DPC 2R Max speed up to 6400 MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Storage
