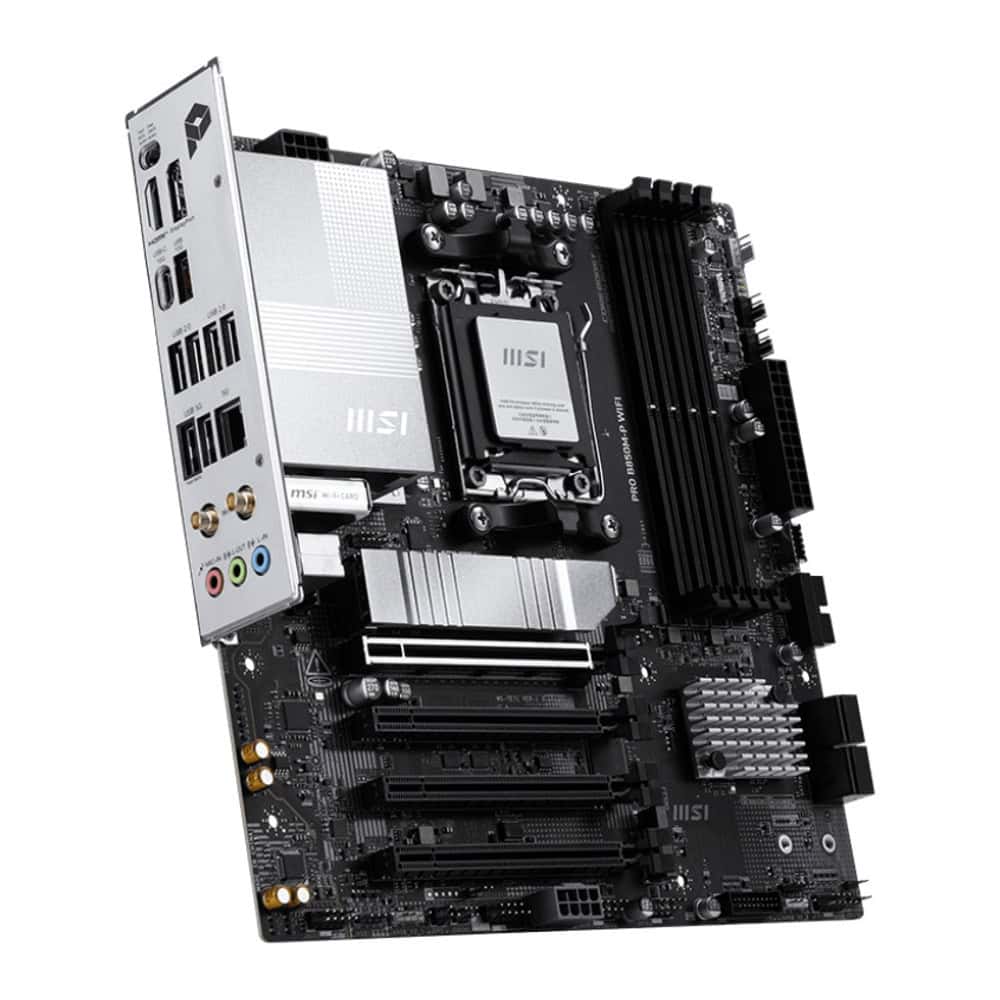

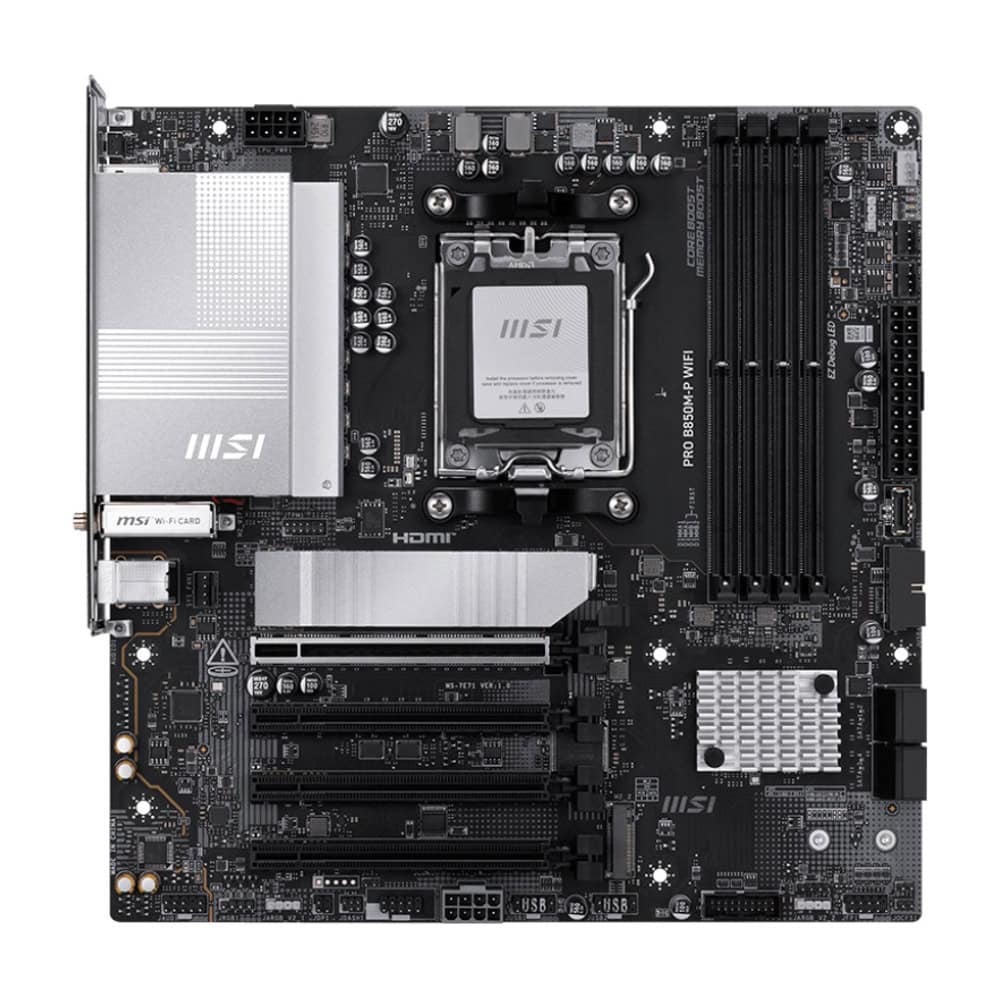

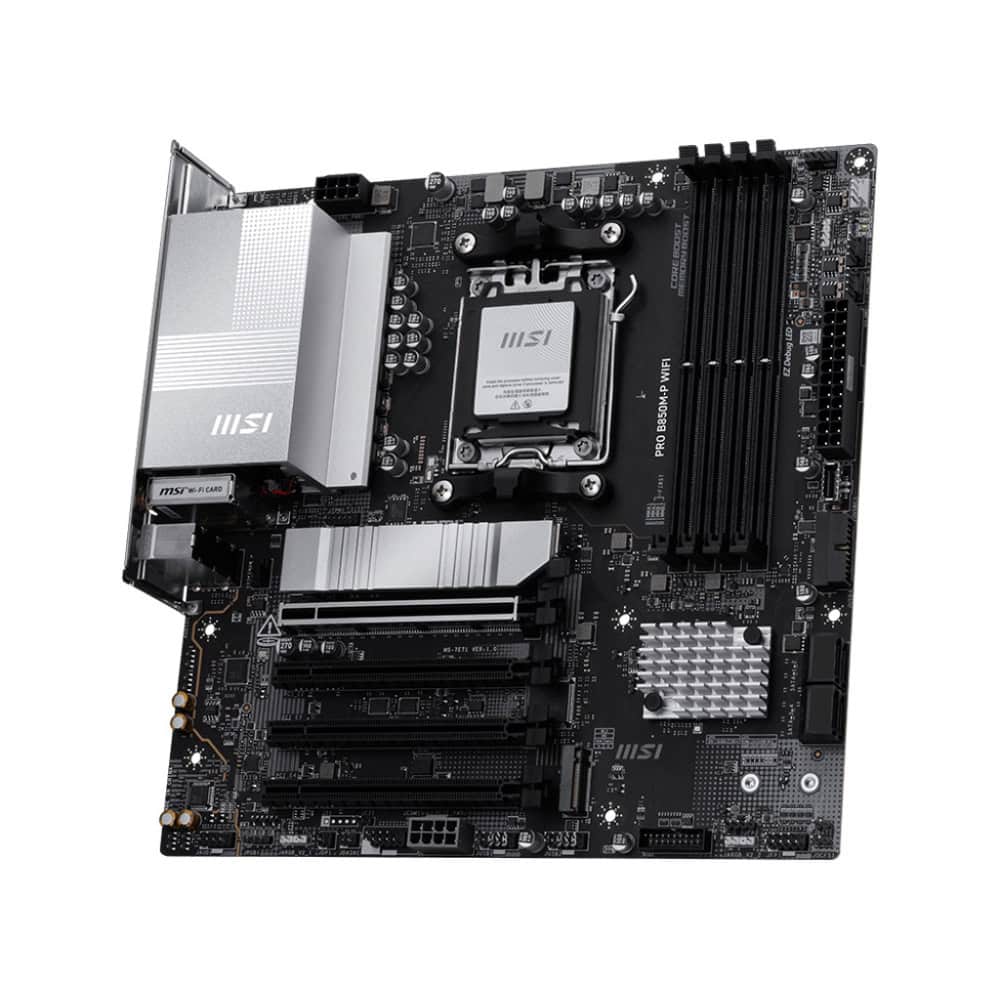

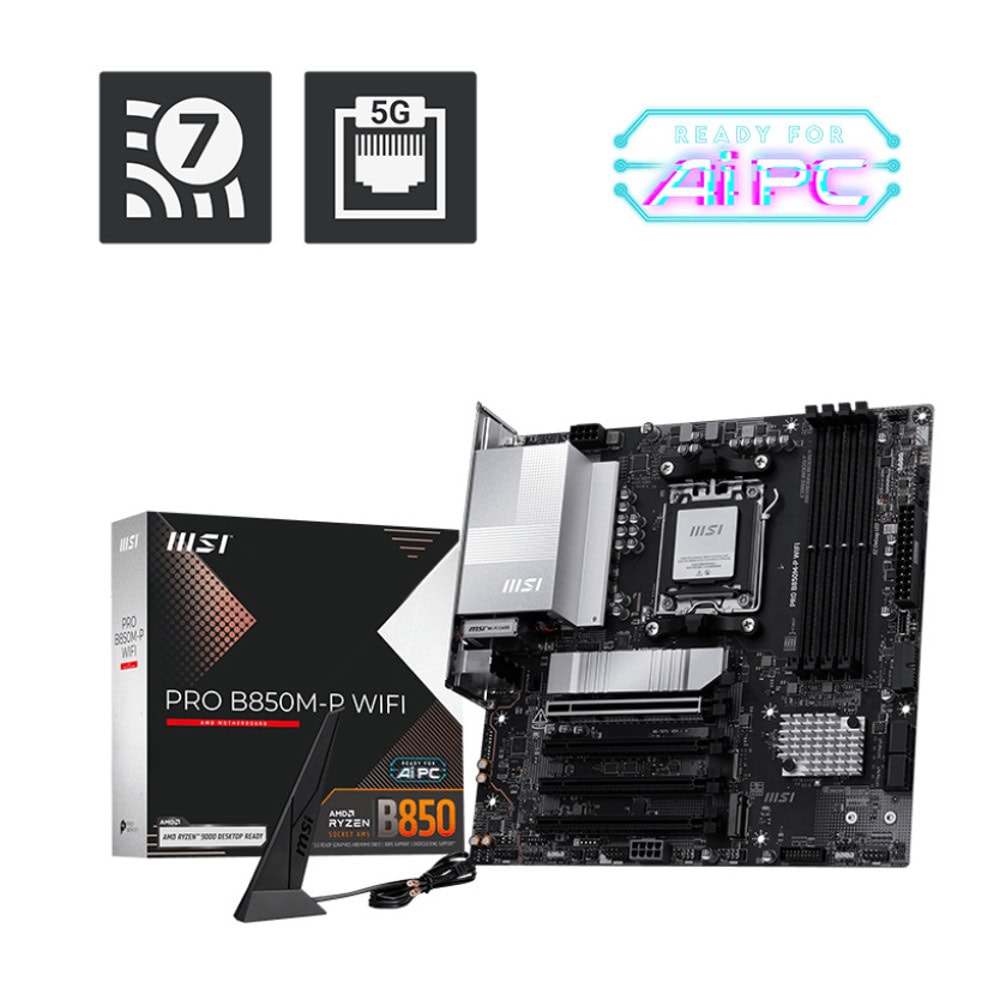

Дънна платка MSI Pro B850M-P WiFi

Wi-Fi 7:
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

5G Network Solution:
Featuring premium 5G LAN to deliver better network experience.

EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier

EZ Antenna:
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.

Extended Heatsink Design:
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.

Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.

Specifications:

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
Socket AM5

Chipset
AMD B850 Chipset

Expansion Slots
1 x PCIe 5.0 x16 slot
3 x PCIe 3.0 x1 slots

Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics

Memory
Support 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

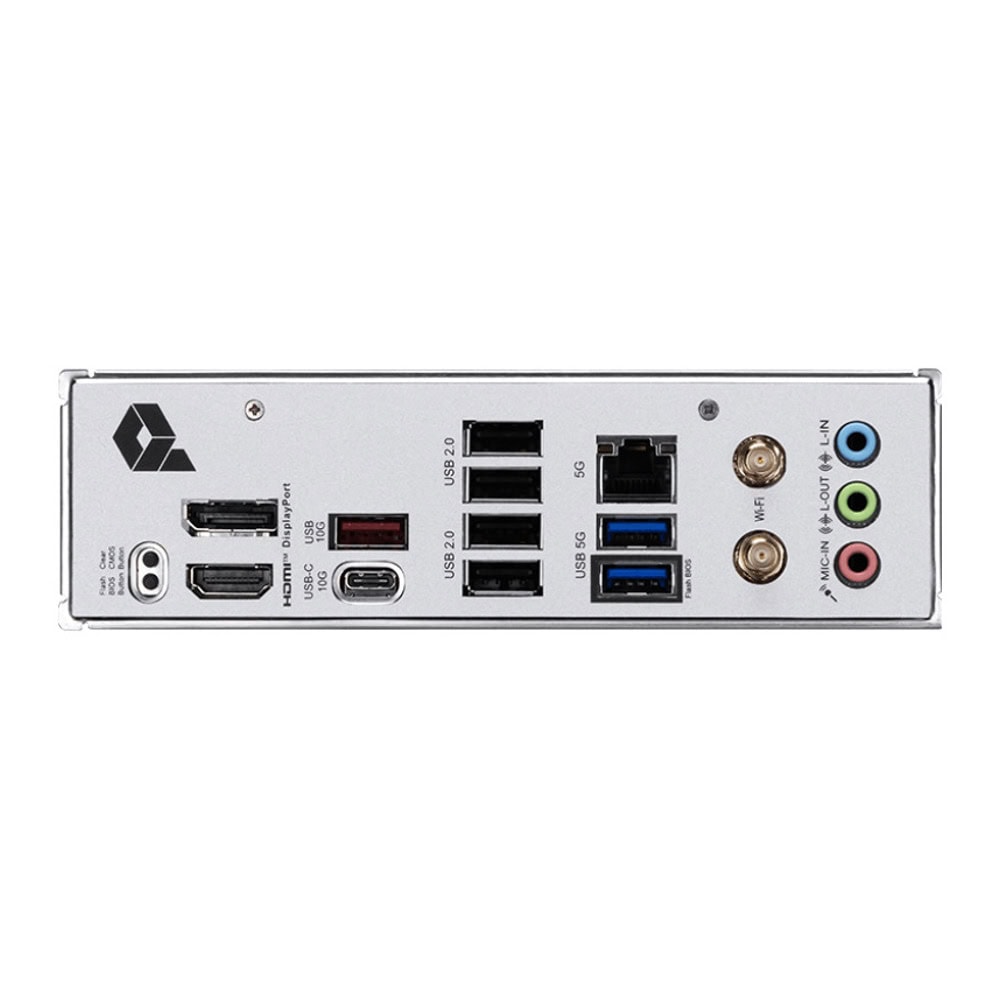

USB ports
3 x USB 10Gbps (1 Type-A + 2 Type-C)
6 x USB 5Gbps (6 Type-A)
8 x USB 2.0

LAN
Realtek 8126 5G LAN

WiFi / BT
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost

PCB Info
mATX
243.84mmx243.84mm
