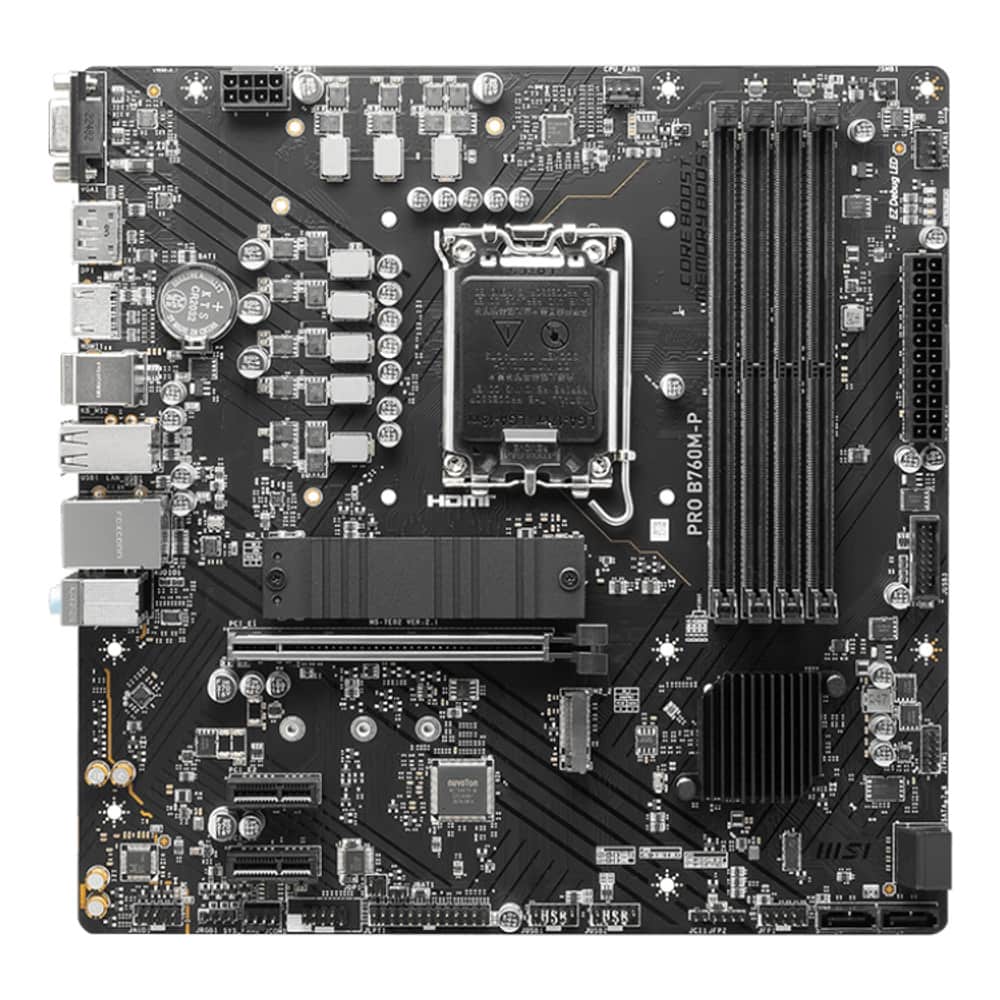

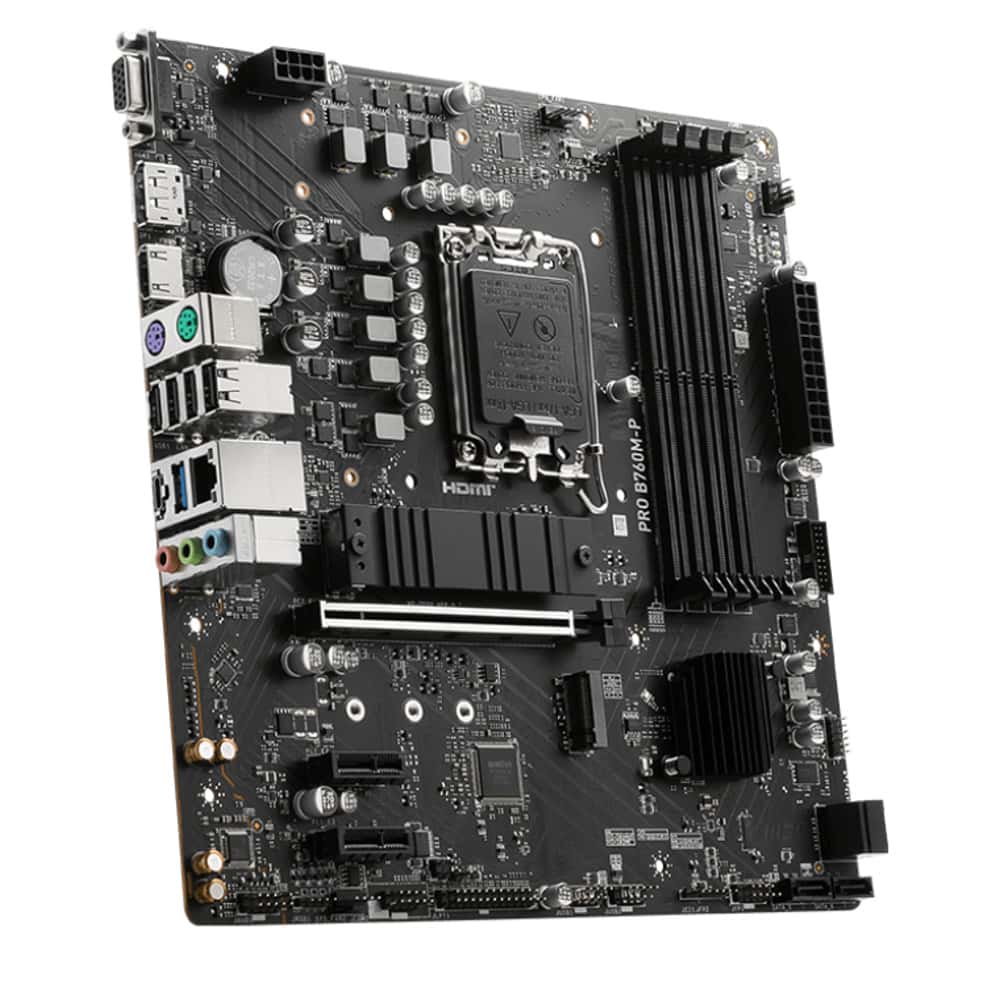

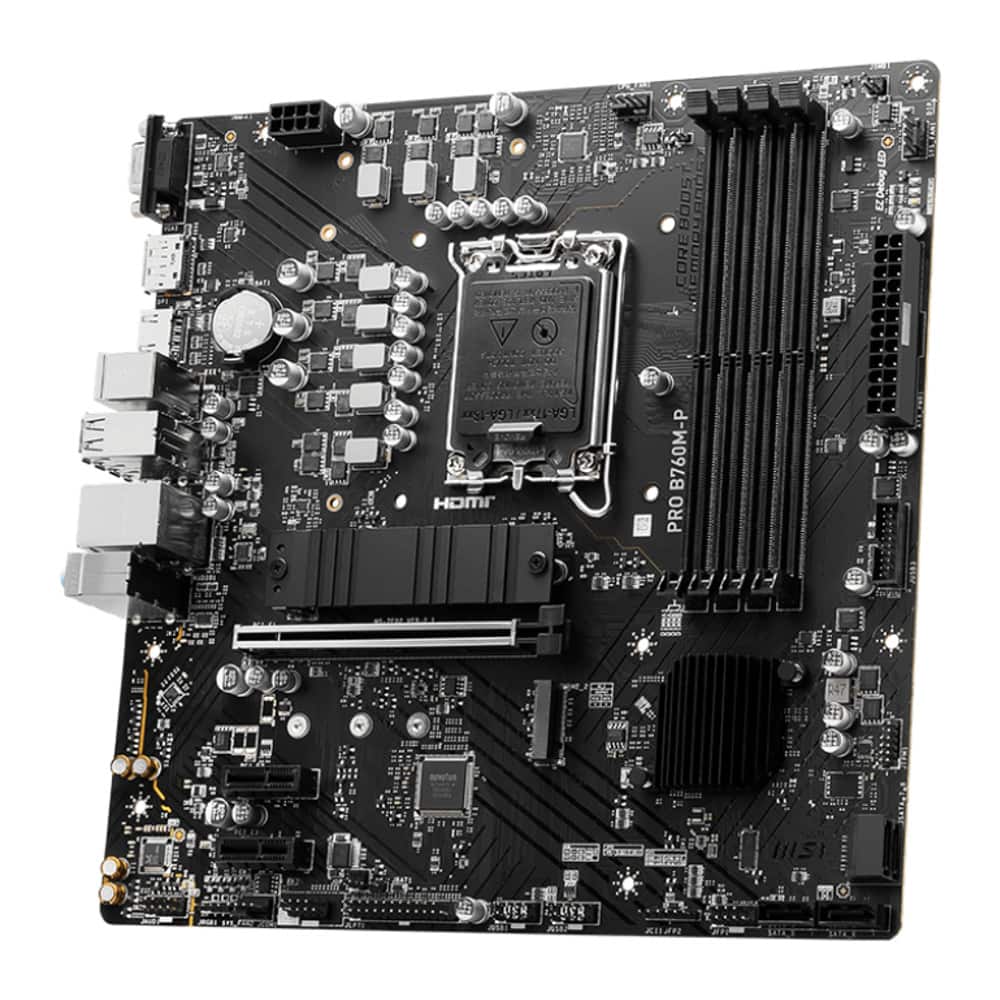

Дънна платка MSI PRO B760M-P DDR5
Product Specifications
CHIPSET
INTEL B760
CPU SUPPORT
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Характеристики
| 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) |
| 1x USB 3.2 Gen1 Type A (Rear) | 2x USB 3.2 Gen1 Type A (Front) |
| 1x USB 3.2 Gen2 Type C (Rear) | LAN |
| Realtek® RTL8111H Gigabit LAN | Аудио |
| Realtek® ALC897 Codec | 7.1-Channel High Definition Audio |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | 1x CPU Fan |
| 2x System Fan | 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) |
| 1x Printer Port (JLPT) | 1x Com Port (JCOM) |
| 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports | 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |

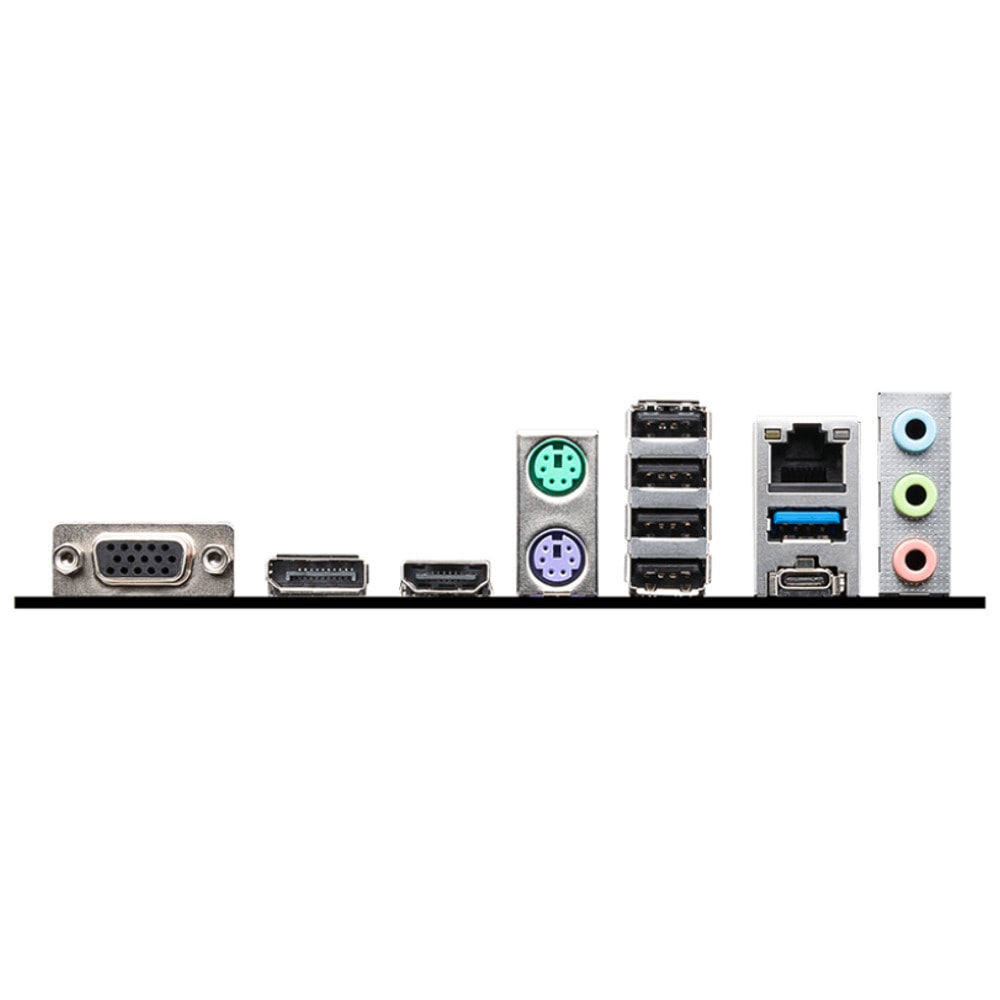

| BACK PANEL PORTS | VGA |
| DisplayPort | HDMI™ |
| Keyboard / Mouse | USB 2.0 |
| LAN port | Audio Connectors |
| USB 3.2 Gen 1 5Gbps (Type-A) | USB 3.2 Gen 2 10Gbps (Type-C) |
| Операционна система | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION (W × L) | mATX |
