MSI
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5
Артикул №: 1000126115
Категория:
Компютърни компоненти
223,99 €
✓ Налично във външен склад

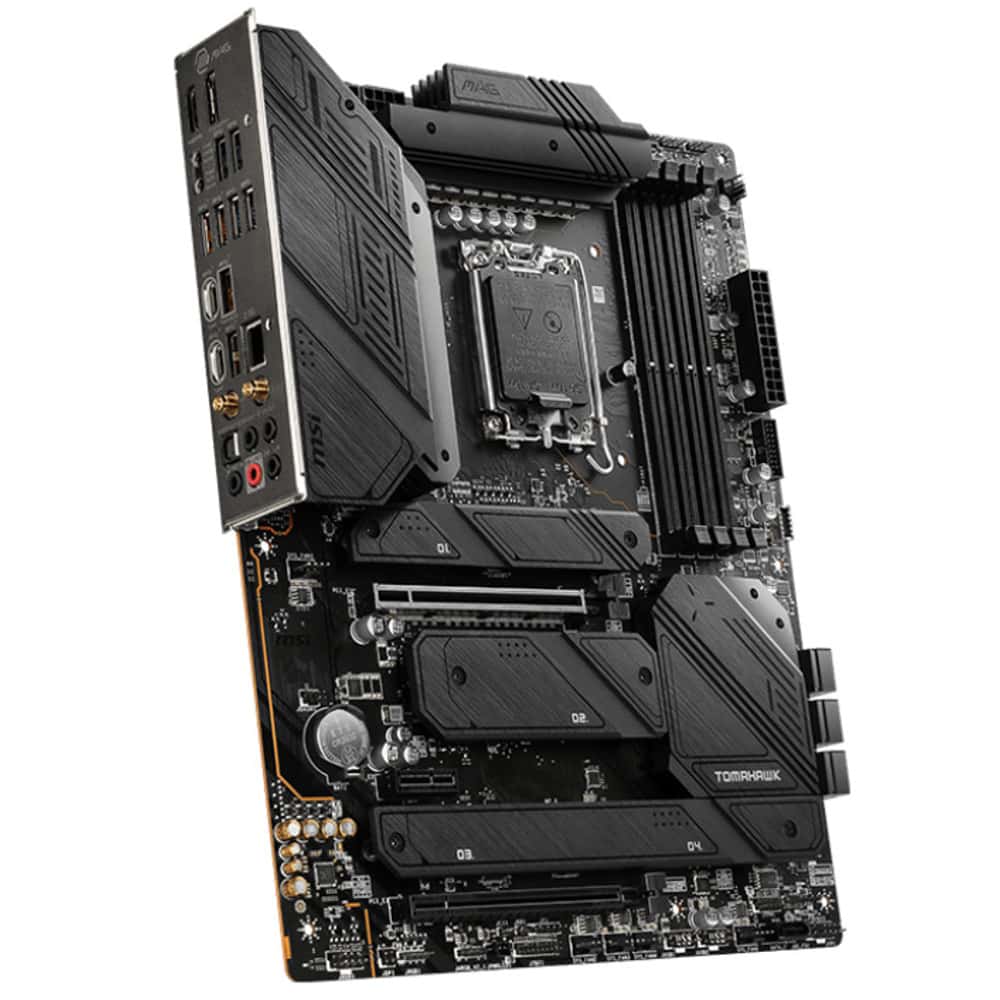

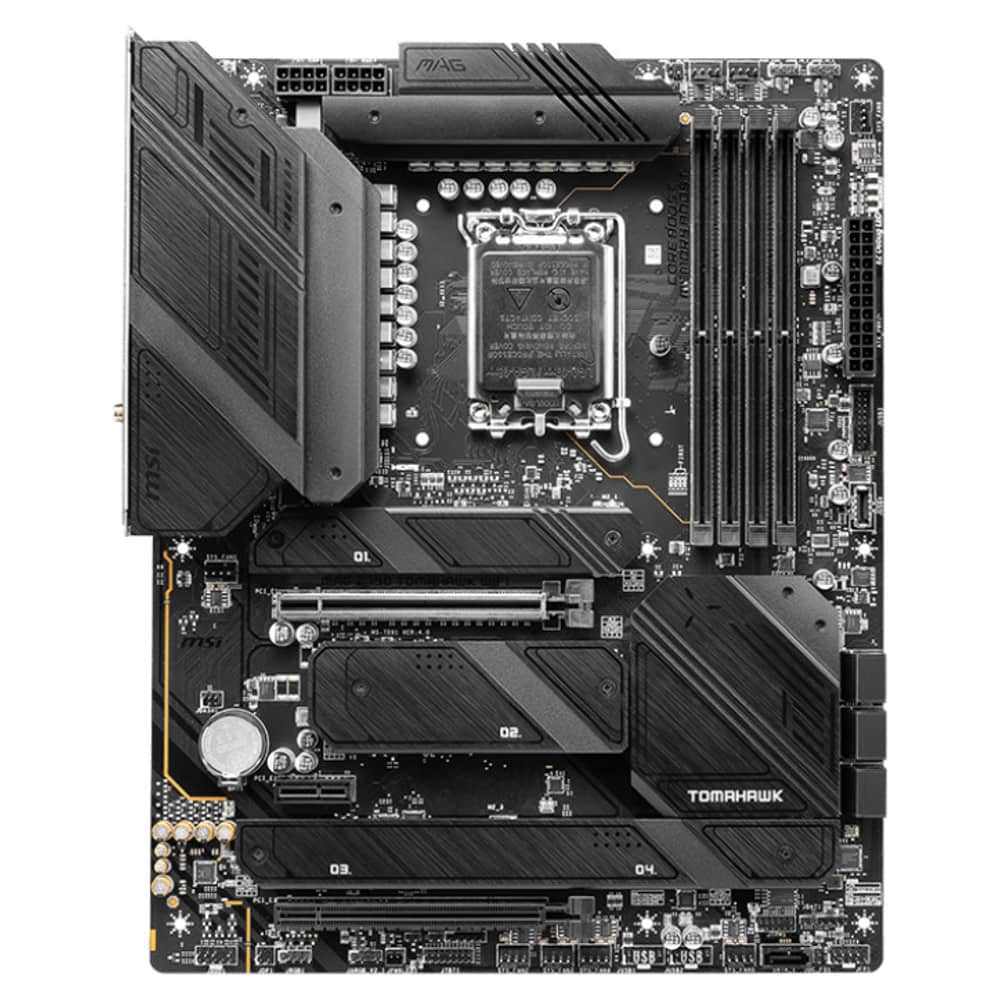

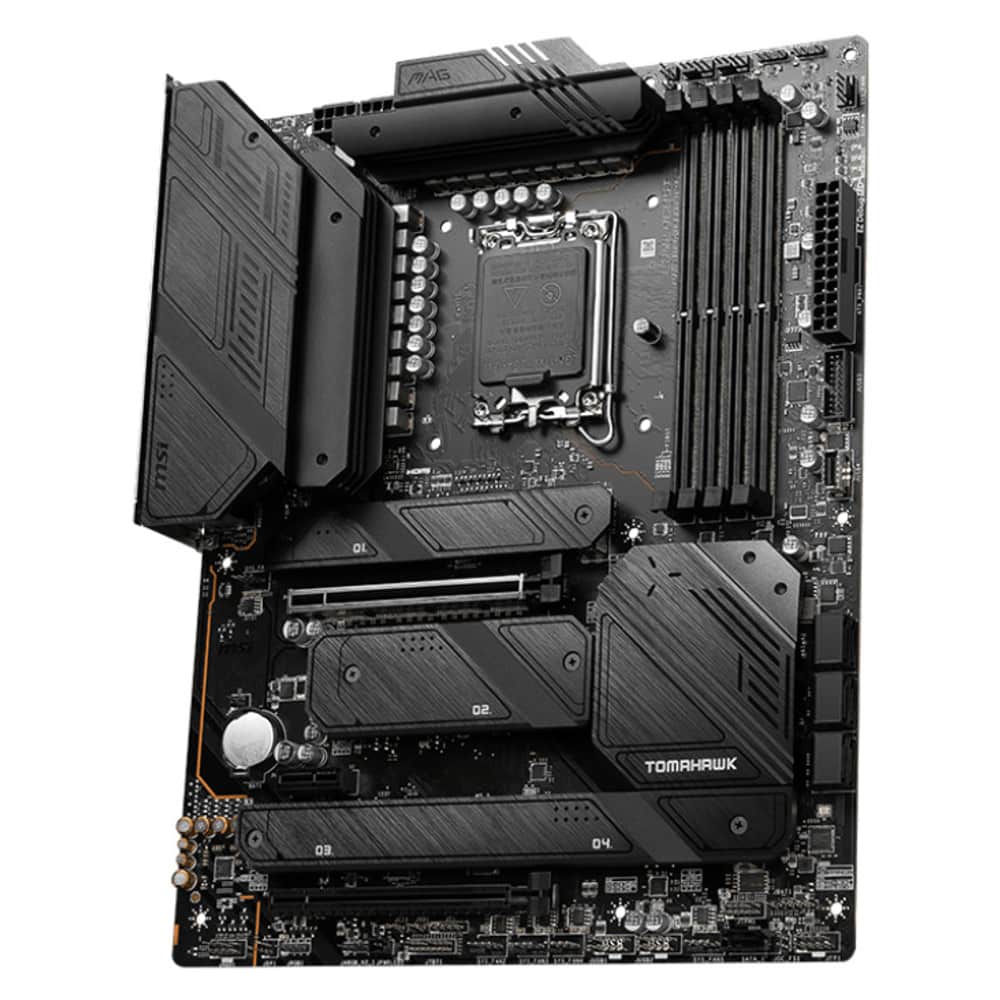

MSI MAG Z790 TOMAHAWK WIFI DDR5
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
Lightning Gen 5 PCI-e with Steel Armor
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
Характеристики
| Чипсет | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Памет | 4x DDR5, Maximum Memory Capacity 128GB · Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz · Max. overclocking frequency: · • 1DPC 1R Max speed up to 7200+ MHz · • 1DPC 2R Max speed up to 6600+ MHz · • 2DPC 1R Max speed up to 6400+ MHz · • 2DPC 2R Max speed up to 5600+ MHz · · Supports Intel® XMP3.0 OC · Supports Dual-Controller Dual-Channel mode · Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ · 1x DisplayPort · Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* · Support DP 1.4, maximum resolution of 8K 60Hz* · *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot · Supports x16/x4 · 1x PCI-E x1 slot · PCI_E1 PCIe 5.0 supports up to x16 (From CPU) · PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) · PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Капацитет за съхранение | 4x M.2 slot · M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices · M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices · M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices · 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* · Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices · * SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) · 4x USB 3.2 Gen1 Type A (Rear) · 2x USB 3.2 Gen1 Type A (Front) · 4x USB 3.2 Gen2 Type A (Rear) · 1x USB 3.2 Gen2 Type C (Rear) · 1x USB 3.2 Gen2 Type C (Front) · 1x USB 3.2 Gen2x2 Type C (Rear) |
| Мрежова карта | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E · The Wireless module is pre-installed in the M.2 (Key-E) slot · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · Supports 802.11 a/ b/ g/ n/ ac/ ax · · Supports Bluetooth® 5.3, FIPS, FISMA · * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Аудио | Realtek® ALC4080 Codec · 7.1-Channel USB High Performance Audio · Supports S/PDIF output · Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) · 2x Power Connector(CPU_PWR) · 1x CPU Fan · 1x Pump Fan · 6x System Fan · 2x Front Panel (JFP) · 1x Chassis Intrusion (JCI) · 1x Front Audio (JAUD) · 1x TBT connector (JTBT, supports RTD3) · 1x Tuning Controller connector(JDASH) · 3x Addressable V2 RGB LED connector (JARGB_V2) · 1x RGB LED connector(JRGB) · 1x TPM pin header(Support TPM 2.0) · 4x USB 2.0 · 2x USB 3.2 Gen1 Type A · 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

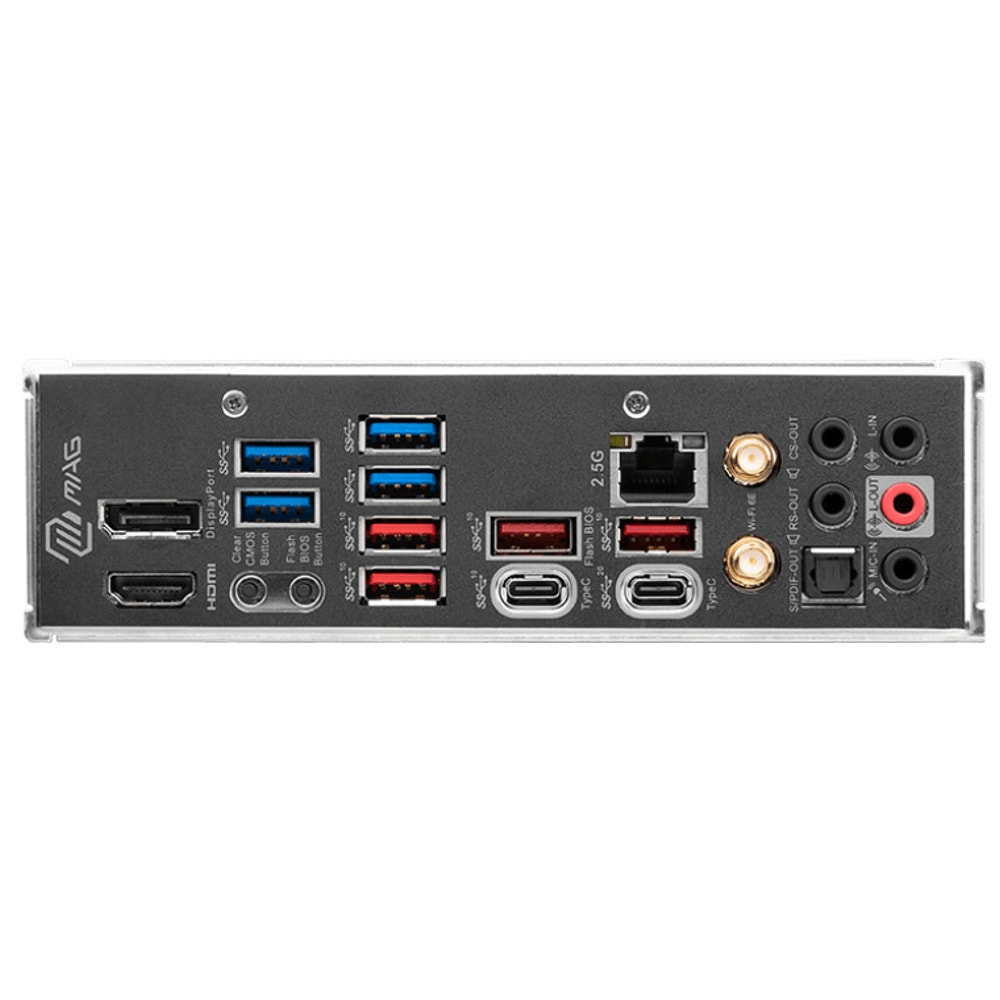

| BACK PANEL PORTS | DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2x2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit PCB Dimension: ATX · 243.84mmx304.8mm |
