MSI

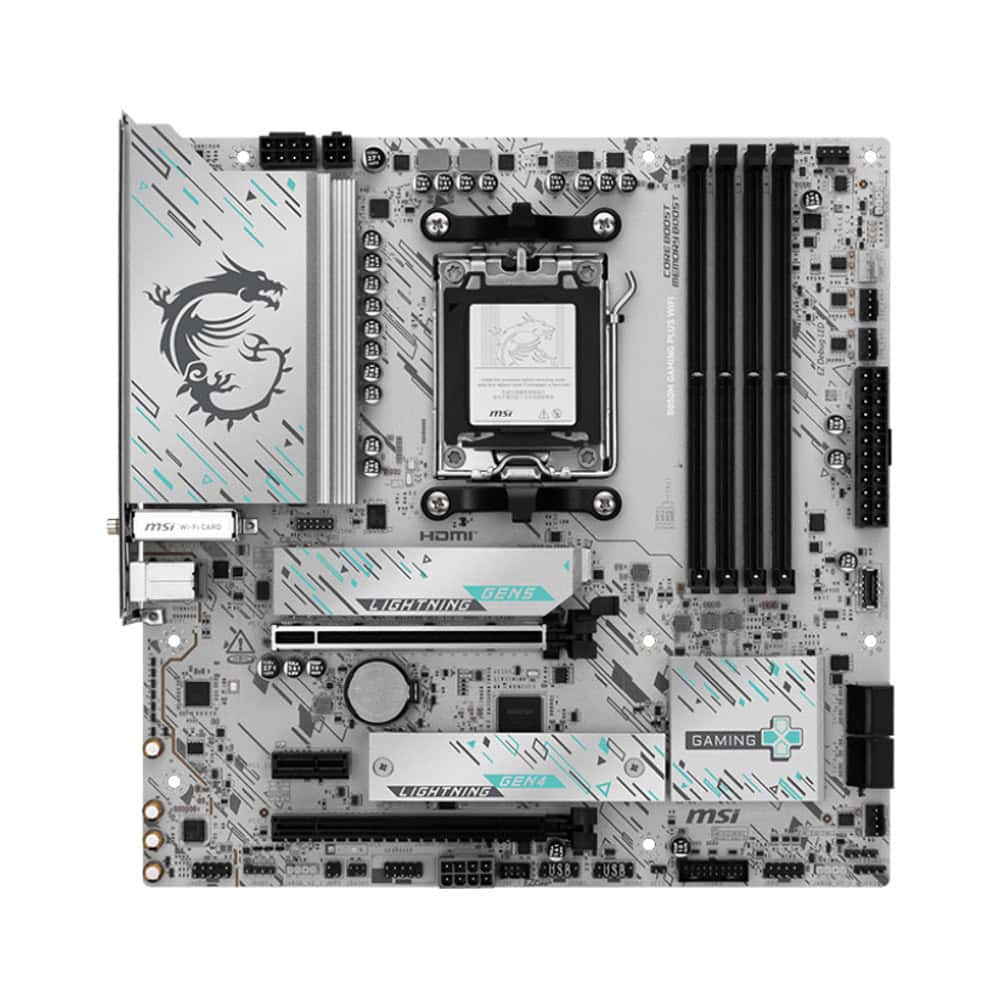

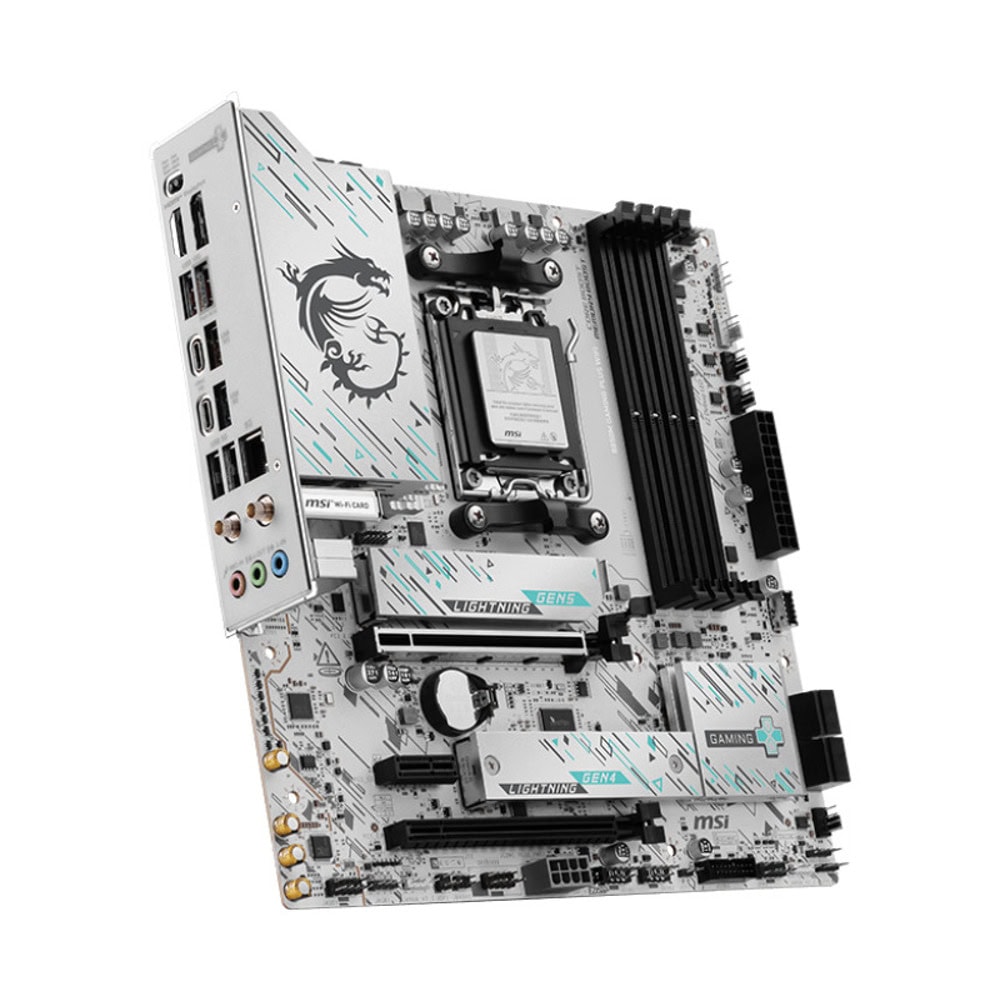

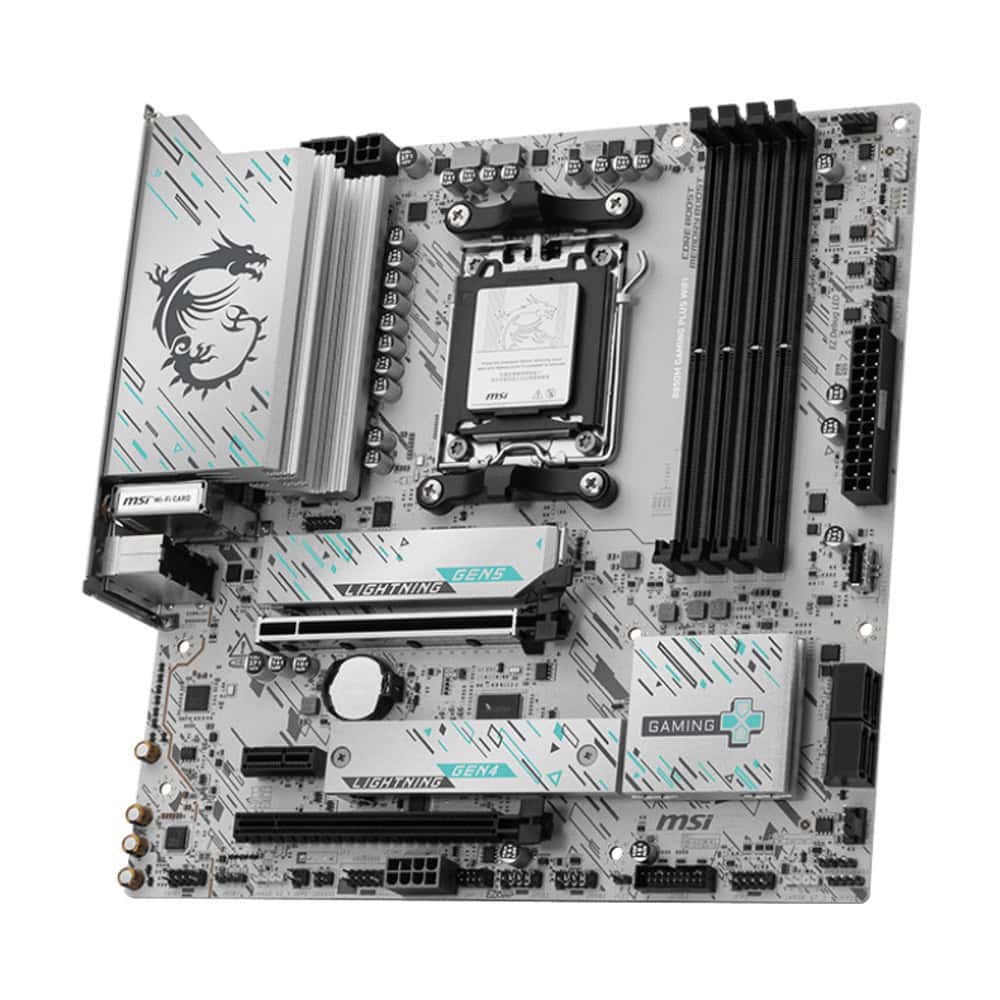

Дънна платка MSI B850M Gaming Plus WiFi
Артикул №: 1000041623
Категория:
Дънни платки за AMD процесори
180,99 €
✓ Налично във външен склад
EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Specifications:
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD B850 Chipset
Expansion slots
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Specifications:
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD B850 Chipset
Expansion slots
Характеристики
| CPU Socket | Да |
| AMD Socket AM5 | Да |
| Чипсет | Да |
| AMD B850 Chipset | Да |
| Слотове за разширение | Да |
| 1 x PCIe 5.0 | x16 slot |
| 1 x PCIe 4.0 | x4 slot |
| 1 x PCIe 3.0 | x1 slot |
| Display Interface | Да |
| Поддръжка | 4K@60Hz as specified in HDMI 2.1 |
| DisplayPort | 1.4 – Requires Processor Graphics |
| Памет | Да |
| Поддръжка | 4 DIMMs, Dual Channel DDR5 8200+ MT/s (OC) |
| Капацитет за съхранение | Да |
| 1 x M.2 Gen5 | x4 128Gbps slot |
| 1 x M.2 Gen4 | x4 64Gbps slot |
| X SATA 6Gbps ports | 4 |
| RAID | Да |
| Supports RAID | 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID | 0 and RAID 1 for M.2 NVMe storage devices |

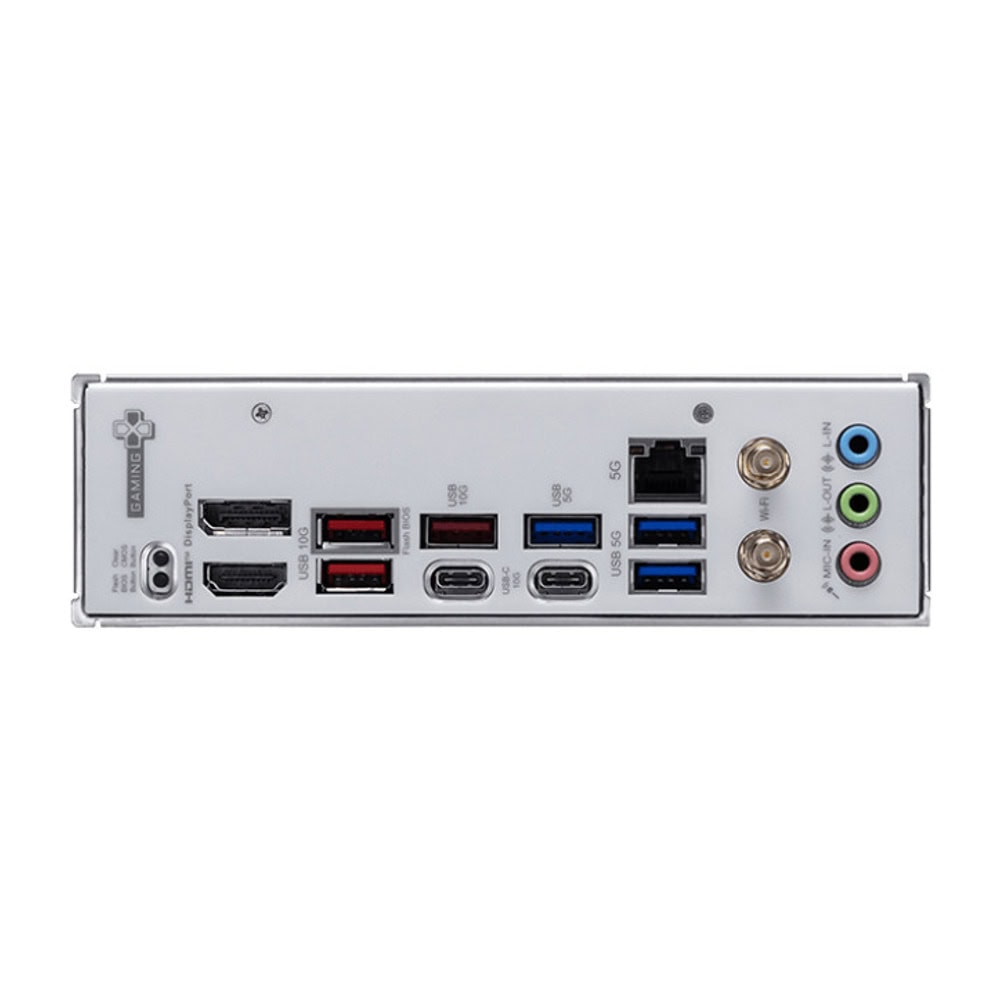

| USB ports | Да |
| X USB 10Gbps (3 Type-A + 3 Type-C) | 6 |
| X USB 5Gbps (5 Type-A) | 5 |
| X USB 2.0 | 4 |
| LAN | Да |
| Realtek | 8126 5Gbps LAN |
| WIFI / BT | Да |
| Wi-Fi | 7 Solution, Bluetooth 5.4 |
| Аудио | Да |
| 8-Channel (7.1) HD Audio with Audio Boost | Да |
| PCB Info | Да |
| mATX | Да |
| 243.84mmx243.84mm | Да |
