MSI
Дънна платка MSI B760M Project Zero
Артикул №: 1000136501
Категория:
Компютърни компоненти
206,99 €
✓ Налично във външен склад

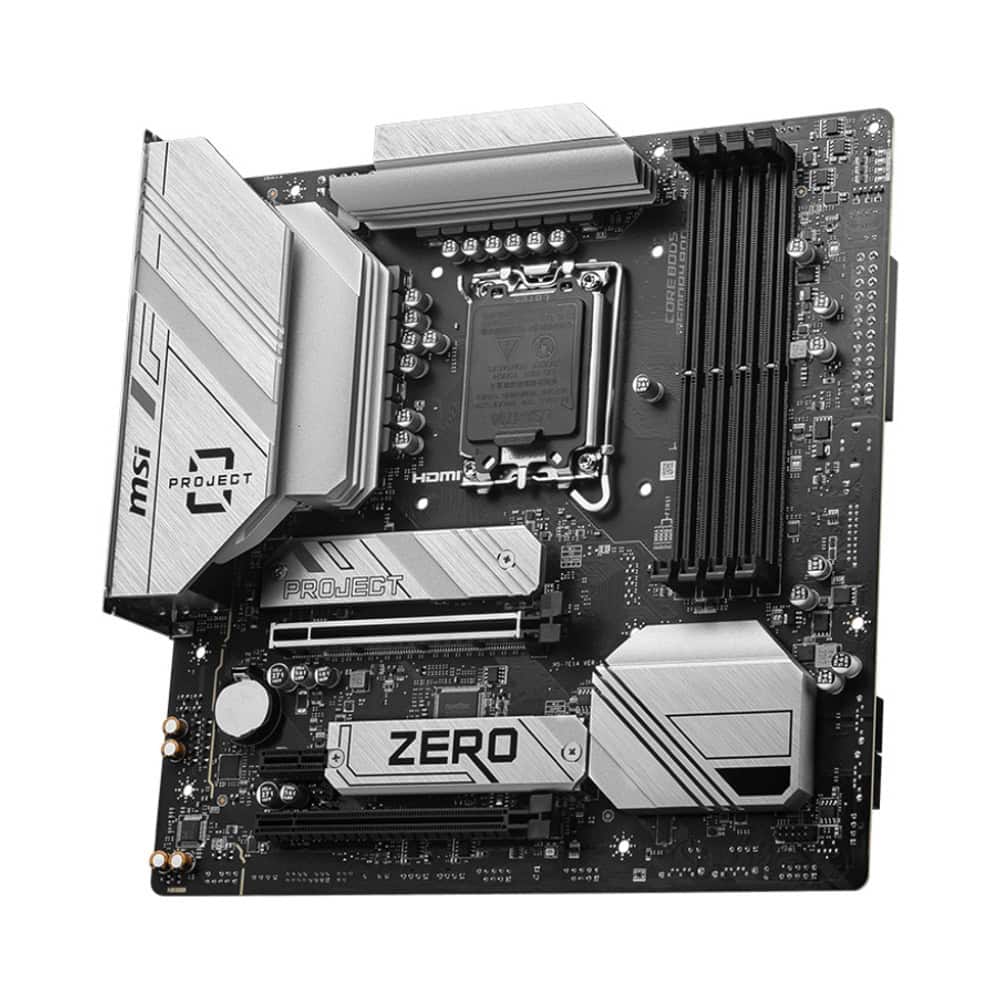

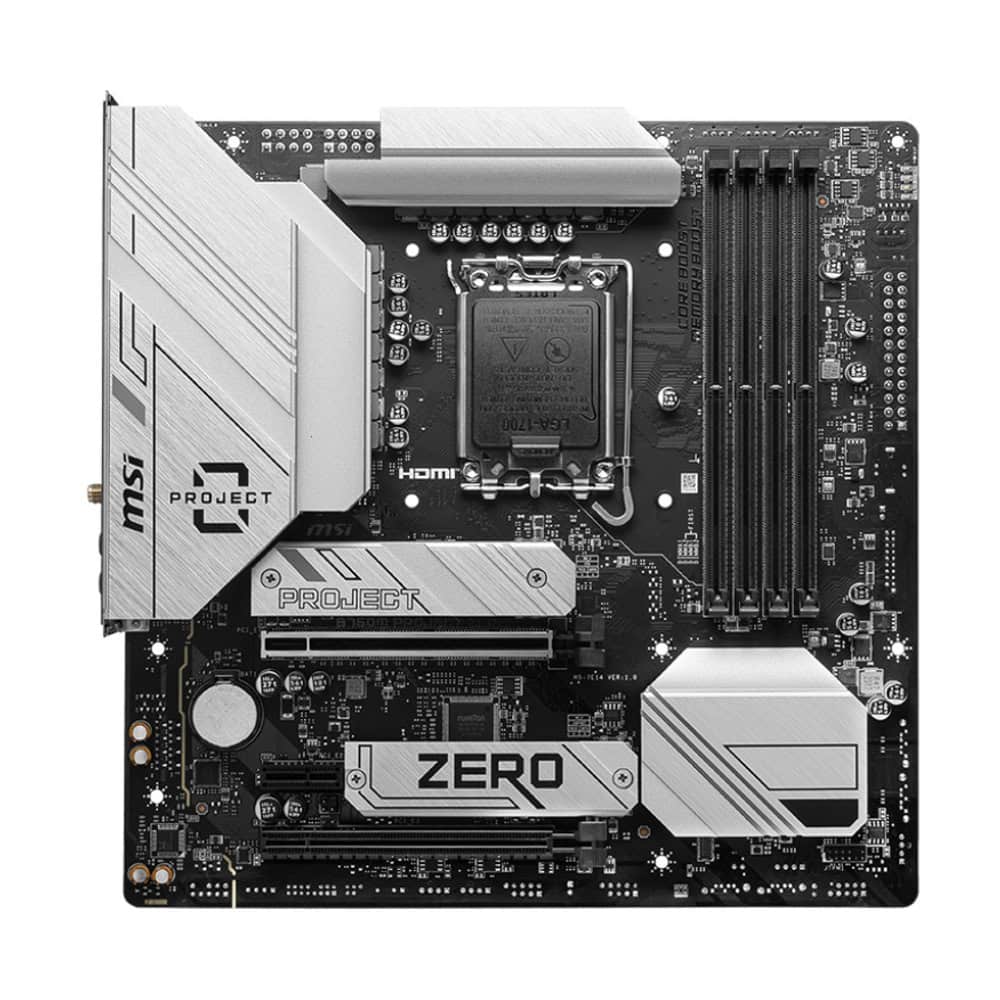

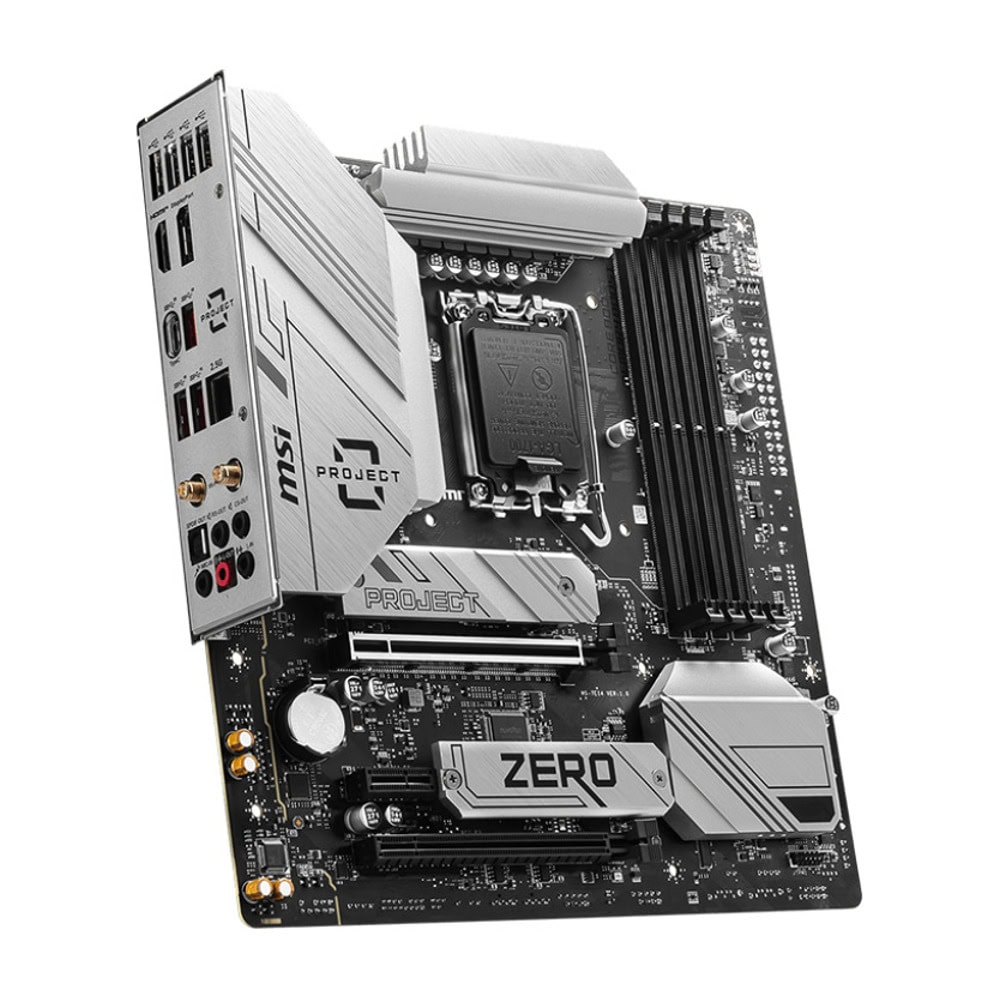

MSI B760M Project Zero
ABSOLUTE SIMPLICITY
B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Характеристики
| Чипсет | INTEL B760 · |
| Процесор | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors · LGA1700 · |
| Памет | 4x DDR5, Maximum Memory Capacity 256GB · Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz · Max. overclocking frequency: · • 1DPC 1R Max speed up to 7800+ MHz · • 1DPC 2R Max speed up to 6600+ MHz · • 2DPC 1R Max speed up to 6400+ MHz · • 2DPC 2R Max speed up to 5600+ MHz · · Supports Dual-Channel mode · Supports non-ECC, un-buffered memory · Supports Intel® Extreme Memory Profile · |
| Onboard Graphics | 1x HDMI · Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* · 1x DisplayPort · Support DP 1.4, maximum resolution of 4K 60Hz* · *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. · |
| Slot | 2x PCI-E x16 slot · 1x PCI-E x1 slot · PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) · PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) · PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) · |
| Аудио | Realtek ALC897 Codec · 7.1-Channel High Performance Audio · Supports S/PDIF output · |
| Капацитет за съхранение | 2x M.2 · M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices · M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · 4x SATA 6G · |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices · |
| USB | 4x USB 2.0 (Rear) · 4x USB 2.0 (Front) · 2x USB 5Gbps Type A (Front) · 3x USB 10Gbps Type A (Rear) · 1x USB 10Gbps Type C (Front) · 1x USB 20Gbps Type C (Rear) · |
| Мрежова карта | Realtek® 2.5Gbps LAN · |
| Internal IO | 1x Power Connector(ATX_PWR) · 2x Power Connector(CPU_PWR) · 1x CPU Fan · 1x Pump Fan · 4x System Fan · 2x Front Panel (JFP) · 1x Chassis Intrusion (JCI) · 1x Front Audio (JAUD) · 1x Tuning Controller connector(JDASH) · 2x Addressable V2 RGB LED connector (JARGB_V2) · 2x RGB LED connector(JRGB) · 1x TPM pin header(Support TPM 2.0) · 4x USB 2.0 ports · 2x USB 5Gbps Type A ports · 1x USB 10Gbps Type C ports · |
| WIRELESS LAN & BLUETOOTH | Intel Wi-Fi 6E · The Wireless module is pre-installed in the M.2 (Key-E) slot · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · Supports 802.11 a/ b/ g/ n/ ac/ ax · · Supports Bluetooth® 5.3, FIPS, FISMA · * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. · ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. · |
| LED FEATURE | 4x EZ Debug LED · |

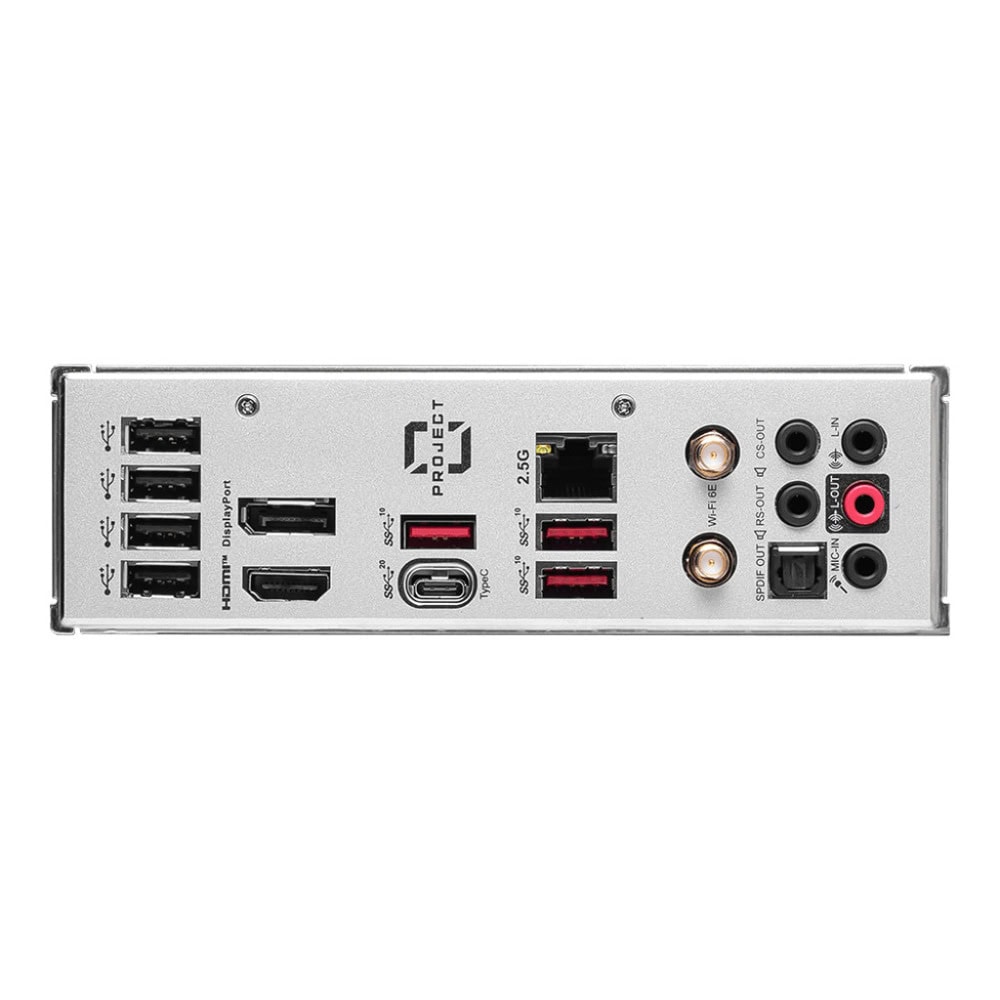

| BACK PANEL PORTS | USB 2.0DisplayPort 1.4USB 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI™ 2.1 PortUSB 20Gbps Type-COptical S/PDIF OUT |
| Операционна система | Support for Windows 11 64-bit, Windows® 10 64-bit · |
| PCB Info | mATX · 243.84mmx243.84mm |
