MSI

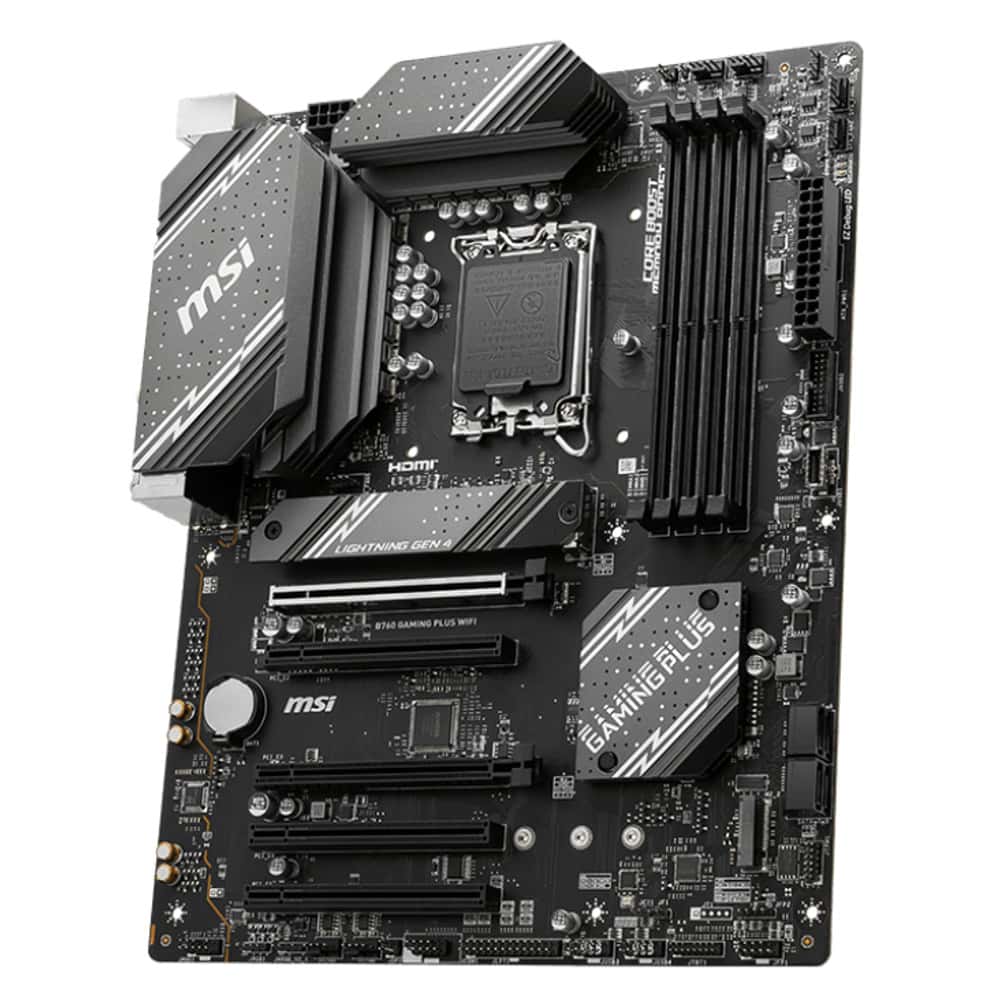

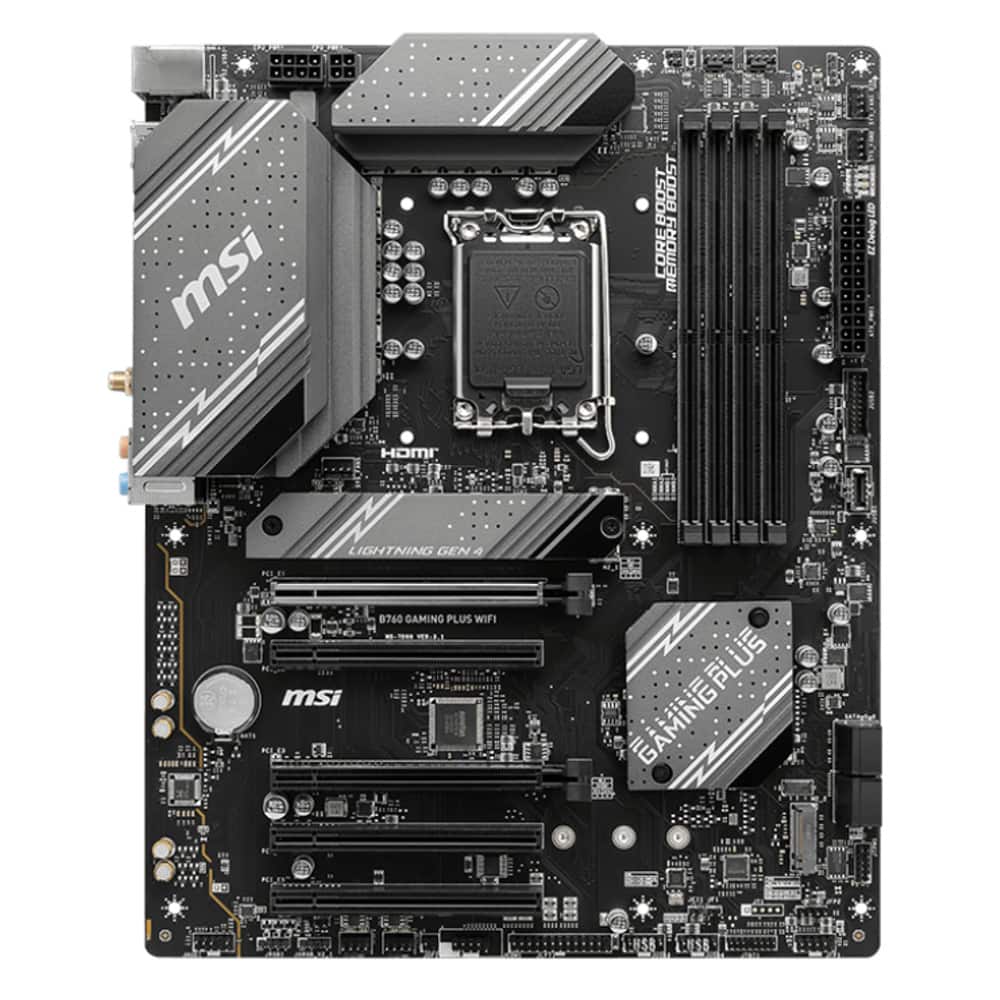

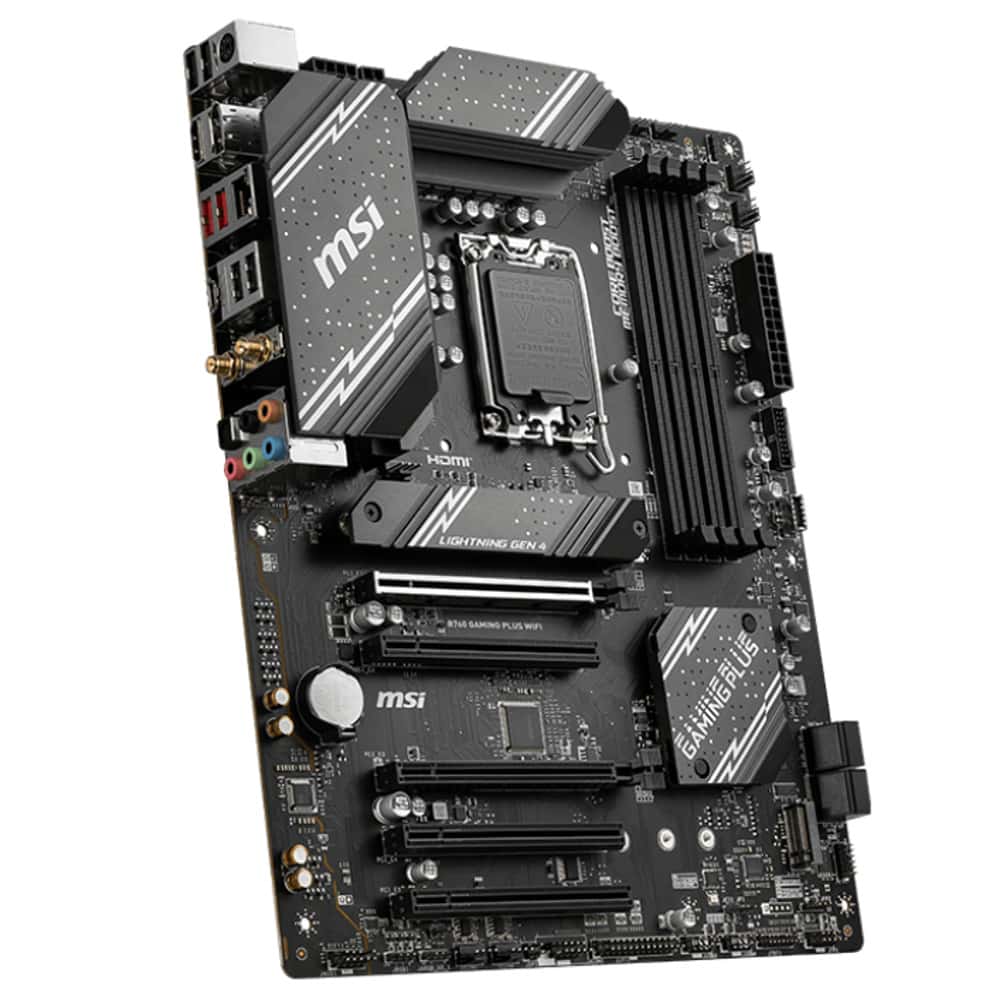

Дънна платка MSI B760 Gaming Plus WIFI
Артикул №: 1000127876
Категория:
Компютърни компоненти
162,99 €
✓ Налично във външен склад
Характеристики
| Чипсет | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors · LGA 1700 |
| Памет | 4x DDR5, Maximum Memory Capacity 192GB · Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz · Max. overclocking frequency: · • 1DPC 1R Max speed up to 6800+ MHz · • 1DPC 2R Max speed up to 6400+ MHz · • 2DPC 1R Max speed up to 6000+ MHz · • 2DPC 2R Max speed up to 5600+ MHz · Supports Intel XMP 3.0 OC · Supports Dual-Controller Dual-Channel mode · Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI · Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* · 1x DisplayPort · Support DP 1.4, maximum resolution of 4K 60Hz* · *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 5x PCI-E x16 slot · PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) · PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) · PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) · PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) · PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Капацитет за съхранение | 2x M.2 · M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices · M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · 4x SATA 6G · * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) · 4x USB 2.0 (Front) · 2x USB 3.2 Gen1 Type A (Front) · 1x USB 3.2 Gen1 Type C (Front) · 2x USB 3.2 Gen2 Type A (Rear) · 1x USB 3.2 Gen2 Type C (Rear) |
| Мрежова карта | Realtek RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel Wi-Fi 6E · The Wireless module is pre-installed in the M.2 (Key-E) slot · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · Supports 802.11 a/ b/ g/ n/ ac/ ax · · Supports Bluetooth 5.3, FIPS, FISMA · · * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. · ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Аудио | Realtek ALC897 Codec · 7.1-Channel High Definition Audio · Supports S/PDIF output |
| Internal I/O | 1x Power Connector(ATX_PWR) · 2x Power Connector(CPU_PWR) · 1x CPU Fan · 1x Pump Fan · 5x System Fan · 2x Front Panel (JFP) · 1x Chassis Intrusion (JCI) · 1x Front Audio (JAUD) · 1x Printer Port (JLPT) · 1x Com Port (JCOM) · 1x TBT connector (JTBT, supports RTD3) · 2x Addressable V2 RGB LED connector (JARGB_V2) · 1x RGB LED connector(JRGB) · 1x TPM pin header(Support TPM 2.0) · 4x USB 2.0 ports · 2x USB 3.2 Gen1 Type A ports · 1x USB 3.2 Gen1 Type C ports |
| LED FEATURE | 4x EZ Debug LED |

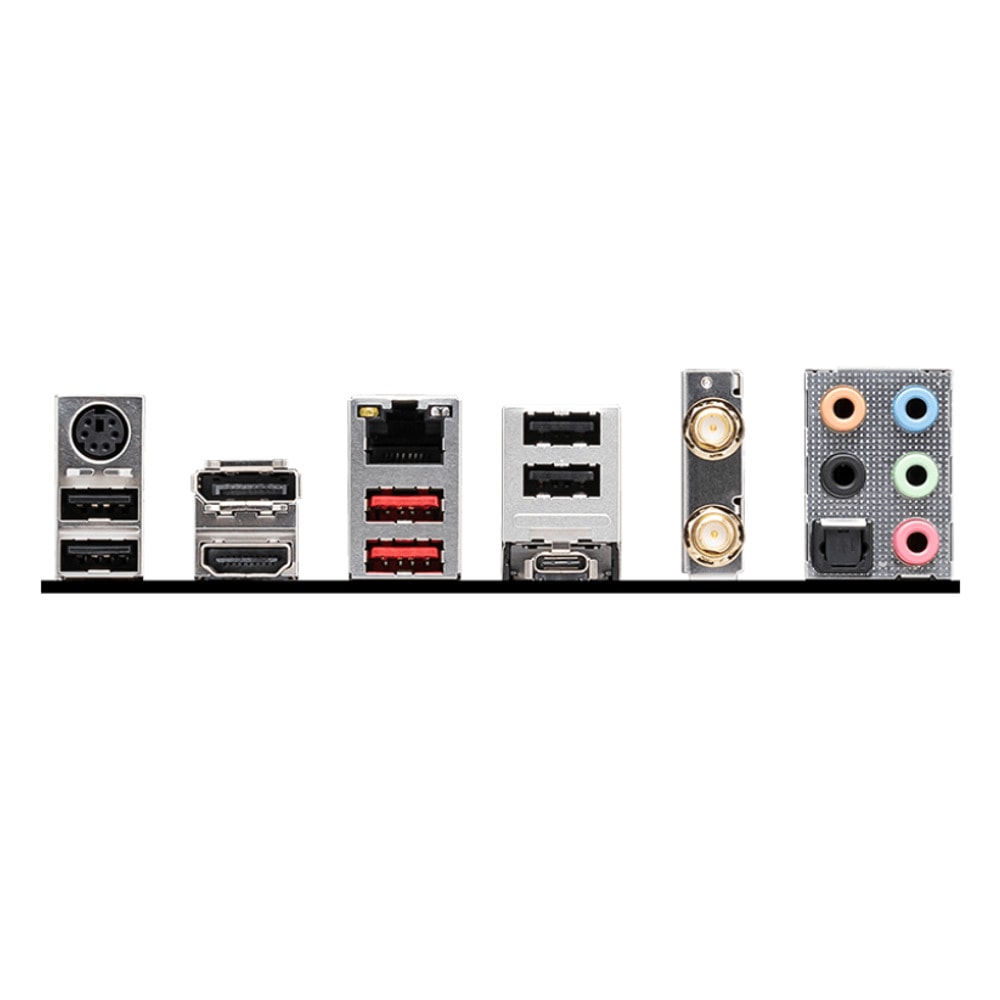

| BACK PANEL PORTS | Keyboard / MouseDisplayPort2.5G LANUSB 2.0Wi-Fi / BluetoothAudio ConnectorsUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-C)S/PDIF-OUT |
| Операционна система | Support for Windows 11 64-bitWindows 10 64-bit |
| PCB Dimension | ATX · 243.84mmx304.8mm |
