MSI
Дънна платка MSI A520M-A Pro
Артикул №: 1000120984
Категория:
Компютърни компоненти
56,99 €
✓ Налично в централен склад

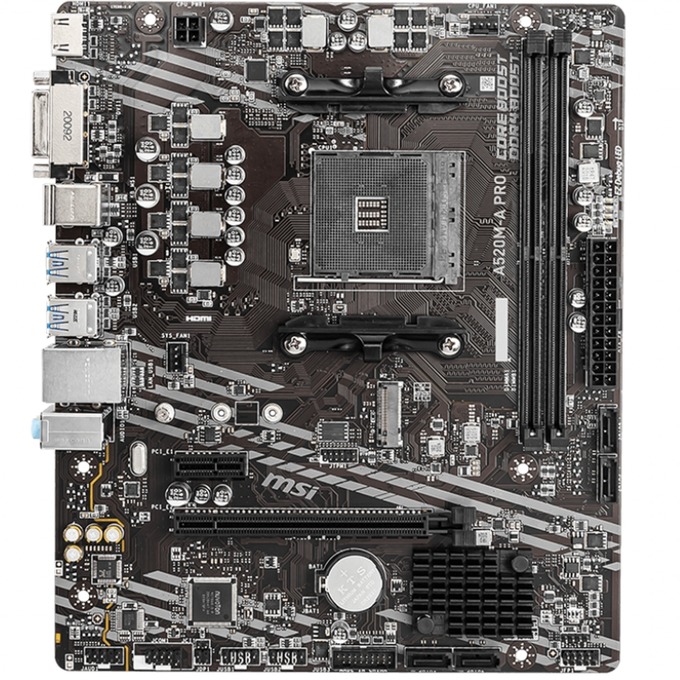

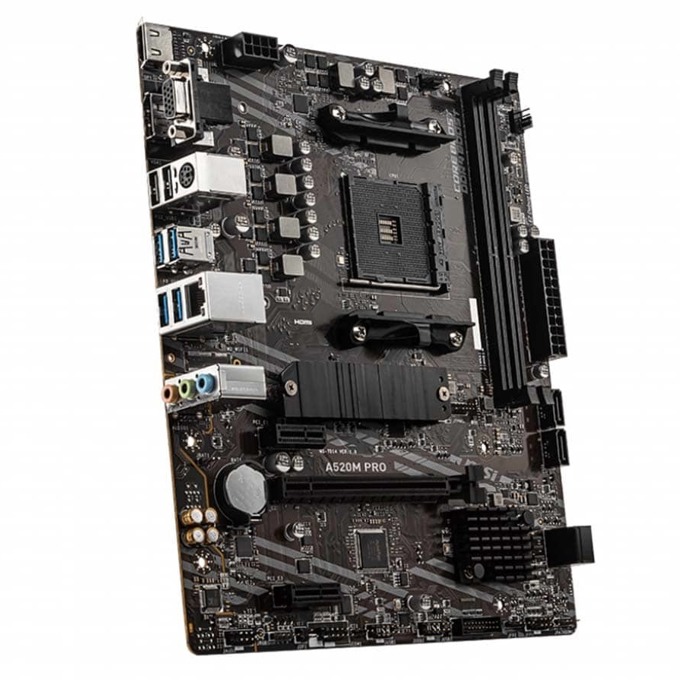

A520M-A PRO
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Характеристики
| Чипсет | Да |
| AMD A520 Chipset | Да |
| Памет | Да |
| 2x DDR4 memory slots, support up to 64GB 1 | Да |
| 1DPC 1R max speed 4600 MHz | Да |
| 1DPC 2R max speed 3866 MHz | Да |
| Dual channel memory architecture | Да |
| Supports non-ECC UDIMM memory | Да |
| Supports ECC UDIMM memory (non-ECC mode) | Да |
| Supports un-buffered memory | Да |
| EXPANSION SLOT | Да |
| 1x PCIe 3.0 | x1 slot 1 |
| 1x PCIe | x16 slot |
| The supported specification depends on installed processor | Да |
| ONBOARD GRAPHICS | Да |
| Support for HDMI™ | 1.4 version, HDCP 1.4 & 2.3 |
| Maximum shared memory of | 16 GB |
| Капацитет за съхранение | Да |
| AMD A520 Chipset | Да |
| 4x SATA 6Gb/s ports | Да |
| 1x M.2 slot (Key M) (from AMD Processor) | Да |
| Supports PCIe | 3.0 1 |
| Supports SATA | 6Gb/s |
| Supports | 2242/ 2260/ 2280 storage devices |
| The supported specification depends on installed processor | Да |
| RAID | Да |
| Supports RAID | 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID | 0 and RAID 1 for M.2 NVMe storage devices |
| USB | Да |
| AMD A520 Chipset | Да |
| AMD Processor | Да |
| 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | Да |
| Аудио | Да |
| Realtek® ALC892/ALC897 Codec | Да |
| 7.1-Channel High Definition Audio | Да |
| Мрежова карта | Да |
| 1x Realtek® RTL8111H Gigabit LAN controller | Да |
| INTERNAL CONNECTORS | Да |
| 1x 24-pin ATX main power connector | Да |
| 1x 4-pin ATX 12V power connector | Да |
| 4x SATA 6Gb/s connectors | Да |
| 1x M.2 slots (M-Key) | Да |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | Да |
| 1x 4-pin CPU fan connector | Да |
| 1x 4-pin system fan connectors | Да |
| 1x Front panel audio connector | Да |
| 2x System panel connectors | Да |
| 1x Chassis Intrusion connector | Да |
| 1xTPM module connector | Да |
| 1x Clear CMOS jumper | Да |

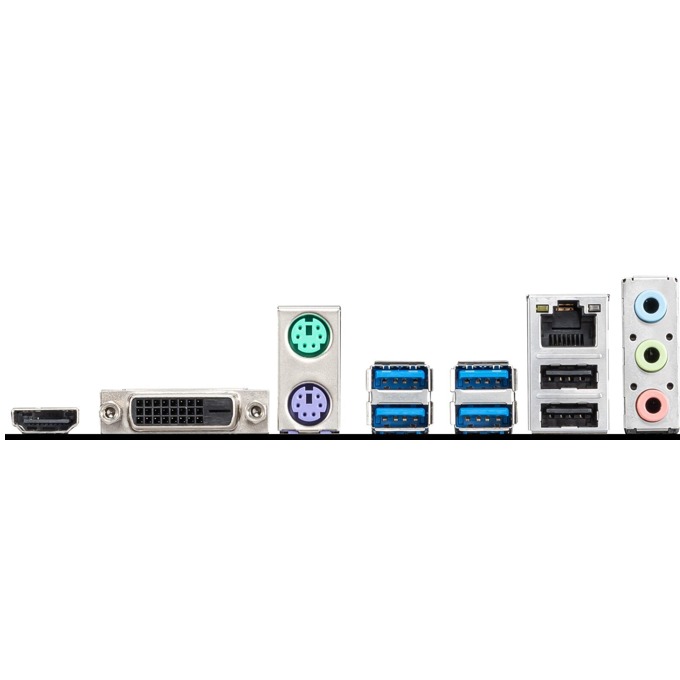

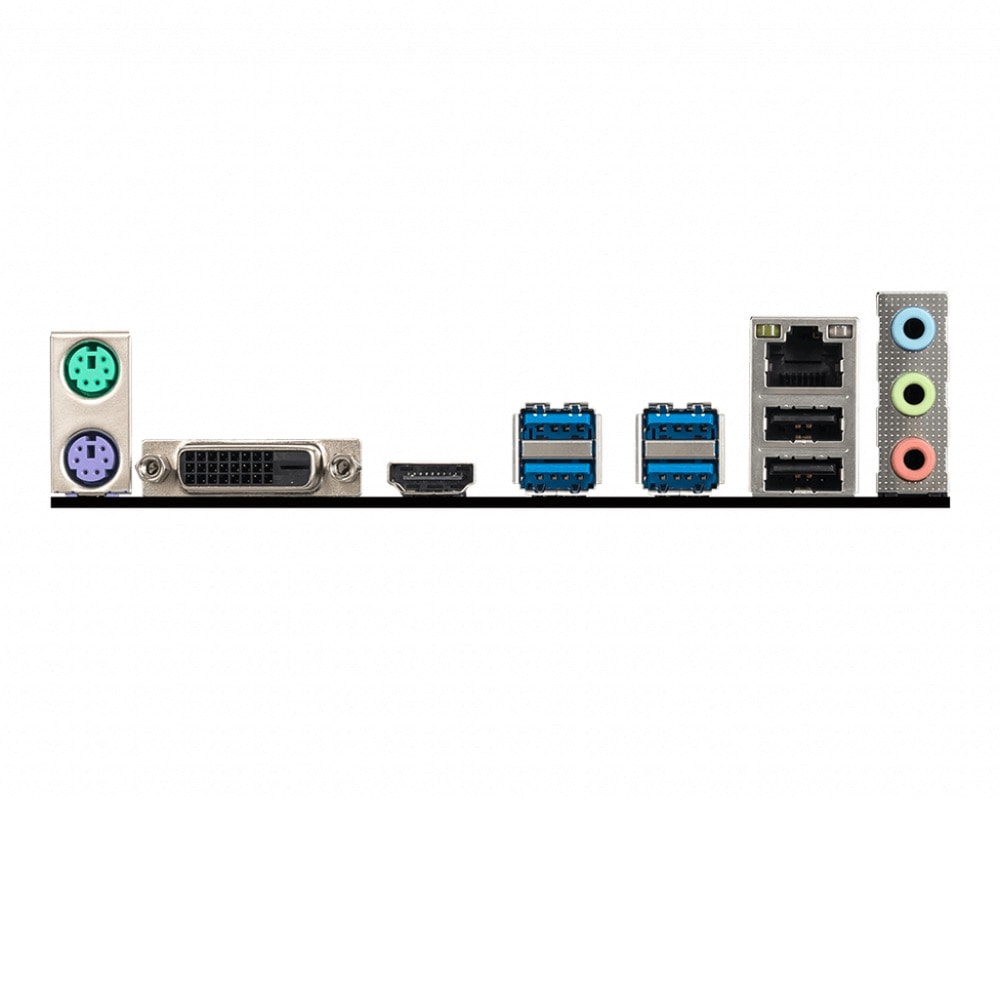

| BACK PANEL PORTS | Да |
| LAN port | Да |
| HDMI | Да |
| DVI-D | Да |
| Keyboard / Mouse | Да |
| USB | 3.2 Gen 1 5Gbps Type-A |
| USB | 3.2 Gen 1 5Gbps Type-A |
| USB | 2.0 Ports |
| Audio Connectors | Да |
| A520M-A Pro | Да |
| Размери | Да |
| Micro-ATX Form Factor | Да |
| 9.3 in. x 7.9 in. (23.6 cm | x 20 cm) |
| Монтаж | Да |
| Mounting holes | 8 |
