Дънна платка MikroTik RBM33G
MikroTik RBM33G

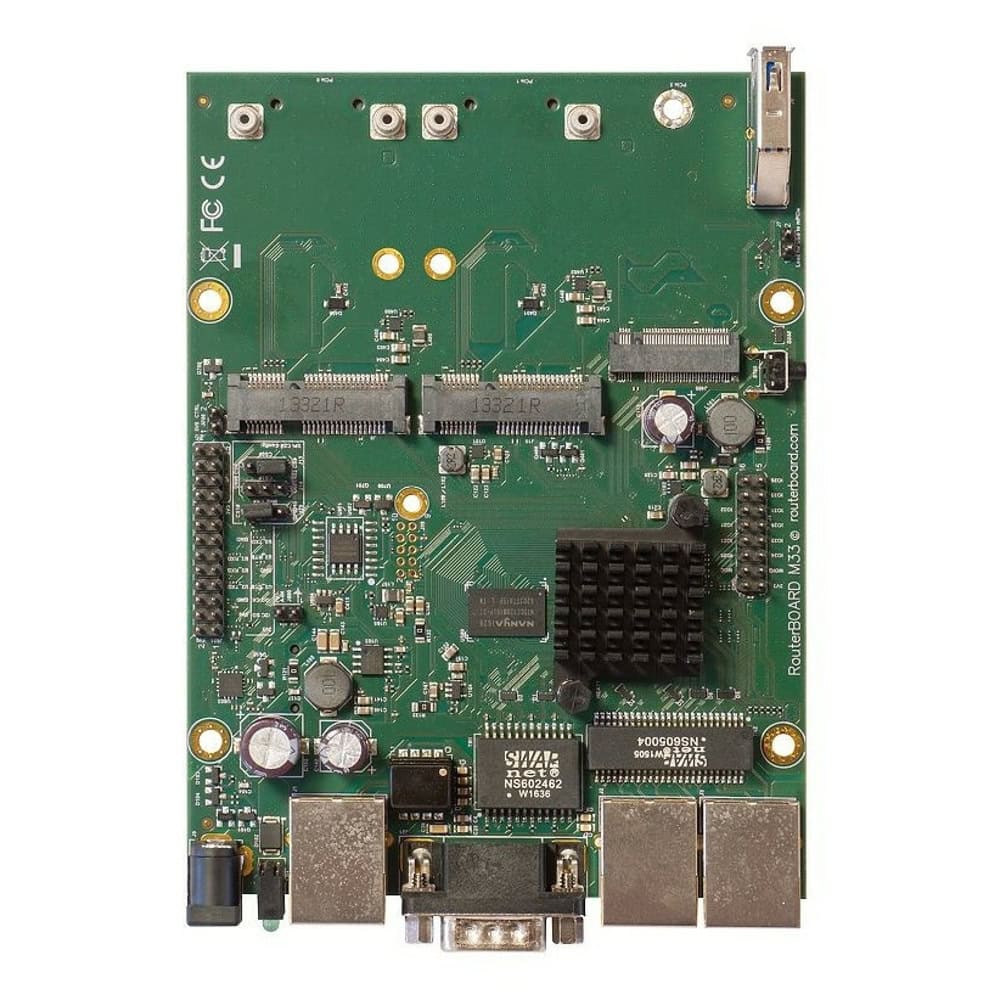

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
Характеристики
| Details | ArchitectureMMIPS CPUMT7621A CPU core count2 CPU nominal frequency880 MHz CPU Threads count4 Switch chip modelMT7621A RouterOS license4 Operating SystemRouterOS Size of RAM256 MB Storage size16 MB Storage typeFLASH MTBFApproximately 100'000 hours at 25C Tested ambient temperature-40°C to 70°C IPsec hardware accelerationYes |
Powering
| Details | Number of DC inputs2 (PoE-IN, DC jack) DC jack input Voltage11-28 V Max power consumption24 W Max power consumption without attachments5 W Cooling typePassive PoE inPassive PoE PoE in input Voltage11-28 V |
Ethernet
| Details | 10/100/1000 Ethernet ports3 |
Peripherals
| Details | Number of SIM slots2 Modem (Mini SIM) M.2 slots1 MiniPCI-e slots2 Serial console portRS232 + GPIO header Number of USB ports1 USB Power ResetYes USB slot typeUSB 3.0 type A Max USB current (A)1 Number of M.2 slots1 |
