Gigabyte
Дънна платка Gigabyte H610M S2H V2 (rev. 1.0)
Артикул №: 1000129463
Категория:
Компютърни компоненти
83,99 €
✓ Налично във външен склад

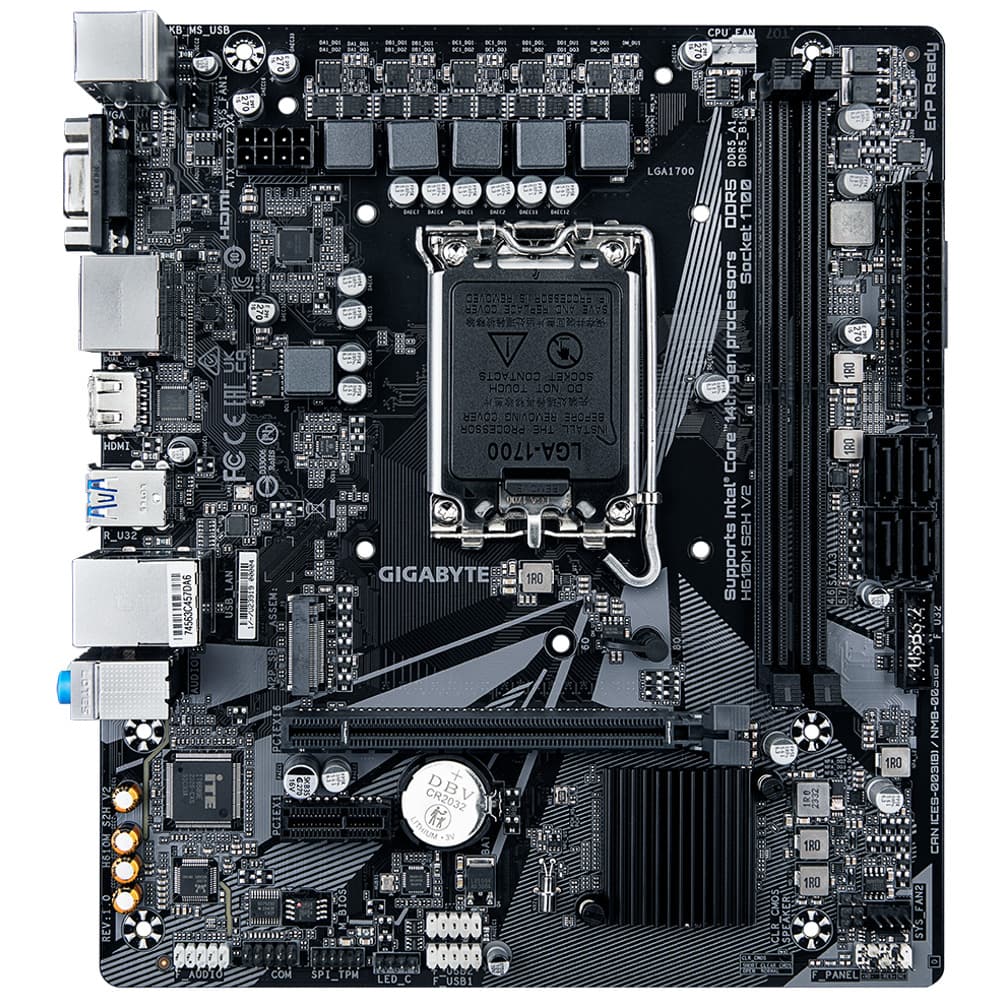

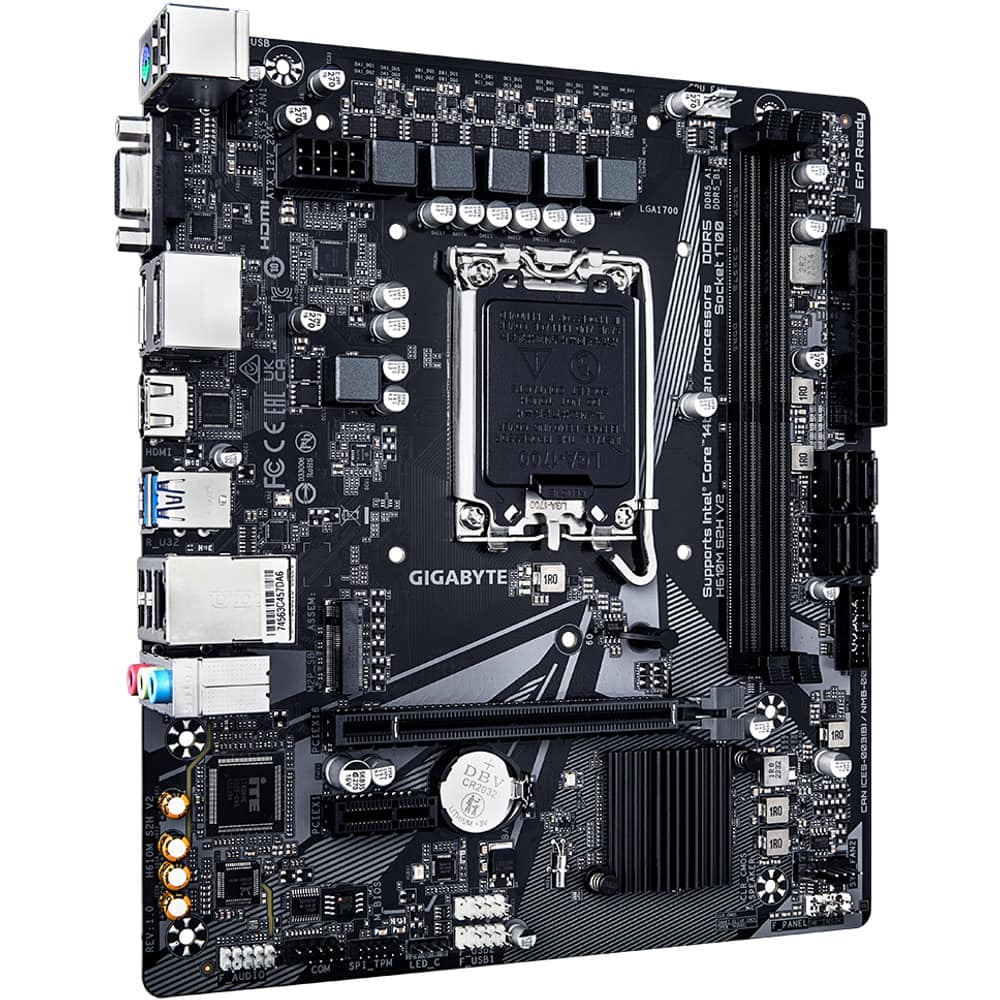

Gigabyte H610M S2H V2 (rev. 1.0)
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Характеристики
| CPU LGA1700 socket | Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU | Да |
| Chipset Intel H610 Express Chipset | Да |
| Memory 14th and 13th Generation Intel Core i9/i7 Pocessors | Support for DDR5 5600/5200/4800/4400 MT/s memory modules |
| Dual channel memory architecture | Да |
| Support for Extreme Memory Profile (XMP) memory modules | Да |
| Graphics specifications may vary depending on CPU support.) | Да |
| Support for up to triple-display at the same time | Да |
| Audio Realtek audio codec | Да |
| High Definition Audio | Да |
| LAN Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) | Да |
| Expansion Slots CPU 1 x PCI Express | x16 slot, supporting PCIe 4.0 and running at x16 |
| Чипсет | Да |
| 1 x PCI Express | x1 slot, supporting PCIe 3.0 and running at x1 |
| X SATA 6Gb/s connectors | 4 |
| X USB 2.0/1.1 ports on the back panel | 4 |
| Chipset+USB | 2.0 Hub |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| X 8-pin ATX 12V power connector | 1 |
| X CPU fan header | 1 |
| X system fan headers | 2 |
| X M.2 Socket 3 connector | 1 |
| X SATA 6Gb/s connectors | 4 |
| X RGB LED strip header | 1 |
| X front panel header | 1 |
| X front panel audio header | 1 |
| X USB 3.2 Gen 1 header | 1 |
| X USB 2.0/1.1 headers | 2 |
| X serial port header | 1 |
| X Clear CMOS jumper | 1 |
| X chassis intrusion header | 1 |

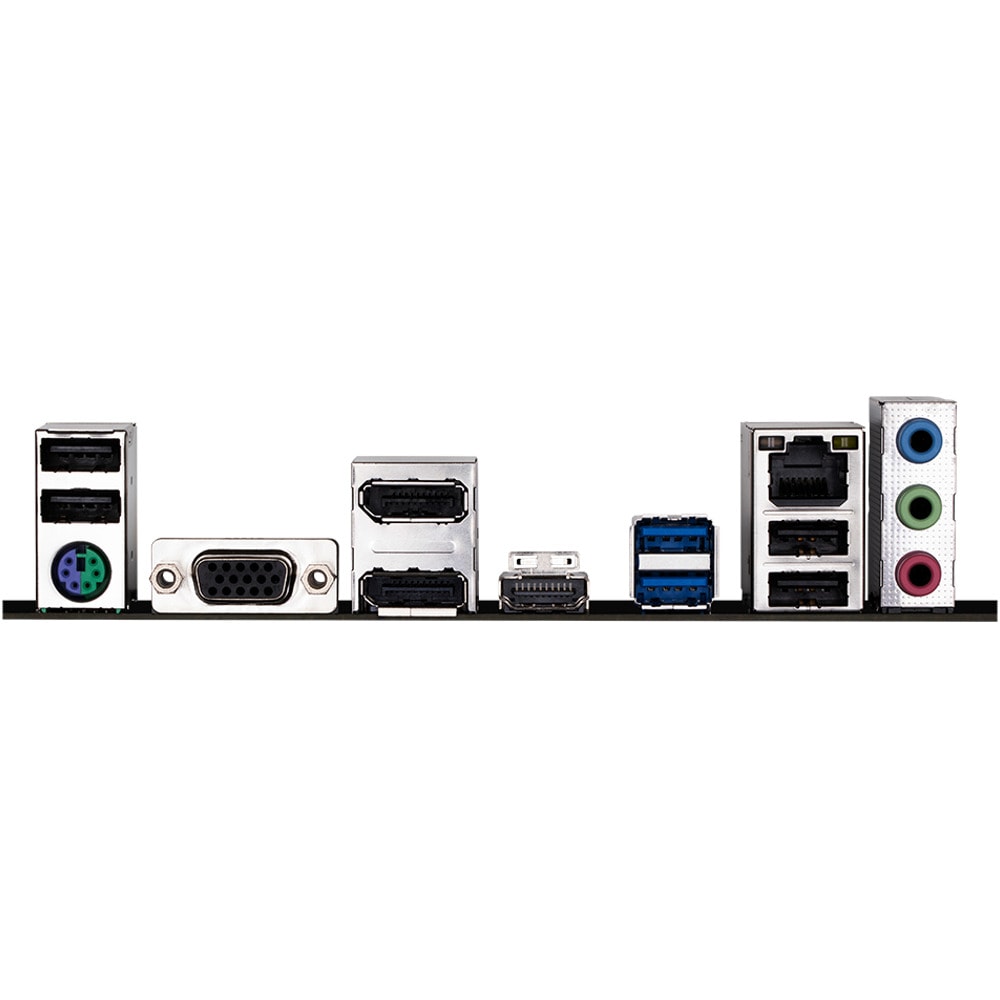

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| X D-Sub port | 1 |
| X DisplayPorts | 2 |
| X HDMI port | 1 |
| X USB 3.2 Gen 1 ports | 2 |
| X USB 2.0/1.1 ports | 4 |
| X RJ-45 port | 1 |
| X audio jacks | 3 |
| I/O Controller iTE I/O Controller Chip | Да |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | Да |
| PnP | 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System Support for Windows | 11 64-bit |
| Support for Windows | 10 64-bit |
| Form Factor Micro ATX Form Factor; | 22.3cm x 19.6cm |
