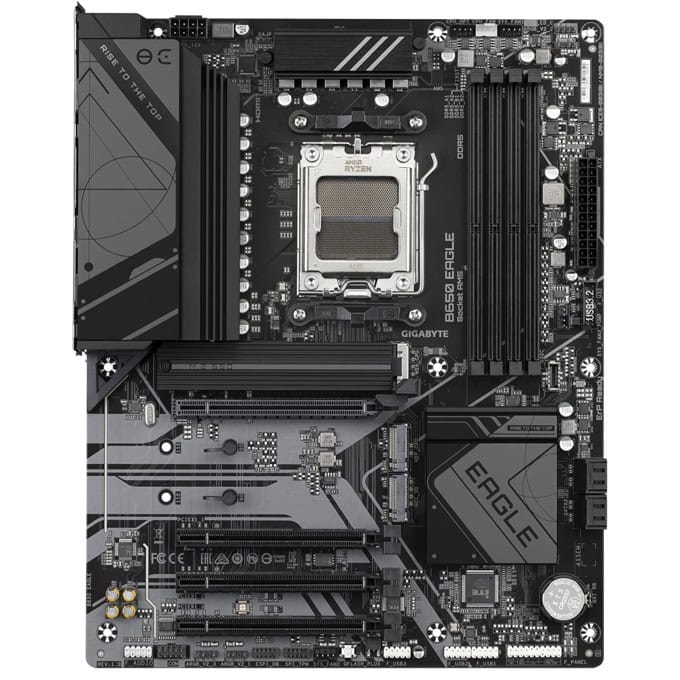

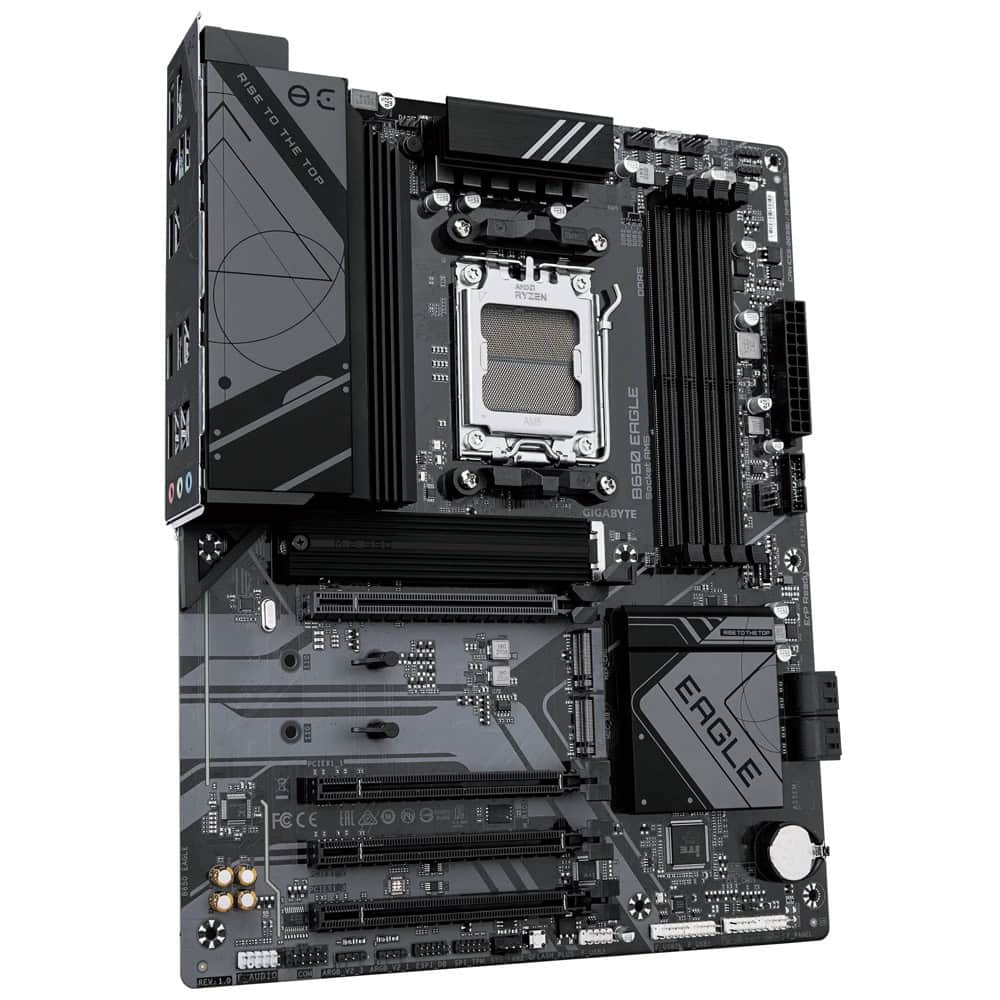

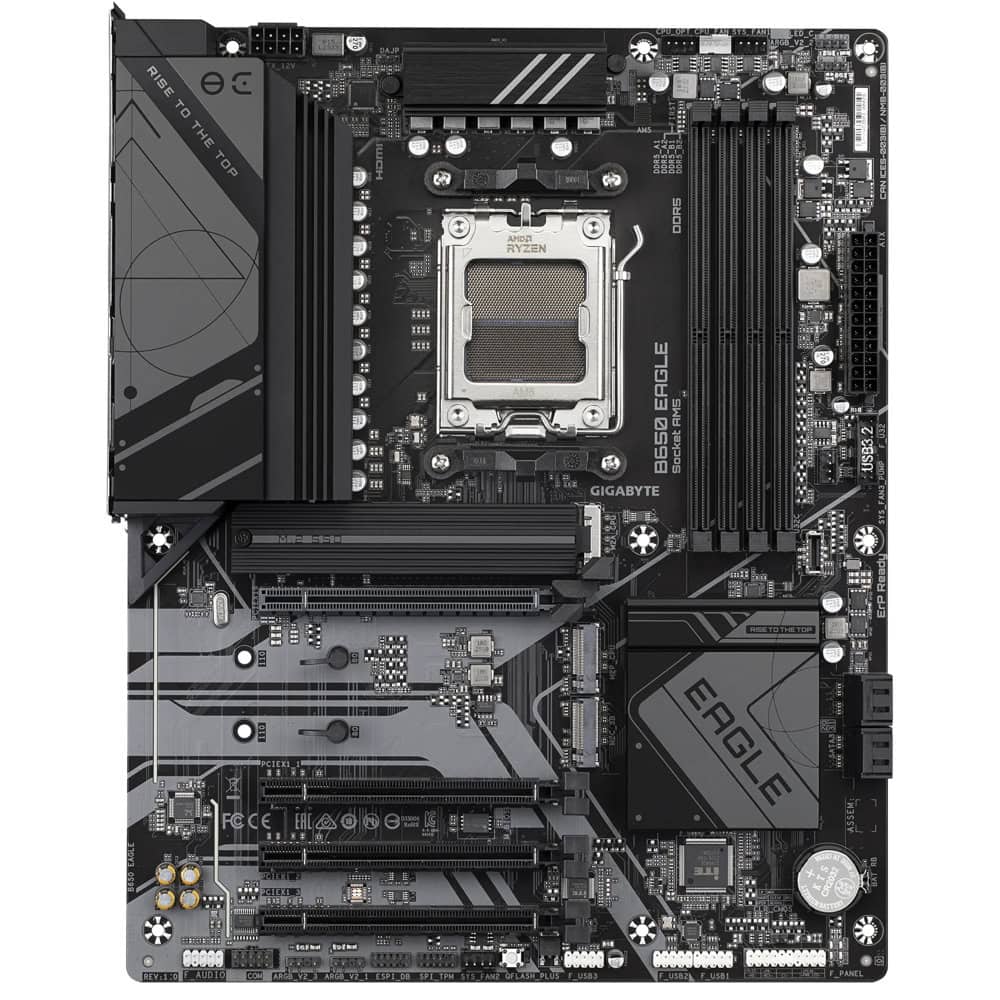

Дънна платка Gigabyte B650 EAGLE (rev1.0)

Gigabyte B650 EAGLE

rev 1.0

CPU

AMD Socket AM5, support for:

AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Chipset

AMD B650

Memory

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules)

Onboard Graphics

Integrated Graphics Processor:

- 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1

* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.

1x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

Storage Interface

1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

4x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 1x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

CPU+USB 2.0 Hub:

- 4x USB 2.0/1.1 ports on the back panel

Chipset:

- 2x USB 3.2 Gen 1 ports available through the internal USB header

- 1x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

- 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan header

1x CPU fan/water cooling pump header

2x system fan headers

1x system fan/water cooling pump header

3x addressable RGB Gen2 LED strip headers

1x RGB LED strip header

3x M.2 Socket 3 connectors

4x SATA 6Gb/s connectors

1x front panel header

1x front panel audio header

1x USB Type-C® header, with USB 3.2 Gen 1 support

1x USB 3.2 Gen 1 header

3x USB 2.0/1.1 headers

1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1x Q-Flash Plus button

1x serial port header

1x Clear CMOS jumper

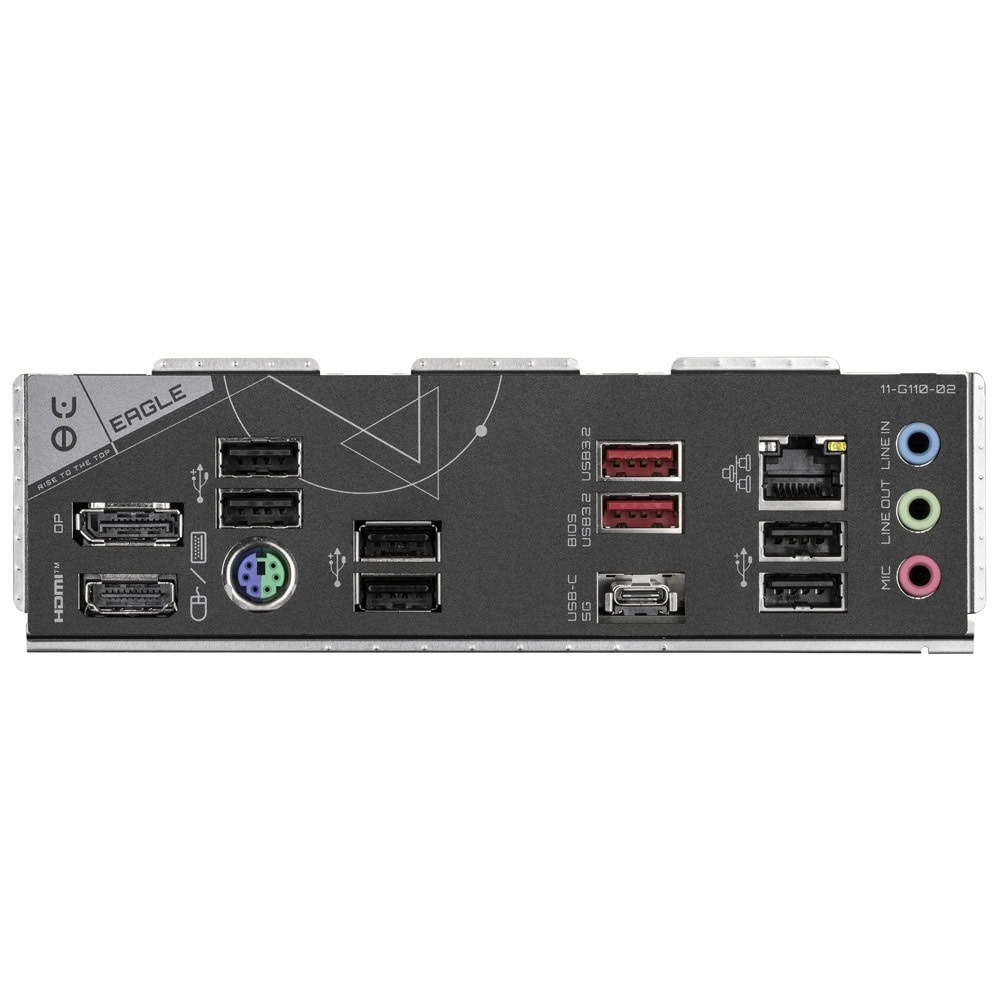

Back Panel Connectors

1x DisplayPort

1x HDMI port

1x PS/2 keyboard/mouse port

2x SMA antenna connectors (2T2R)

1x USB Type-C port, with USB 3.2 Gen 1 support

2x USB 3.2 Gen 2 Type-A ports (red)
