Gigabyte

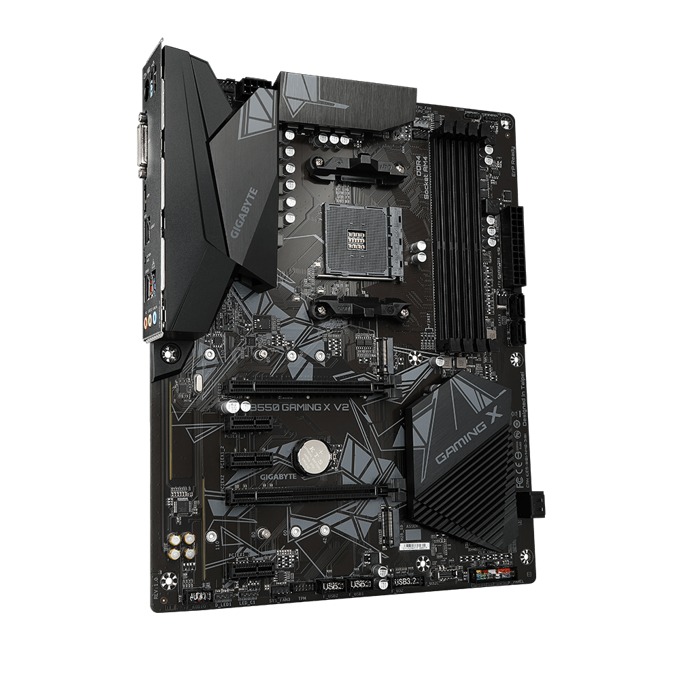

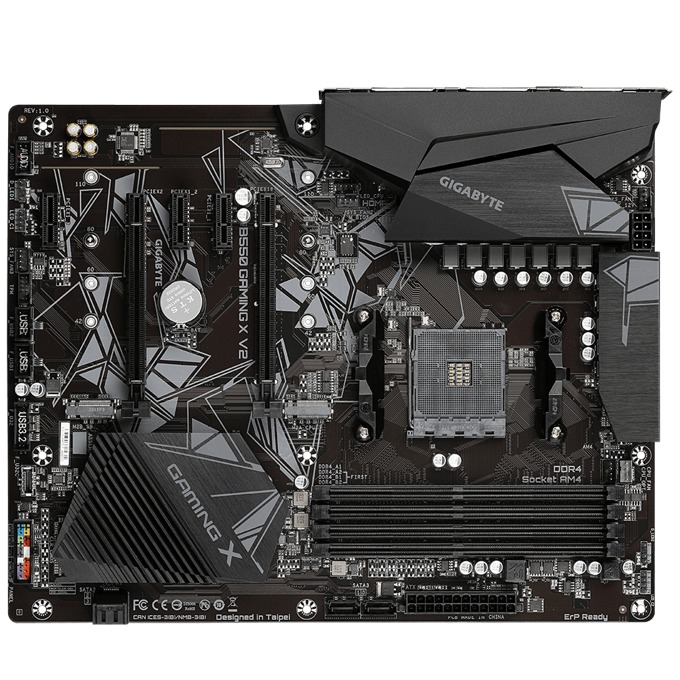

Дънна платка Gigabyte B550 GAMING X V2
Артикул №: 1000119277
Категория:
Компютърни компоненти
128,99 €
✓ Налично във външен склад
Характеристики
| CPU's supported | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors |
| Чипсет | Да |
| AMD B550 | Да |
| Памет | Да |
| Onboard Graphics | Да |
| 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU | 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode |
| 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset | Supporting PCIe 3.0 x2 mode |

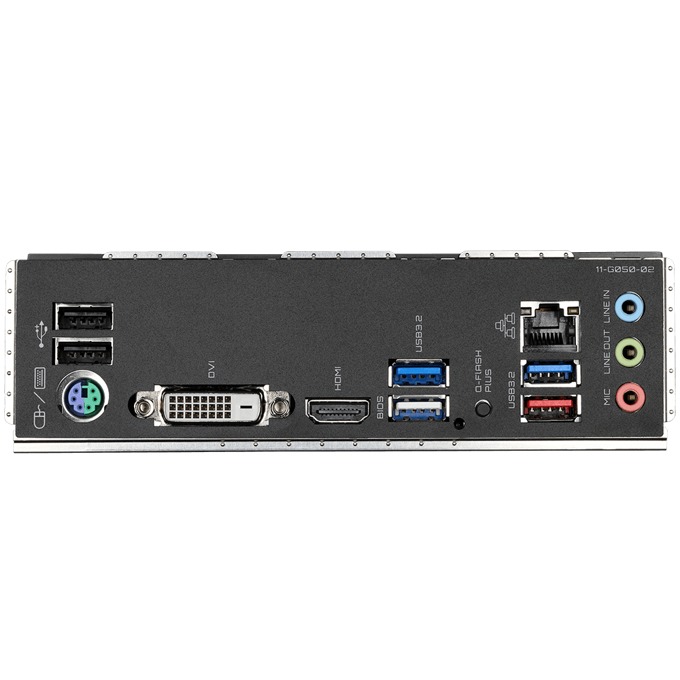

| 4 x SATA 6Gb/s connectors, integrated in the Chipset | Support for RAID 0, RAID 1, and RAID 10 Internal I/O Connectors 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C™ port, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks Form Factor ATX Form Factor; 30.5cm x 24.4cm |
