Biostar
Дънна платка Biostar TB360-BTC PRO 2.0
Артикул №: 1000142353
Категория:
Компютърни компоненти
72,99 €
✓ Налично във външен склад

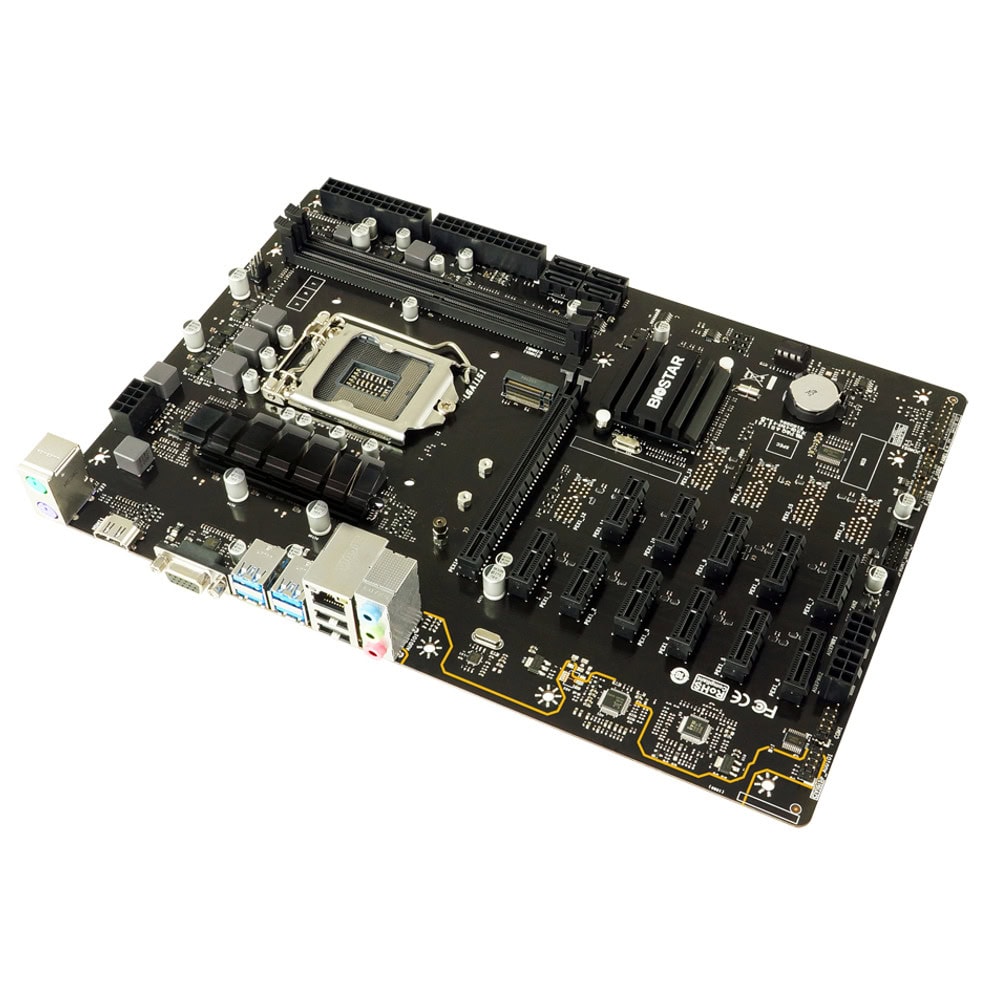

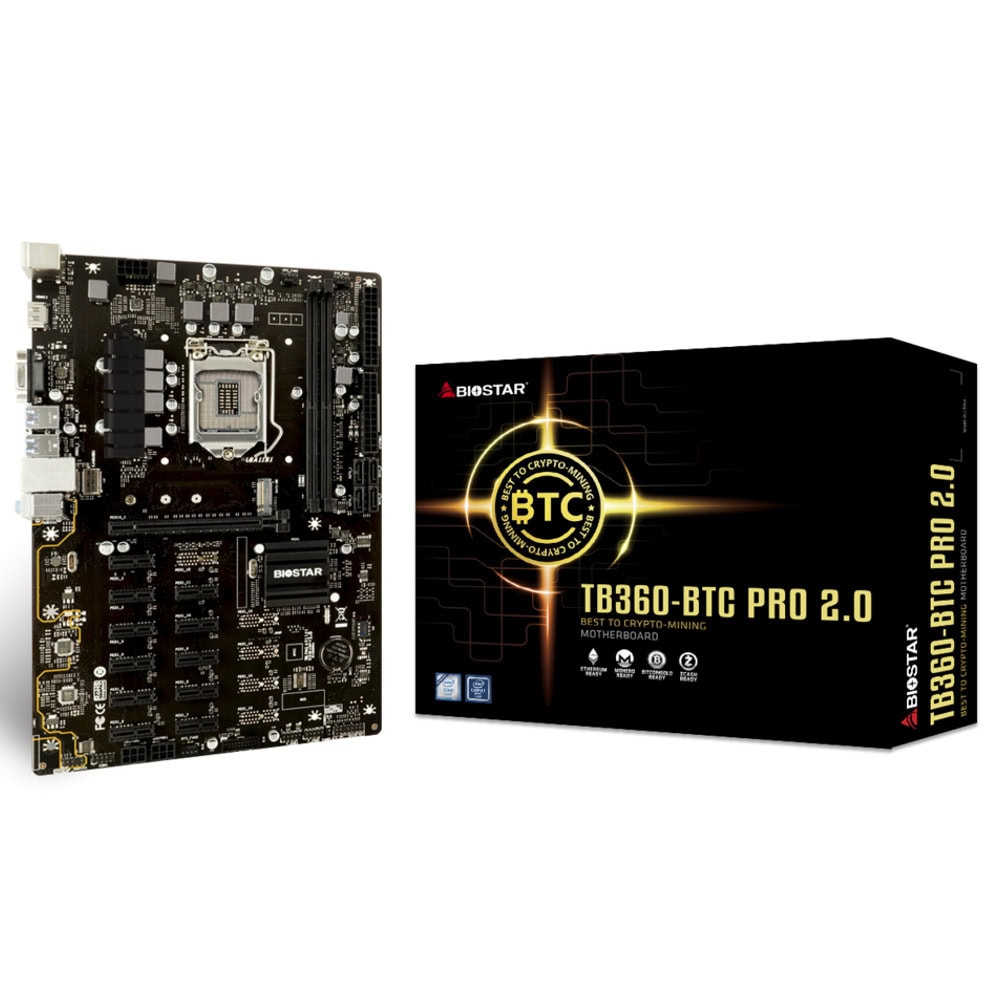

Biostar TB360-BTC PRO 2.0
- Supports 9th & 8th Generation Intel Core™ Processor
- Intel B360 single chip architecture
- Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity
- Support 12 x PCIe 3.0 slots
- Support M.2 (6Gb/s) Connector
- Support HDMI Connector
Характеристики

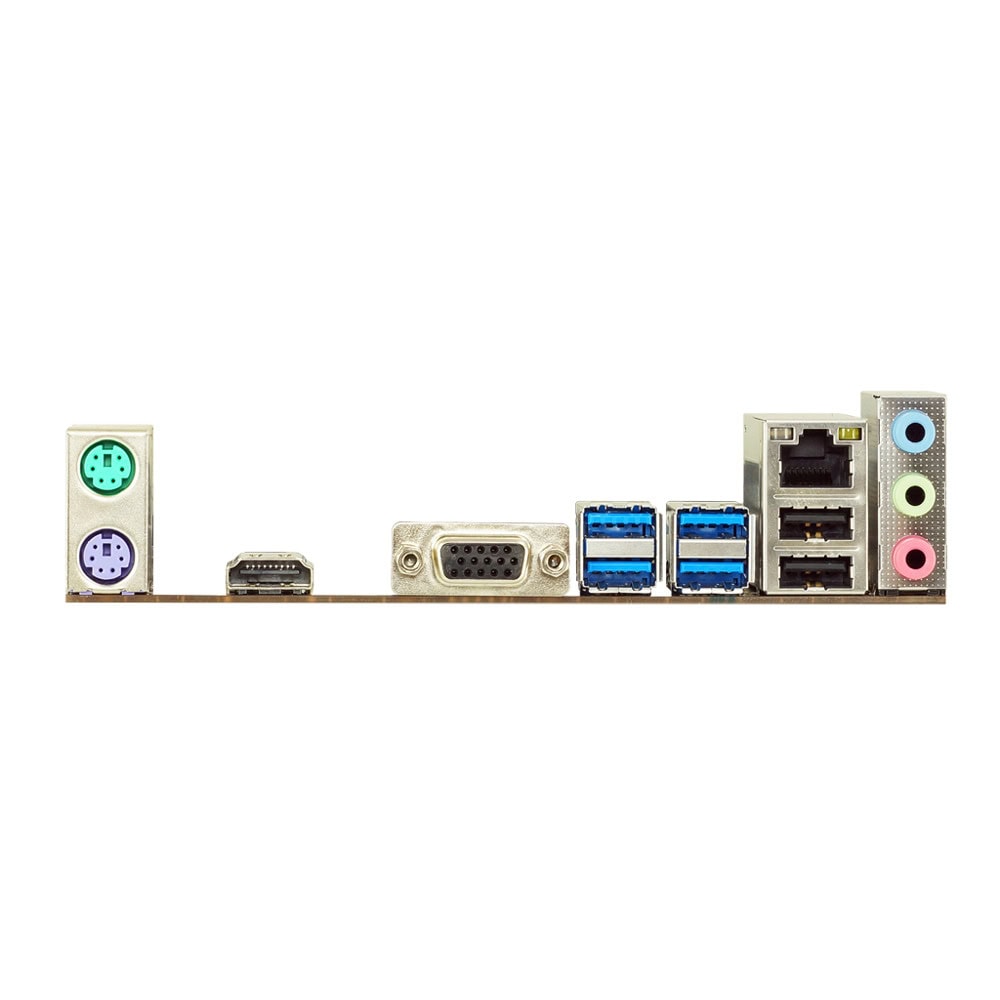

| TB360-BTC PRO 2.0 | ChipsetIntel B360 CPU SUPPORT9th Gen Intel Core i9 LGA 1151 Processor Socket 1151 for 9th & 8th Intel Core i7 / i5 / i3 / Pentium / Celeron processor * 8th Generation Intel Core™ Processor Family only support 300-Series. * Please refer to www.biostar.com.tw for CPU support list. MEMORYSupports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module INTEGRATED VIDEOBy CPU model Supports DX12 Supports HDCP STORAGE4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports SATA III (6Gb/s) SSD * Specifications vary by CPU types LANRealtek LAN Chip 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability AUDIO CODECALC887 7.1 Channels, High Definition Audio USB6 x USB 3.1(Gen1) ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header) EXPANSION SLOT11 x PCIe 3.0 x1 Slot 1 x PCIe 3.0 x16 Slot * Maximum VGA cards mining support are depending on VGA Driver or mining software. * Specifications vary by CPU types REAR I/O1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x VGA Port 1 x HDMI Port 1 x LAN port 2 x USB 2.0 Ports 4 x USB 3.1(Gen1) Ports 3 x Audio Jack INTERNAL I/O4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports) 1 x 8-Pin Power Connector 2 x 24-Pin Power Connectors 2 x 6-Pin PCIe Power Connectors 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x COM Serial Header 1 x Clear CMOS Header H/W MONITORINGCPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSIONATX Form Factor Dimension: 29.5cm x 21.0cm ( W x L ) OS SUPPORTSupports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. BUNDLE SOFTWAREBullGuard FEATURESPCI-E Slot Detection BIOS Boot Screen |
