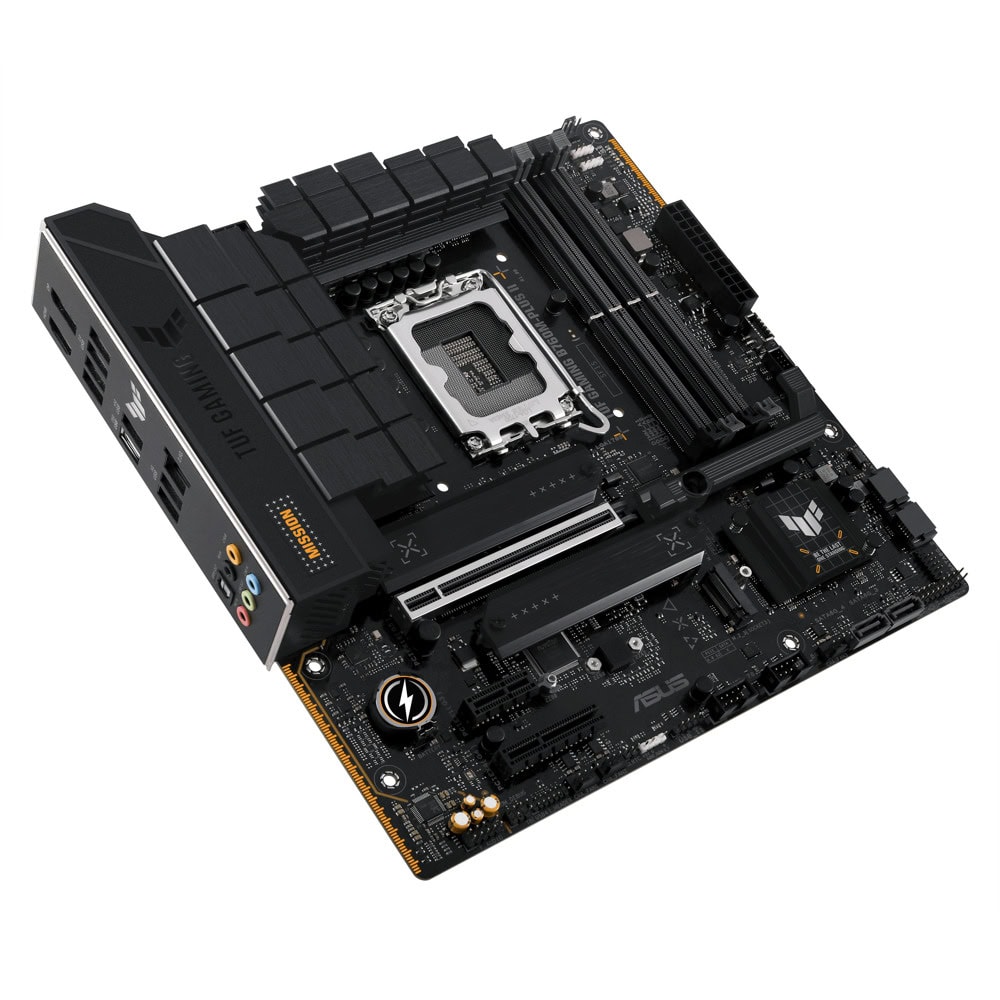

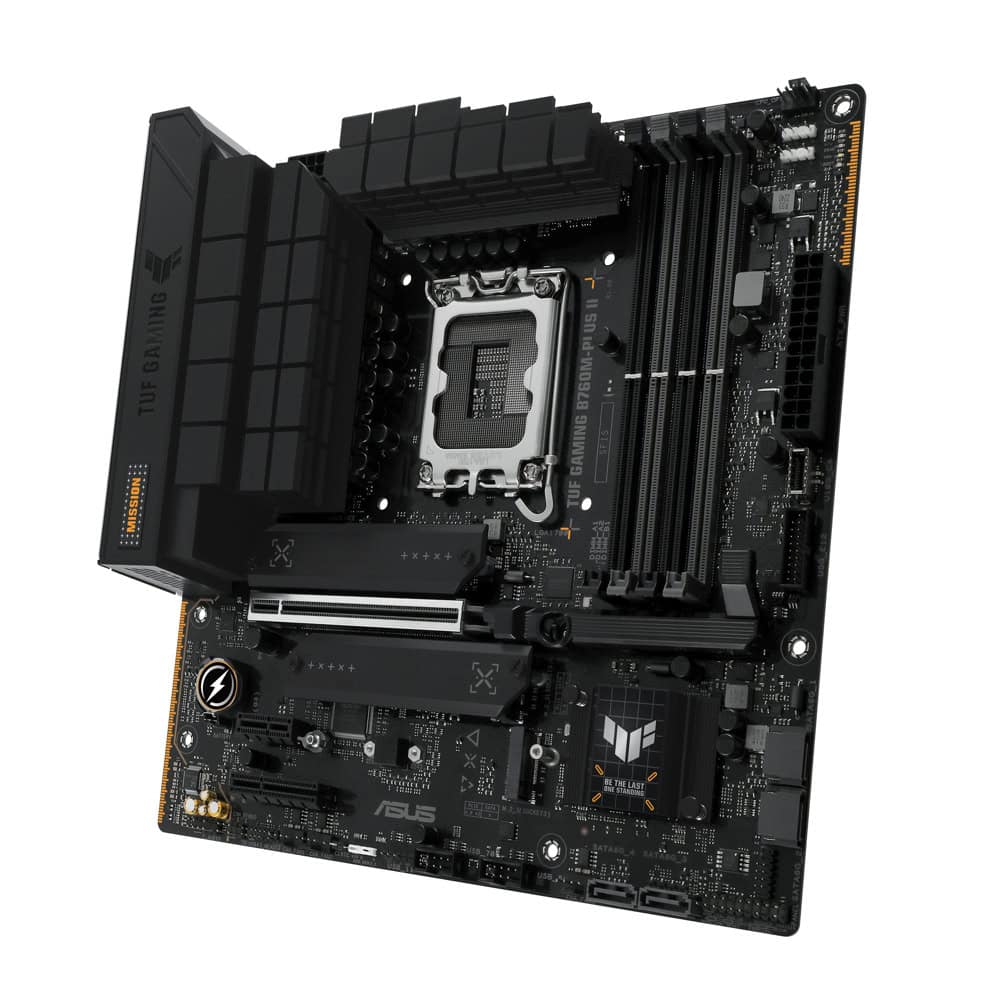

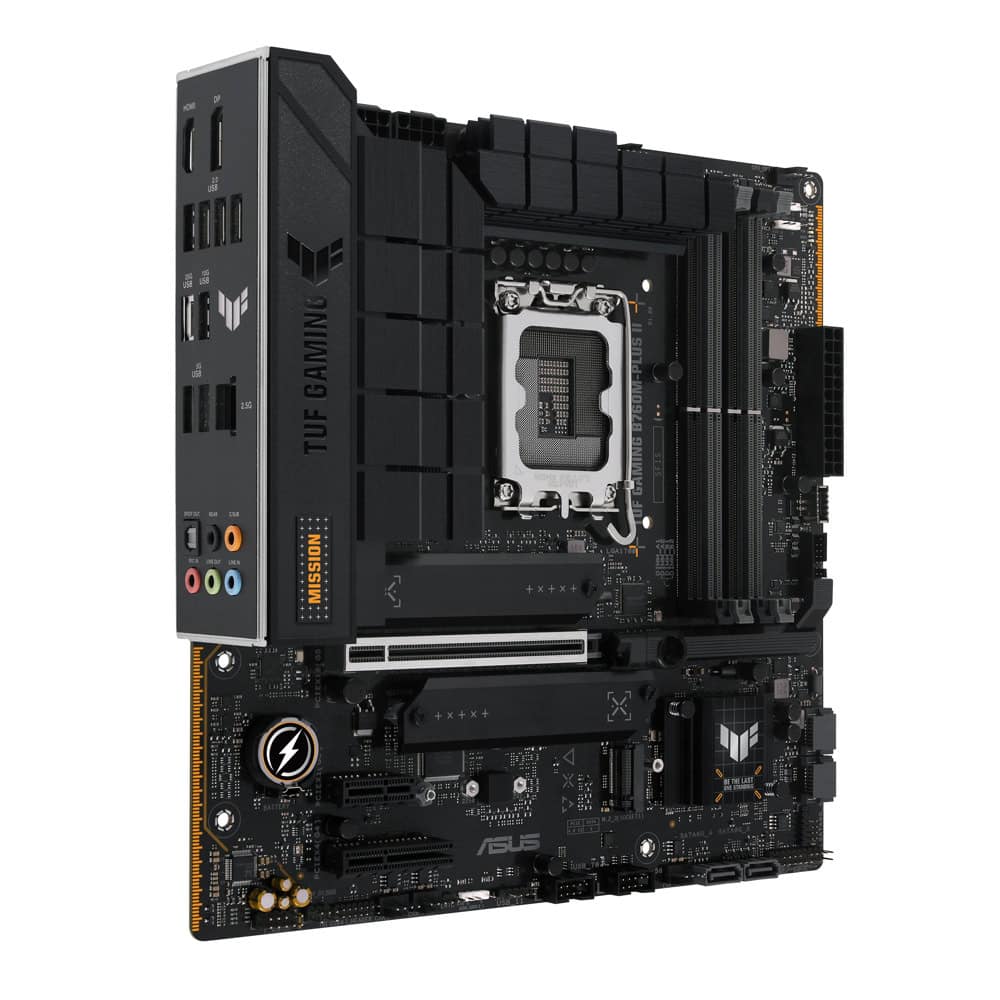

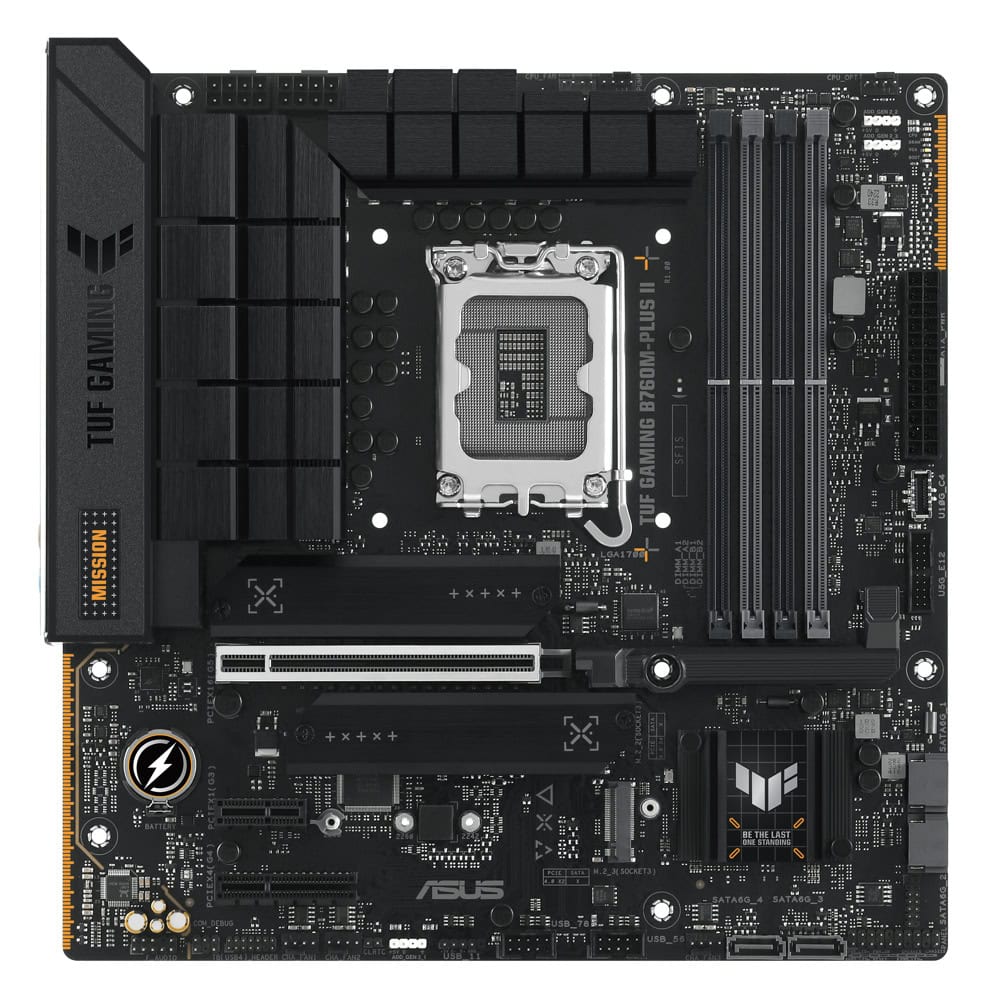

Дънна платка Asus TUF GAMING B760M-PLUS II

Asus TUF GAMING B760M-PLUS II

90MB1HD0-M0EAY0

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B760 Chipset

Memory

4x DIMM slots, Max. 192GB, DDR5

7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile II (AEMP II)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI port***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel Core Processors (14th & 13th & 12th Gen)*

1x PCIe 5.0 x16 slot

Intel B760 Chipset

1x PCIe 4.0 x4 slot

1x PCIe 3.0 x1 slot

Storage

Supports 3 x M.2 slots and 4x SATA 6Gb/s ports*

Intel Core Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

Intel B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

4x SATA 6Gb/s ports****

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1x Realtek 2.5Gb Ethernet

TUF LANGuard

USB

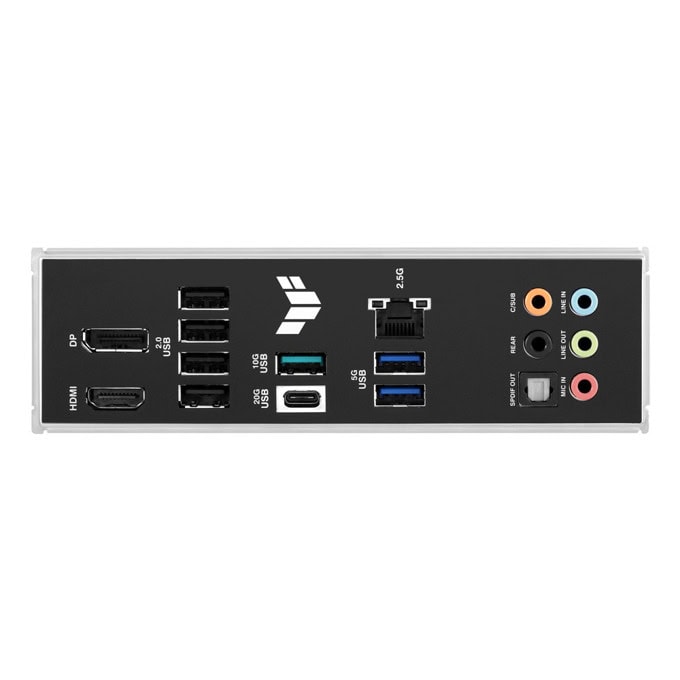

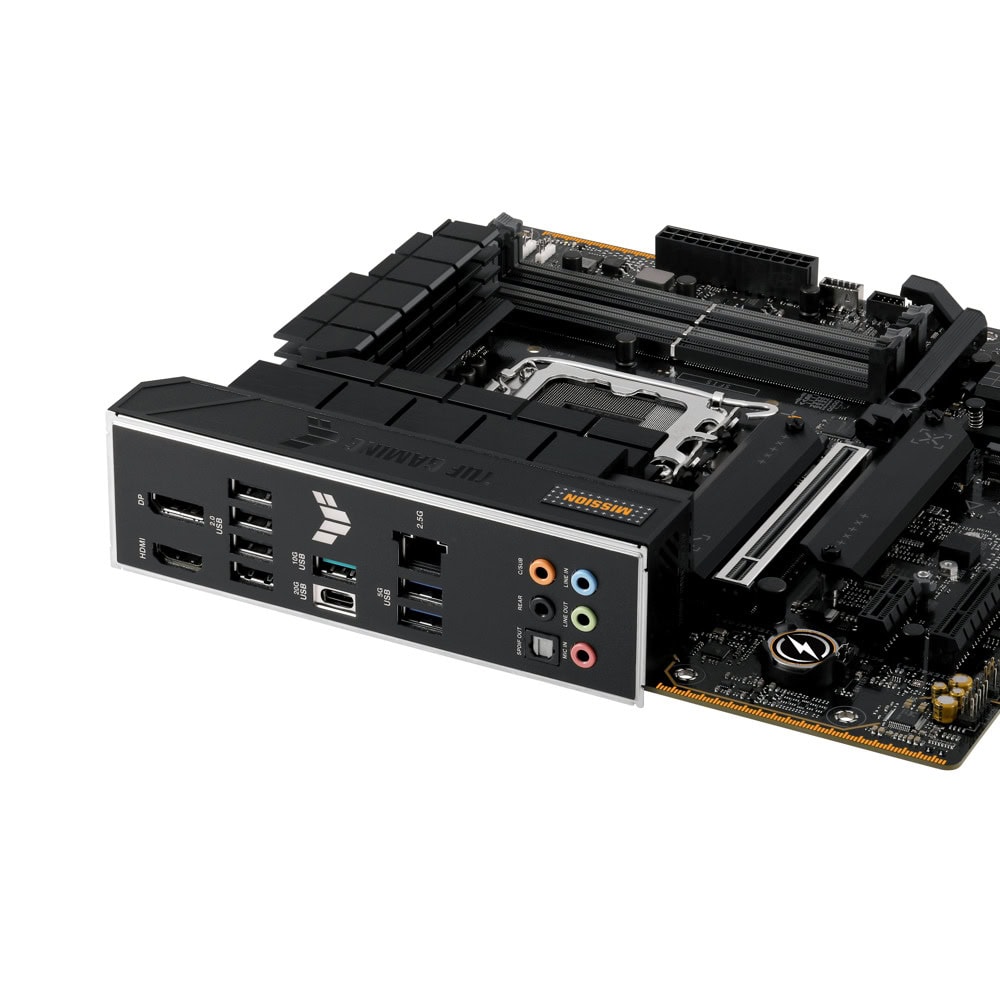

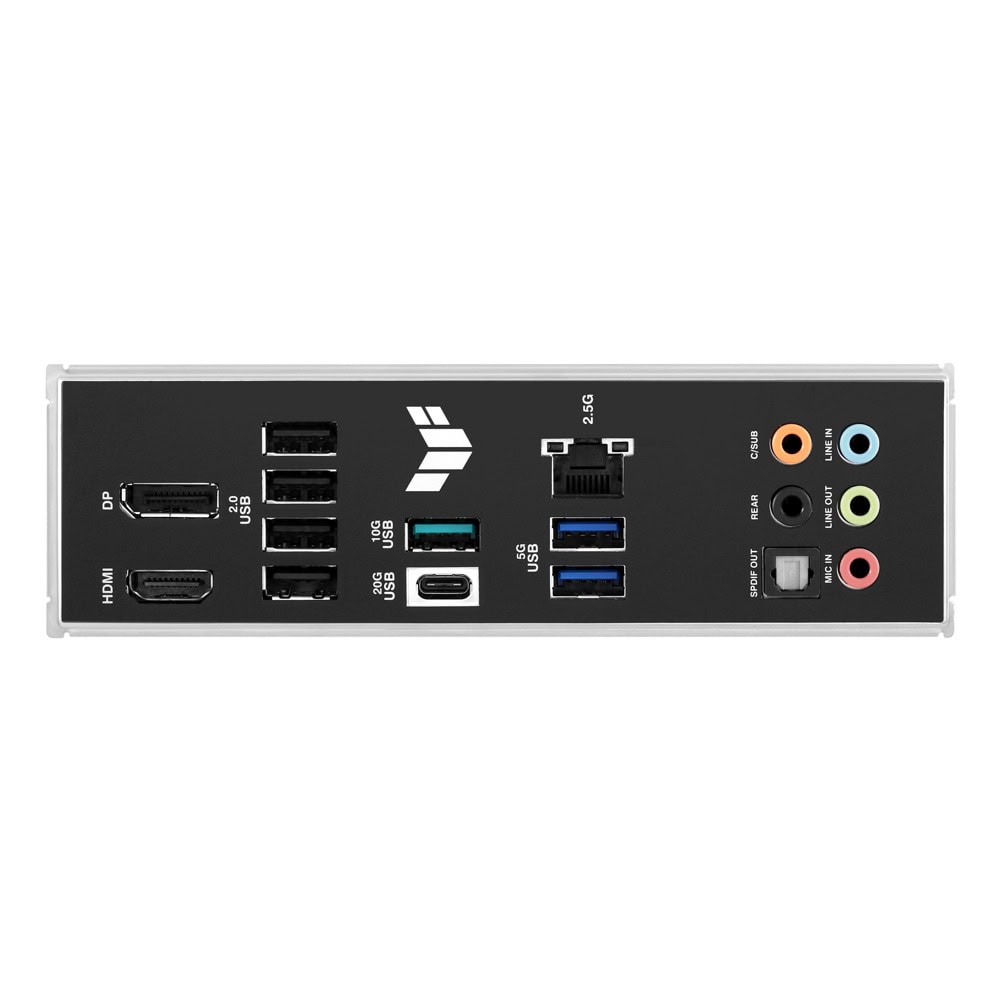

Rear USB (Total 8 ports)

1x USB 20Gbps port (1x USB Type-C)

1x USB 10Gbps port (1x Type-A)

2x USB 5Gbps ports (2x Type-A)

4x USB 2.0 ports (4x Type-A)

Front USB (Total 8 ports)

1x USB 10Gbps connector (supports USB Type-C)*

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

3x USB 2.0 headers support 5 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features
