Дънна платка Asus TUF-GAMING-B550-PLUS

Asus TUF-GAMING-B550-PLUS

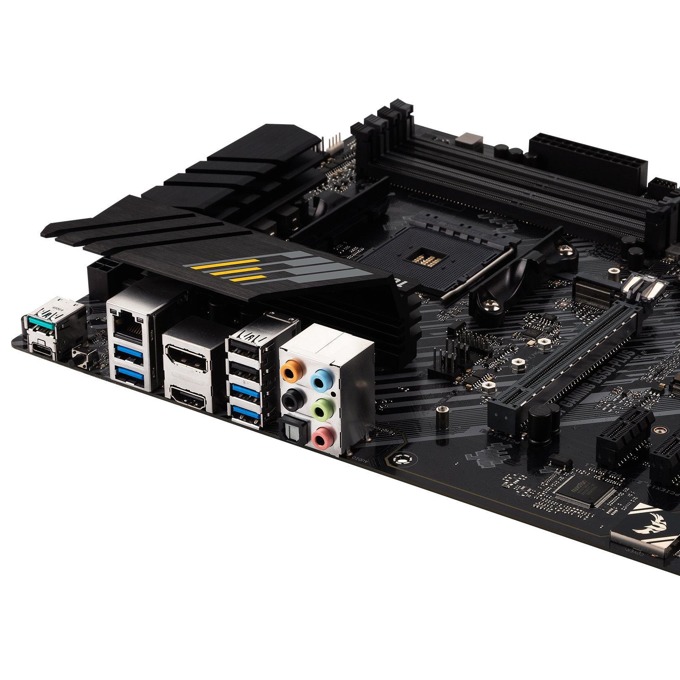

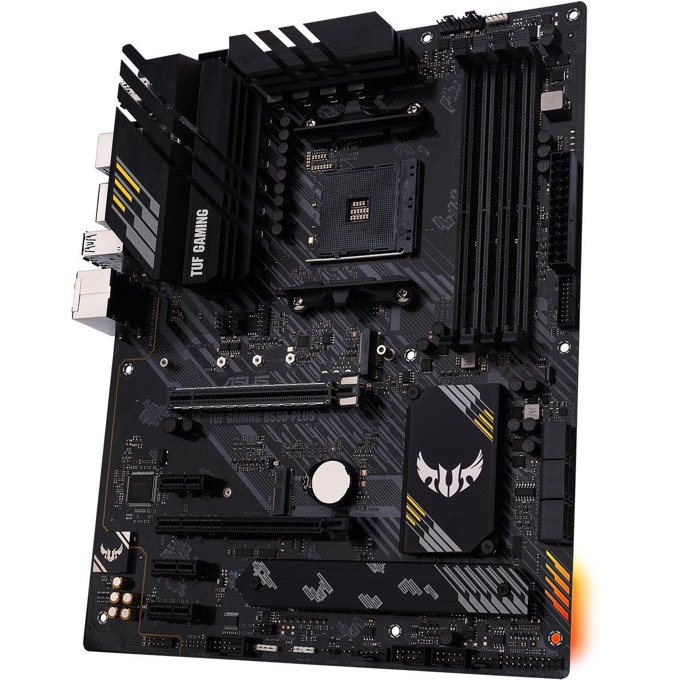

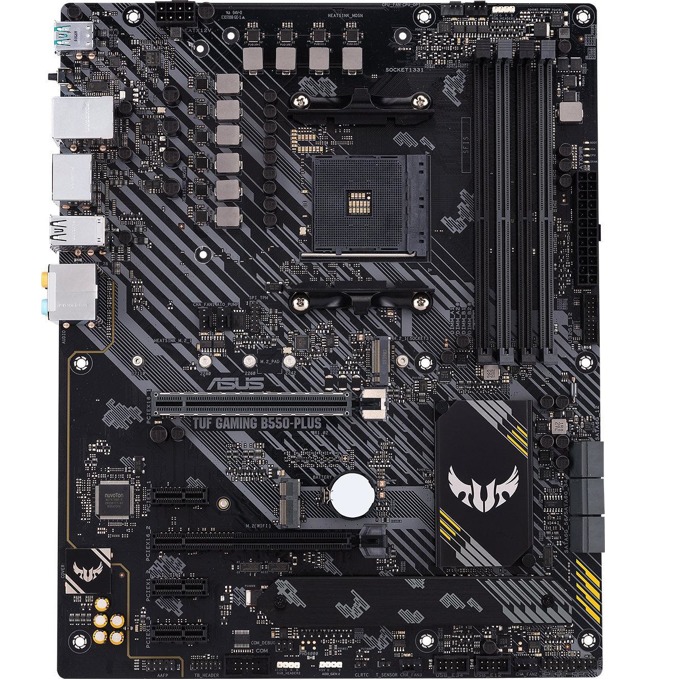

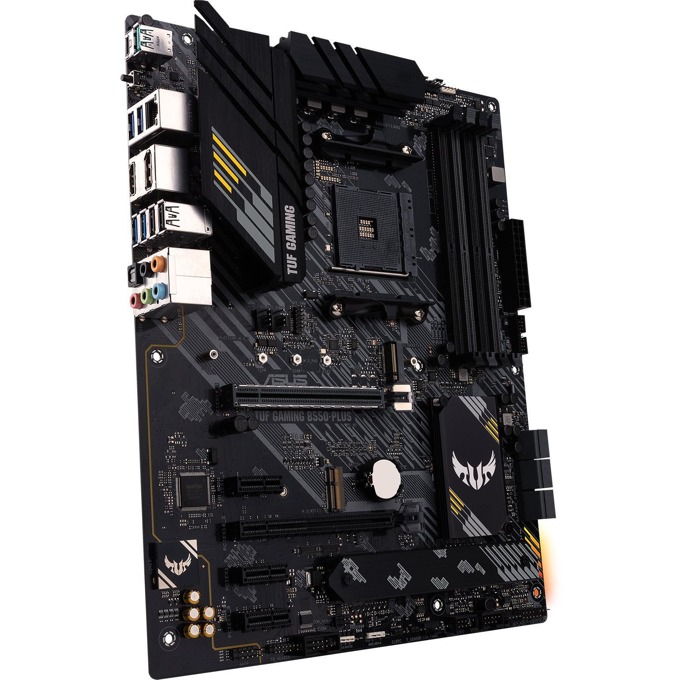

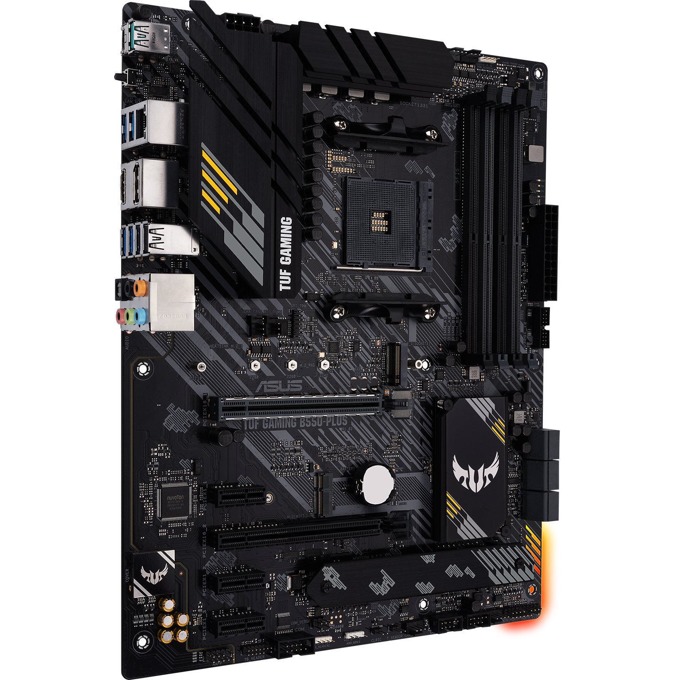

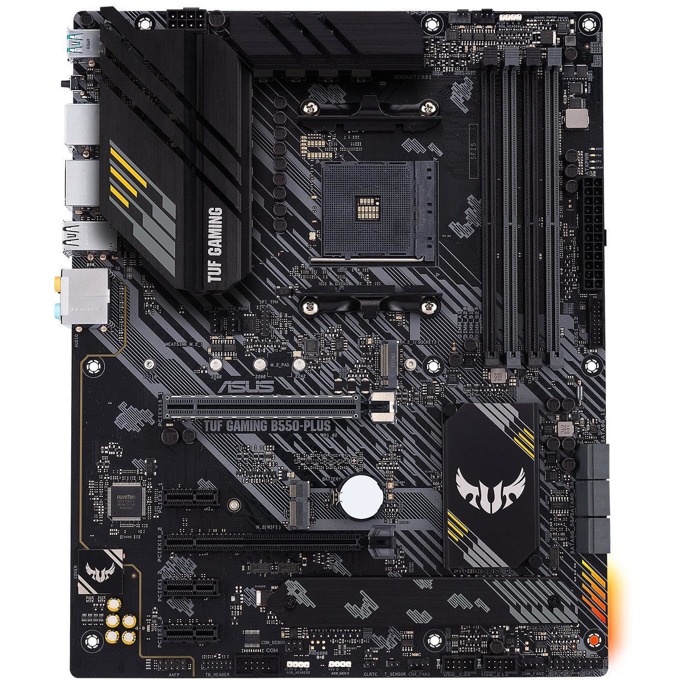

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors

Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability

Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support

Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology

Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

AI noise-canceling microphone: provides crystal-clear in-game voice communication

DURABLE. STABLE. RELIABLE.

TUF Gaming B550-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Chipset

AMD B550

Memory

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Graphic

1 x DisplayPort 1.4

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1 *1

* Support PCIe bifurcation for RAID on CPU function.

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

6 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

Wireless Data Network

M.2 slot only (Key E) (Support PCIe interface)*

*Wi-Fi module is sold separately.

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

- Unique de-pop circuit

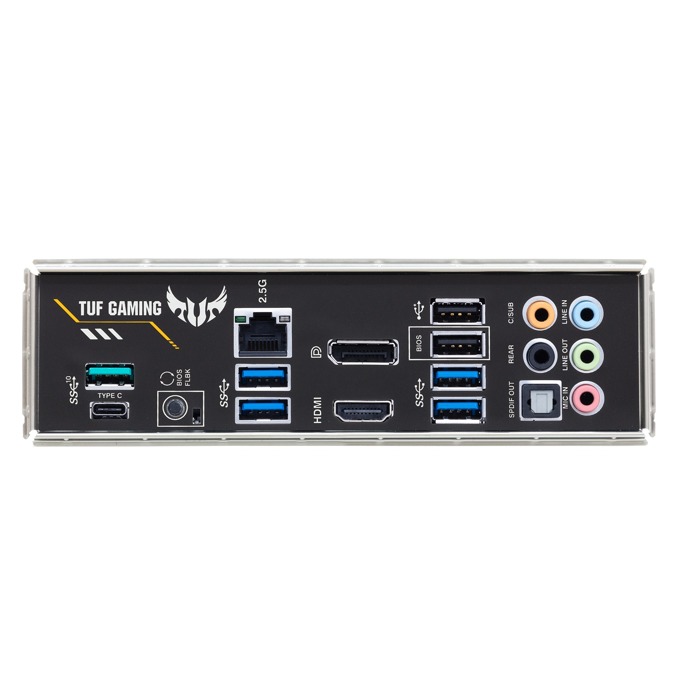

USB Ports

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)( x Type-A)

2 x USB 2.0 port(s)( x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot
