Asus
Дънна платка Asus TUF GAMING B450-PLUS II
Артикул №: 1000017248
Категория:
Дънни платки за AMD процесори
94,99 €
✓ Налично във външен склад
AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
.png)
CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors* Refer to for CPU support list
Chipset
AMD B450Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors1 x DisplayPort 1.2
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Multi-GPU Support
Supports AMD CrossFireX™ TechnologyExpansion Slots
3rd/2nd/1st Gen AMD Ryzen™ ProcessorsGraphic
| X DisplayPort 1.2 | 1 |
| X HDMI 2.0b | 1 |
Слотове за разширение
| 1 x PCIe 3.0/2.0 | x16 (x16 mode) |
| 1 x PCIe 3.0/2.0 | x16 (x8 mode) |
| 1 x PCIe 3.0/2.0 | x16 (x4 mode) |
| 1 x PCIe 2.0 | x16 (max at x4 mode) *1 |
| 3 x PCIe 2.0 | x1 |
Капацитет за съхранение
| AMD Athlon™ with Radeon™ Vega Graphics Processors | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 |
| AMD B450 chipset | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
Аудио
| Realtek® ALC S1200A | 8-Channel High Definition Audio CODEC *4 |
| Audio Feature | - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
USB Ports
| Rear USB Port ( Total | 8 ) |
| X USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) | 2 |
| X USB 3.2 Gen 1 port(s)(4 x Type-A) | 4 |
| X USB 2.0 port(s)(2 x Type-A) | 2 |
| Front USB Port ( Total | 6 ) |
| X USB 3.2 Gen 1 port(s) | 2 |
| X USB 2.0 port(s) | 4 |
Special Features
| ASUS SafeSlot | Protect your graphics card Investment |
| ASUS Overvoltage Protection | World-class circuit-protecting power design |
| ASUS Stainless-Steel Back I/O | 3X corrosion-resistance for greater durability! |
| ASUS DIGI+ VRM | Precision control for stable power |
| ASUS LANGuard | Protects against LAN surges, lightning strikes and static-electricity discharges! |
| AURA | - Aura Lighting Control - Aura RGB Strip Headers |
| ASUS Exclusive Features | - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - Armoury Crate - BIOS FlashBack™ Button |
| ASUS Quiet Thermal Solution | - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core |
| ASUS EZ DIY | - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode |
| ASUS Q-Design | - ASUS Q-Slot - ASUS Q-DIMM Armoury Crate |
Software Features
| AI Suite | 3 |
| Fan Xpert | 4 core |
| Norton Anti-virus software (Free Trial for | 60 days) |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | 3 |

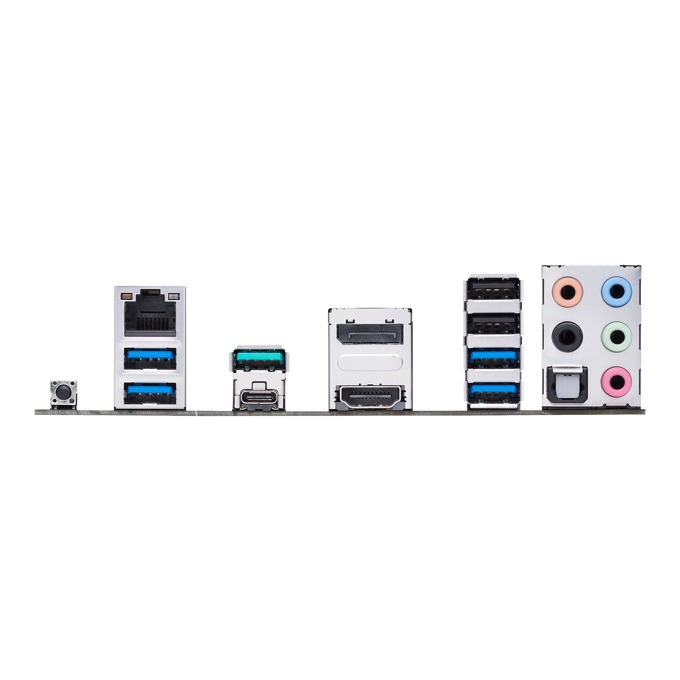

Back I/O Ports
| X DisplayPort | 1 |
| X HDMI | 1 |
| X LAN (RJ45) port(s) | 1 |
| X USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) | 2 |
| X USB 3.2 Gen 1 Type-A | 4 |
| X USB 2.0 | 2 |
| X Audio jack(s) | 5 |
| X BIOS FlashBack™ Button(s) | 1 |
Internal I/O Ports
| 1 x CPU Fan connector(s) (1 | x 4 -pin) |
| 3 x Chassis Fan connector(s) (3 | x 4 -pin) |
| 1 x AIO_PUMP connector (1 | x 4 -pin) |
| X Aura RGB Strip Header | 2 |
| X SPI TPM header | 1 |
| X SATA 6Gb/s connector(s) | 6 |
| X 24-pin EATX Power connector(s) | 1 |
| X 8-pin ATX 12V Power connector(s) | 1 |
| X Front panel audio connector(s) (AAFP) | 1 |
| X System panel(s) | 1 |
| X Clear CMOS jumper(s) | 1 |
| X COM port header | 1 |
Accessories
| X SATA 6Gb/s cable(s) | 2 |
| X M.2 Screw Package | 1 |
| X Supporting DVD | 1 |
| X TUF GAMING Sticker | 1 |
| X TUF Certification card(s) | 1 |
BIOS
| Mb Flash ROM, UEFI AMI BIOS | 256 |
Операционна система
| Windows® | 10 64-bit |
| Windows® | 7 64-bit *5 |
Form Factor
| Inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | 12.0 |
