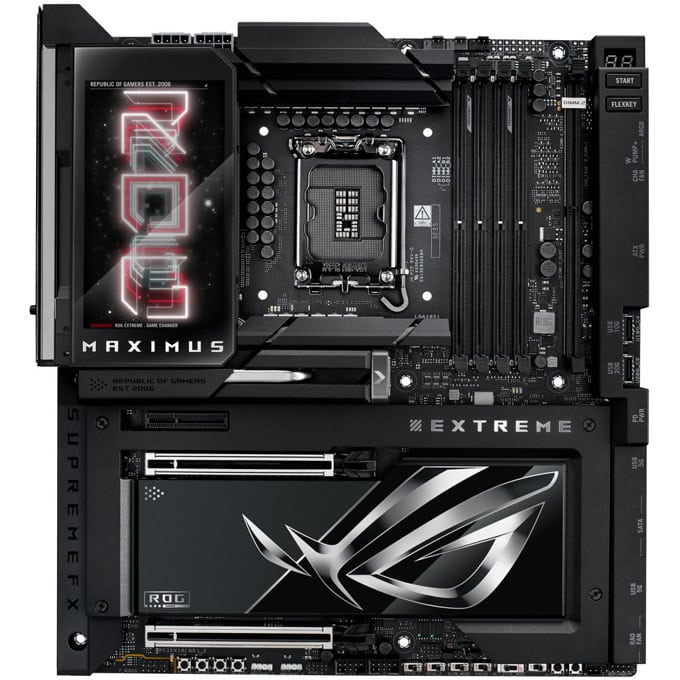

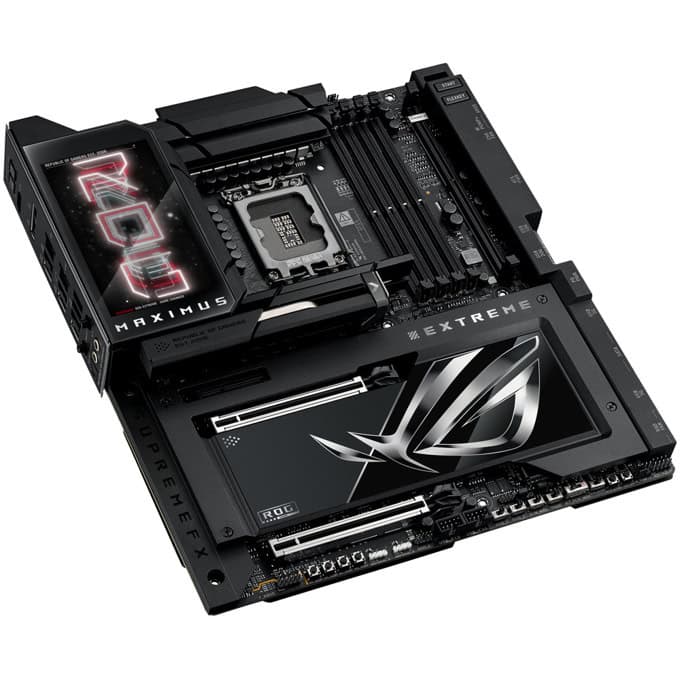

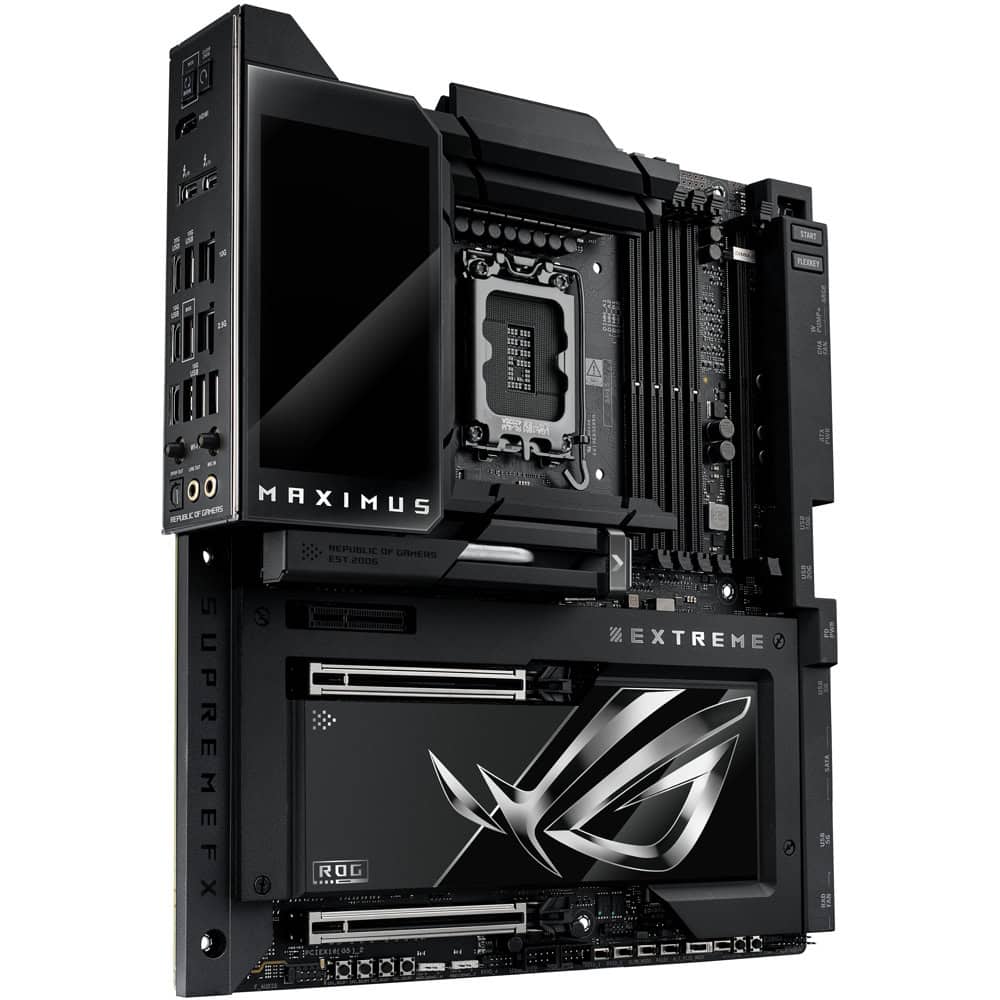

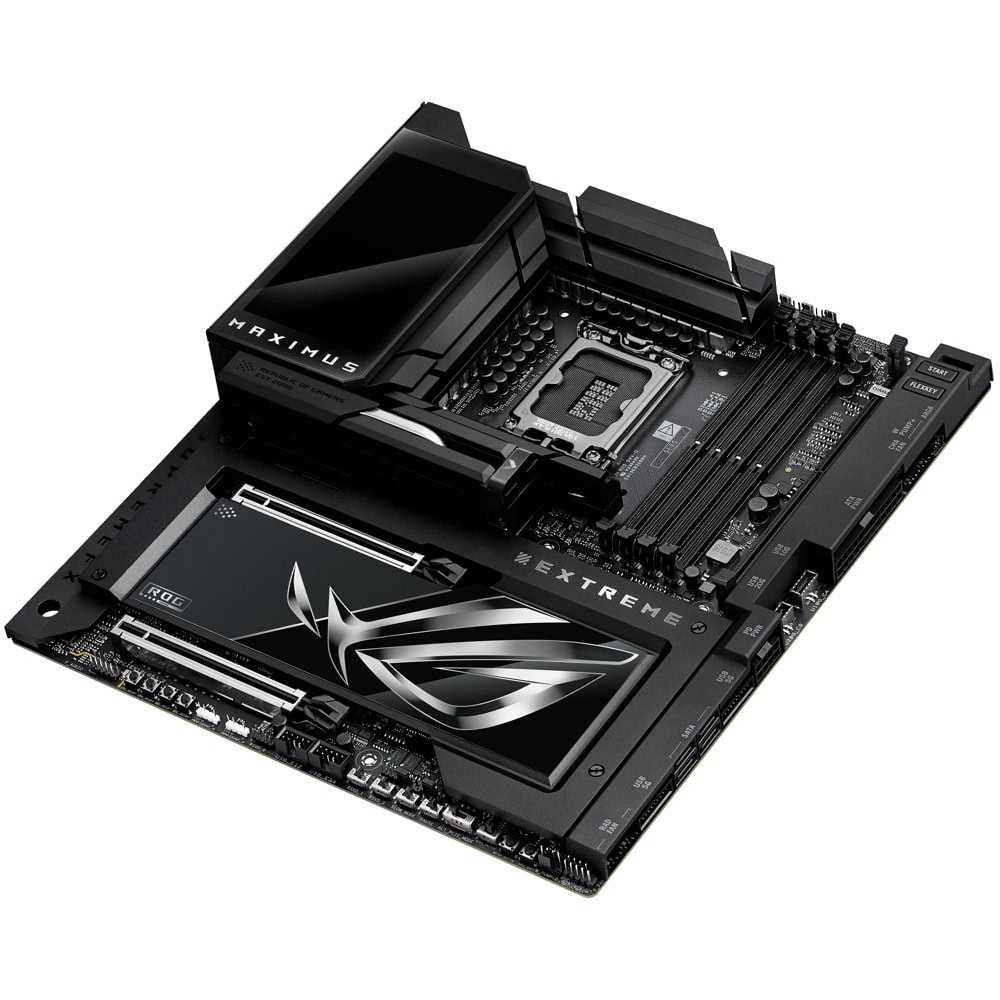

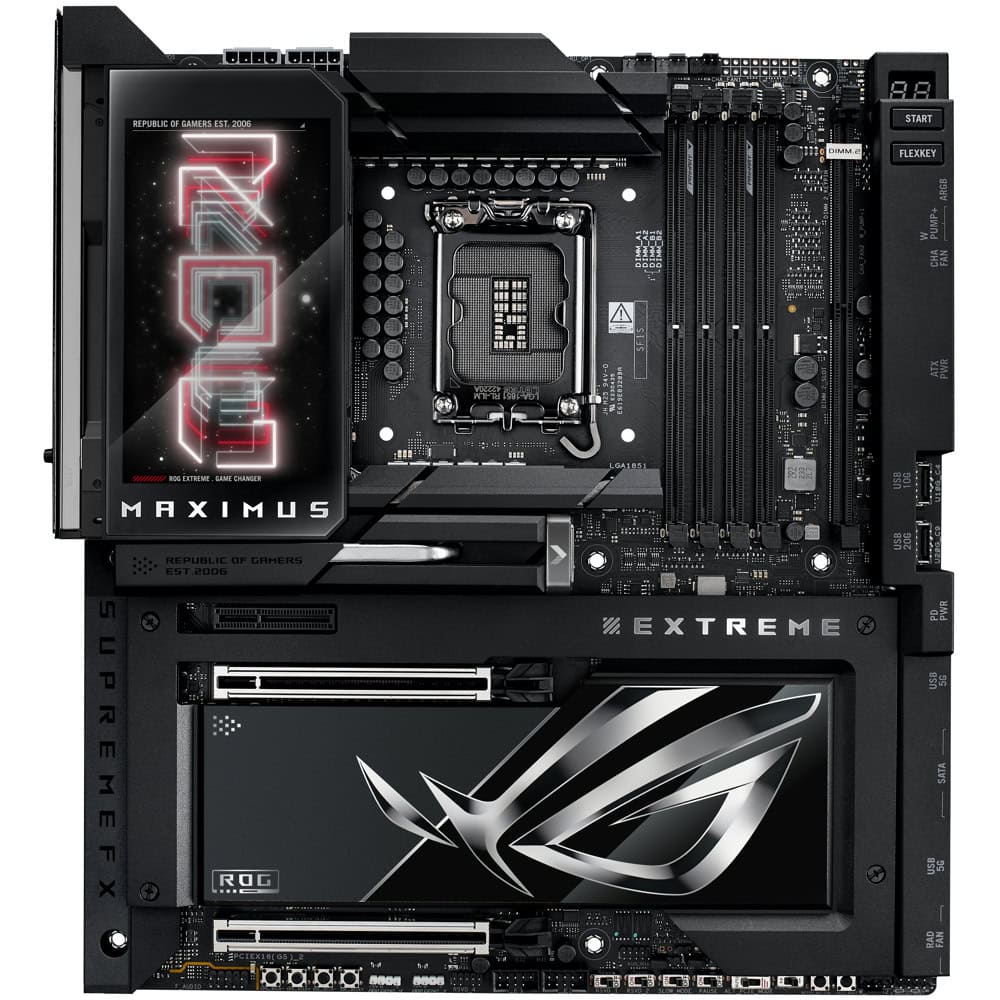

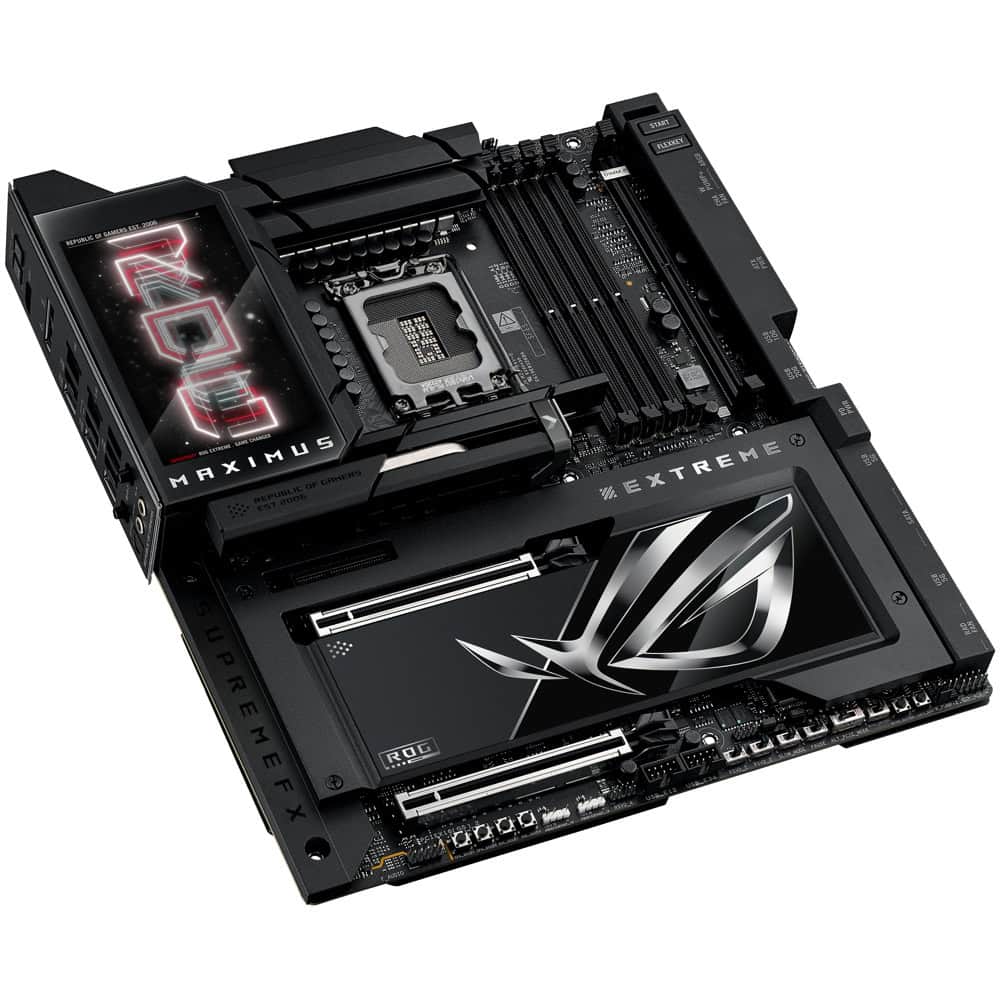

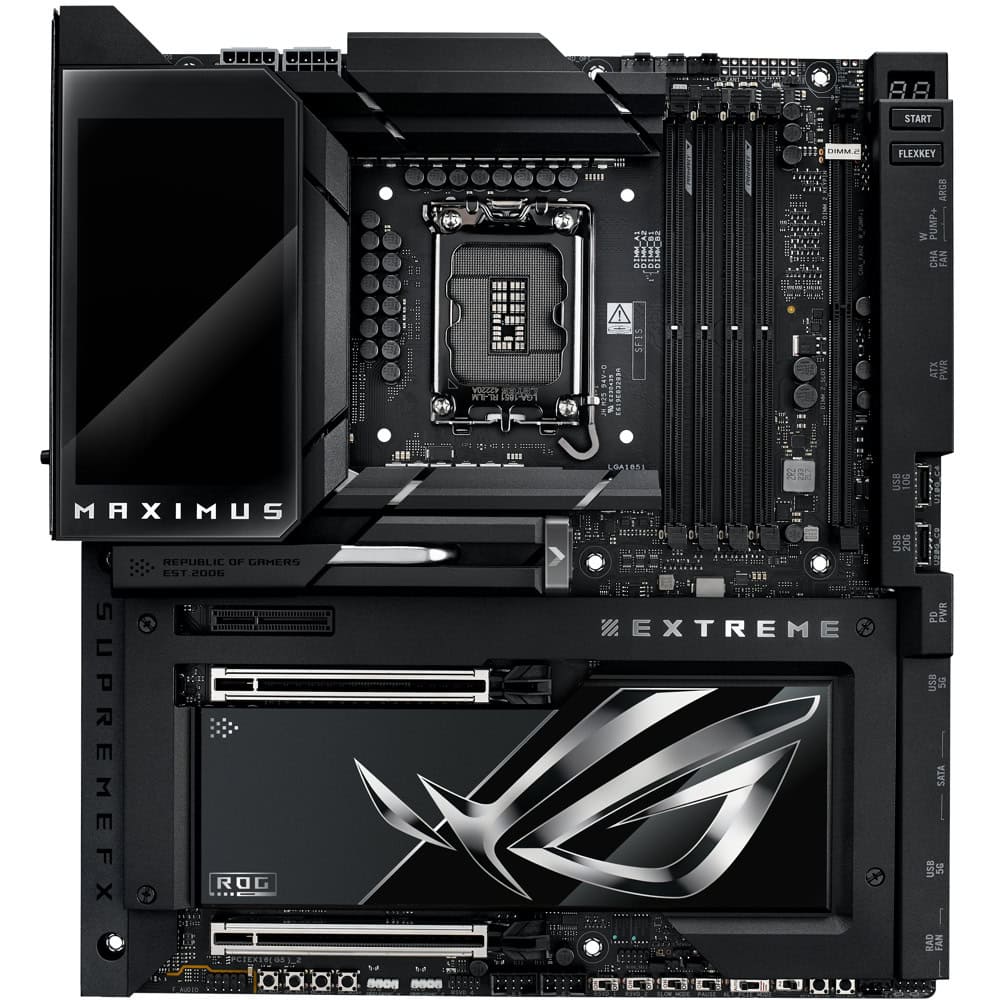

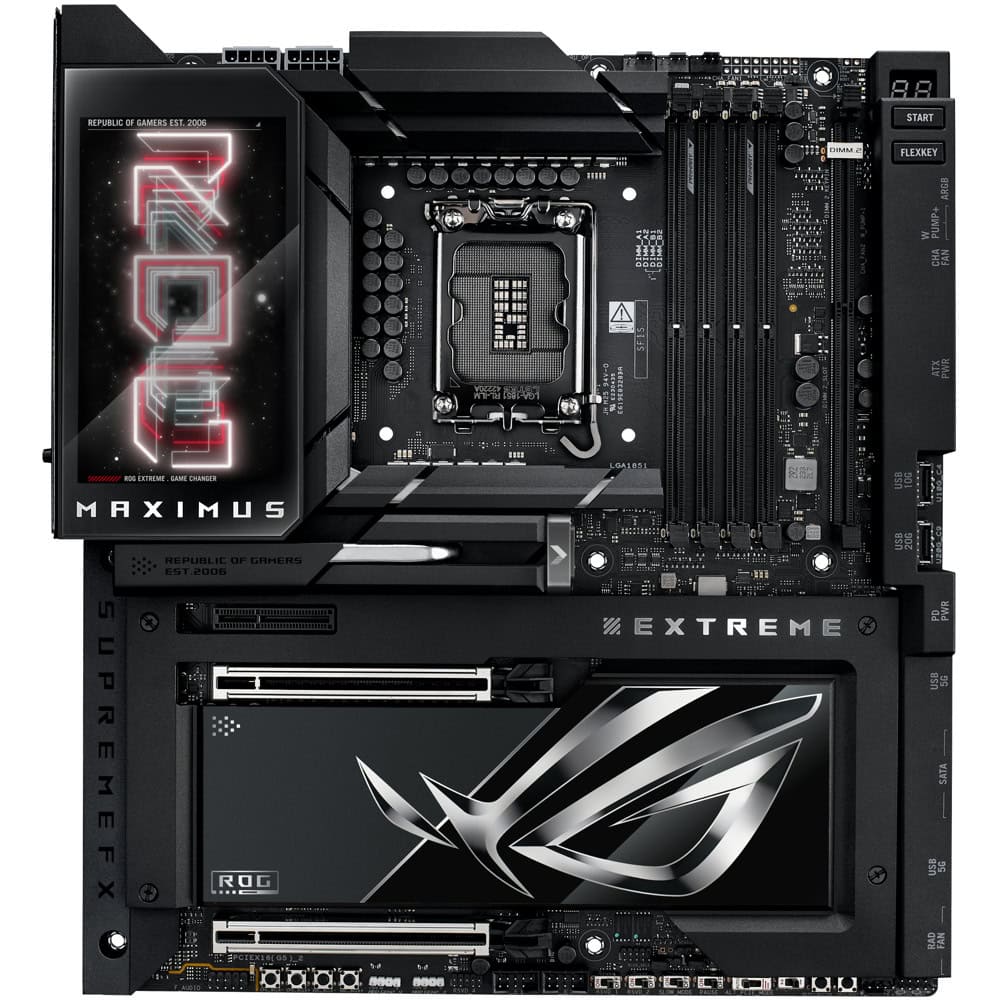

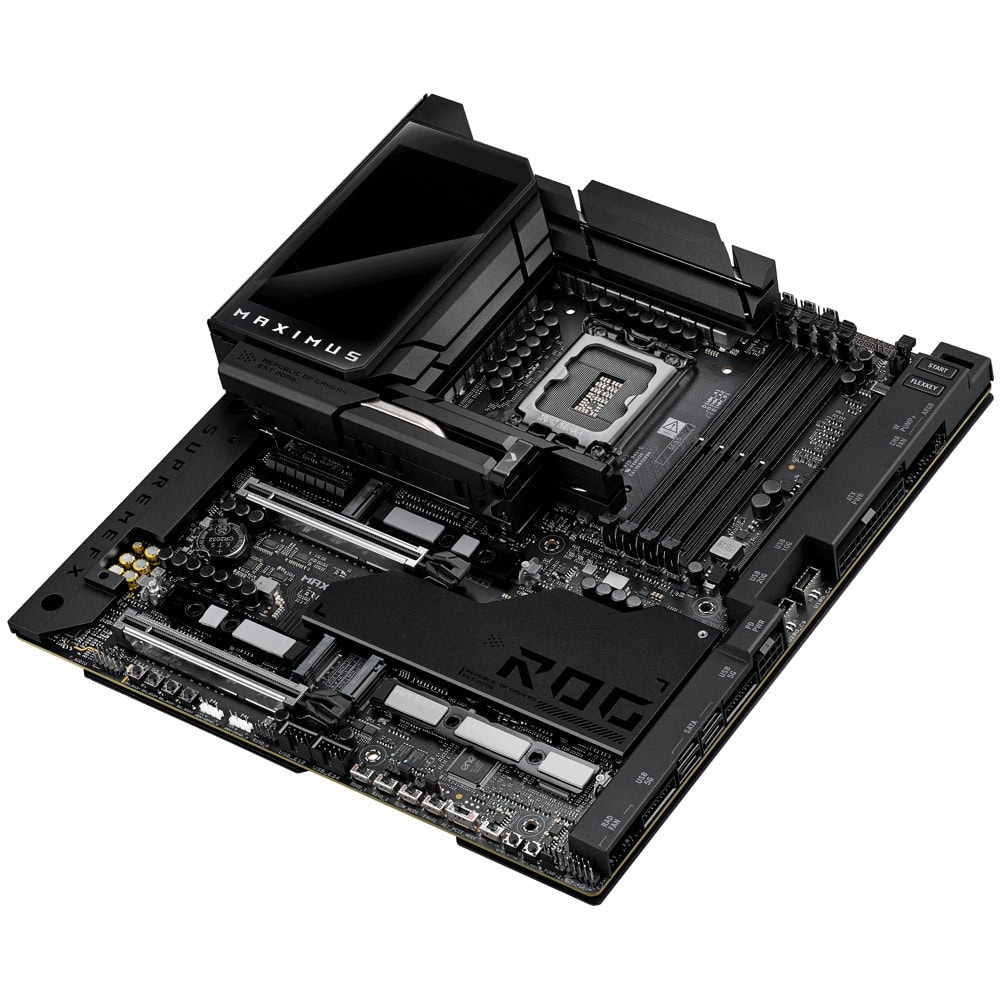

Дънна платка Asus ROG MAXIMUS Z890 EXTREME

Asus ROG MAXIMUS Z890 EXTREME

90MB1IA0-M0EAY0

CPU

Support Intel Core Ultra Processors (Series 2), LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z890 Chipset

Memory

4x DIMM slots, max. 256GB, DDR5

Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III (AEMP III)

Supports DIMM Flex

DIMM Fit

NitroPath DRAM Technology

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x HDMI port**

2x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***

* Graphics specifications may vary between CPU types.

**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.

***Supports up to 1x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt cable.

****For resolution support please check DisplayPort 2.1 specs, bandwidth limited by DisplayPort 2.1 with up to 77.4 Gbit/s.

*****In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.

******VGA resolution support depends on processors' or graphic cards' resolution.

*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel Core Ultra Processors(Series 2)*

2x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**

Intel Z890 Chipset**

1x PCIe 4.0x4 slot

**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Storage

Total supports up to 6x M.2 slots and 4x SATA 6Gb/s ports*

Support Intel Core Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**

Intel Z890 Chipset

DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

*Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Ethernet

1x Intel 2.5Gb Ethernet

1x Marvell AQtion 10Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Intel Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)

2x Thunderbolt 5 ports (2 xUSB Type-C)

1x USB 20Gbps port (1x USB Type-C)

7x USB 10Gbps ports (5x Type-A + 2 xUSB Type-C)

Front USB (Total 10 ports)

1x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*

1x USB 10Gbps connector (supports USB Type-C)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- ESS ES9219 QUAD DAC

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

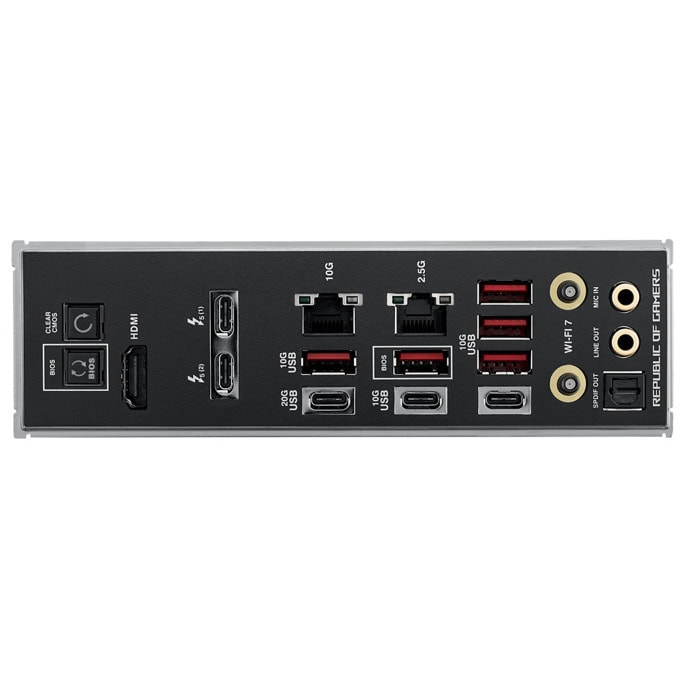

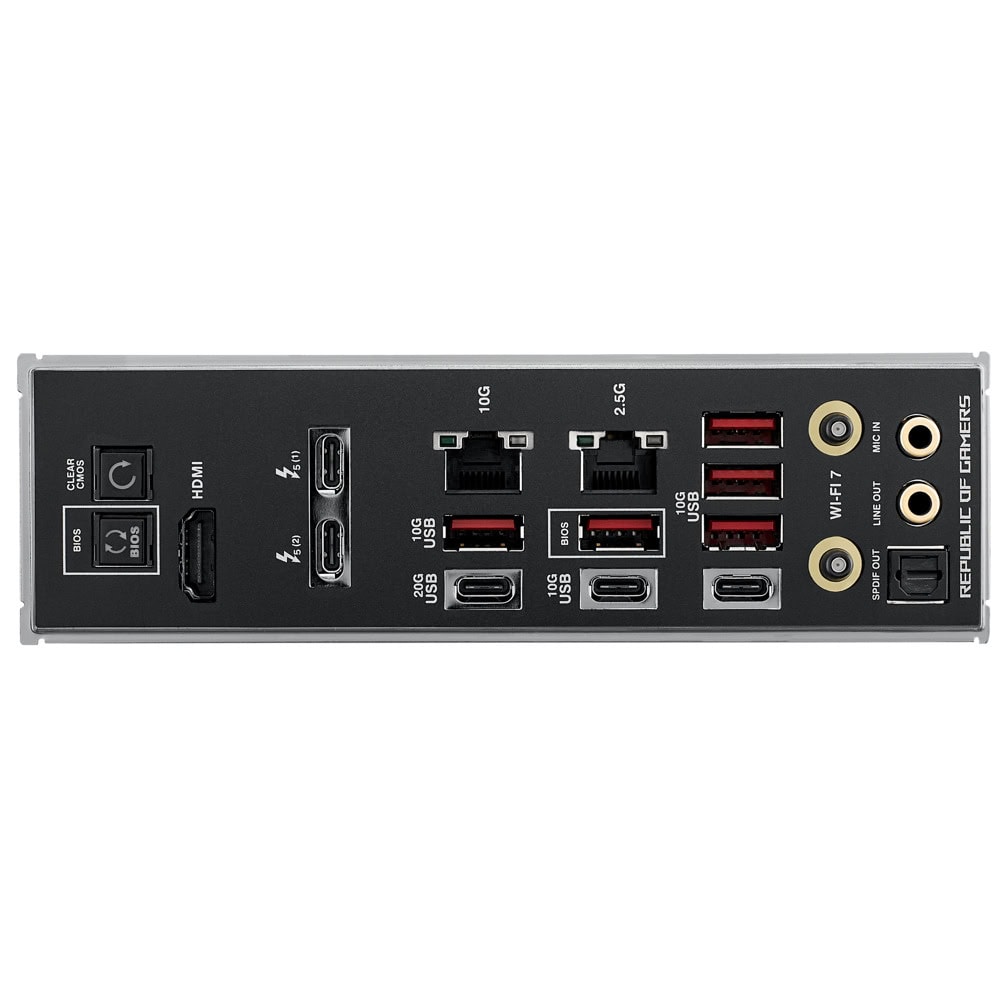

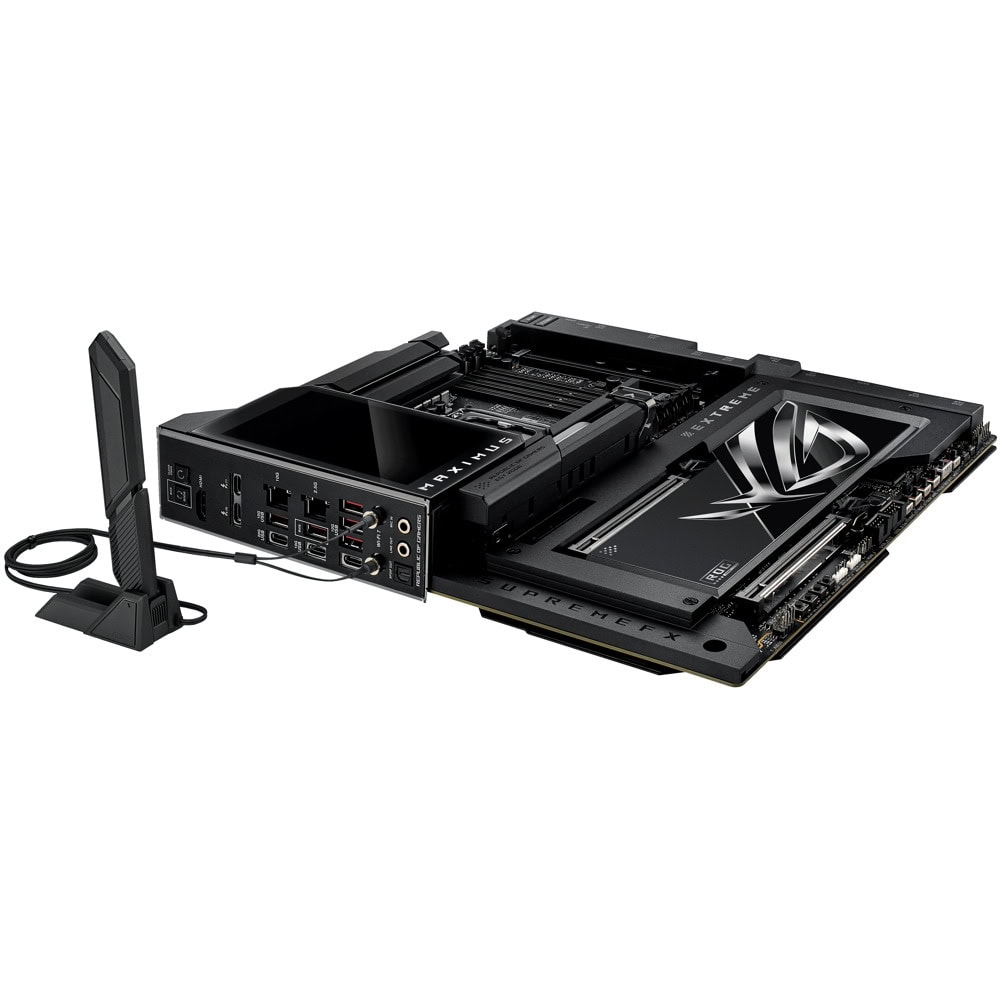

Back Panel I/O Ports

2x Thunderbolt 5 USB Type-C

1x USB 3.2 Gen 2x2 Type-C 20Gbps

7x USB 3.2 Gen 2 10Gbps (5x Type-A + 2x USB Type-C)

1x HDMI port

1x Wi-Fi Module

1x Intel 2.5Gb Ethernet port

1x Marvell AQtion 10Gb Ethernet port

2x LED-illuminated audio jacks

1x Optical S/PDIF out port

1x BIOS FlashBack button

1x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

2x 4-pin Chassis Fan headers

2x 4-pin Radiator Fan headers

2x W_PUMP+ headers

1x WB_SENSOR header

Power related

1x 24-pin Main Power connector

2x 8-pin +12V CPU Power connector

1x 8-pin PCIe Power connector

Storage related

4x M.2 slots (Key M)

1x DIMM.2 slot supports 2x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 20Gbps connector (supports USB Type-C)

1x USB 10Gbps connector (supports USB Type-C)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports
