Asus
Дънна платка Asus ROG CrossHair X870E Hero BTF
Артикул №: 1000113483
Категория:
Компютърни компоненти
875,99 €
✓ Ограничена наличност
Asus ROG CrossHair X870E Hero BTF
AI OVERCLOCKINGTuning is now faster and smarter than ever before.
AI COOLING IIBalance the thermals and acoustics of any build with a single click.
Характеристики
| Чипсет | Да |
| AMD X870E | Да |
| Памет | Да |
| X DIMM slots, max.256GB, DDR5 | 4 |
| Supports up to | Да |
| 8200+MT/s(OC) with Ryzen 9000 Series Processors | Да |
| 8600+MT/s(OC) with Ryzen 8000 Series Processors | Да |
| 8000+MT/s(OC) with Ryzen 7000 Series Processors | Да |
| ECC and Non-ECC, Un-buffered Memory* | Да |
| Dual channel memory architecture | Да |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | Да |
| Supports DIMM Fit and DIMM Fit Pro | Да |
| NitroPath DRAM Technology | Да |
| ASUS Enhanced Memory Profile (AEMP) | Да |
| Графика | Да |
| X HDMI port* | 1 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4a |
| Слотове за разширение | Да |
| AMD Ryzen | 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 | x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**) |
| When M.2_2 is enabled, PCIEX16_1 will run | x8 mode, and M.2_3 will run x4. |
| AMD Ryzen | 8700 & 8600 & 8400 Series Desktop Processors* |
| 1 x PCIe 4.0 | x16 slots with Q-Release Slim (Total bandwidth for x8) |
| AMD Ryzen | 8500 & 8300 Series Desktop Processors* |
| 1 x PCIe 4.0 | x16 slot with Q-Release Slim (Total bandwidth for x4) |
| AMD X870E Chipset | Да |
| 1 x PCIe 4.0 | x4 slot |
| Капацитет за съхранение | Да |
| Supports | 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| AMD Ryzen™ | 8000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_2 slot (Key M), type | 2242/2260/2280 (Not supports) |
| M.2_3 slot (Key M), type | 2242/2260/2280 (Not supports) |
| AMD X870E Chipset | Да |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| When M.2_2 is enabled, PCIEX16_1 will run | x8 mode, and M.2_3 will run x4. |
| RAID Support | Да |
| AMD RAIDXpert2 Technology* | Да |
| Ryzen™ 9000 Series Processors | RAID 0/1/5/10 |
| Ryzen™ 8000 Series Processors | RAID 0/1 |
| Ryzen™ 7000 Series Processors | RAID 0/1/10 |
| Specifications vary by CPU types | Да |
| Ethernet | Да |
| X Intel® 2.5Gb Ethernet | 1 |
| X Realtek 5Gb Ethernet | 1 |
| ASUS LANGuard | Да |
| Wireless & Bluetooth | Да |
| Wi-Fi | 7 (MediaTek MT7927) |
| 2x2 Wi-Fi 7* (802.11be) | Да |
| Supports | 2.4/5/6GHz frequency band** |
| Supports Wi-Fi | 7 320MHz bandwidth |
| Bluetooth® v5.4*** | Да |
| Wi-Fi features may vary depending on the operating system | Да |
| USB | Да |
| Rear USB (Total | 10 ports) |
| X USB4® (40Gbps) ports (2 x USB Type-C®) | 2 |
| X USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) | 8 |
| Front USB (Total | 10 ports) |
| X USB 20Gbps connector (supports USB Type-C®) | 2 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| USB Type-C® power delivery output | max. 5V/3A |
| Аудио | Да |
| Impedance sense for front and rear headphone outputs | Да |
| Supports | Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
| Supports up to | 32-Bit/384 kHz playback on front panel |
| Audio Features | Да |
| SupremeFX Shielding Technology | Да |
| ESS® ES9219 QUAD DAC | Да |
| Gold-plated audio jacks | Да |
| Rear optical S/PDIF out port | Да |
| Premium audio capacitors | Да |

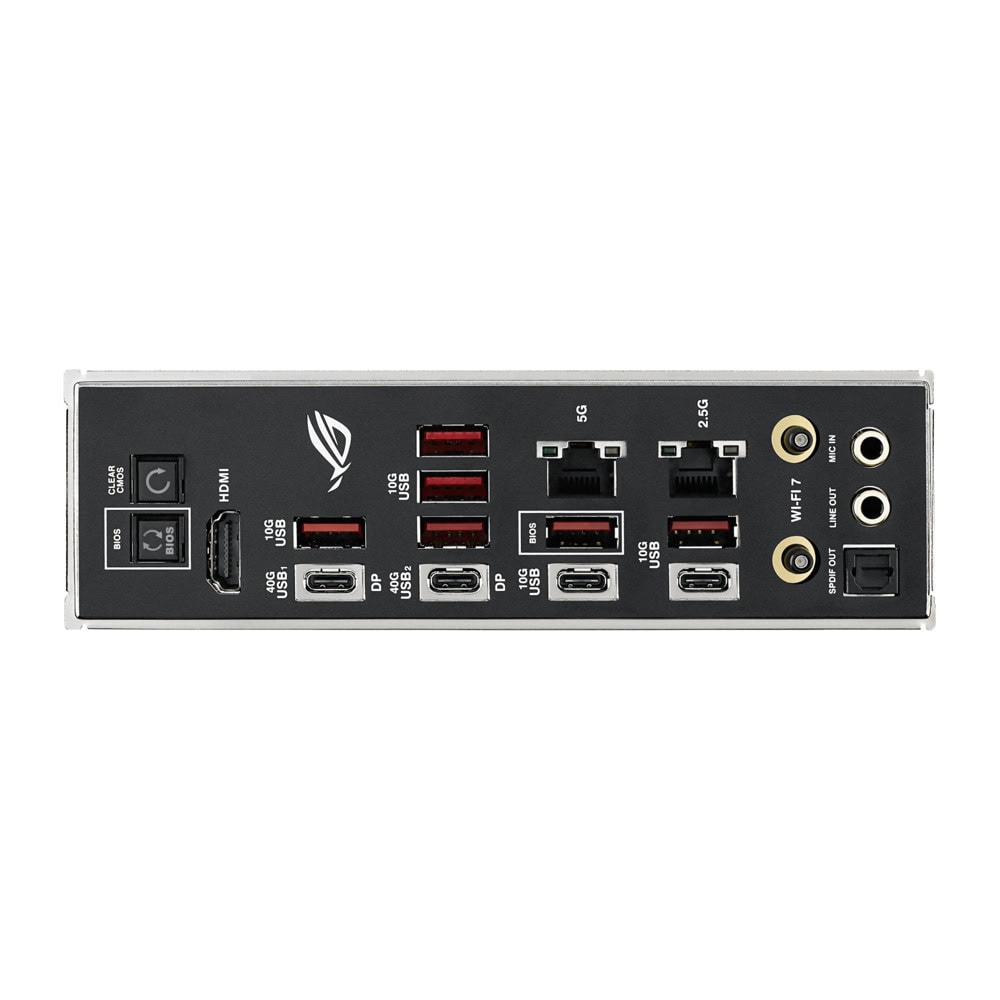

| Back Panel I/O Ports | Да |
| X USB4 (40Gbps) ports (2 x USB Type-C) | 2 |
| X USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) | 8 |
| X HDMI port | 1 |
| X Wi-Fi module | 1 |
| X Intel 2.5Gb Ethernet port | 1 |
| X Realtek 5Gb Ethernet port | 1 |
| X Gold-plated audio jacks | 2 |
| X Optical S/PDIF out port | 1 |
| X BIOS FlashBack button | 1 |
| X Clear CMOS button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling Related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 4 |
| X W_PUMP+ header | 1 |
| Power Related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connector | 2 |
| X Graphics card high power slot | 1 |
| X 12V-2X6 Auxiliary power connector | 1 |
| Storage Related | Да |
| X M.2 slots (Key M) | 5 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 20Gbps connectors (support USB Type-C ) | 2 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen2 headers | 3 |
| X Alteration PCIe mode switch | 1 |
| X FlexKey button | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X Start button | 1 |
| X 10-1 pin System Panel header | 1 |
| X Thermal Sensor header | 1 |
| Special Features | Да |
| Extreme OC Kit | Да |
| FlexKey button | Да |
| Start button | Да |
| Extreme Engine Digi+ | Да |
| 10K Black metallic capacitors | Да |
| MicroFine alloy choke | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| M.2 Q-Release | Да |
| M.2 Q-Slide | Да |
| Q-Release Slim (with PCIe SafeSlot) | Да |
| Q-Antenna | Да |
| Q-Code | Да |
| Q-Connector | Да |
| Q-Dashboard | Да |
| Q-Slot | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsink backplate | Да |
| M.2 heatsink | Да |
| VRM heatsink design | Да |

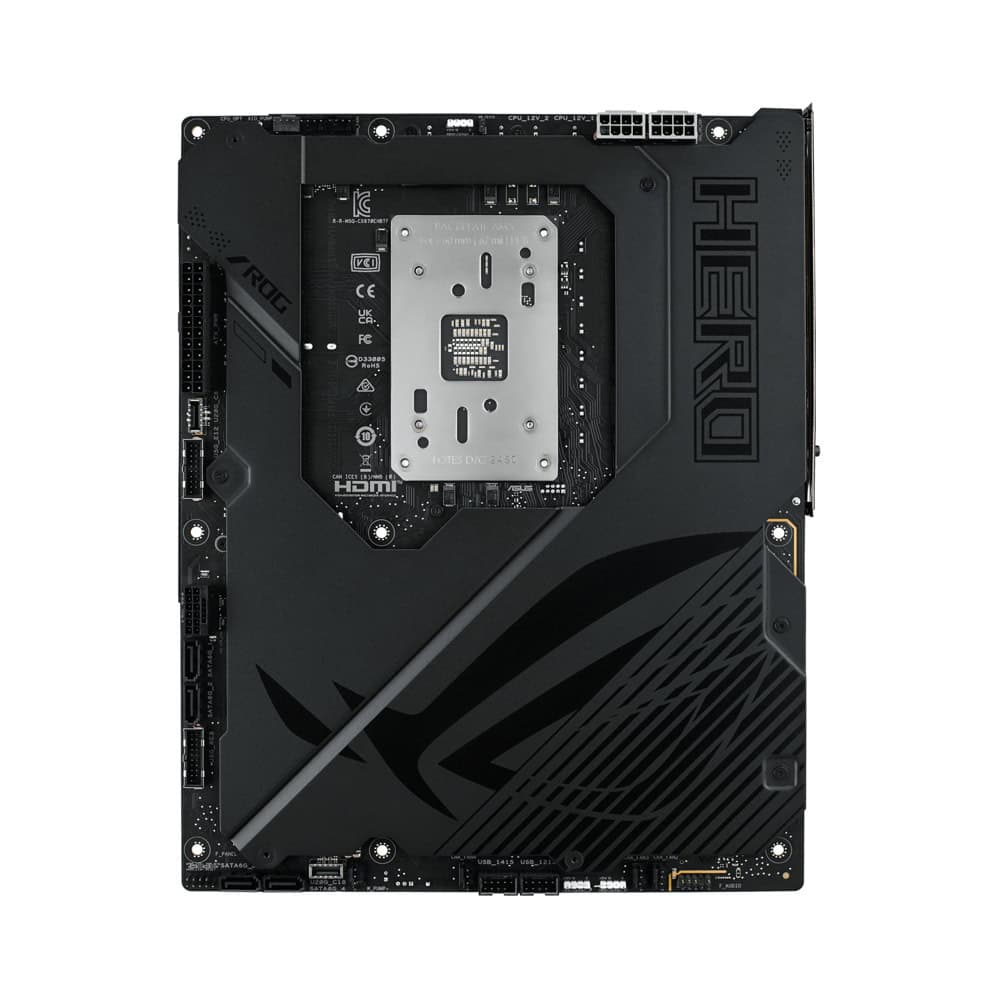

| Metal backplate | Да |
| ASUS EZ DIY | Да |
| Backplate | Да |
| BIOS FlashBack button | Да |
| Clear CMOS button | Да |
| ProCool II | Да |
| Pre-mounted I/O shield | Да |
| SafeSlot | Да |
| SafeDIMM | Да |
| Aura Sync | Да |
| Addressable Gen2 header(s) | Да |
| Software Features | Да |
| ROG Exclusive Software | Да |
| ROG CPU-Z | Да |
| Dolby Atmos | Да |
| Polymo Lighting II | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| Aura Creator | Да |
| Aura Sync | Да |
| Fan Xpert | 4 (with AI Cooling II) |
| GameFirst | Да |
| HWiNFO | Да |
| ASUS AI Advisor | Да |
| ASUS DriverHub | Да |
| ASUS GlideX | Да |
| TurboV Core | Да |
| UEFI BIOS | Да |
| AI Overclocking Guide | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | 3 |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| FlexKey | Да |
| BIOS | Да |
| 256Mb Flash ROM, UEFI AMI BIOS | Да |
| Manageability | Да |
| WOL by PME | Да |
| Операционна система | Да |
| Windows | 11 |
| Форм фактор | Да |
| ATX Form Factor | Да |
| Inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | 12 |
