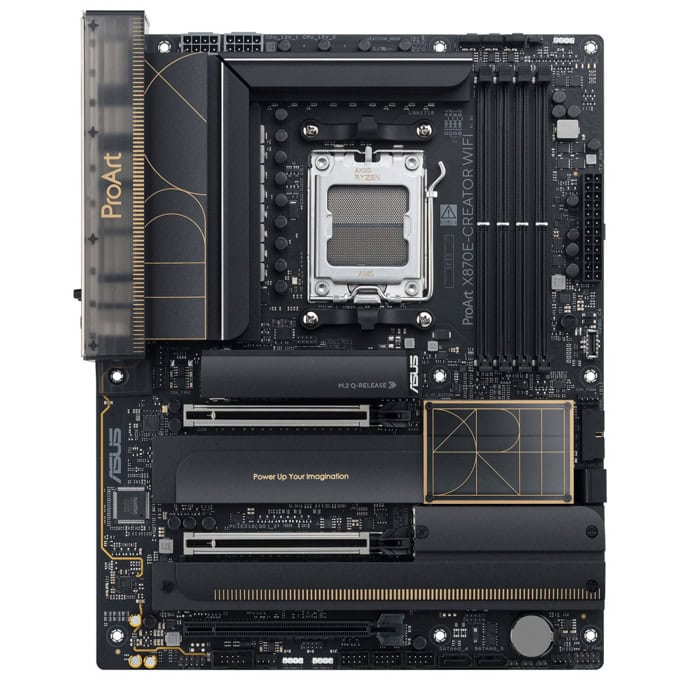

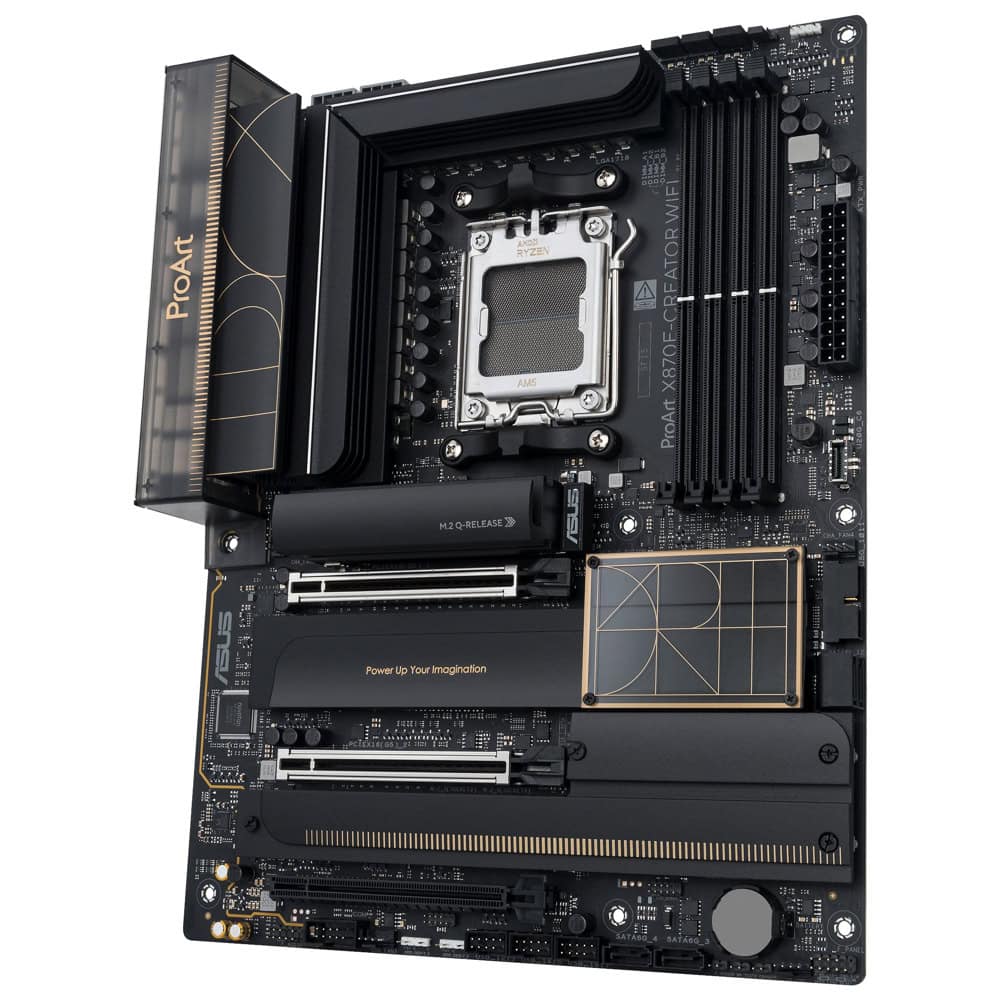

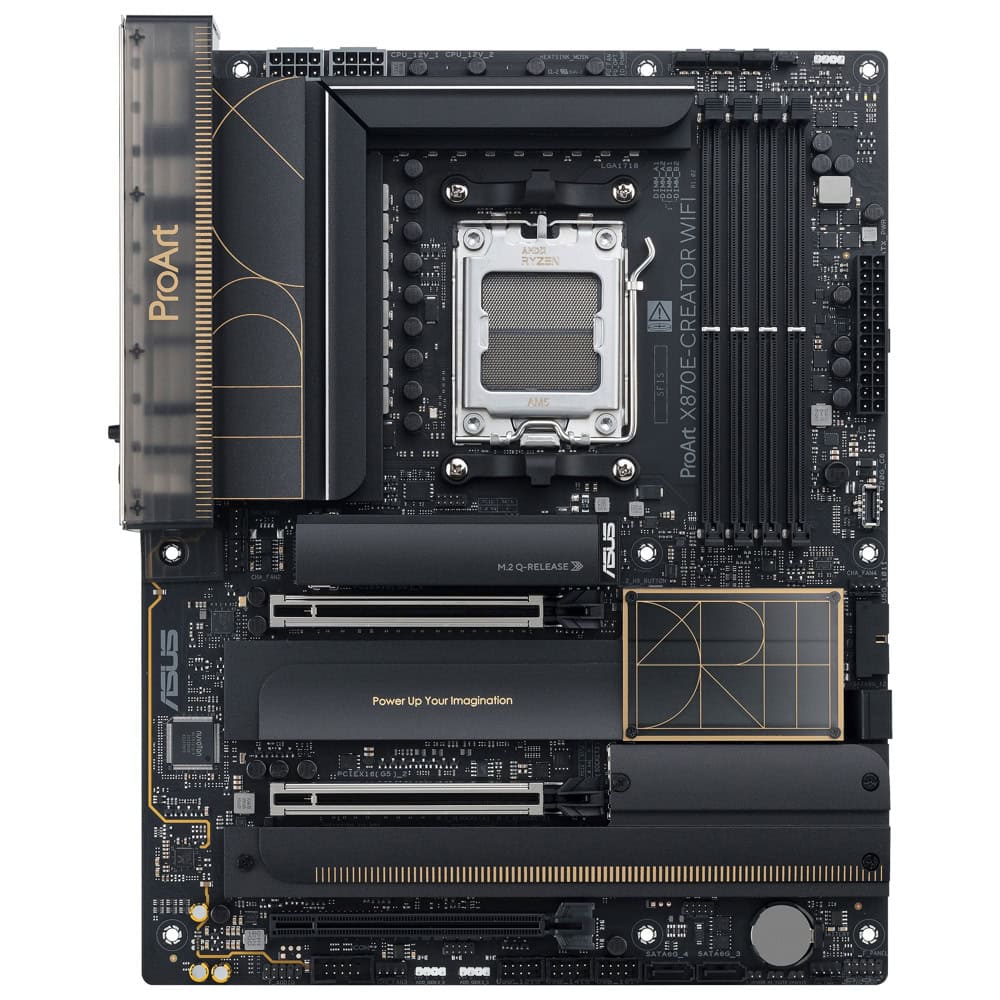

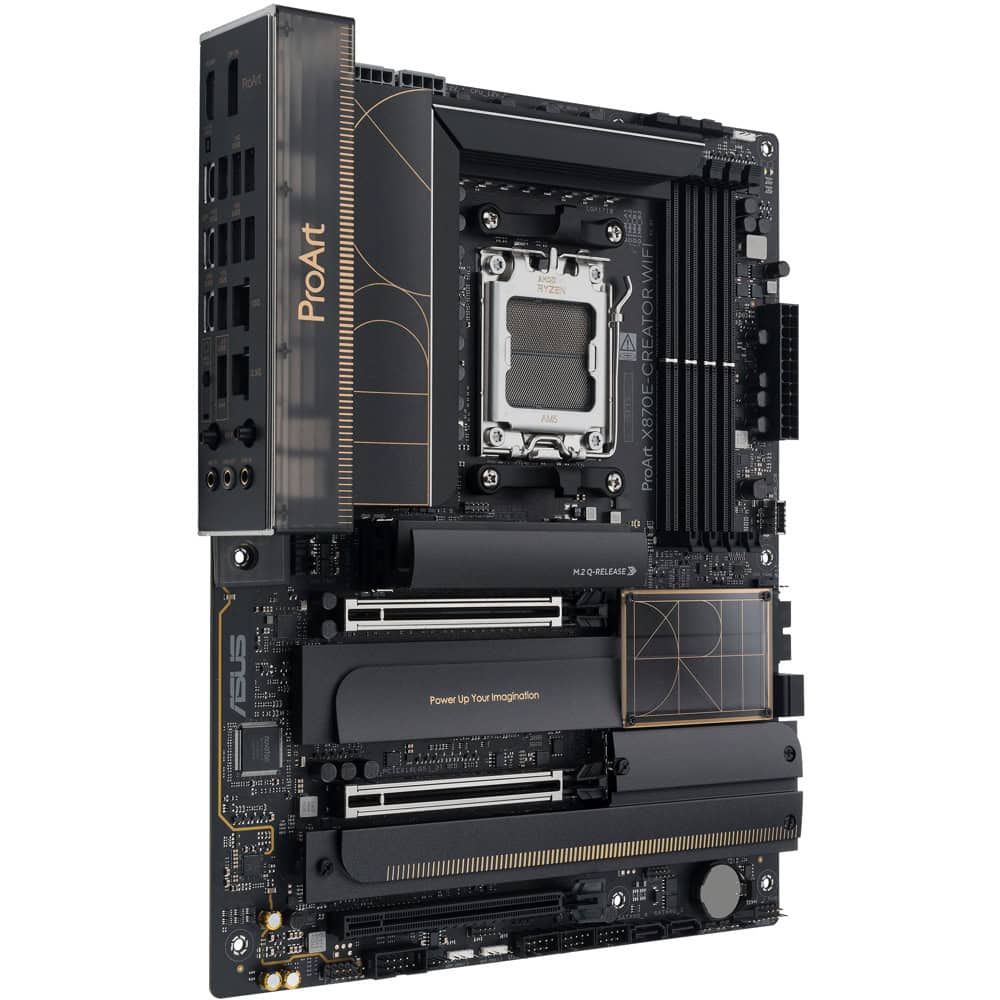

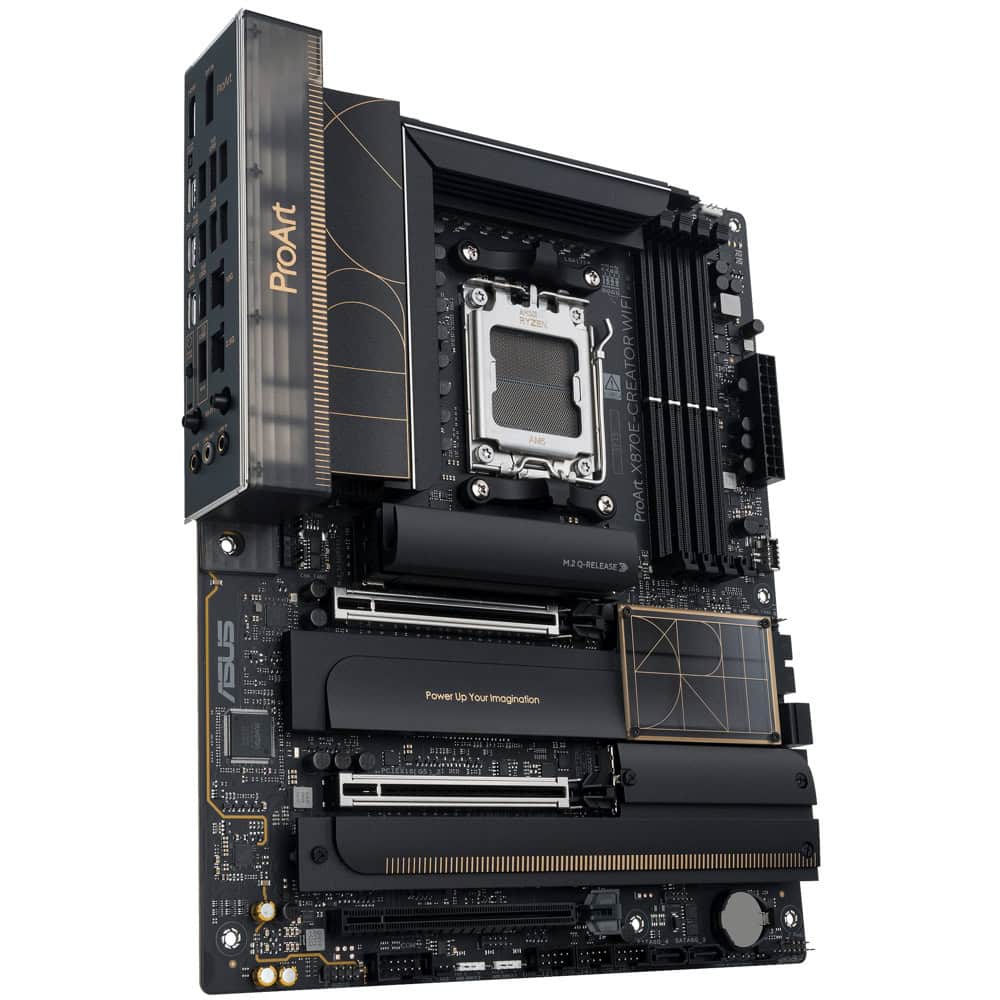

Дънна платка Asus ProArt X870E-CREATOR WIFI

Asus ProArt X870E-CREATOR WIFI

90MB1IG0-M0EAY0

Specs:

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4x DIMM slots, max. 192GB, DDR5

Support up to

8000+MT/s(OC) with Ryzen 9000 Series Processors,

8000+MT/s(OC) with Ryzen 8000 Series Processors,

8000+MT/s(OC) with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

* Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory

configuration.

*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1x HDMI port**

2x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors*

2x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8* or x8/x4/x4 modes**)

AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*

1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)

AMD Ryzen 8500 & 8300 Series Desktop Processors

1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)

AMD X870E Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

* When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.

** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.

Storage

Total supports 4 x M.2 slots and 4x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot is not supported

AMD X870E Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

Ethernet

1 x Marvell AQtion 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

Bluetooth v5.4

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

USB

Rear USB (Total 11 ports)

2x USB4 (40Gbps) port(s) (2x USB Type-C)

1x USB 20Gbps port(s) (1x USB Type-C)

7x USB 10Gbps port(s) (7x Type-A)

1x USB 2.0 port (1x Type-A)

Front USB (Total 9 ports)

1x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)**

1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3x USB 2.0 headers support 6 additional USB 2.0 ports

"* USB Type-C power delivery output: max. 5V/3.0A"

** USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

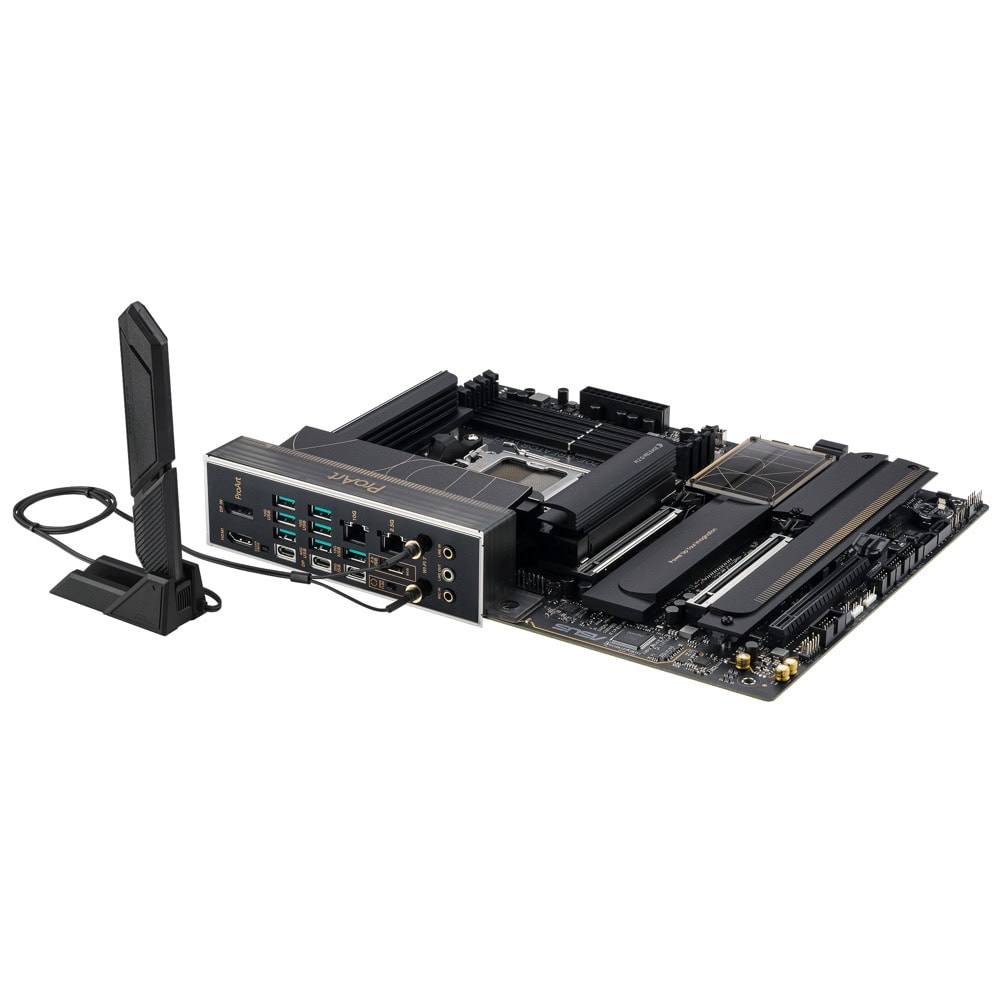

Back Panel I/O Ports

2x USB4 (40Gbps) port(s) (2x USB Type-C)

1x USB 20Gbps port (1x USB Type-C)

7x USB 10Gbps ports (7x Type-A)

1x USB 2.0 port (1x Type-A)

1x DisplayPort (Input only)

1x HDMITM port

1x Wi-Fi Module

1x Marvell AQtion 10Gb Ethernet

1x Intel 2.5Gb Ethernet

3x Audio jacks

1x BIOS FlashBack button

1x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

5x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

2x 8-pin +12V CPU Power connector

Storage related

4x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)

1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3x USB 2.0 headers support 6 additional USB 2.0 ports
