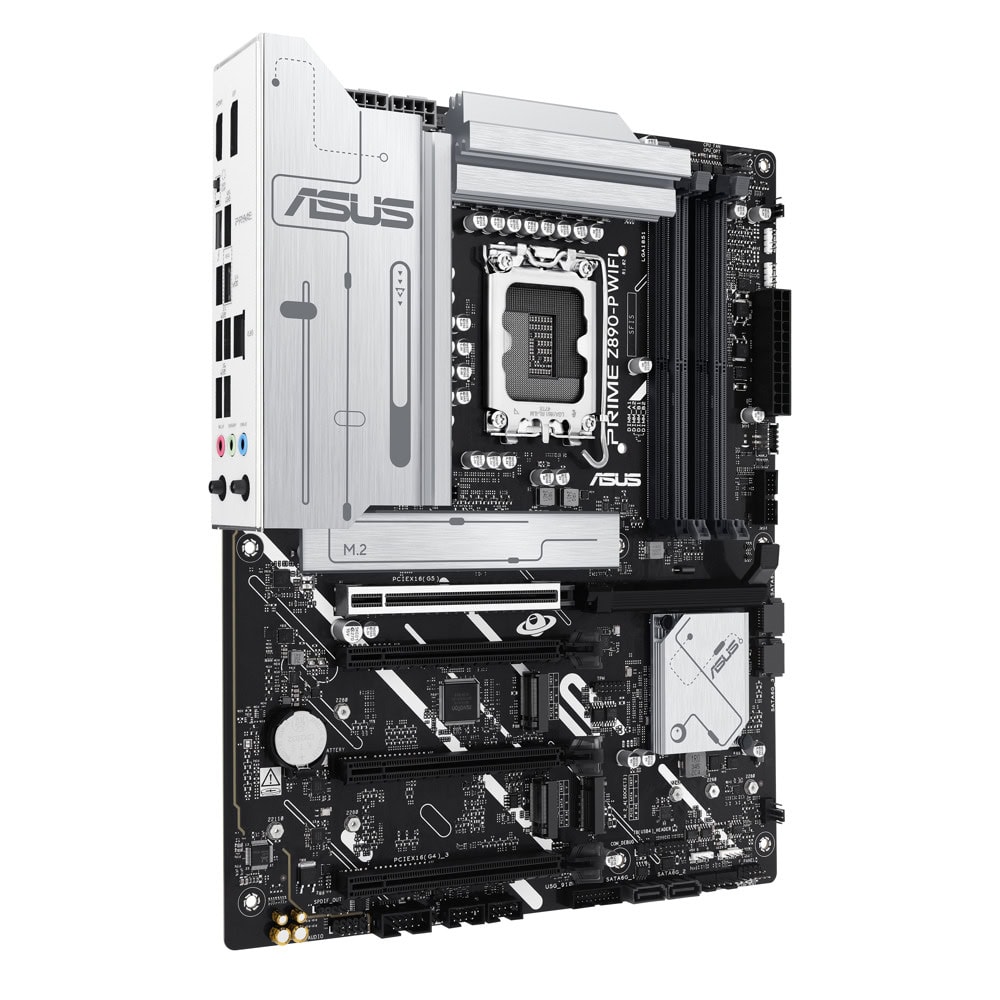

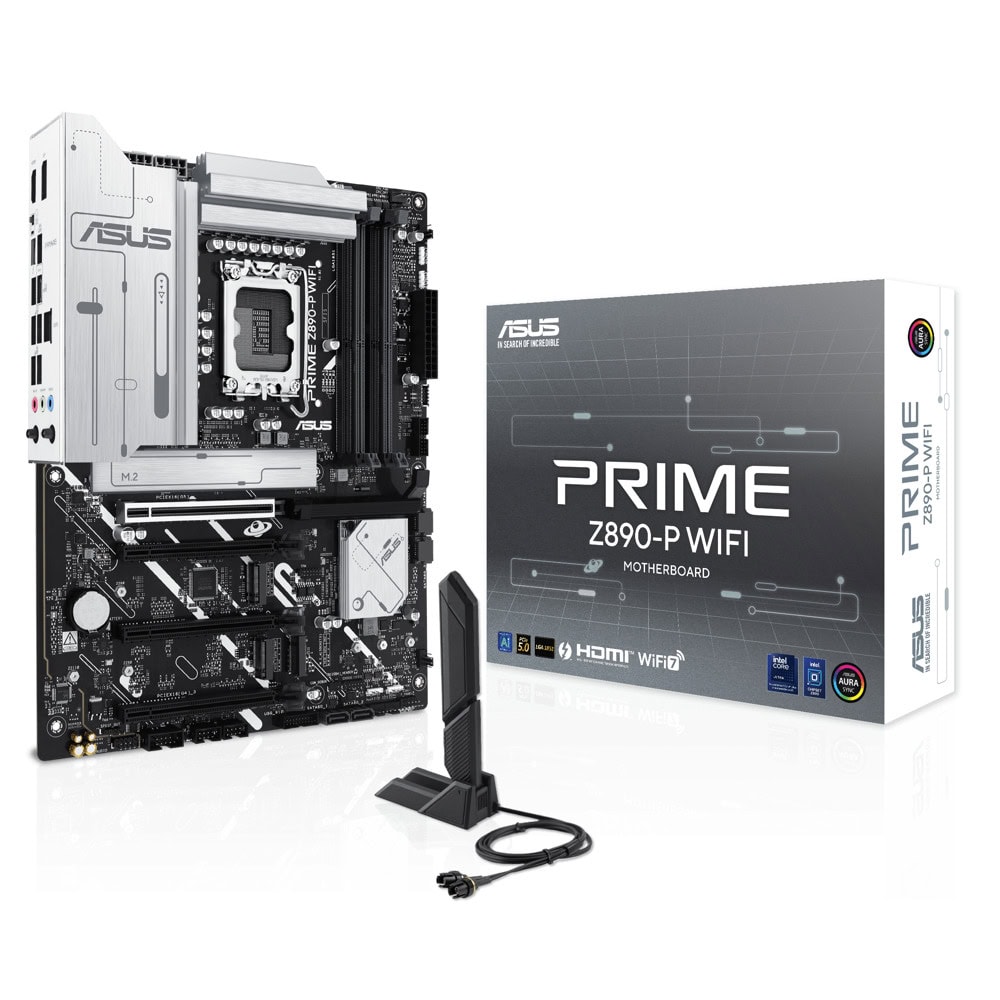

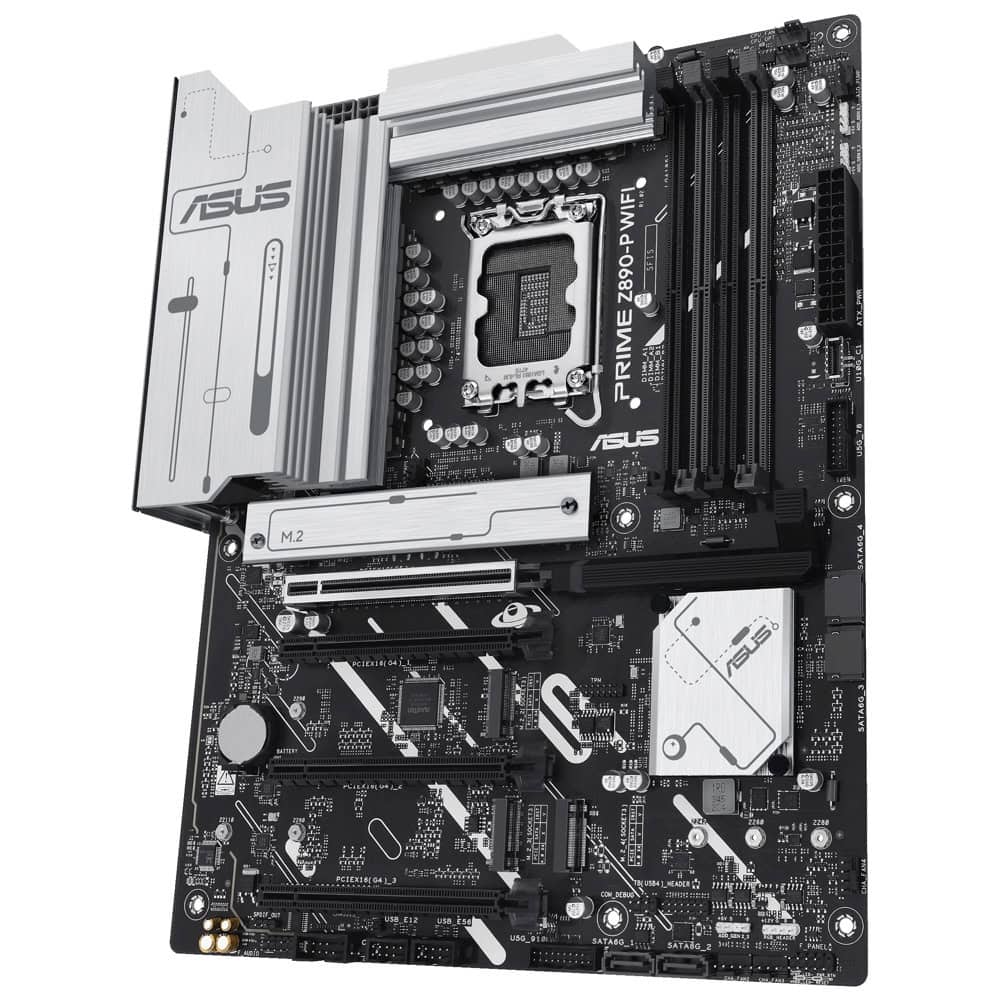

Дънна платка Asus Prime Z890-P WIFI
Z890-P WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
NPU Boost
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
Four M.2 slots (up to 128Gbps)
The PRIME Z890-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
Характеристики
| Supports Intel® Core™ Ultra Processors (Series | 2), LGA1851 |
| Чипсет | Да |
| Intel® Z890 Chipset | Да |
| Памет | Да |
| X DIMM slots, max. 192GB, DDR5 | 4 |
| Dual channel memory architecture | Да |
| DIMM Fit | Да |
| Supports Intel® Extreme Memory Profile (XMP) memory module | Да |
| ASUS Enhanced Memory Profile III(AEMPIII) | Да |
| Графика | Да |
| X DisplayPort** | 1 |
| X HDMITM port*** | 1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| In ThunderboltTM4 mode, supports up to 8K@60Hz | x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. |
| In DP alt mode, supports up to UHBR20 | Да |
| Слотове за разширение | Да |
| Intel® Core™ Ultra Processors (Series | 2) |
| 1 x PCIe 5.0 | x16 slot |
| Intel® Z890 Chipset | Да |
| 2 x PCIe 4.0 | x16 slots (support x4 mode) |
| 1 x PCIe 4.0 | x16 slot (supports x1 mode) |
| Капацитет за съхранение | Да |
| Total supports | 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® Core™ Ultra Processors (Series | 2)* |
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| Intel® Z890 Chipset | Да |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 | x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 & SATA modes) |
| X SATA 6Gb/s ports | 4 |
| Ethernet | Да |
| X Realtek 2.5Gb Ethernet | 1 |
| ASUS LANGuard | Да |

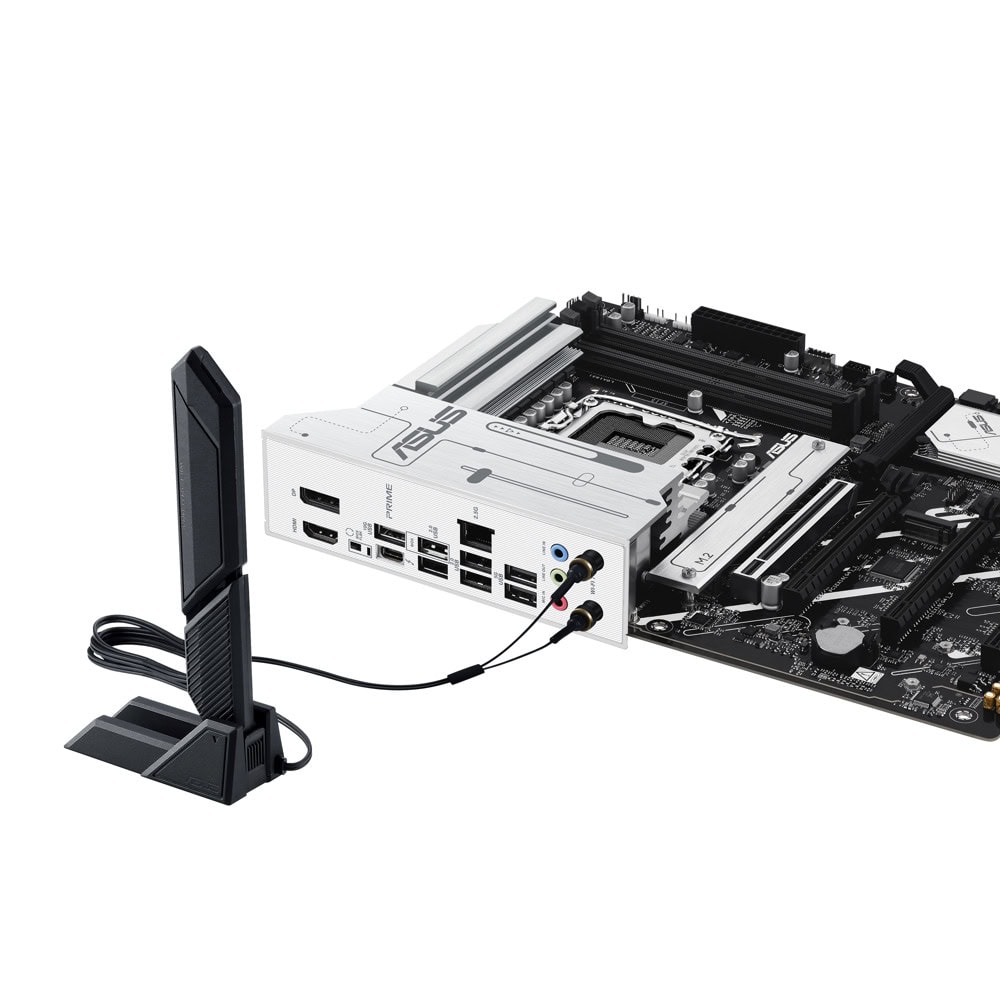

| Wireless & Bluetooth | Да |
| Wi-Fi | 7* |
| 2x2 Wi-Fi 7 (802.11be) | Да |
| Supports | 2.4/5/6GHz frequency band** |
| Bluetooth® v5.4*** | Да |
| Wi-Fi features may vary depending on the operating system | Да |
| USB | Да |
| Rear USB (Total | 8 ports) |
| X Thunderbolt™ 4 port (1 x USB Type-C®) | 1 |
| X USB 10Gbps port (1 x Type-A) | 1 |
| X USB 5Gbps ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A)** | 4 |
| Front USB (Total | 9 ports) |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports** | 2 |
| USB Type-C® power delivery output | max. 5V/3A |
| Аудио | Да |
| Realtek | 7.1 Surround Sound High Definition Audio CODEC* |
| Supports | Jack-detection |
| Multi-streaming, Front Panel Jack-retasking | Да |
| Supports up to | 24-Bit/192 kHz playback |
| Audio Features | Да |
| Audio Shielding | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |

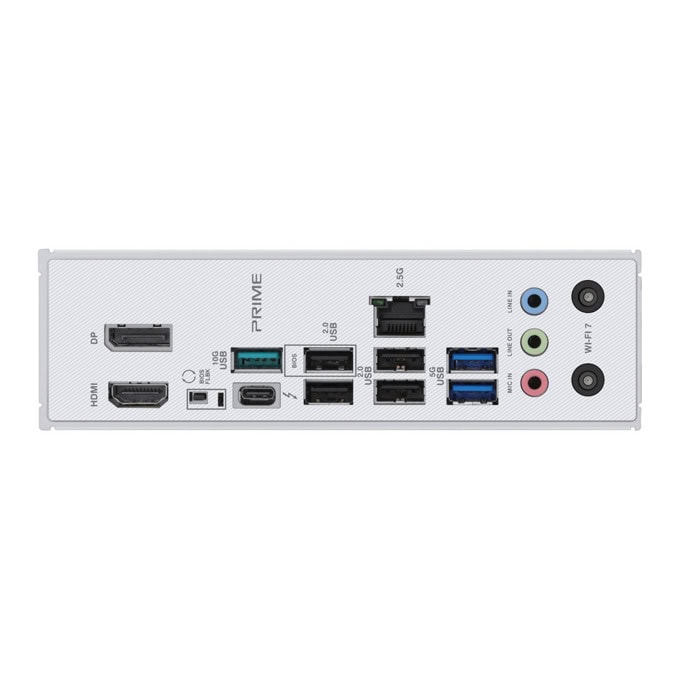

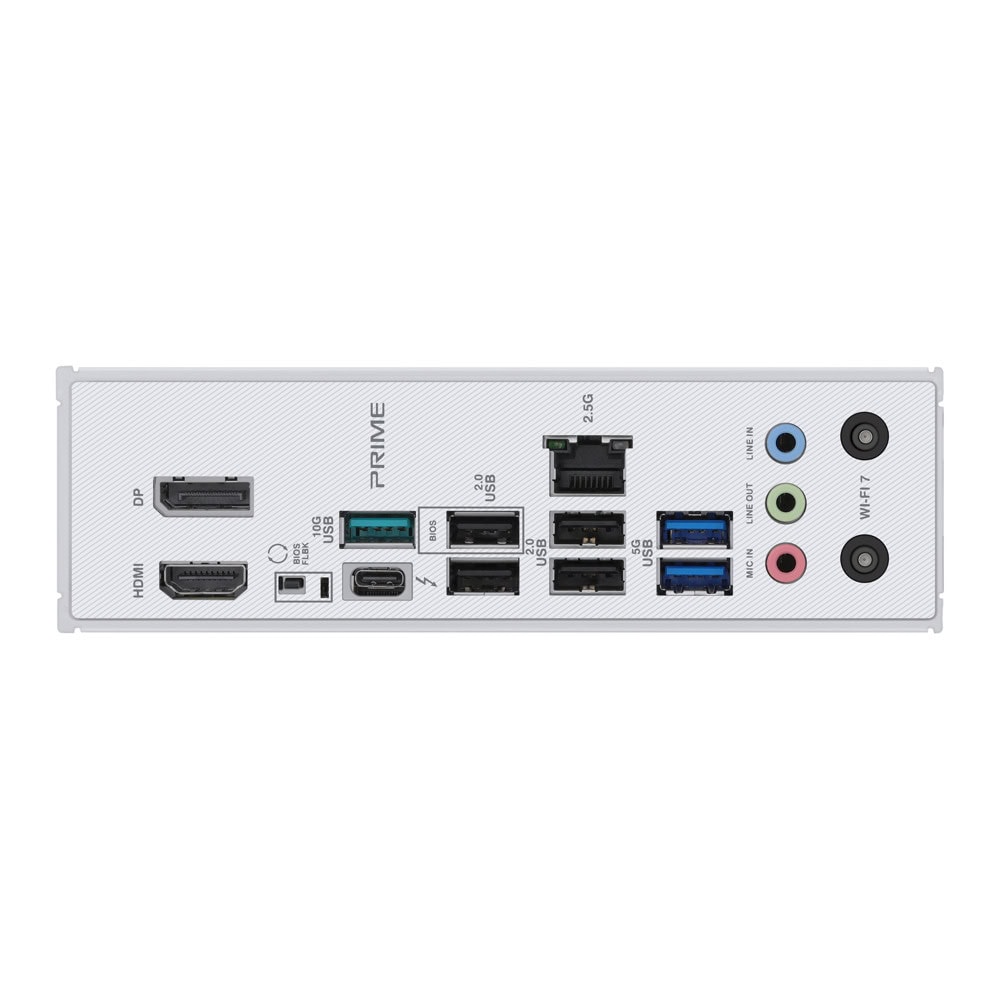

| Back Panel I/O Ports | Да |
| X Thunderbolt™ 4 USB Type-C® port | 1 |
| X USB 10Gbps port (1 x Type-A) | 1 |
| X USB 5Gbps ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X DisplayPort | 1 |
| X HDMITM port | 1 |
| X Wi-Fi module | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 3 |
| X BIOS FlashBack™ button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 4 |
| Power related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connector | 2 |
| Storage related | Да |
| X M.2 slots (Key M) | 4 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen2 headers | 3 |
| X Aura RGB header | 1 |
| X Clear CMOS header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X S/PDIF Out header | 1 |
| X SPI TPM header (14-1pin) | 1 |
| X 10-1 pin Front Panel System header | 1 |
| X Thunderbolt™ (USB4®) header | 1 |
| Special Features | Да |
| ASUS | 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) | Да |
| LANGuard | Да |
| Overvoltage Protection | Да |
| SafeSlot | Да |
| Stainless-Steel Back I/O | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| PCIe Slot Q-Release | Да |
| Q-Antenna | Да |
| Q-Dashboard | Да |
| Q-DIMM | Да |
| Q-LED Core | Да |
| Q-Slot | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsink | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| BIOS FlashBack™ button | Да |
| BIOS FlashBack™ LED | Да |
| ProCool | Да |
| Pre-mounted I/O shield | Да |
| Aura Sync | Да |
| Aura RGB header | Да |
| Addressable Gen2 headers | Да |
| Software Features | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| Aura Creator | Да |
| Aura Sync | Да |
| Fan Xpert | 4 (with AI Cooling II) |
| Power Saving | Да |
| ASUS AI Advisor | Да |
| ASUS DriverHub | Да |
| ASUS GlideX | Да |
| ASUS CPU-Z | Да |
| TurboV Core | Да |
| Norton | 360 Deluxe (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) | Да |
| UEFI BIOS | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | Да |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| NPU Boost (Intel K-series Processors only) | Да |
| BIOS | Да |
| 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | Да |
| Manageability | Да |
| WOL by PME, PXE | Да |
| Accessories | Да |
| Cables | Да |
| X SATA 6Gb/s cables | 2 |
| Miscellaneous | Да |
| X ASUS WiFi Q-Antenna | 1 |
| X M.2 rubber package | 1 |
| X Screw packages for M.2 SSD | 2 |
| Операционна система | Да |
| Windows | 11 (22H2 & later) |
| Форм фактор | Да |
| ATX Form Factor | Да |
| Inch x 9.6inch ( 30.5 cm x 24.4 cm ) | 12 |
