Asus

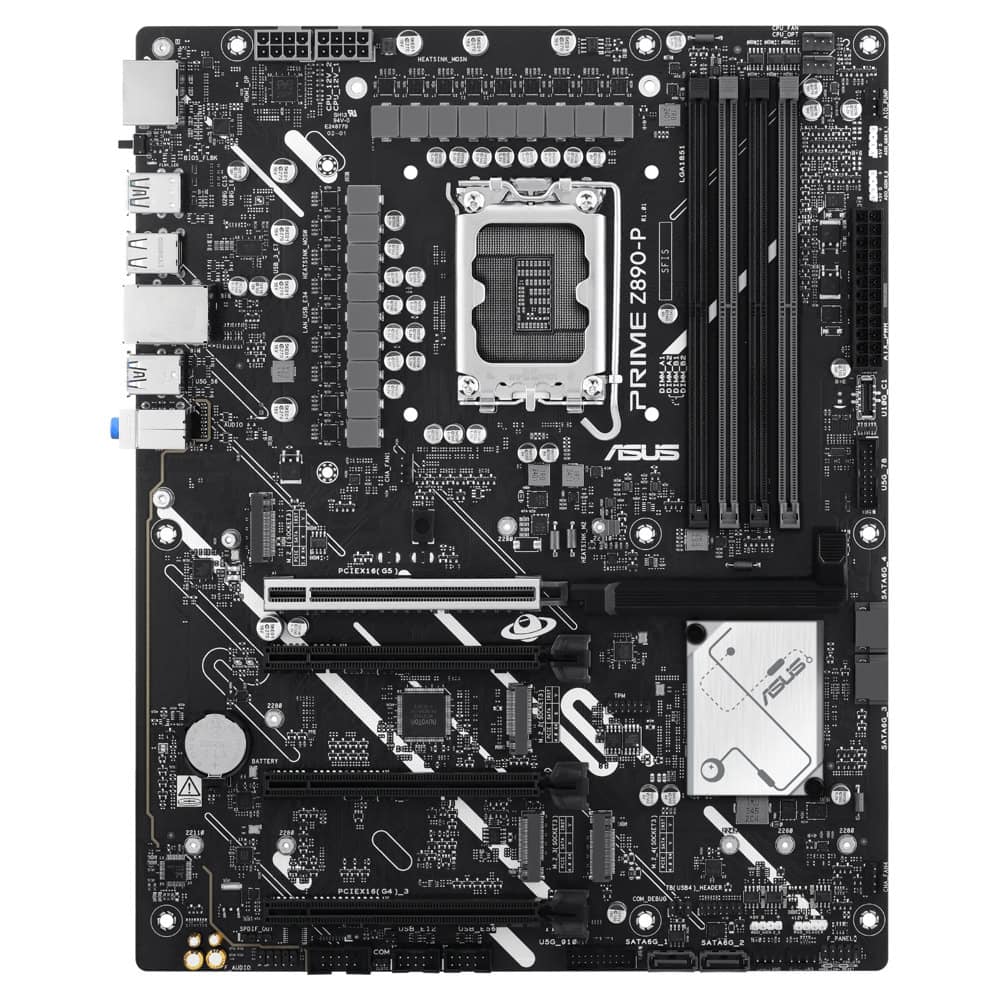

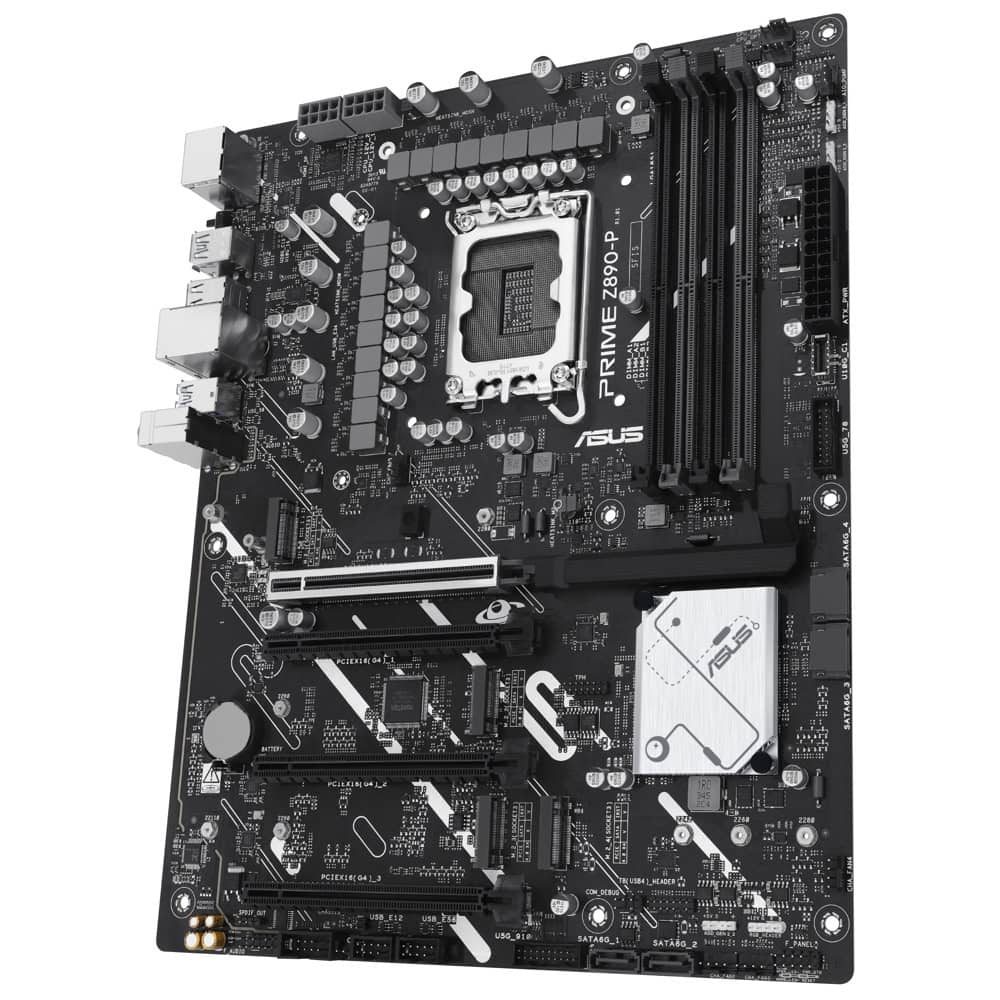

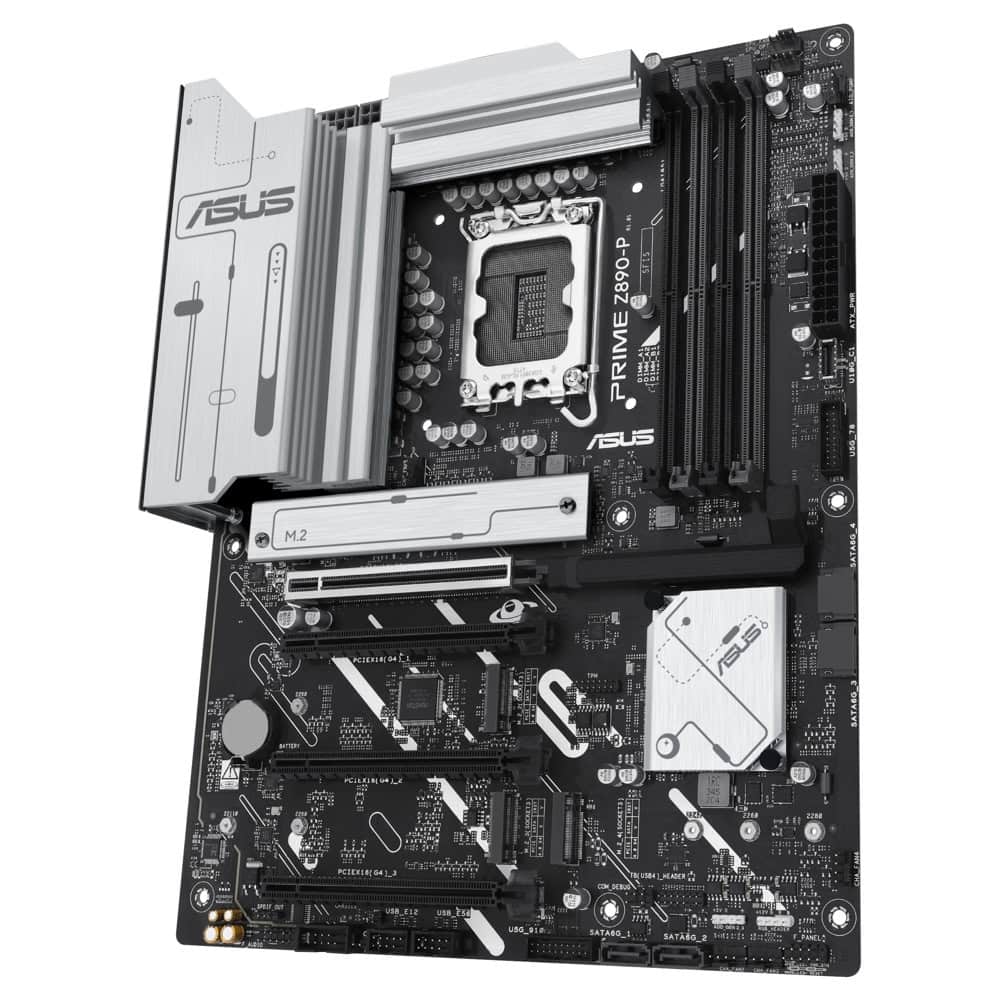

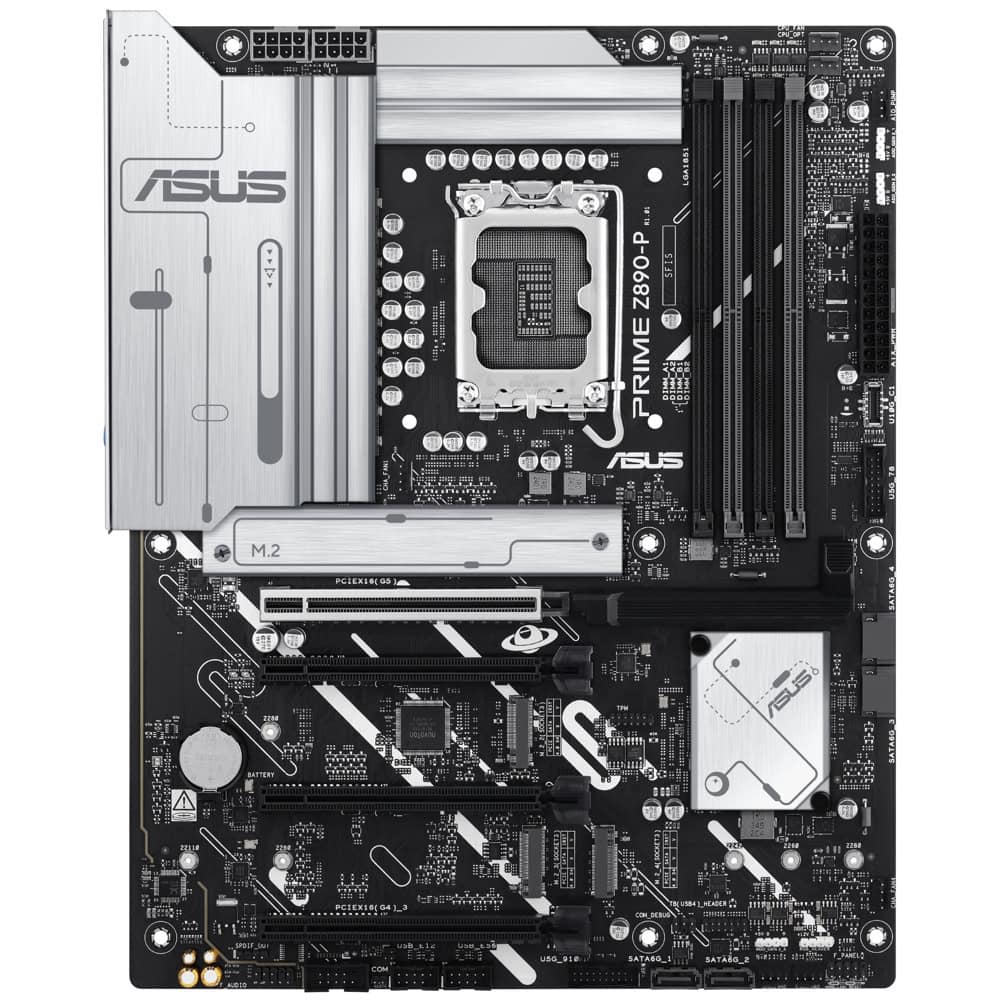

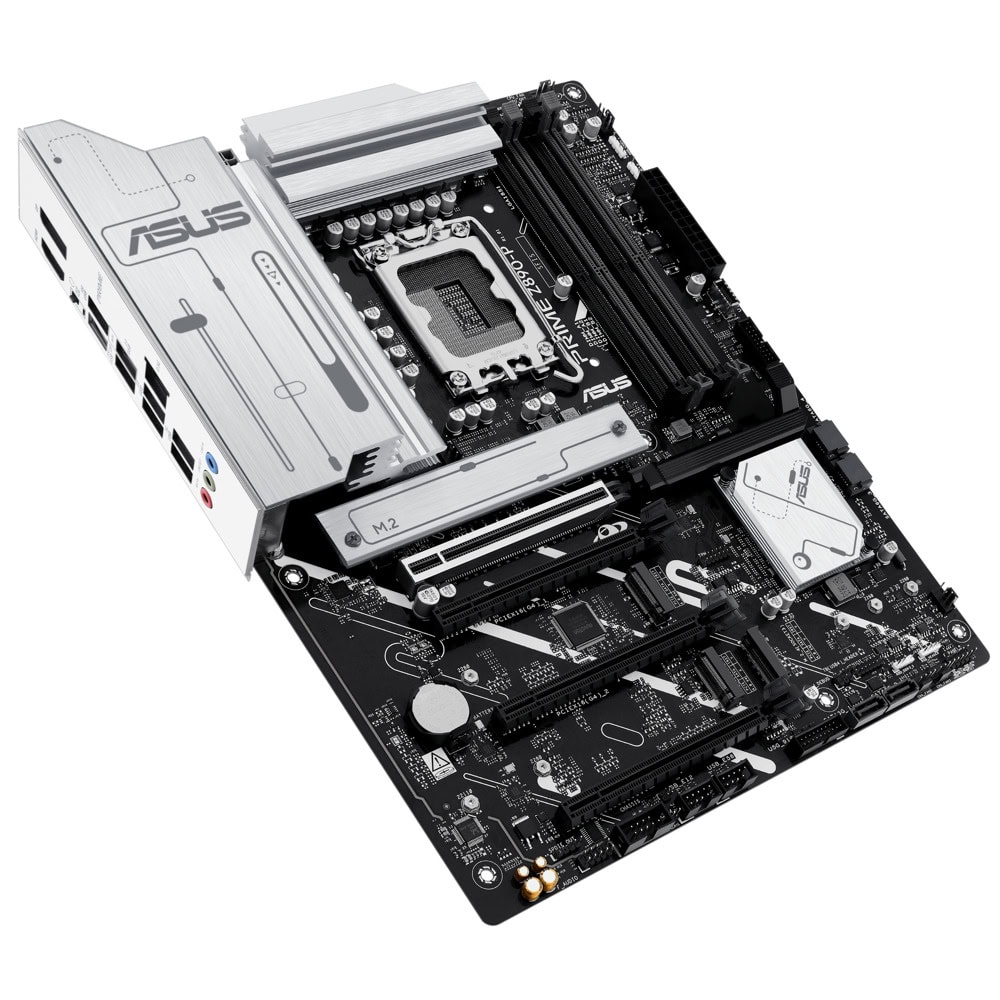

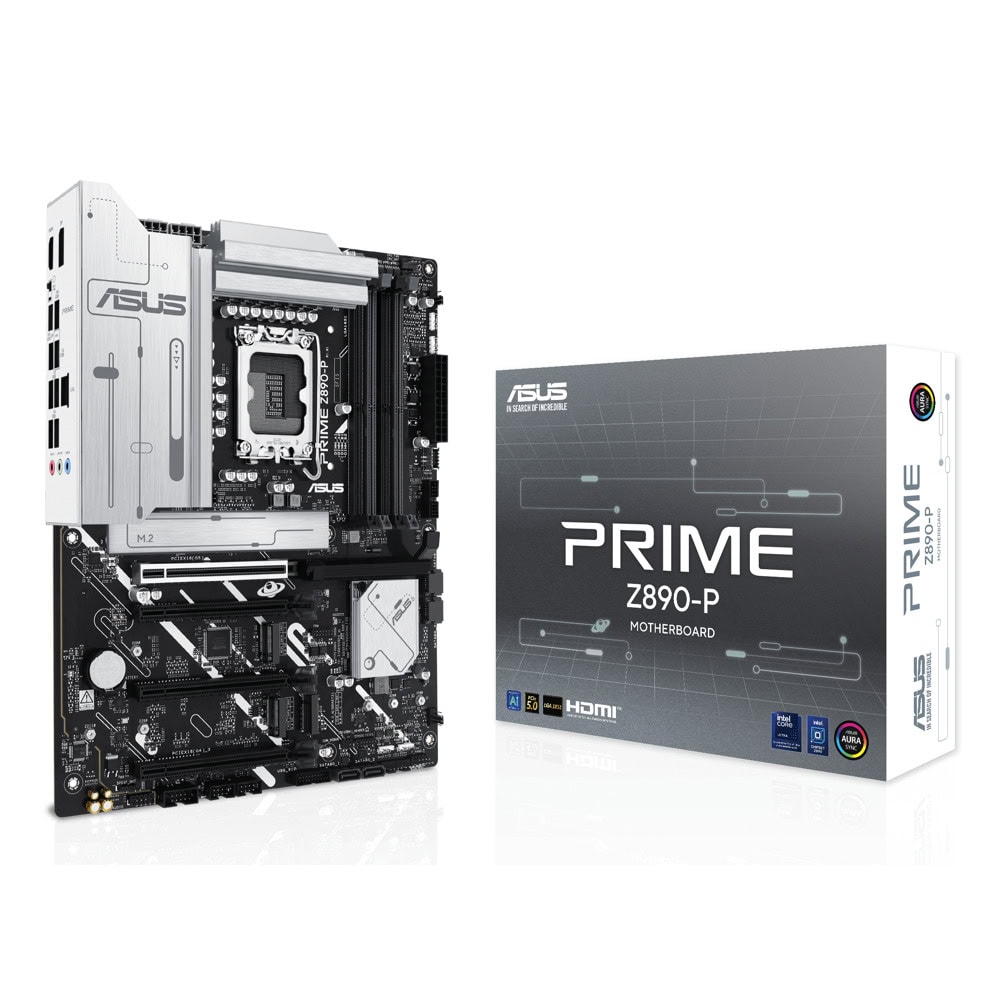

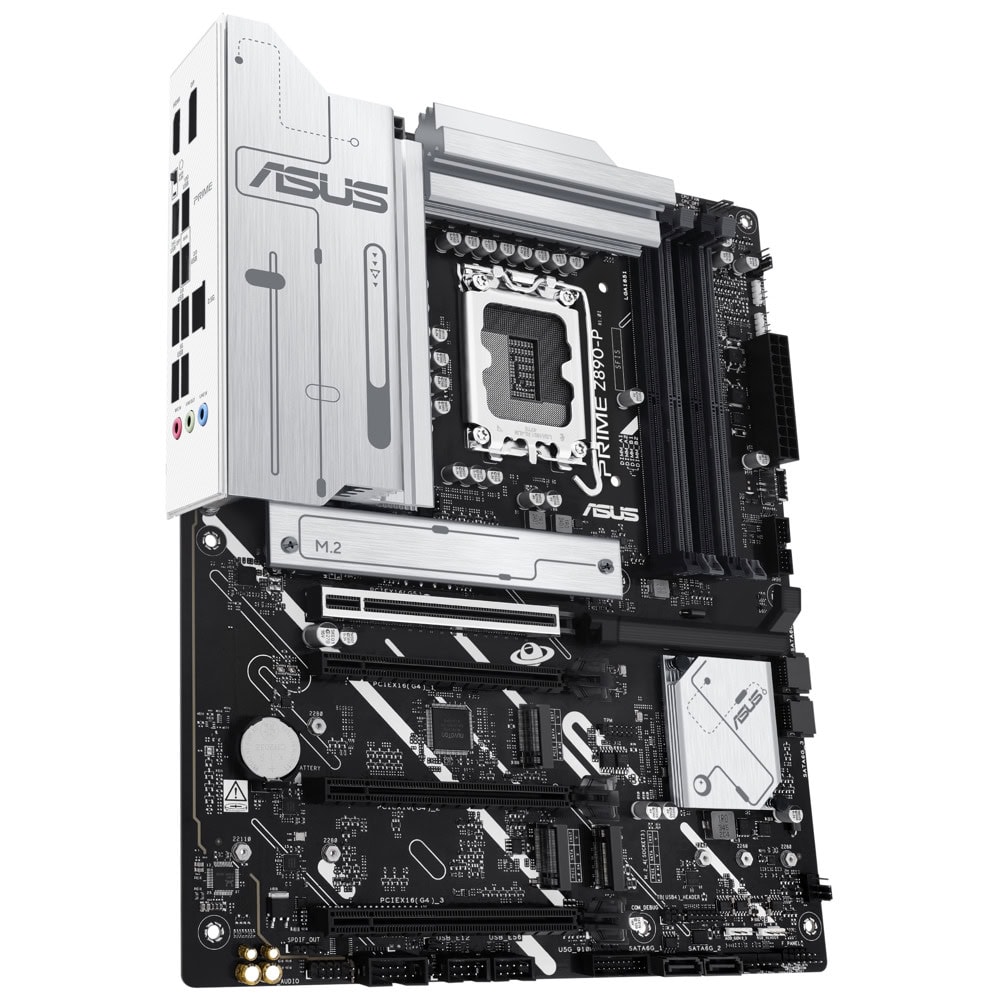

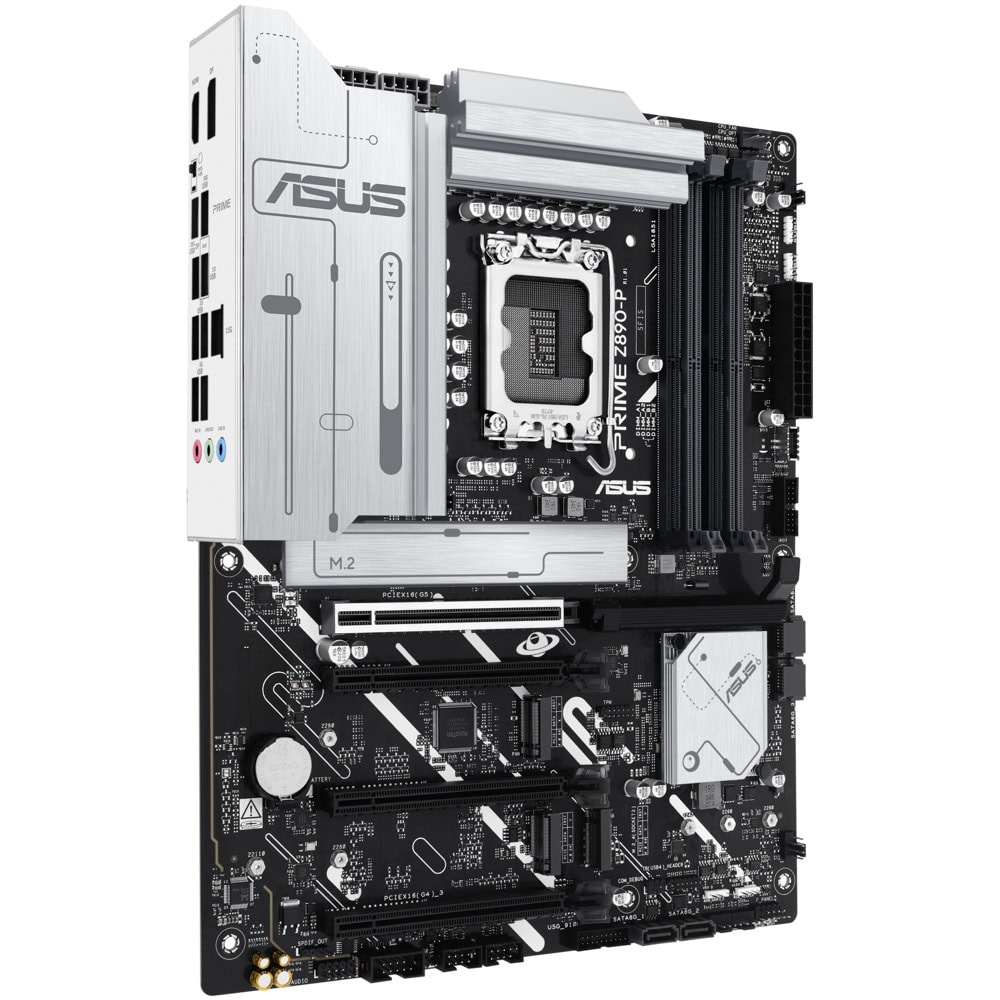

Дънна платка Asus PRIME Z890-P
Артикул №: 1000034714
Категория:
Дънни платки за Intel процесори
234,99 €
✓ Налично в централен склад
Asus PRIME Z890-P
90MB1I50-M0EAY0
CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z890 Chipset
Memory
4x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1x DisplayPort**
1x HDMITM port***
90MB1I50-M0EAY0
CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z890 Chipset
Memory
4x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1x DisplayPort**
1x HDMITM port***
Характеристики
| 1x SPI TPM header (14-1pin) | 1x 10-1 pin Front Panel System header |
| 1x Thunderbolt (USB4) header | Special Features |
| ASUS 5X PROTECTION III | - DIGI+ VRM (- Digital power design with DrMOS) |
| LANGuard | - Overvoltage Protection |
| SafeSlot | - Stainless-Steel Back I/O |
| ASUS Q-Design | - M.2 Q-Latch |
| PCIe Slot Q-Release | - Q-Dashboard |
| Q-DIMM | - Q-LED Core |
| Q-Slot | ASUS Thermal Solution |
| M.2 heatsink | - VRM heatsink design |
| ASUS EZ DIY | - BIOS FlashBack button |
| BIOS FlashBack LED | - ProCool |
| Pre-mounted I/O shield | Aura Sync |
| Aura RGB header | - Addressable Gen2 headers |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | - Aura Creator |
| Aura Sync | - Fan Xpert 4 (with AI Cooling II) |
| Power Saving | UEFI BIOS |
| ASUS EZ DIY | - ASUS CrashFree BIOS 3 |
| ASUS EZ Flash | - ASUS UEFI BIOS EZ Mode |
| ASUS MyHotkey | NPU Boost (Intel K-series Processors only) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Операционна система | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | ATX Form Factor |
