Asus
Дънна платка Asus PRIME Z790-P
Артикул №: 1000125545
Категория:
Компютърни компоненти
236,99 €
✓ Налично в централен склад

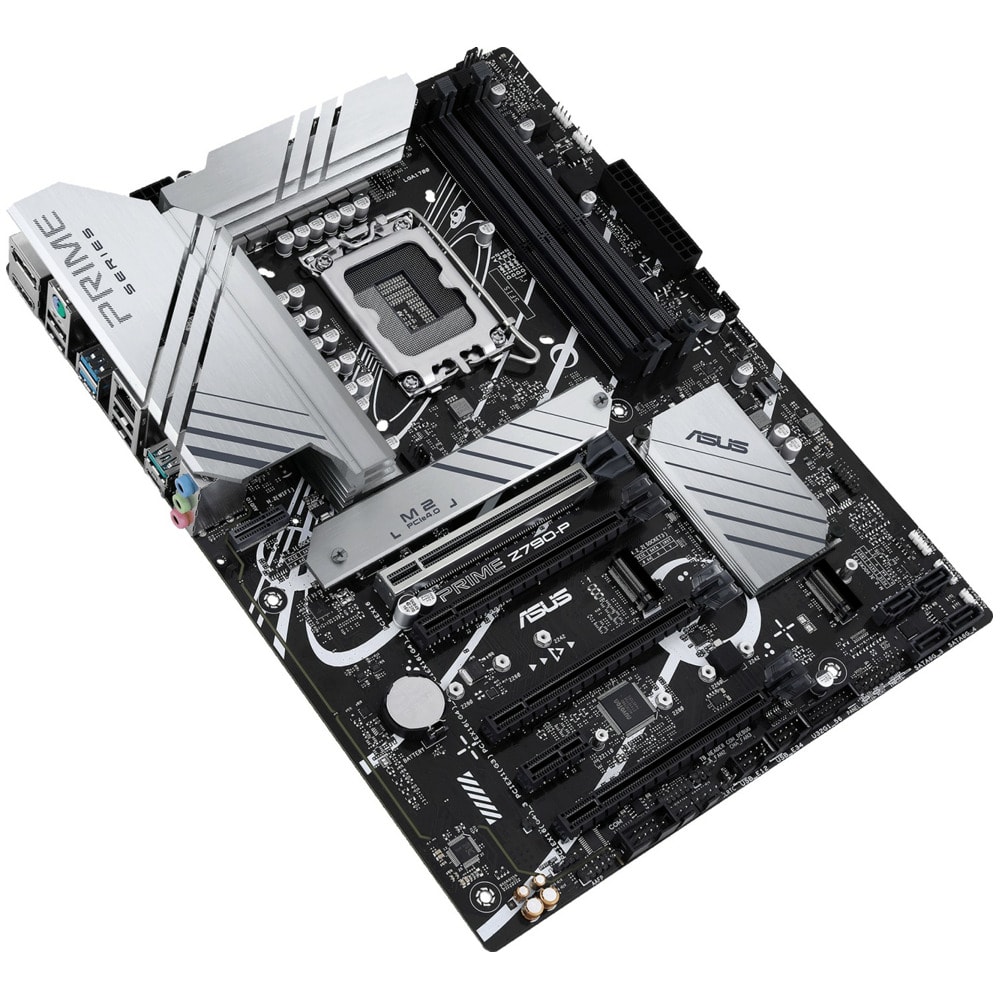

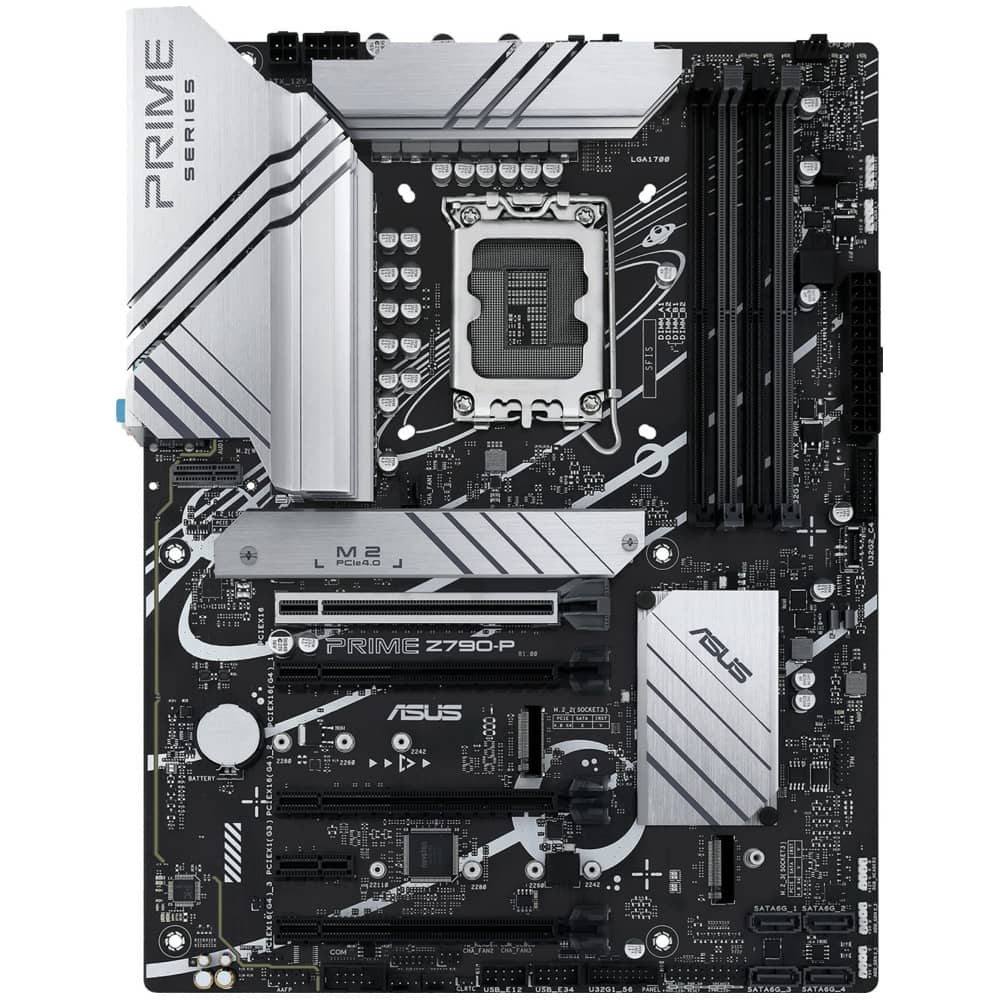

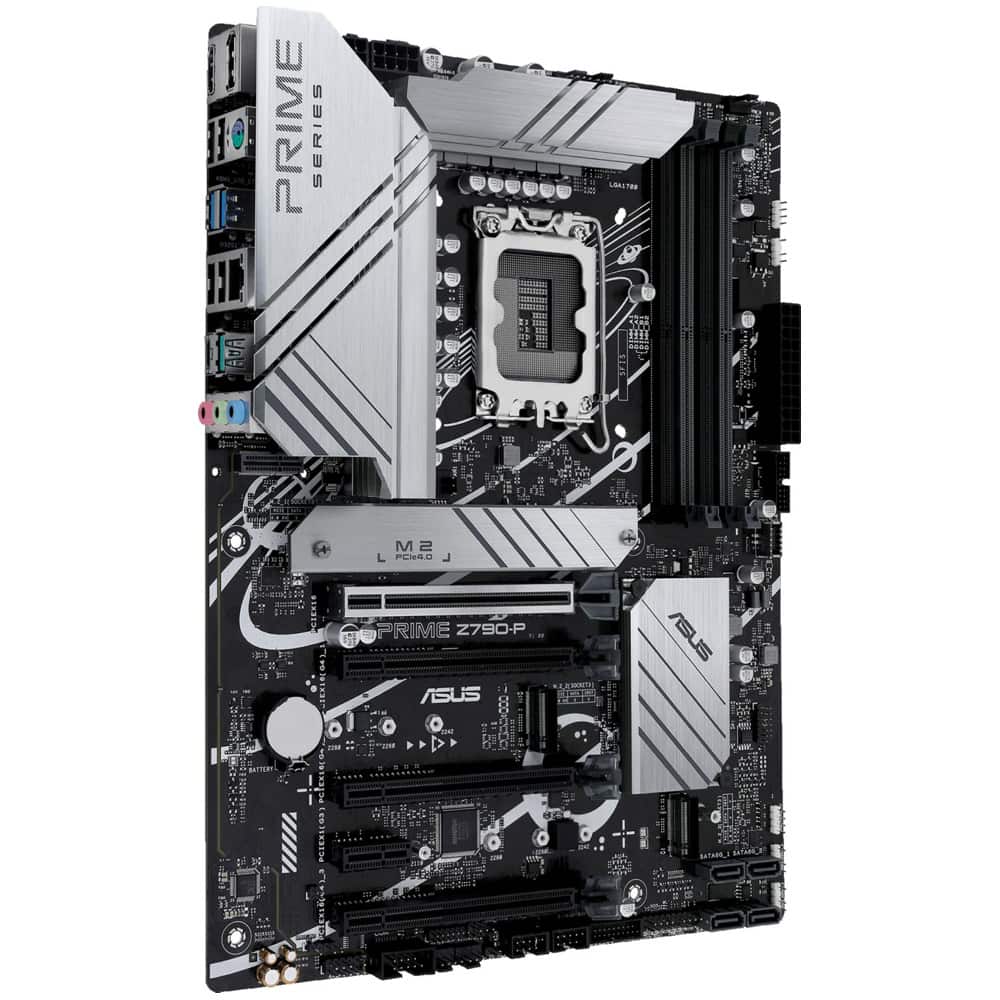

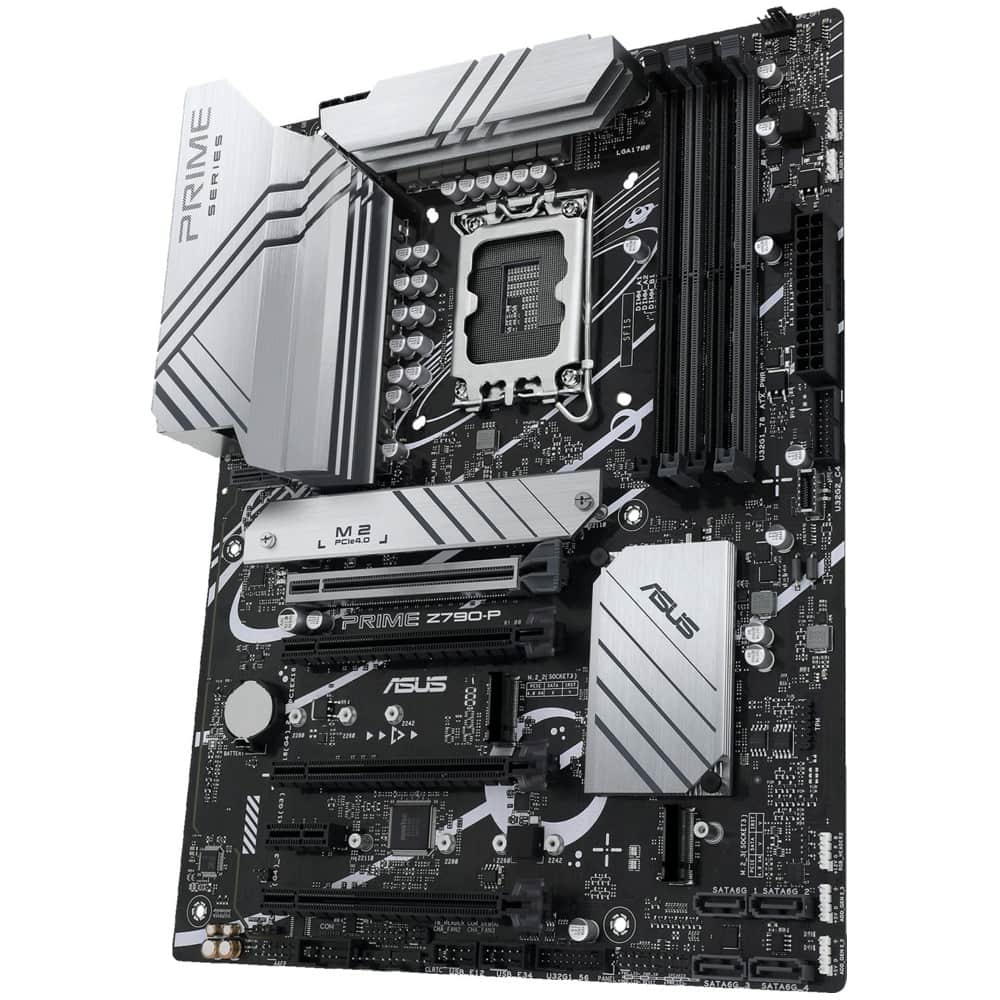

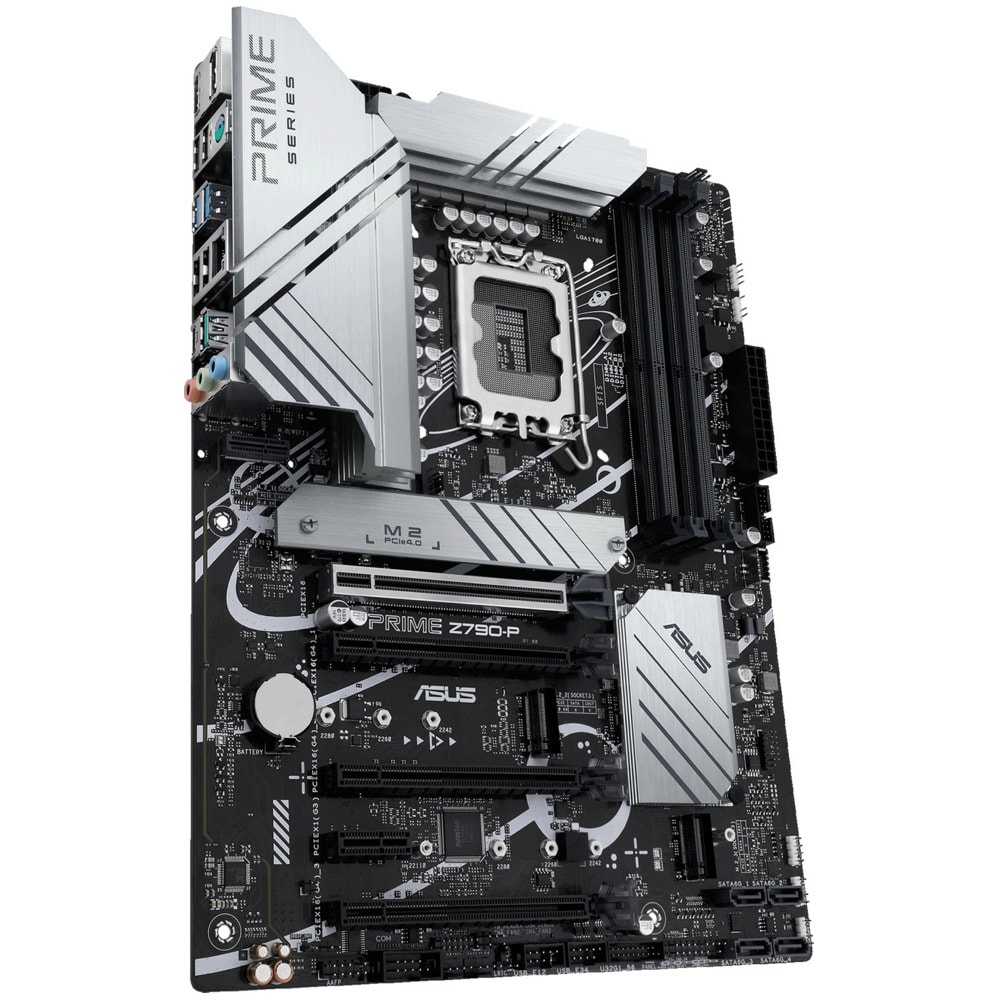

Asus PRIME Z790-P
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Чипсет
| Intel® Z790 Chipset | Да |
Памет
| Dual Channel Memory Architecture | Да |
| Supports Intel® Extreme Memory Profile (XMP) | Да |
| OptiMem II | Да |
Графика
| X DisplayPort** | 1 |
| X HDMI® port*** | 1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
Разширителни слотове
| Intel® | 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 | x16 slot |
| Intel® Z790 Chipset | Да |
| 3 x PCIe 4.0 | x16 slots (support x4 mode) |
| 1 x PCIe 3.0 | x1 slot |
Съхранение
| Total supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® | 13th & 12th Gen Processors |
| Intel® Z790 Chipset | Да |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
Ethernet
| X Realtek 2.5Gb Ethernet | 1 |
Wireless & Bluetooth
| Vertical M.2 slot only (Key E, CNVi & PCIe)* | Да |
| Wi-Fi module is sold separately | Да |
USB
| Rear USB (Total | 8 ports) |
| X USB 3.2 Gen 2x2 port (1 x USB Type-C®) | 1 |
| X USB 3.2 Gen 2 port (1 x Type-A) | 1 |
| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| Front USB (Total | 9 ports) |
| X USB 3.2 Gen 2 connector (supports USB Type-C®) | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
Звук
| Realtek | 7.1 Surround Sound High Definition Audio CODEC* |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 24-Bit/192 kHz playback |
| Audio Features | Да |
| Audio Shielding | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |

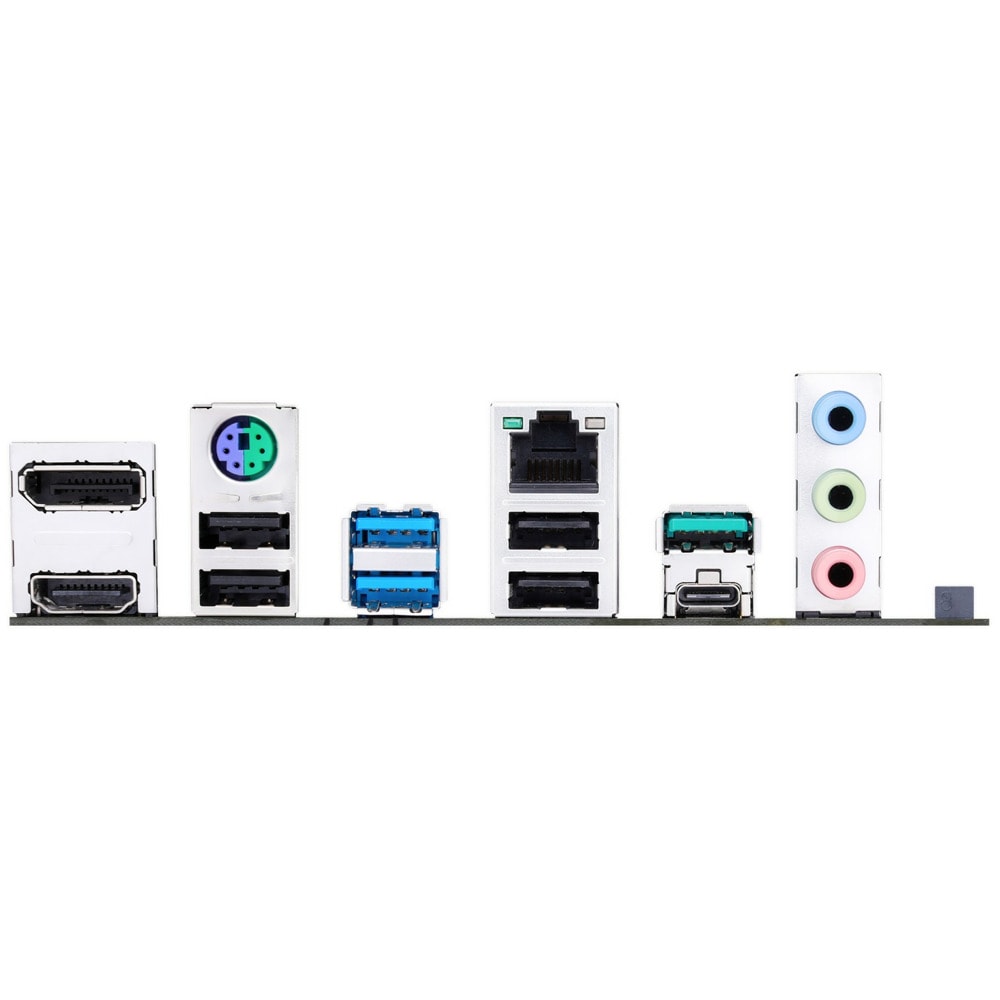

Back Panel I/O Ports
| X USB 3.2 Gen 2x2 port (1 x USB Type-C®) | 1 |
| X USB 3.2 Gen 2 port (1 x Type-A) | 1 |
| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X DisplayPort | 1 |
| X HDMI® port | 1 |
| X Vertical M.2 slot (Key E) | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 3 |
| X PS/2 Keyboard/Mouse combo port | 1 |
Internal I/O Connectors
| Fan and Cooling related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 3 |
| Power related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V Power connector | 1 |
| X 4-pin +12V Power connector | 1 |
| Storage related | Да |
| X M.2 slots (Key M) | 3 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 3.2 Gen 2 connector (supports USB Type-C®) | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 3 |
| X Aura RGB headers | 2 |
| X Clear CMOS header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (AAFP) | 1 |
| X S/PDIF Out header | 1 |
| X SPI TPM header (14-1pin) | 1 |
| X 20-5pin System Panel header | 1 |
| X Thunderbolt™ (USB4®) Header | 1 |
