Asus
Дънна платка Asus Prime X870-P
Артикул №: 1000140404
Категория:
Компютърни компоненти
262,99 €
✓ Налично в централен склад

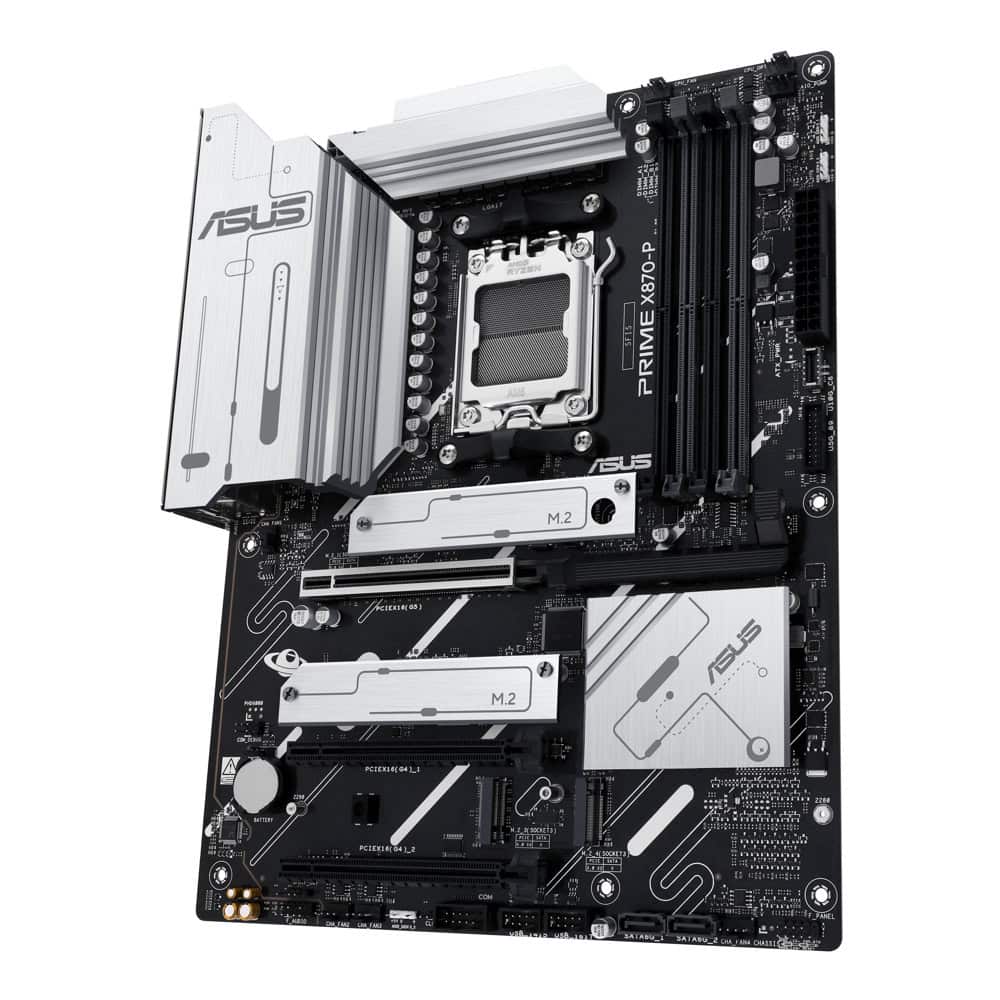

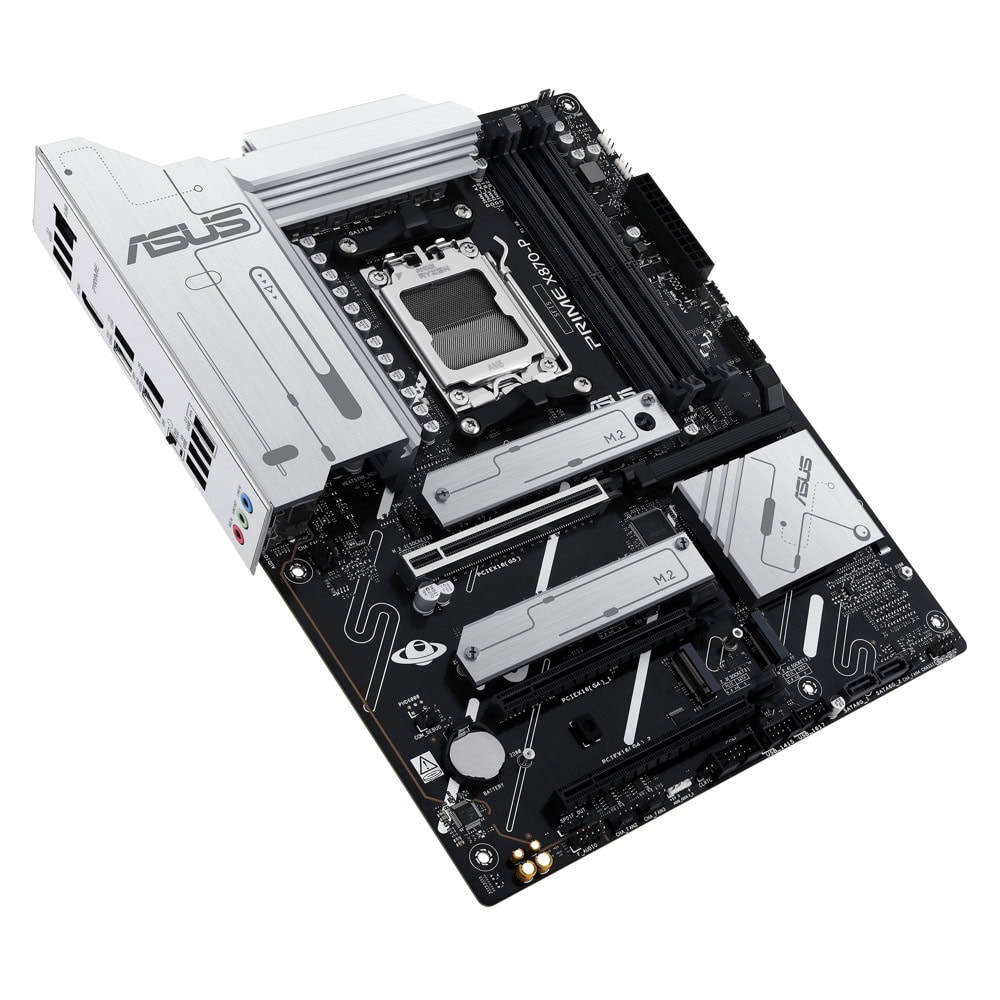

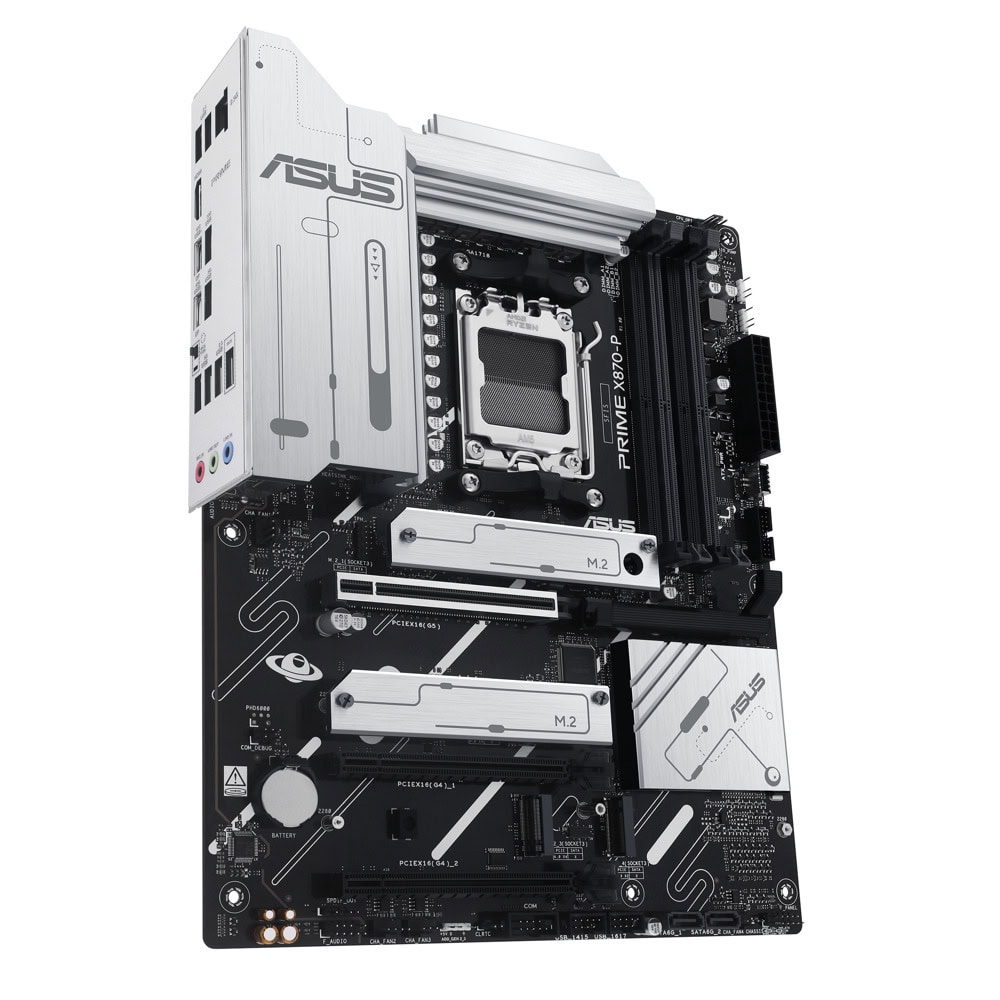

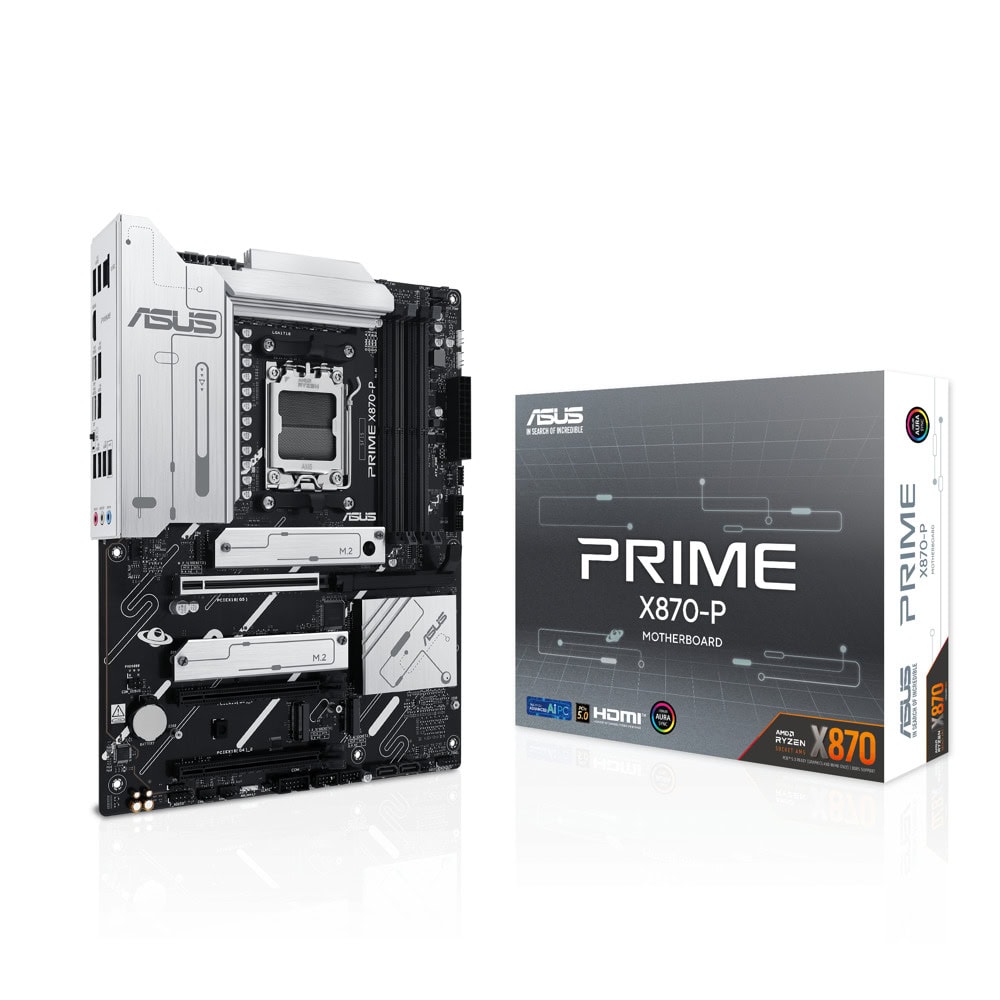

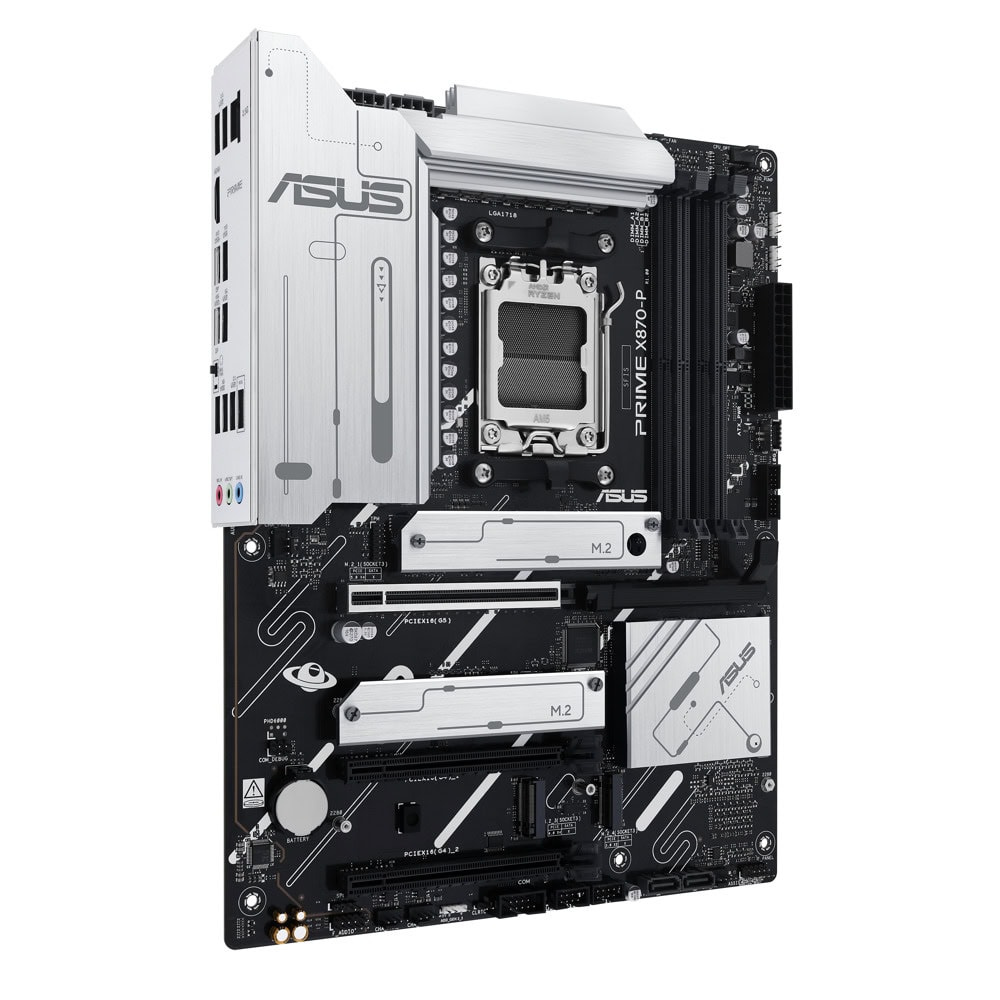

Asus Prime X870-P
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Характеристики
| AMD X870 Chipset | Да |
| Памет | Да |
| X DIMM slots, max. 256GB, DDR5 | 4 |
| ECC and Non-ECC, Un-buffered DIMM* | Да |
| Dual channel memory architecture | Да |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | Да |
| ASUS Enhanced Memory Profile (AEMP) | Да |
| Графика | Да |
| X HDMI™ port** | 1 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4a |
| Слотове за разширение | Да |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 | x16 slot (supports x16 mode) |
| AMD Ryzen™ | 8000 Series Desktop Processors |
| 1 x PCIe 4.0 | x16 slot (supports x8/x4 mode)** |
| AMD X870 Chipset | Да |
| 2 x PCIe 4.0 | x16 slots (support x1 mode)*** |
| Specifications vary by CPU types | Да |
| Капацитет за съхранение | Да |
| Supports | 4 x M.2 slots and 2 x SATA 6Gb/s ports |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 | x4 mode) |
| AMD Ryzen™ | 8000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| AMD X870 Chipset | Да |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode)* |
| M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 | x2 mode)** |
| X SATA 6Gb/s ports** | 2 |
| AMD RAIDXpert2 Technology | Да |
| Ryzen™ 9000 Series Processors | RAID 0/1/5/10 |
| Ryzen™ 8000 Series Processors | RAID 0/1 |
| Ryzen™ 7000 Series Processors | RAID 0/1/10 |
| Ethernet | Да |
| X Realtek 2.5Gb Ethernet | 1 |
| ASUS LANGuard | Да |
| USB | Да |
| Rear USB (Total | 10 ports) |
| X USB4® (40Gbps) ports (2 x USB Type-C®) | 2 |
| X USB 10Gbps port (1 x Type-A) | 1 |
| X USB 5Gbps ports (3 x Type-A) | 3 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| Front USB (Total | 7 ports) |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| USB Type-C® power delivery output | max. 5V/3A |
| Аудио | Да |
| Realtek | 7.1 Surround Sound High Definition Audio CODEC* |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 24-Bit/192 kHz playback |
| Audio Features | Да |
| Audio Shielding | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |

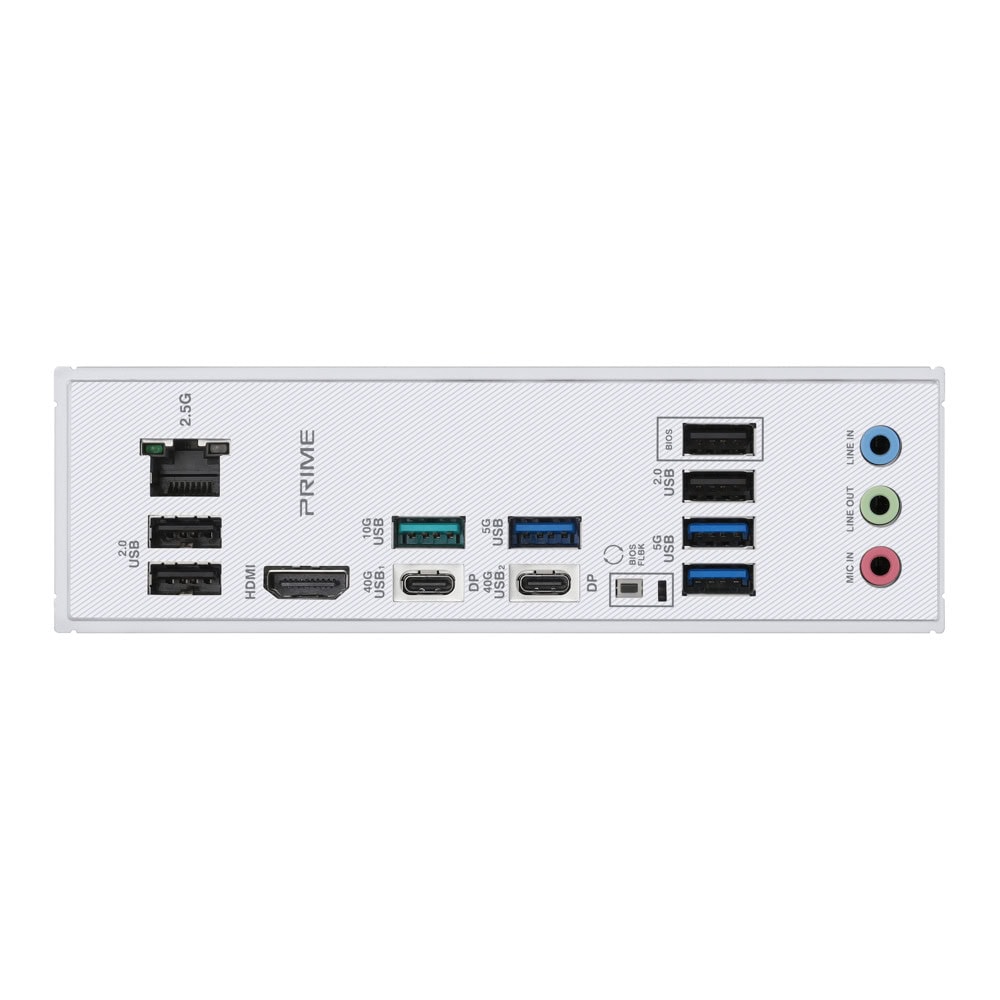

| Back Panel I/O Ports | Да |
| X USB4® (40Gbps) ports (2 x USB Type-C®) | 2 |
| X USB 10Gbps port (1 x Type-A) | 1 |
| X USB 5Gbps ports (3 x Type-A) | 3 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X HDMI™ port | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 3 |
| X BIOS FlashBack™ button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling Related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 4 |
| Power Related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connectors | 2 |
| Storage Related | Да |
| X M.2 slots (Key M) | 4 |
| X SATA 6Gb/s ports | 2 |
| USB | Да |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 3 |
| X Clear CMOS header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X S/PDIF Out header | 1 |
| X SPI TPM header (14-1 pin) | 1 |
| X 10-1 pin System Panel header | 1 |
| Special Features | Да |
| ASUS | 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) | Да |
| LANGuard | Да |
| Overvoltage protection | Да |
| SafeSlot | Да |
| Stainless-steel back I/O | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| PCIe Slot Q-Release | Да |
| Q-Dashboard | Да |
| Q-DIMM | Да |
| Q-LED Core | Да |
| Q-Slot | Да |
| ASUS Thermal Solution | Да |
| Flexible M.2 heatsink | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| BIOS FlashBack™ button | Да |
| BIOS FlashBack™ LED | Да |
| ProCool | Да |
| Pre-mounted I/O shield | Да |
| SafeSlot | Да |
| Aura Sync | Да |
| Addressable Gen | 2 headers |
| Software Features | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| Aura Creator | Да |
| Aura Sync | Да |
| Fan Xpert | 4 (with AI Cooling II) |
| Power Saving | Да |
| ASUS DriverHub | Да |
| TurboV Core | Да |
| ASUS CPU-Z | Да |
| Norton | 360 Deluxe (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) | Да |
| UEFI BIOS | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | 3 |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| BIOS | Да |
| Mb Flash ROM, UEFI AMI BIOS | 256 |
| Manageability | Да |
| WOL by PME, PXE | Да |

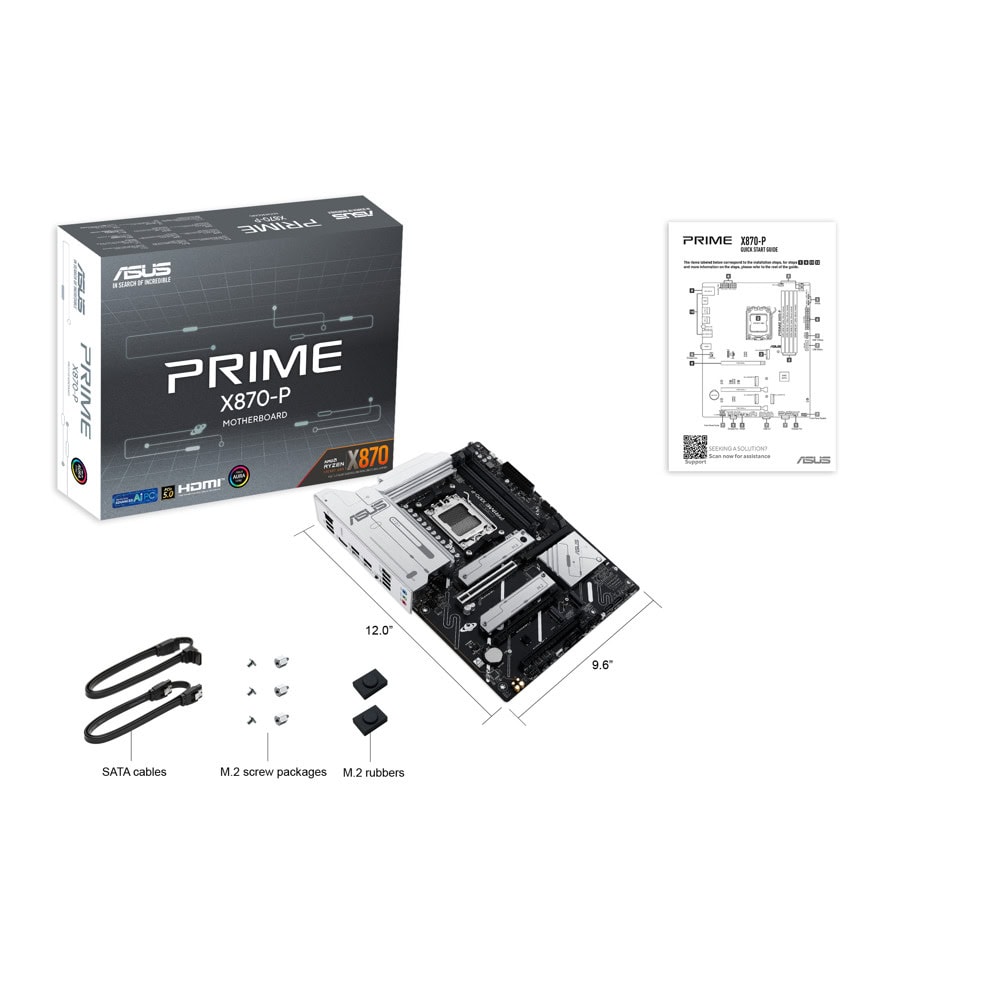

| Accessories | Да |
| Cables | Да |
| X SATA 6Gb/s cables | 2 |
| Miscellaneous | Да |
| X M.2 rubber package | 1 |
| X Screw packages for M.2 SSD | 2 |
| Documentation | Да |
| X Quick start guide | 1 |
| Операционна система | Да |
| Windows | 11, Windows 10 64-bit |
| Форм фактор | Да |
| ATX Form Factor | Да |
| Inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | 12 |
