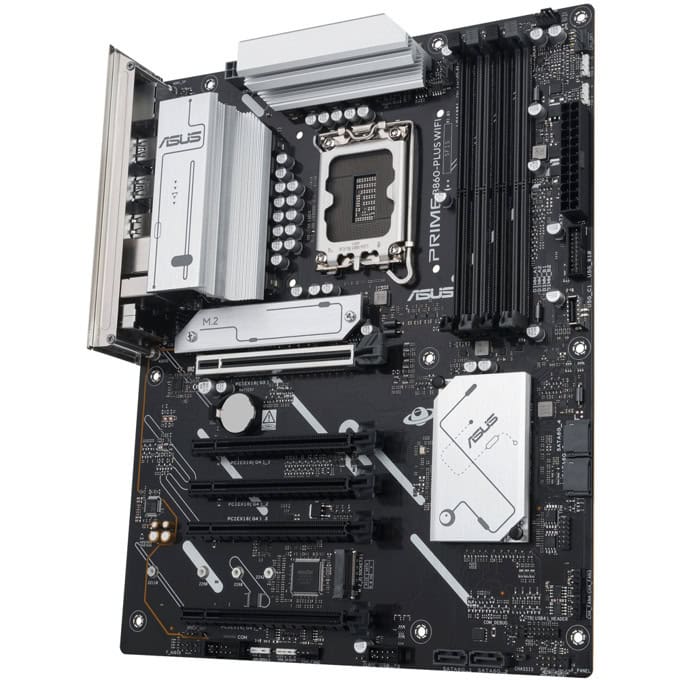

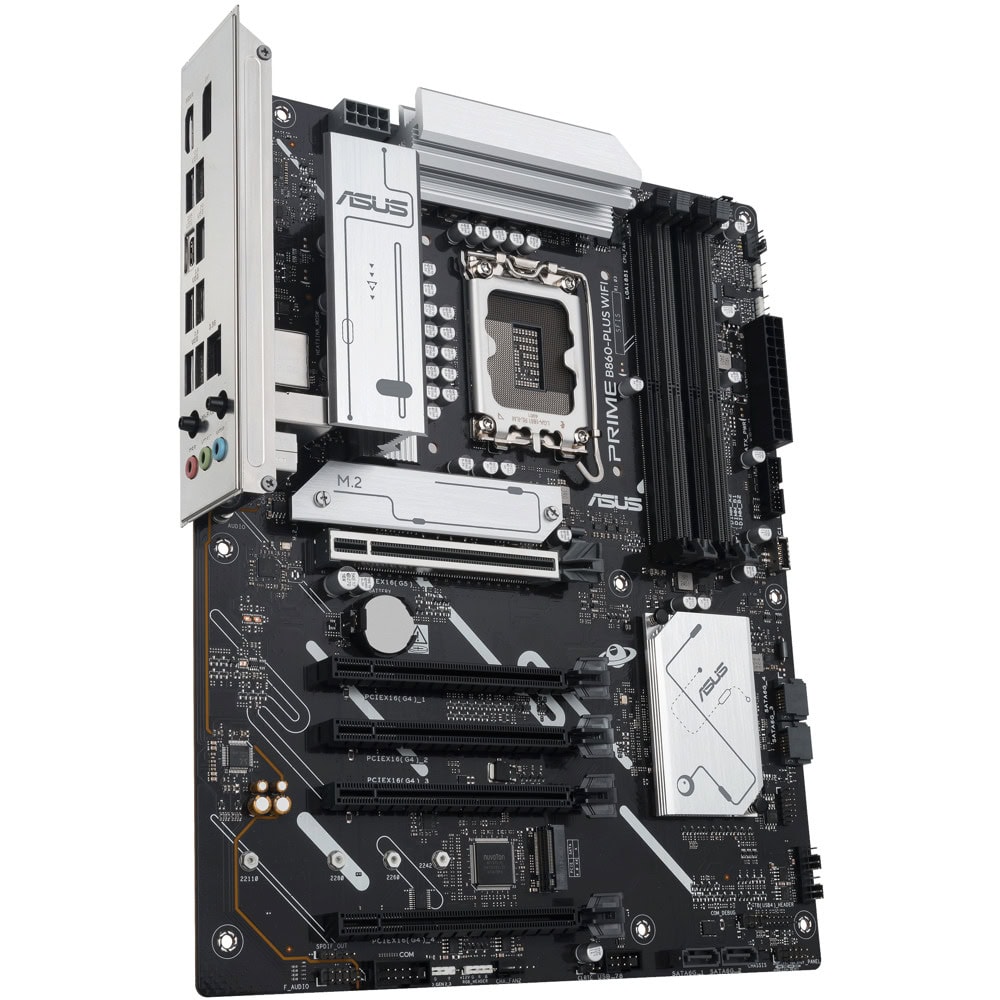

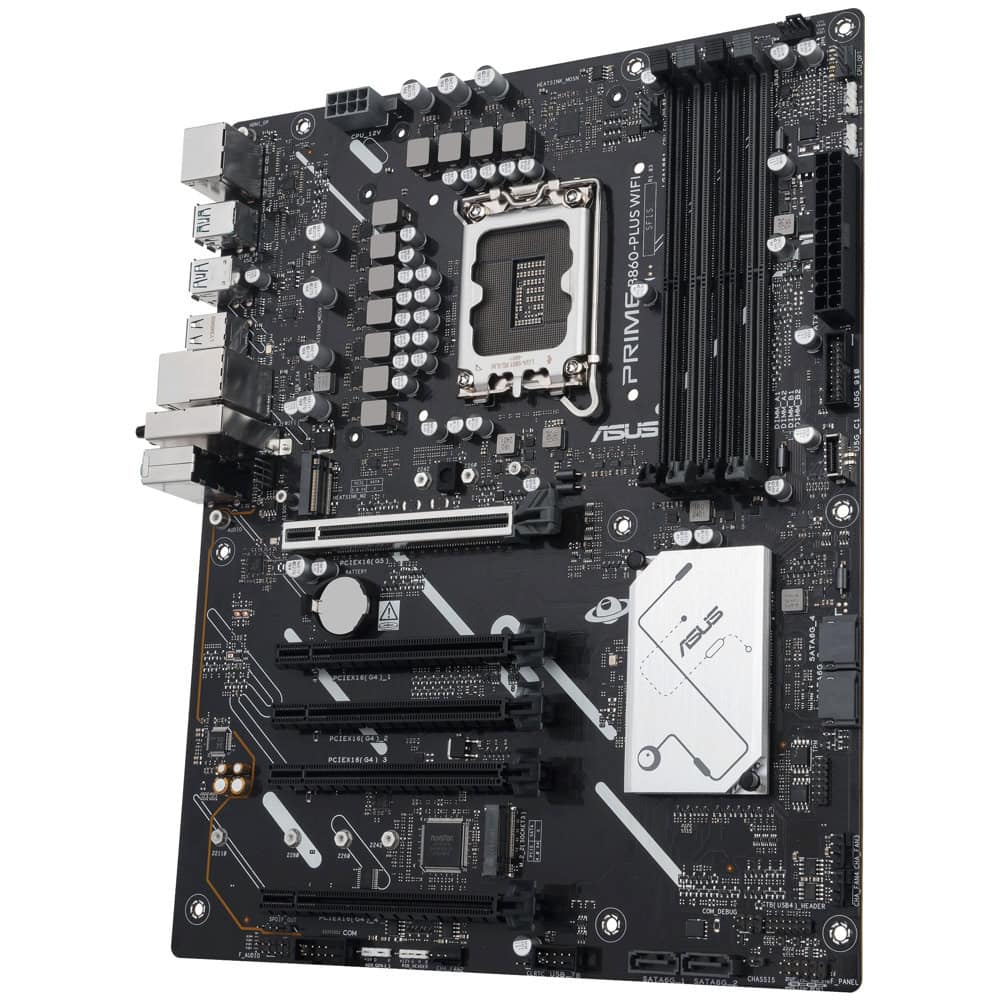

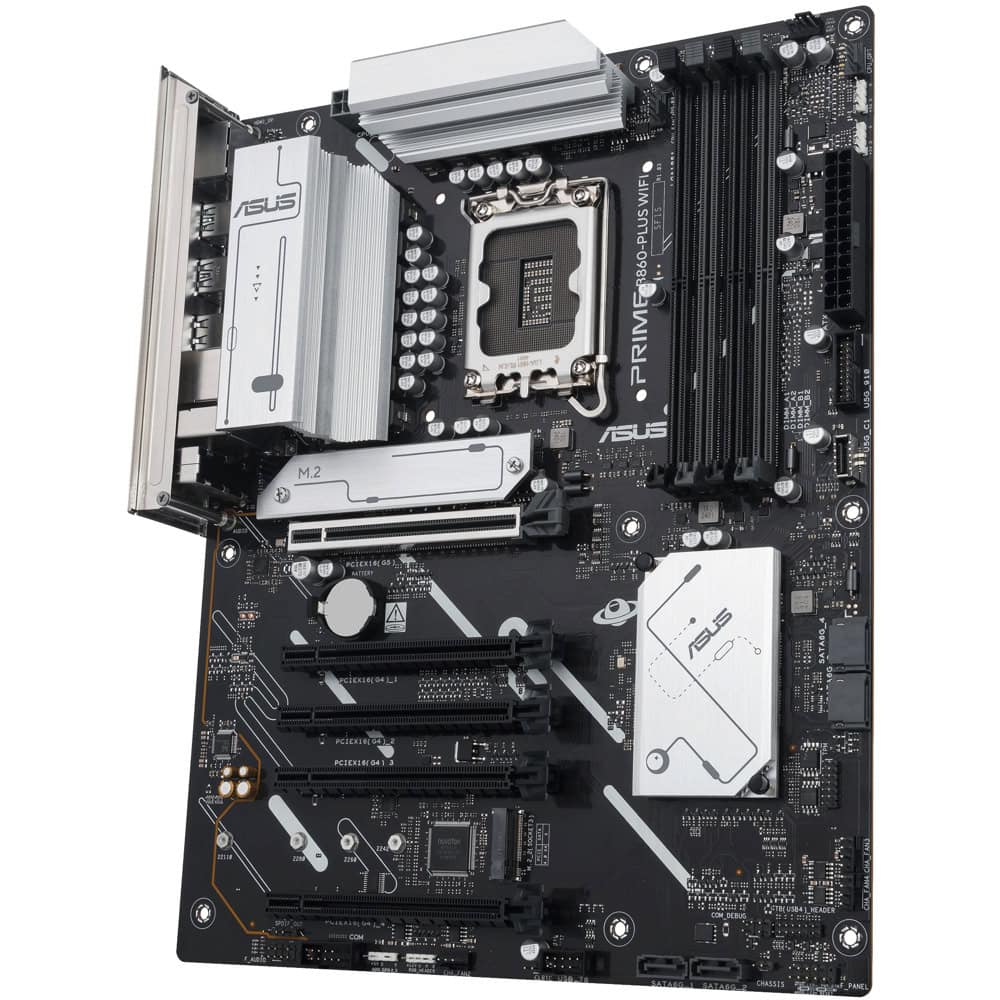

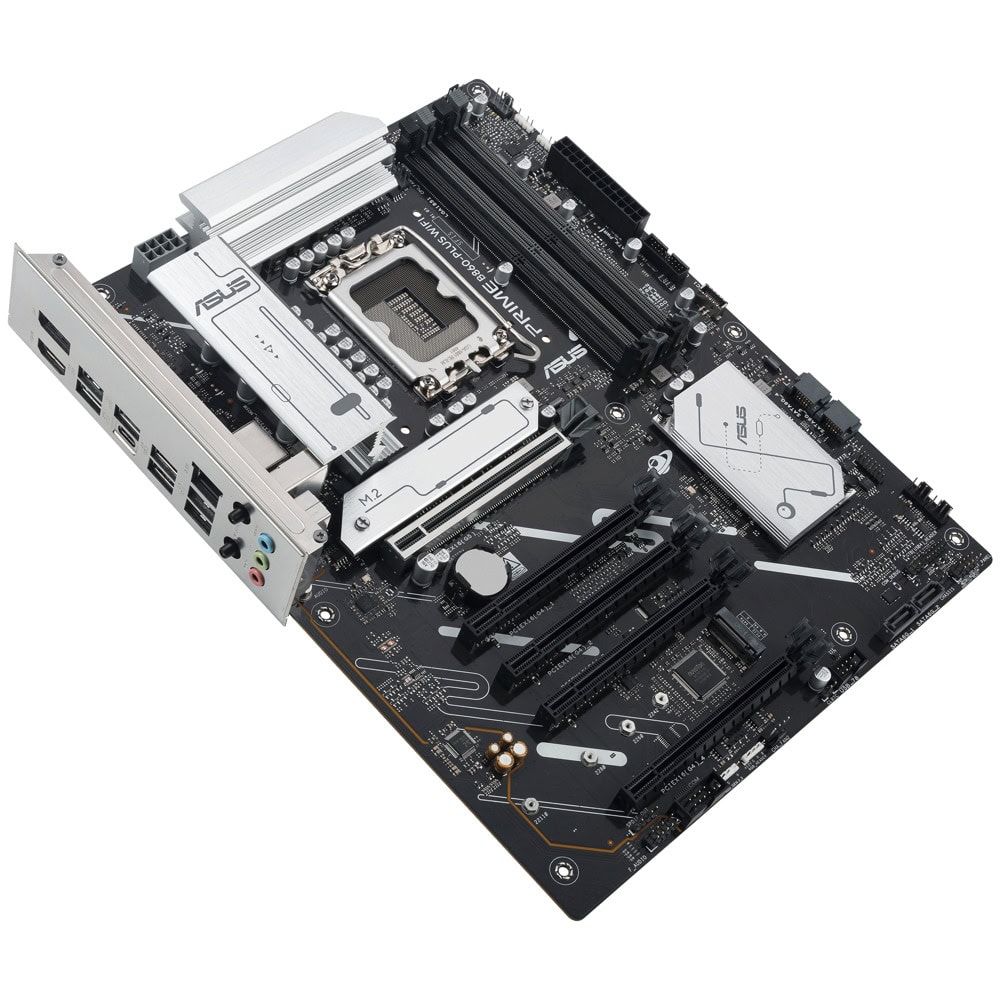

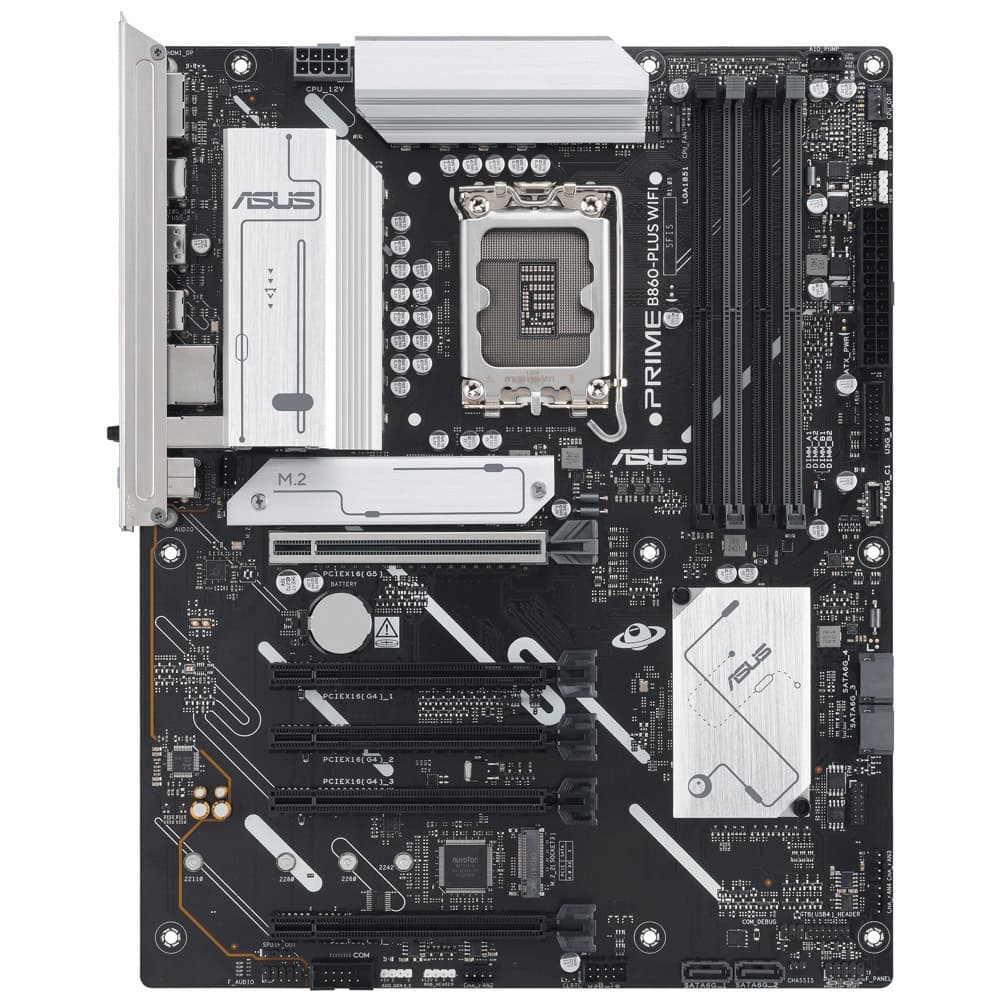

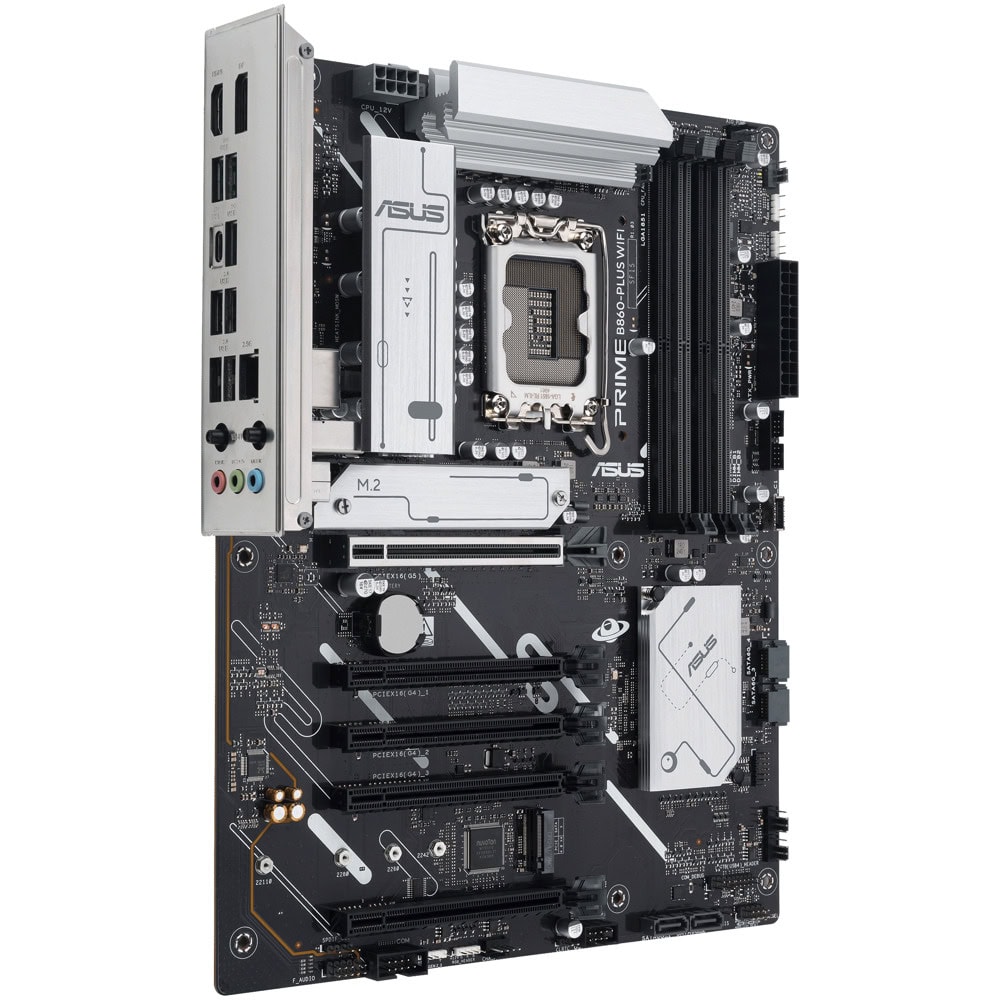

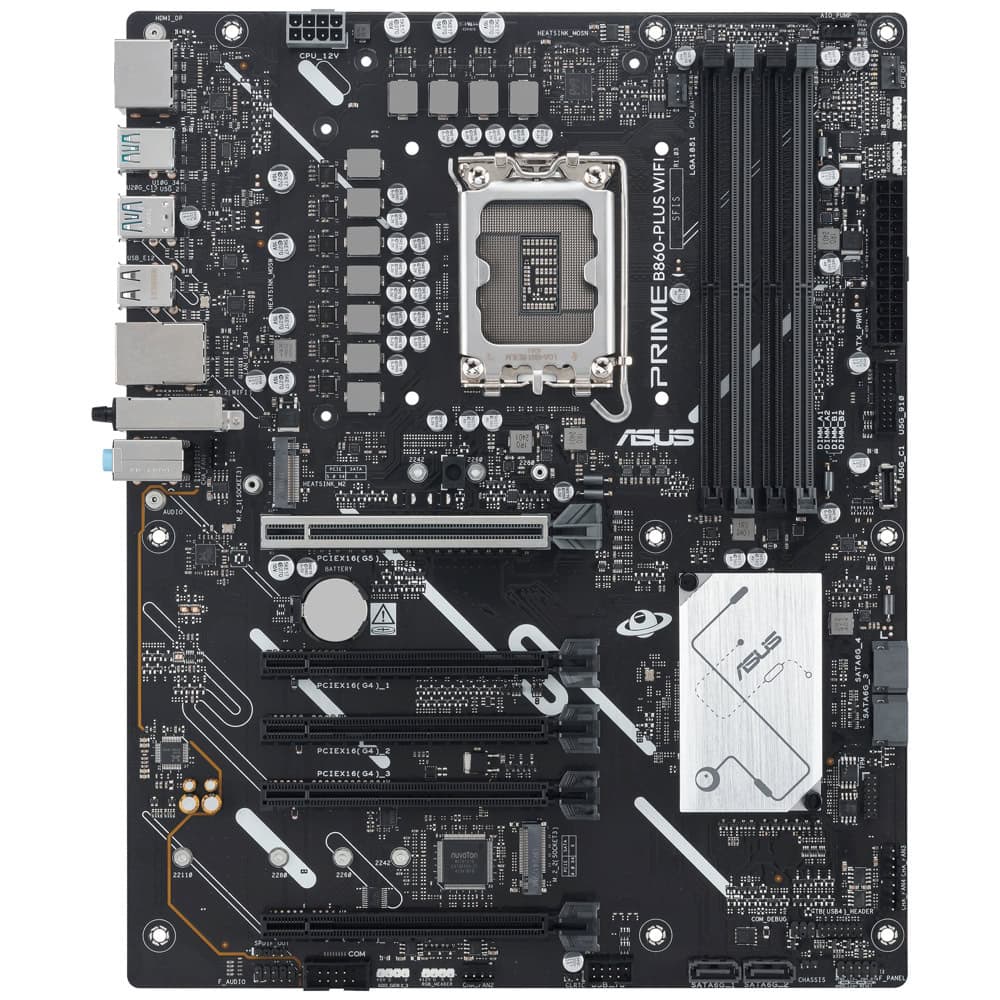

Дънна платка Asus PRIME B860-PLUS WIFI

Asus PRIME B860-PLUS WIFI
90MB1K50-M0EAY0

CPU
Support Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel B860 Chipset

Memory
4x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1x DisplayPort**
1x HDMI™ port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
Intel Core Ultra Processors (Series 2)*
1x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel B860 Chipset
1x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 8 ports)
1x USB 20Gbps port (1 x USB Type-C)
2x USB 10Gbps ports (2 x Type-A)
1x USB 5Gbps port (1 x Type-A)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1x USB 5Gbps port (1 x USB Type-C)
1x USB 5Gbps header supports additional 2 USB 5Gbps ports
1x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

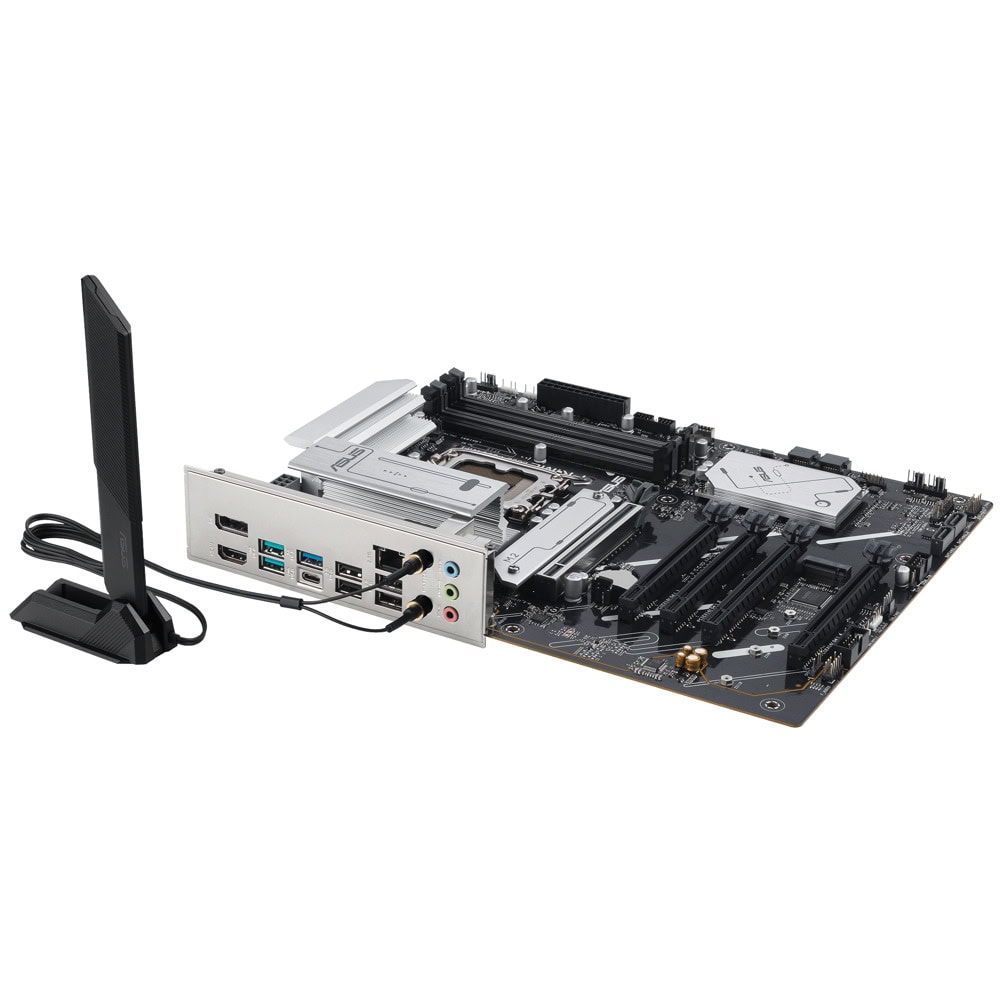

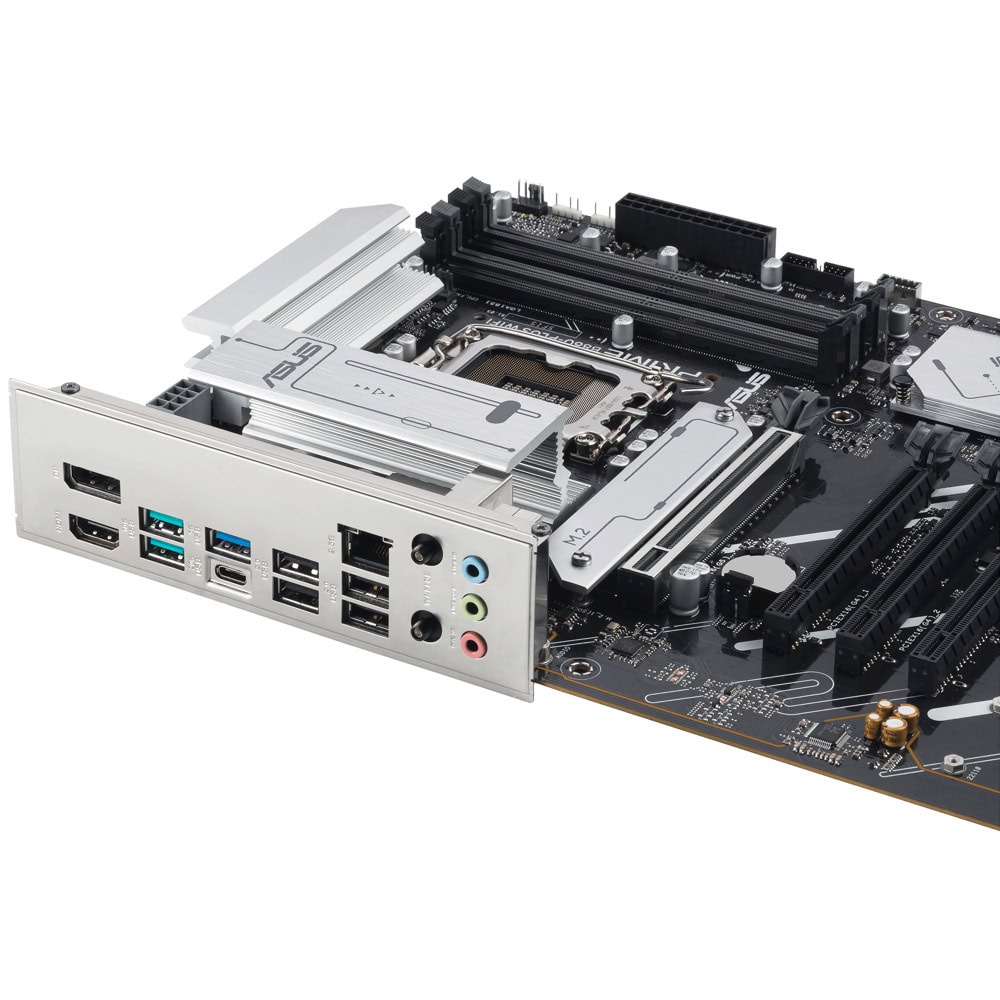

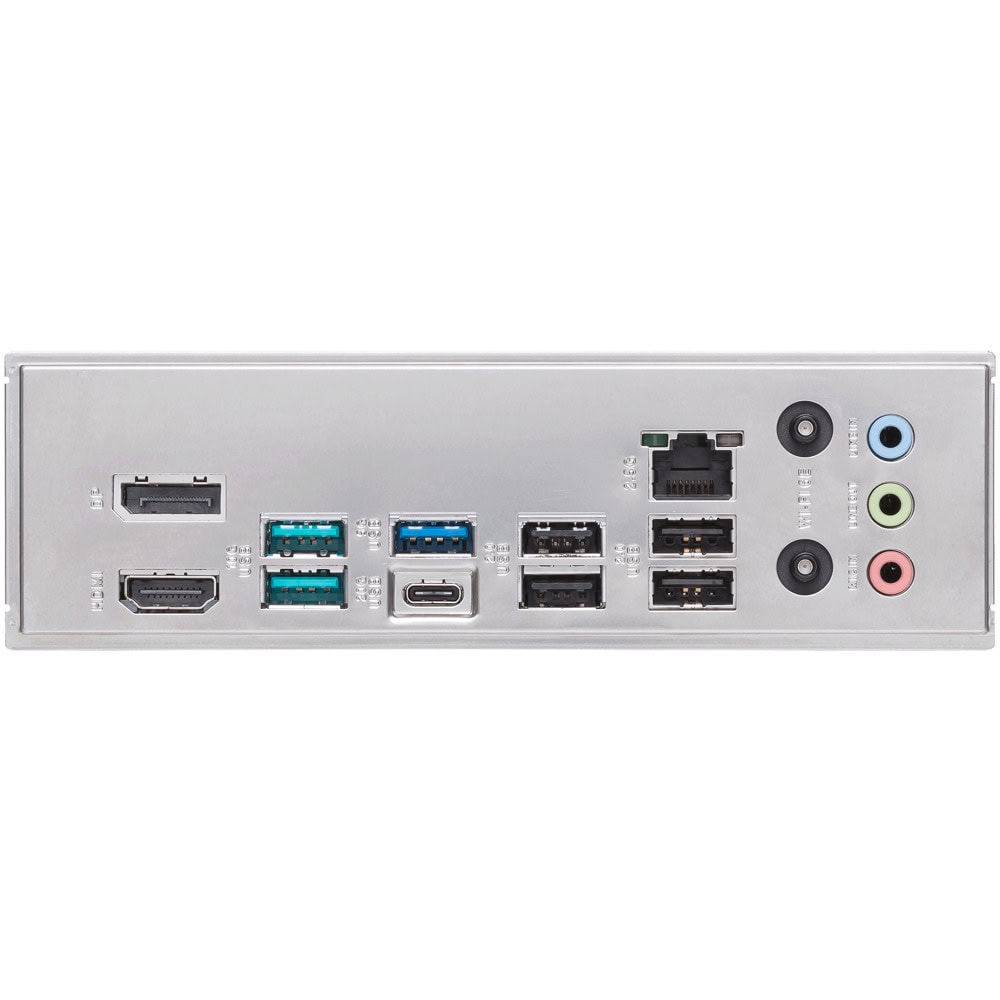

Back Panel I/O Ports
1x USB 20Gbps port (1x USB Type-C)
2x USB 10Gbps ports (2x Type-A)
1x USB 5Gbps port (1x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMI port
1x Wi-Fi module
1x Realtek 2.5Gb Ethernet port
3x Audio jacks

Internal I/O Connectors
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers

Power related
1x 24-pin Main Power connector
1x 8-pin +12V CPU Power connector

Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports

USB
1x USB 5Gbps connector (supports USB Type-C)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
1x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x Chassis Intrusion header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 10-1 pin Front System Panel header
1x Thunderbolt (USB4) header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS
2x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
