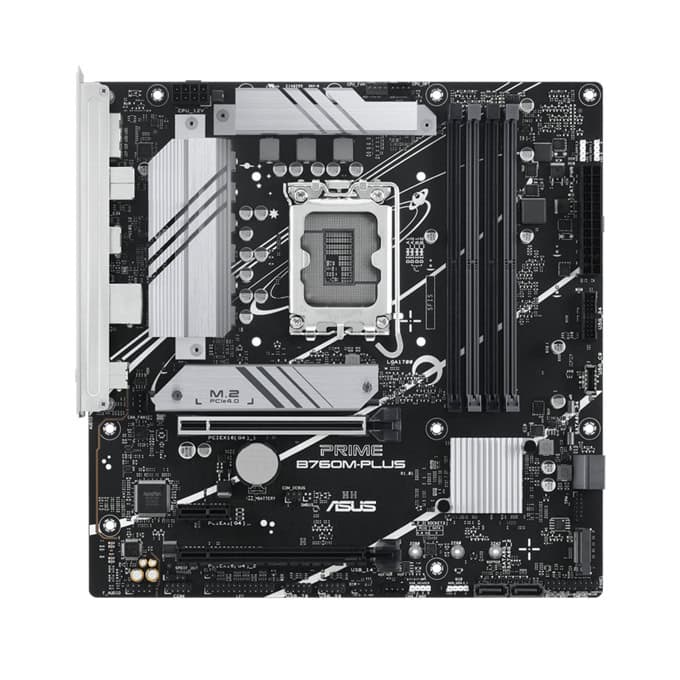

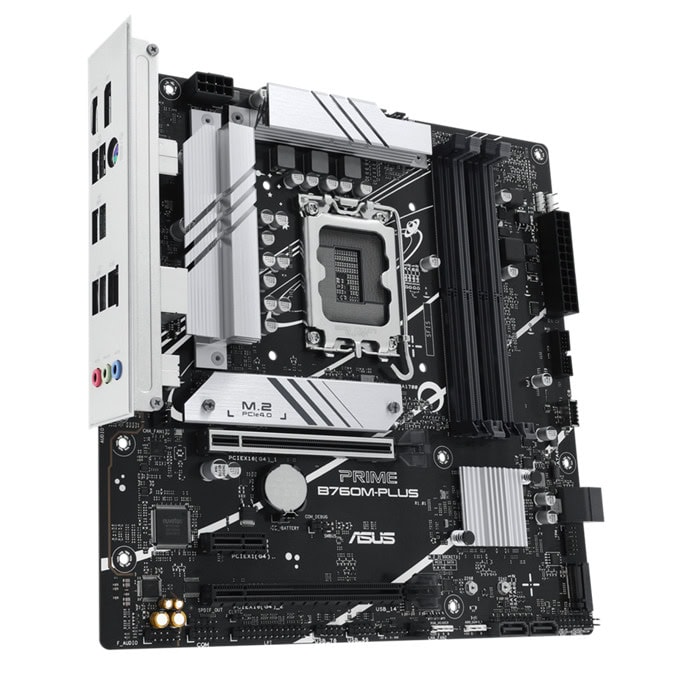

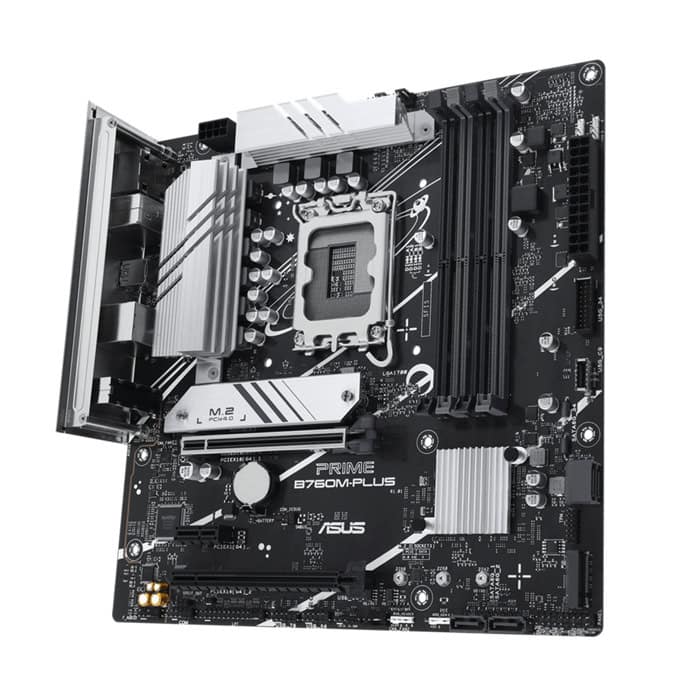

Дънна платка Asus PRIME B760M-PLUS

Asus PRIME B760M-PLUS

90MB1GY0-M0EAY0

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B760 Chipset

Memory

4x DIMM slots, max. 192GB, DDR5

7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile II (AEMP II)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI port***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel Core Processors (14th & 13th & 12th Gen)*

1x PCIe 4.0 x16 slot

Intel B760 Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 4.0 x1 slot

Storage

Total supports 2x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 6 ports)

2x USB 10Gbps ports (2x Type-A)

4x USB 2.0 ports (4x Type-A)

Front USB (Total 8 ports)

1x USB 5Gbps connector ((supports USB Type-C)

1x USB 5Gbps headers support 2 additional USB 5Gbps ports

3x USB 2.0 header support 5 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

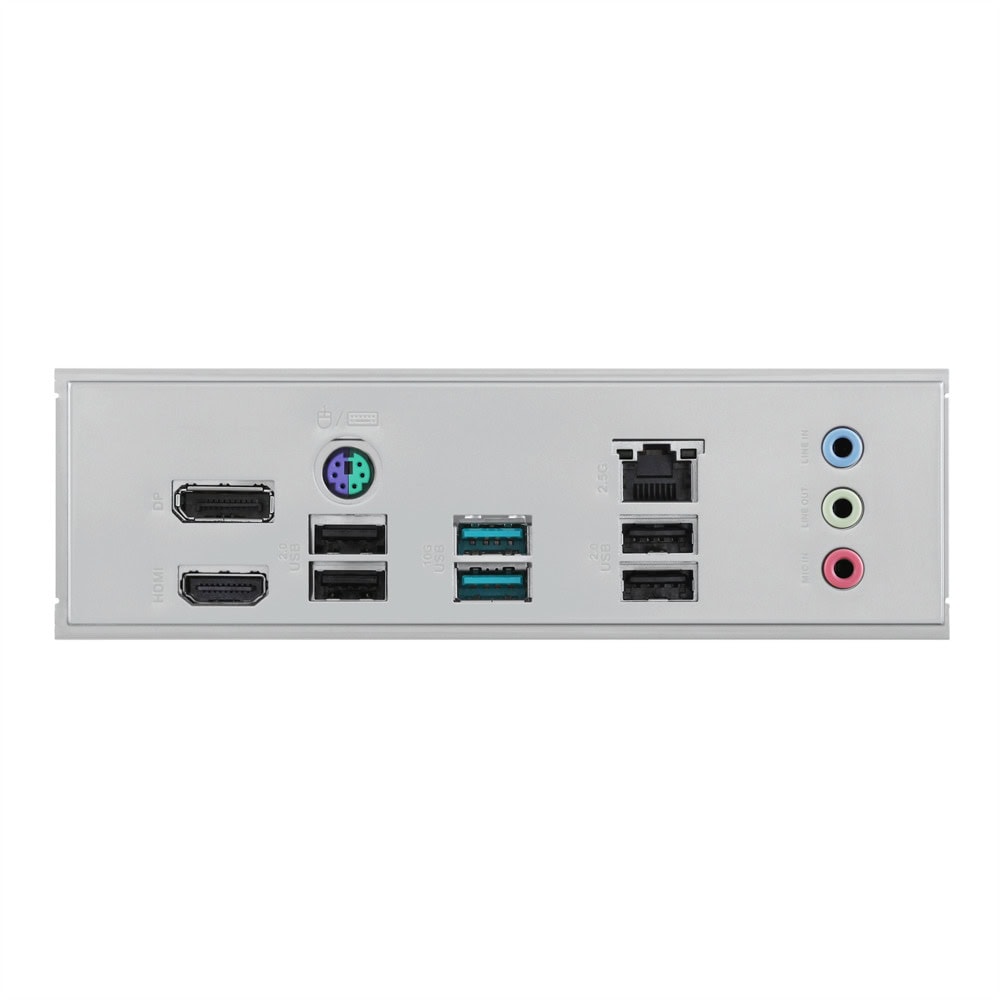

Back Panel I/O Ports

2x USB 10Gbps ports (2x Type-A)

4x USB 2.0 ports (4x Type-A)

1x DisplayPort

1x HDMI port

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

1x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

2x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

1x 8-pin +12V Power connector

Storage related

2x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 5Gbps connector (supports USB Type-C)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

3x USB 2.0 header support 5 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen 2 headers

1x Aura RGB header

1x Clear CMOS header

1x COM Port header

1x Front panel audio header (F_AUDIO)

1x LPT header

1x S/PDIF Out header

1x SPI TPM header (14-1pin)

1x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards
