Asus
Дънна платка Asus Prime B650M-K
Артикул №: 1000132355
Категория:
Компютърни компоненти
107,99 €
✓ Налично във външен склад

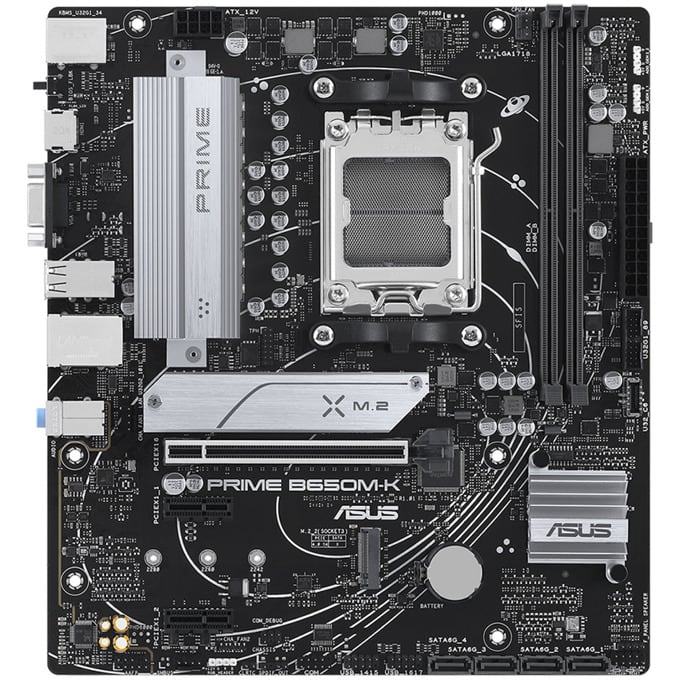

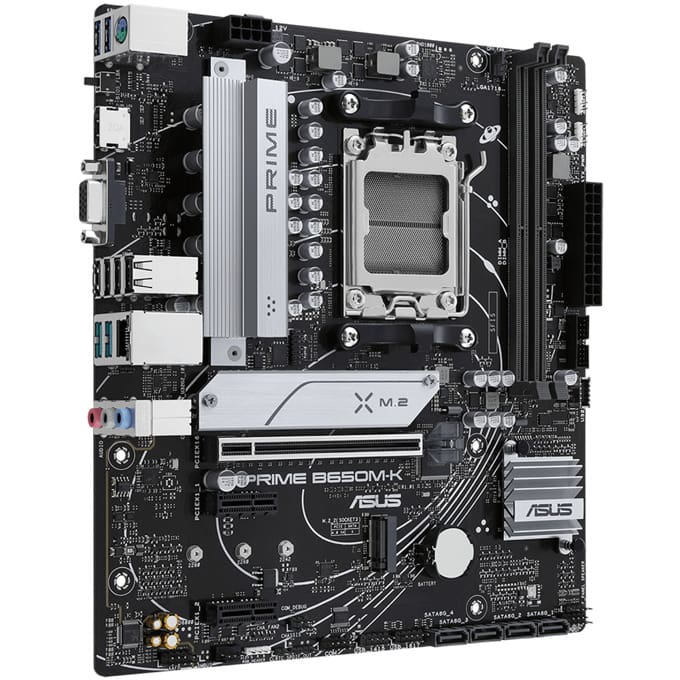

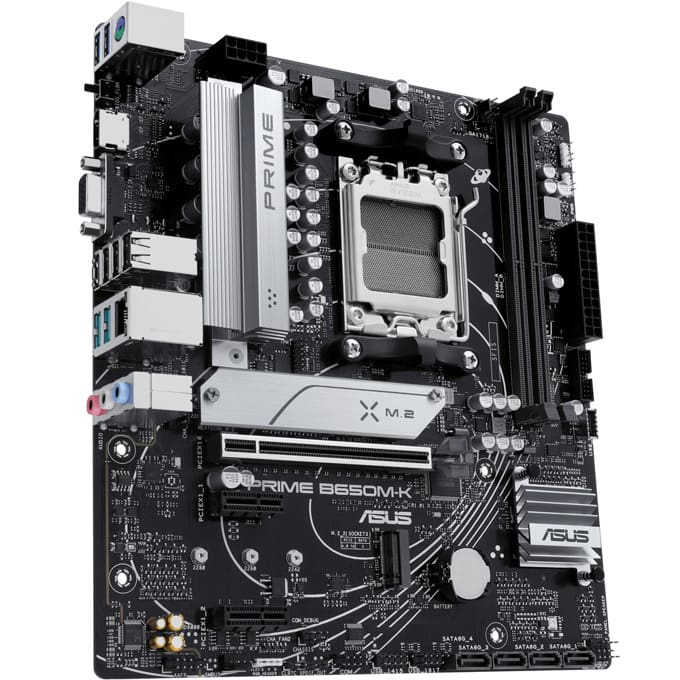

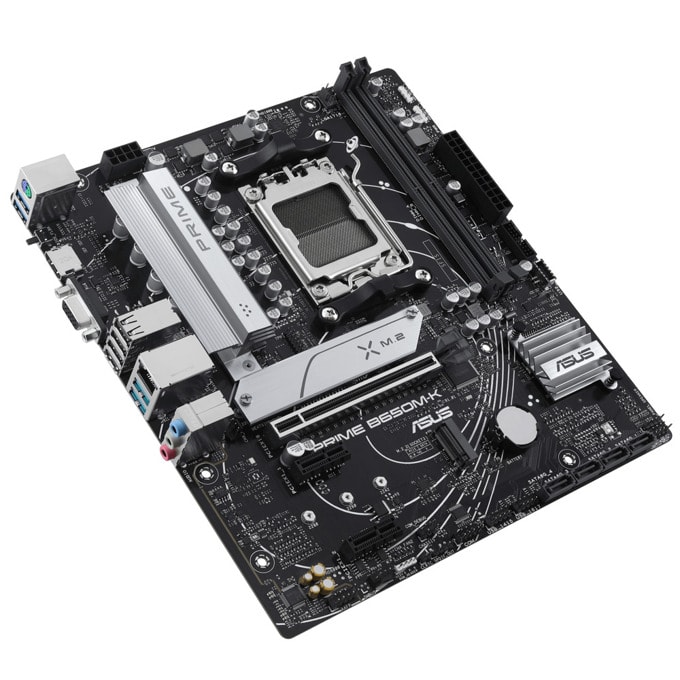

Asus Prime B650M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Характеристики
| Чипсет | Да |
| AMD B650 Chipset | Да |
| Памет | Да |
| ECC and Non-ECC, Un-buffered Memory* | Да |
| Dual Channel Memory Architecture | Да |
| Supports AMD Extended Profiles for Overclocking (EXPO) | Да |
| OptiMem II | Да |
| Графика | Да |
| X VGA port | 1 |
| X HDMI port** | 1 |
| Graphics specifications may vary between CPU types | Да |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Слотове за разширение | Да |
| AMD Ryzen | 7000 Series Desktop Processors |
| 1 x PCIe 4.0 | x16 slot (supports x16 mode) |
| AMD Ryzen | 8000 Series Desktop Processors |
| 1 x PCIe 4.0 | x16 slot (supports x8/x4 mode)* |
| AMD B650 Chipset | Да |
| 2 x PCIe 4.0 | x1 slots |
| Specifications vary by CPU types | Да |
| Капацитет за съхранение | Да |
| Total supports | 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen | 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| AMD Ryzen | 8000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| AMD B650 Chipset | Да |
| X SATA 6Gb/s ports | 4 |
| Specifications vary by CPU types | Да |
| Ethernet | Да |
| X Realtek 2.5Gb Ethernet | 1 |
| USB | Да |
| Rear USB (Total | 8 ports) |
| X USB 3.2 Gen 2 ports (2 x Type-A) | 2 |
| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| Front USB (Total | 7 ports) |
| X USB 3.2 Gen 1 connector (supports USB Type-C) | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Аудио | Да |
| Realtek | 7.1 Surround Sound High Definition Audio CODEC* |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 24-Bit/192 kHz playback |
| Audio Features | Да |
| Audio Shielding | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |

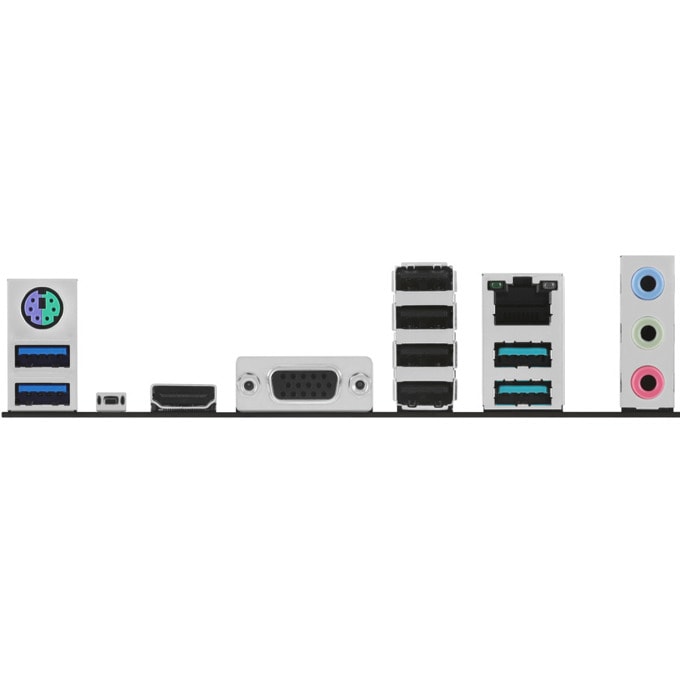

| Back Panel I/O Ports | Да |
| X USB 3.2 Gen 2 ports (2 x Type-A) | 2 |
| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X VGA port | 1 |
| X HDMI port | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 3 |
| X BIOS FlashBack button | 1 |
| X PS/2 Keyboard/Mouse combo port | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin Chassis Fan headers | 2 |
| Power related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V Power connector | 1 |
| Storage related | Да |
| X M.2 slots (Key M) | 2 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 3.2 Gen 1 connector (supports USB Type-C ) | 1 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 2 |
| X Aura RGB header | 1 |
| X Clear CMOS header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (AAFP) | 1 |
| X S/PDIF Out header | 1 |
| X Speaker header | 1 |
| X SPI TPM header (14-1pin) | 1 |
| X 10-1 pin System Panel header | 1 |
| BIOS | Да |
| Mb Flash ROM, UEFI AMI BIOS | 256 |
| Операционна система | Да |
| Windows | 11, Windows 10 64-bit |
| Форм фактор | Да |
| micro-ATX Form Factor | Да |
| Cm x 22.1 cm | 24.4 |
